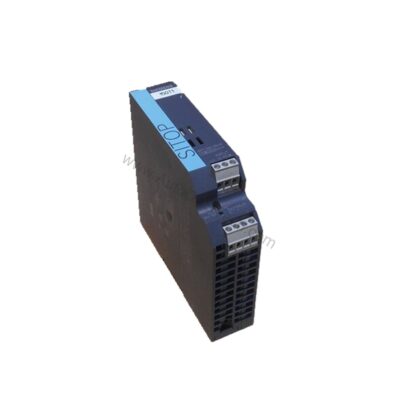

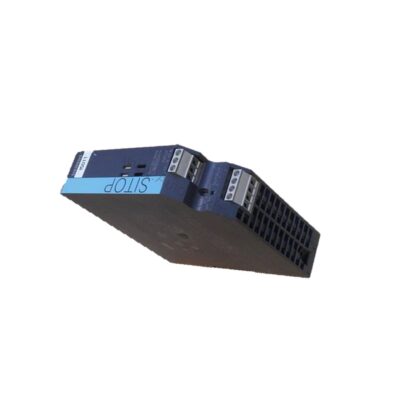

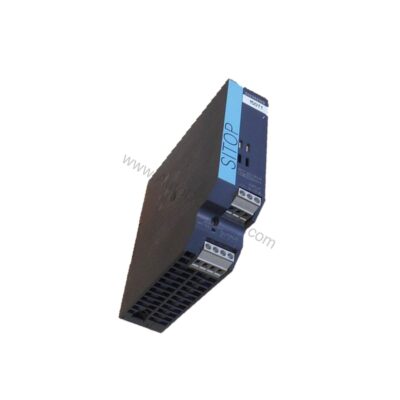

6EP1332-2BA10 24V 2.5A Stabilized Power Supply

Introduction to the Siemens 6EP1332-2BA10

When your control cabinet demands stable DC power, the 6EP1332-2BA10 from Siemens provides a dependable solution. This stabilized power supply converts single-phase AC input into a regulated 24V DC output, engineered for continuous industrial operation.

With a nominal input voltage of AC 120/230V (reconnectable), the unit adapts to various plant voltages. Its wide input range of AC 85 to 132V and 170 to 264V ensures resilience against grid fluctuations.

Key Features & Technical Specifications

The 6EP1332-2BA10 offers several parameters that matter for system design:

• Output voltage: DC 24V, adjustable from 22.8 to 28V
• Output current: 2.5A nominal, up to 3A at ambient temperatures up to +45°C
• Efficiency: approximately 85% at nominal values
• Total tolerance: ±3%, with residual ripple below 150 mVss
• Isolation: SELV to EN 60950, ensuring safe separation
• Protection: IP20 degree of protection, protection class I
• RFI: Class B to EN 55022 for electromagnetic compatibility
• Certifications: CE, UL/cUL, GL, ATEX

These specifications make the 6EP1332-2BA10 a robust choice for sensitive loads that require clean, stable DC power.

Applications & Use Cases

For example, in a packaging line, the 6EP1332-2BA10 ensures consistent power to PLCs and sensors, reducing nuisance downtime.

Additionally, its ATEX certification allows installation in potentially explosive atmospheres, making it suitable for chemical or pharmaceutical plants. The wide input range also supports global deployment without modification.

Installation & Setup

Mounting the 6EP1332-2BA10 is straightforward. The unit is designed for DIN rail mounting, and its compact size fits standard enclosures. Ensure adequate ventilation to maintain the ambient temperature within 0 to +60°C.

For input connection, select the correct voltage tap (120V or 230V) before energizing. Use appropriate fusing and disconnect devices per local electrical codes. Output terminals accept up to 2.5mm² wire, and the adjustable output voltage allows fine-tuning to match load requirements.

Maintenance & Reliability

Routine inspection of the 6EP1332-2BA10 is minimal due to its solid-state design. Periodically check for dust accumulation on the enclosure and ensure airflow paths are clear. Verify that the output voltage remains within the adjustable range under load.

Because of its high efficiency, the unit generates less heat, extending component life. The SELV isolation adds a safety margin, protecting downstream electronics from transients.

Troubleshooting & Common Issues

If the output voltage is absent, first verify the input supply and fuse. Confirm that the voltage selector matches the incoming AC line. If the unit trips under load, check for short circuits or overloads beyond the 3A peak capability.

Residual ripple above 150 mVss may indicate excessive capacitive loading or a failing input source. In such cases, review the load profile and consider adding output capacitance if needed.

Support & Availability

The 6EP1332-2BA10 is available from AutoDCSTech. Contact our team for current pricing and lead times. We offer fast shipping and technical support to assist with your integration.
