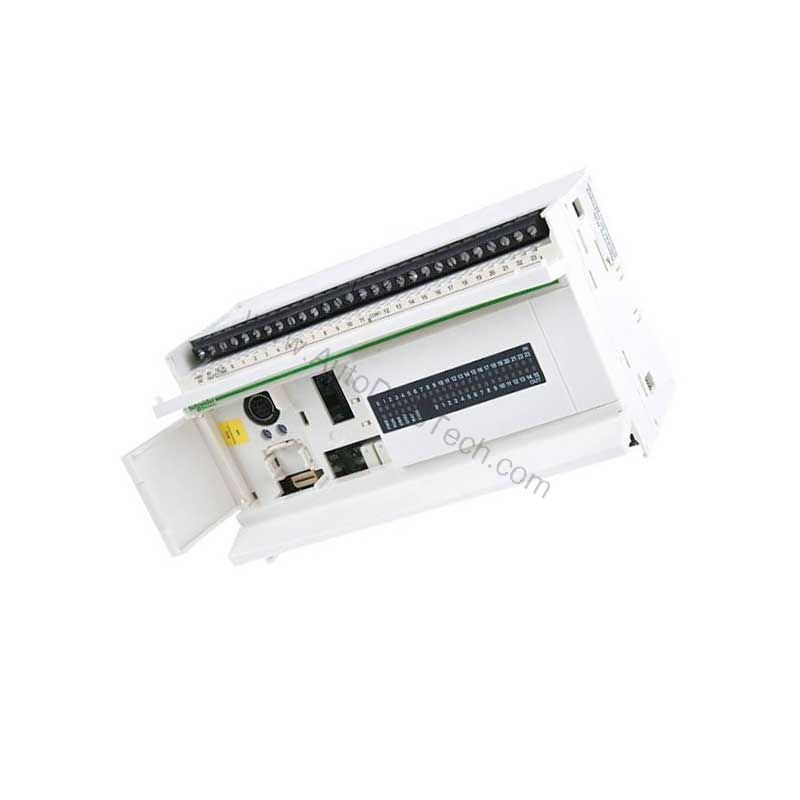

Cost-Effective Automation with the SOR TWDLCAE40DRF Compact PLC Base
When building or upgrading a control system, every component choice impacts both upfront capital and long-term operational expenses. The SOR TWDLCAE40DRF compact base controller from the Twido series offers a balanced solution for applications requiring reliable logic control without overspending. This module integrates 24 discrete inputs (24V DC, sink or source) and 16 outputs (2 transistor, 14 relay) in a single unit, reducing wiring and enclosure costs.
Technical Specifications Breakdown
Key parameters for the TWDLCAE40DRF are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | Compact base controller |
| Discrete I/O Number | 40 |
| Discrete Input Number | 24 |
| Discrete Input Voltage | 24 V DC |
| Discrete Output Number | 2 transistor, 14 relay |
| Rated Supply Voltage | 100...240 V AC |
| Integrated Connection Type | Ethernet TCP/IP RJ45 10/100 Mbit/s |
| Non-Isolated Serial Link | Mini DIN Modbus/character mode master/slave RTU/ASCII RS485 half duplex, 38.4 kbit/s |
| Program Memory | 3000 instructions |
| Product Weight | 0.525 kg |
| Ambient Air Temperature for Operation | 0...55 °C |
| IP Degree of Protection | IP20 |
Industry Applications and Cost Impact
The TWDLCAE40DRF is well-suited for small to medium-sized machine control, packaging lines, and material handling systems. By combining 24 inputs and 16 outputs in one base, it eliminates the need for multiple expansion modules in simpler setups, directly lowering hardware and installation costs. The integrated Ethernet TCP/IP port (10/100 Mbit/s) supports modern networking without extra communication modules, reducing both capital expenditure and ongoing maintenance overhead.
Installation and Setup Guidance
Mount the controller on a 35 mm symmetrical DIN rail (as per vibration resistance data: 0.075 mm at 10...57 Hz, 1 gn at 57...150 Hz). Use the non-removable screw terminal block for I/O connections. Ensure the supply voltage is within 85...264 V AC (limits) and network frequency between 47...63 Hz. The internal fuse provides power protection; do not bypass it. For serial communication, use the mini DIN port with Modbus RTU/ASCII RS485 half duplex at up to 38.4 kbit/s.
Maintenance and Reliability
With an ambient operating temperature range of 0...55 °C and storage from -25...70 °C, the controller is suitable for typical industrial environments. The relay outputs offer mechanical durability of ≥20,000,000 cycles and electrical durability of ≥100,000 cycles, ensuring long service life. Periodically inspect the unit for dust accumulation and verify that the internal battery (TSXPLP01, 3 years backup) is replaced before expiration to maintain data retention.
Compatibility and Integration
The TWDLCAE40DRF supports up to 7 I/O expansion modules, allowing system growth up to 264 I/O points via HE-10 connectors. Communication options include Ethernet TCP/IP (BOOTP client, Modbus messaging) and a non-isolated serial link for Modbus/character mode. This flexibility lets you integrate the controller into existing networks without costly protocol converters.
Selection Guide and Purchasing Advice
When selecting a compact controller, evaluate your I/O count, communication needs, and environmental conditions. The TWDLCAE40DRF provides a cost-effective foundation for systems requiring up to 40 local I/O with Ethernet connectivity. For lifecycle status and availability, please verify with SpareTechPLC before ordering. SpareTechPLC stocks this model and can advise on compatible expansion modules and accessories.
Troubleshooting and Common Issues
If the module does not power on, check the supply voltage (85...264 V AC) and the internal fuse. Verify the green PWR LED is lit. If communication fails, ensure the Ethernet cable is connected to the RJ45 port and that the BOOTP client is configured correctly. For serial link issues, confirm the baud rate (38.4 kbit/s) and protocol settings match the connected device.
