Product Overview

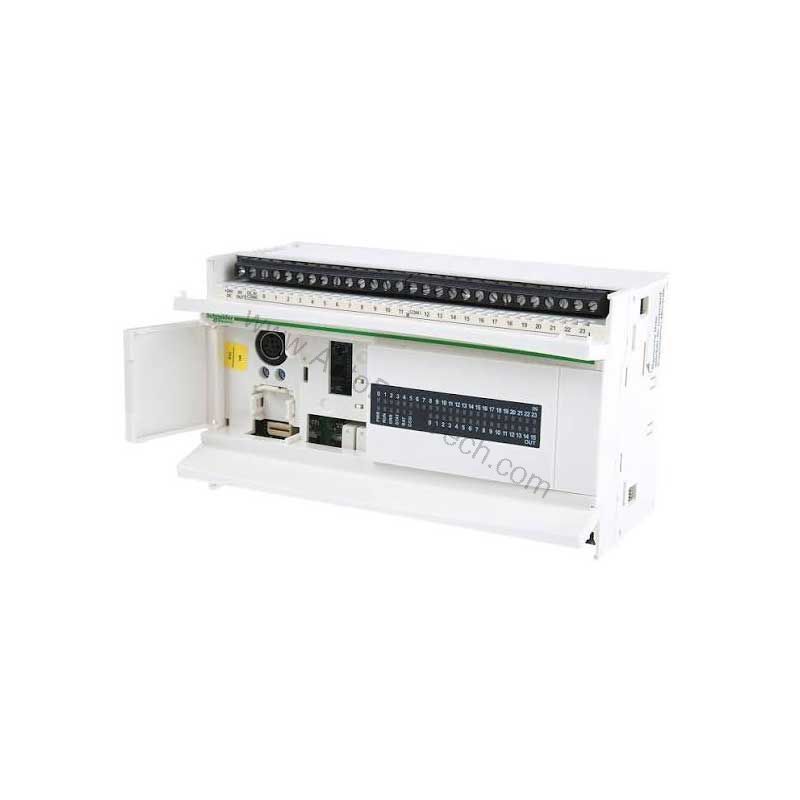

The Schneider TWDLCAA40DRF is a Compact Base Controller from the Twido range, designed for reliable and flexible industrial automation. With 40 discrete I/O points, it integrates 24 DC inputs and 14 relay plus 2 transistor outputs, making it suitable for a wide variety of control applications. The controller operates on a rated supply voltage of 100...240 V AC and includes integrated serial communication via a non-isolated RS485 link supporting Modbus RTU/ASCII master/slave protocols.
Technical Specifications Breakdown
Key specifications of the TWDLCAA40DRF include:
- Discrete I/O: 40 total (24 inputs, 14 relay outputs, 2 transistor outputs)
- Input Voltage: 24 V DC, with limits of 20.4...26.4 V
- Supply Voltage: 100...240 V AC (limits 85...264 V), 50/60 Hz
- Program Memory: 3000 instructions
- Communication: Serial link (RS485) Modbus/character mode master/slave RTU/ASCII, half duplex, 38.4 kbit/s
- Power Consumption: 65 VA at 100 V, 77 VA at 264 V
- Dimensions: 7 cm x 9 cm x 9.5 cm; weight 0.525 kg
- Protection: Internal fuse; IP20 degree of protection
The controller supports up to 7 I/O expansion modules, allowing a maximum I/O count of 152 with removable screw terminal blocks. It also features a real-time clock with a drift of ≤30 s/month and 30 days of operation.
Industry Applications
The TWDLCAA40DRF is ideal for small to medium-sized automation tasks such as packaging machines, conveyor control, and simple process control. Its built-in PID function and event processing enable precise regulation in temperature or pressure control loops. The Modbus serial interface allows easy integration with SCADA systems or other controllers, reducing wiring and simplifying commissioning.
Installation & Setup Guidance
Mount the controller on a 35 mm symmetrical DIN rail or a panel using a fixing kit. Connect the 100...240 V AC supply to the designated terminals, ensuring the supply voltage stays within 85...264 V. Wire discrete inputs as sink or source logic (24 V DC). For relay outputs, use the non-removable screw terminal block and respect the load current limits: 2 A at 240 V AC or 30 V DC (resistive or inductive load) with an operating rate of 30 cycles per minute. The controller includes a memory cartridge slot for backup and expansion.
Maintenance & Reliability
Routine maintenance involves inspecting the internal fuse and ensuring the ambient temperature stays between 0...55 °C. The controller has an insulation resistance greater than 10 MOhm at 500 V between I/O and earth terminals. Relay outputs have a mechanical durability of ≥20,000,000 cycles and electrical durability of ≥100,000 cycles. The internal RAM is backed up by an external battery (TSXPLP01) for up to 3 years, ensuring data retention during power loss.
Compatibility & Integration
The TWDLCAA40DRF integrates seamlessly with Twido expansion modules via its I/O bus. It supports Modbus RTU/ASCII communication over RS485, enabling connection to HMIs, drives, and other Modbus devices. The controller also includes a serial link interface adaptor for RS232C/RS485 connectivity. Counting inputs (2 channels at 20 kHz, 32 bits; 4 channels at 5 kHz, 16 bits) and PWM/PLS outputs (2 channels at 7 kHz) allow interfacing with encoders and positioning systems.
Selection Guide & Purchasing Advice
Before purchasing the TWDLCAA40DRF, verify your I/O count and expansion needs. The base unit provides 40 I/O; with up to 7 expansion modules, you can reach 152 I/O (removable screw terminal) or up to 264 I/O with HE-10 connectors. Consider the external battery TSXPLP01 for extended data backup. SpareTechPLC offers this controller with fast shipping and expert support to ensure you get the right part for your application.
Frequently Asked Questions
Q: What is the maximum number of expansion modules for the TWDLCAA40DRF?
A: The controller supports up to 7 I/O expansion modules.
Q: What communication protocols does the TWDLCAA40DRF support?
A: It supports Modbus RTU/ASCII master/slave over RS485, half duplex at 38.4 kbit/s, and also includes a serial link interface for RS232C.
Q: What is the program memory size of the TWDLCAA40DRF?
A: It has 3000 instructions of program memory.
Q: Can the TWDLCAA40DRF handle analog inputs?
A: It includes one analog adjustment point (0...1023 or 0...511 points) but does not have dedicated analog input channels. For analog I/O, use expansion modules.
Q: What is the power consumption of the TWDLCAA40DRF?
A: It consumes 65 VA at 100 V and 77 VA at 264 V.
