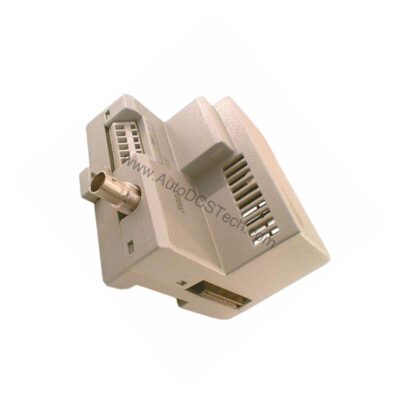

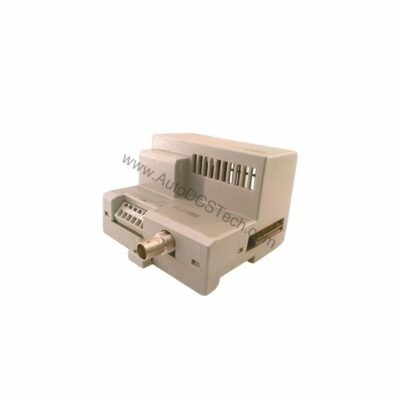

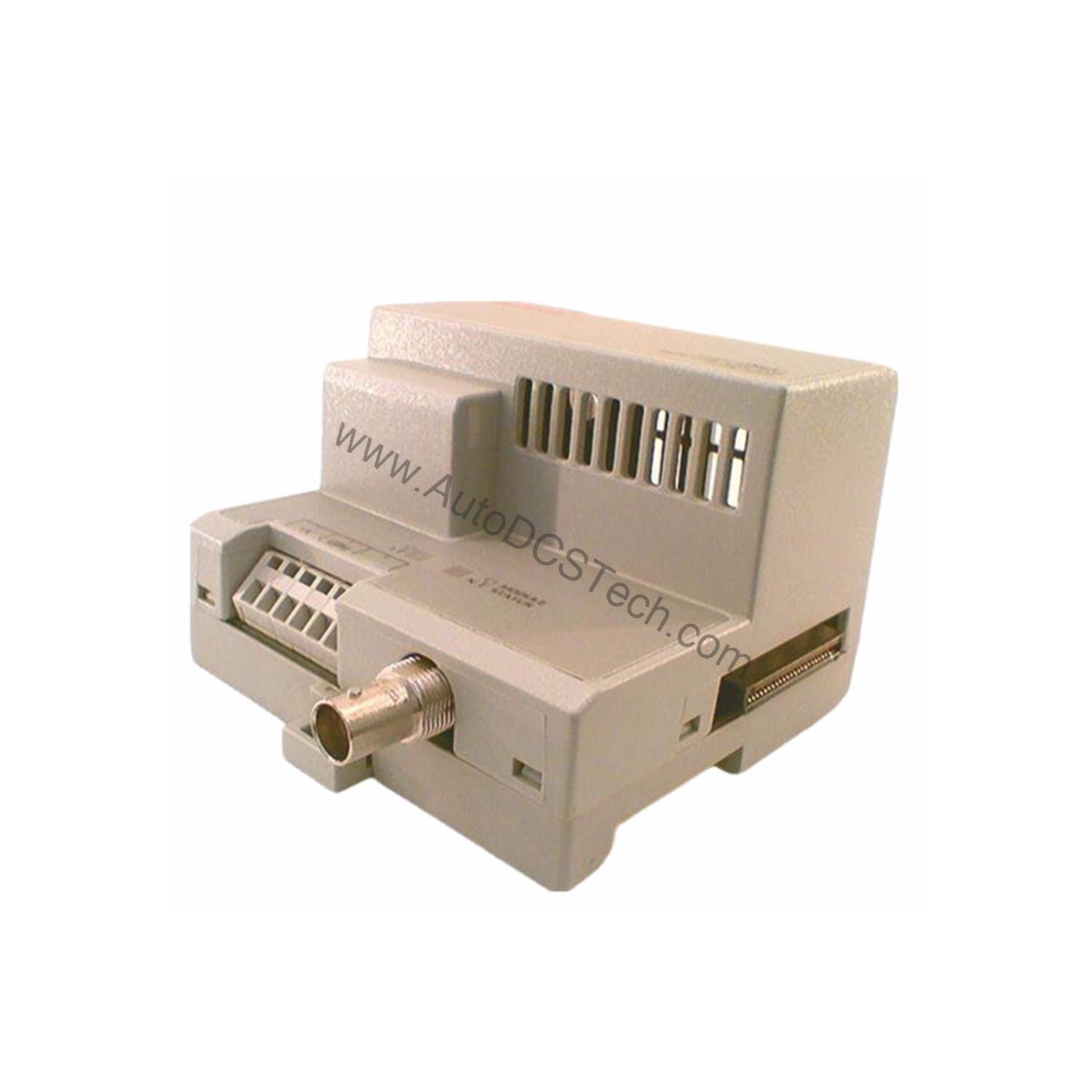

Honeywell TC-RPA001 ControlNet Repeater Adapter for Non-Hazardous Areas

Technical Specifications Breakdown

Key parameters for the TC-RPA001 are listed below for quick reference:

Industry Applications

Extended Process Lines – In plants where control cabinets are spread over large areas, the repeater boosts the ControlNet signal to maintain 5M bit/s communication across long cable runs. This reduces downtime caused by weak signals.

Harsh Electrical Environments – With galvanic isolation between TTL bus, ControlNet, and power supply, the module protects against ground loops and voltage transients, which is critical in facilities with heavy machinery.

Fiber-Optic Integration – Supporting two fiber modules, the adapter allows you to convert electrical ControlNet to fiber-optic media, providing immunity to electromagnetic interference and enabling longer distances.

Installation & Setup Guidance

1. Mounting – Install the module in a suitable enclosure rated for non-hazardous locations. Ensure adequate airflow to stay within the –20°C to 70°C ambient range.
2. Power Wiring – Connect 20 to 35Vdc (24Vdc nominal) to the power terminals. Use 12 AWG (4mm²) stranded wire with insulation up to 0.0469in. Observe polarity.
3. ControlNet Cable – Use Belden 3092A cable for the ControlNet trunk. Terminate properly with the required 75-ohm resistors (not supplied).
4. Fiber Modules – Insert up to two fiber modules into the designated slots. Follow the manufacturer's instructions for fiber connector cleaning.
5. Grounding – Ensure the TTL bus and power supply are properly grounded per your system design. The internal bus is vendor-specific, so refer to your Honeywell documentation.

Maintenance & Reliability

The TC-RPA001 is built for industrial longevity. Its vibration tolerance of 2g at 10Hz to 500Hz and shock rating of 15g peak ensure reliable operation in demanding settings. To maintain reliability:

• Periodic Inspection – Check all cable connections and fiber terminations every 6 months.
• Cleanliness – Keep the enclosure free of dust and moisture. The module tolerates up to 95% relative humidity (non-condensing), but condensation can cause corrosion.
• Temperature Monitoring – Verify that the ambient temperature stays within –20°C to 70°C. Overheating reduces component life.
• Firmware Updates – If applicable, keep the module's firmware current per Honeywell advisories.

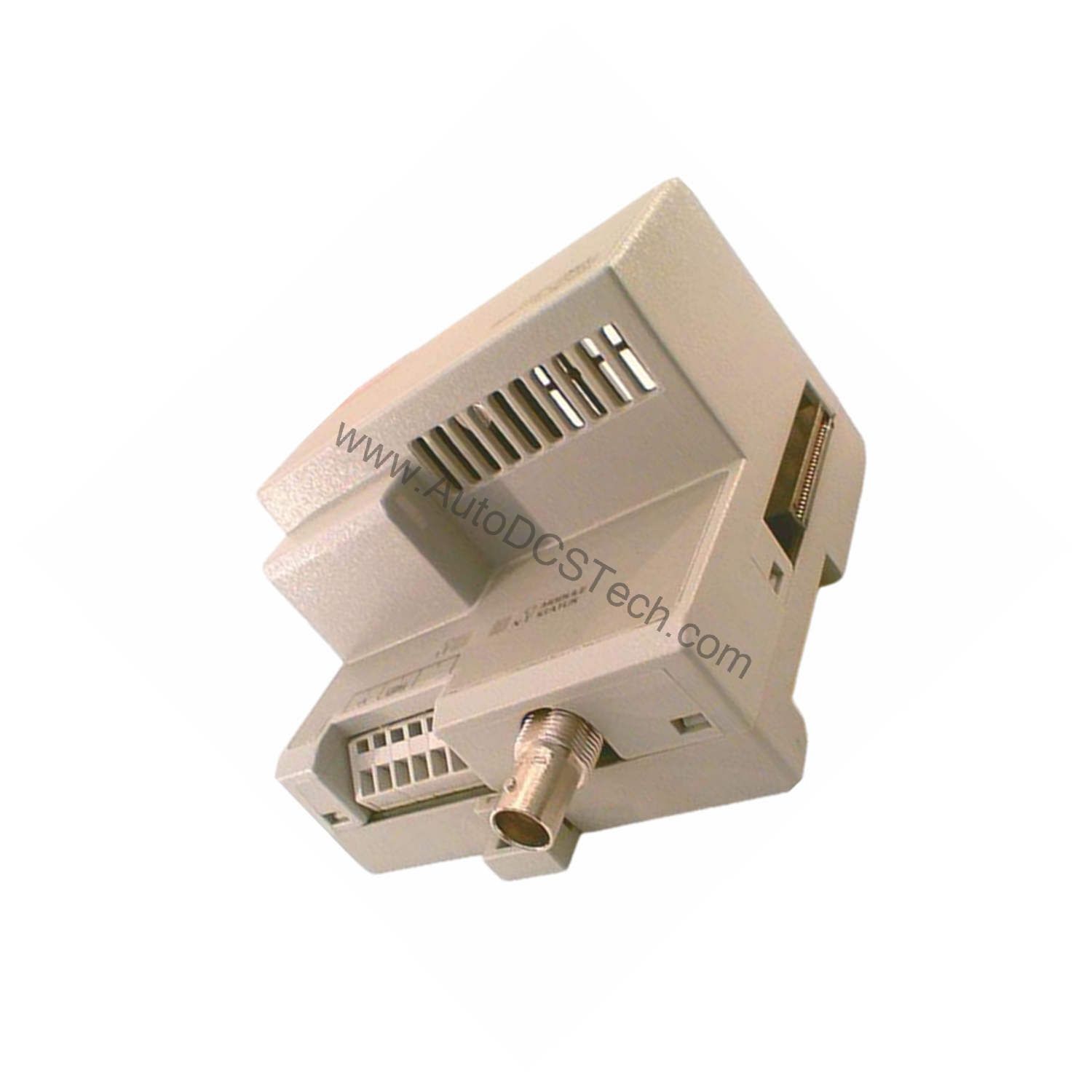

Honeywell TC-RPA001 ControlNet Repeater Adapter

Industrial networks demand reliable signal integrity, especially when distances exceed standard cable limits. The Honeywell TC-RPA001 ControlNet Repeater Adapter regenerates and extends your ControlNet segment, ensuring consistent communication in non-hazardous environments. This module supports two fiber modules and operates on a 20 to 35Vdc input (24Vdc nominal), making it a robust choice for modern control systems.

Compatibility & Integration

The external bus is ControlNet International Version 1.5, intrinsically safe. This makes the repeater compatible with standard ControlNet networks using Belden 3092A cable. The internal TTL bus is vendor-specific, meaning it is designed to interface with Honeywell's proprietary backplane. When integrating, confirm that your controller and scanners support ControlNet International Version 1.5.

Selection Guide & Purchasing Advice

When selecting a repeater for your ControlNet network, consider the number of nodes, cable length, and environmental conditions. The TC-RPA001 offers two fiber module slots, allowing you to expand your network topology. For non-hazardous areas, this adapter provides a cost-effective solution compared to intrinsically safe models.

At AutoDCSTech, we stock the Honeywell TC-RPA001 and other industrial automation parts. Our team can help you verify compatibility and lifecycle status. Contact us before ordering to ensure this module meets your application needs.

Troubleshooting & Common Issues

No Communication – Check the power supply voltage (must be 20-35Vdc) and polarity. Verify that the ControlNet cable is Belden 3092A and properly terminated.

Intermittent Errors – Inspect fiber connections for dirt or damage. Clean with appropriate fiber tools. Ensure the fiber modules are seated correctly.

Overheating – If the module exceeds 70°C, improve ventilation or reduce ambient temperature. Check for obstructions around the enclosure.

Ground Loops – The built-in galvanic isolation helps, but ensure that the TTL bus and power supply grounds are not tied together unless specified.

For persistent issues, consult the Honeywell documentation or contact AutoDCSTech for technical support.
