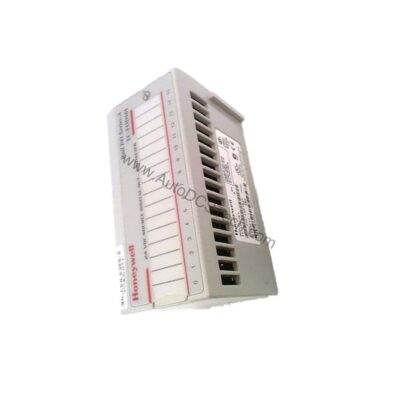

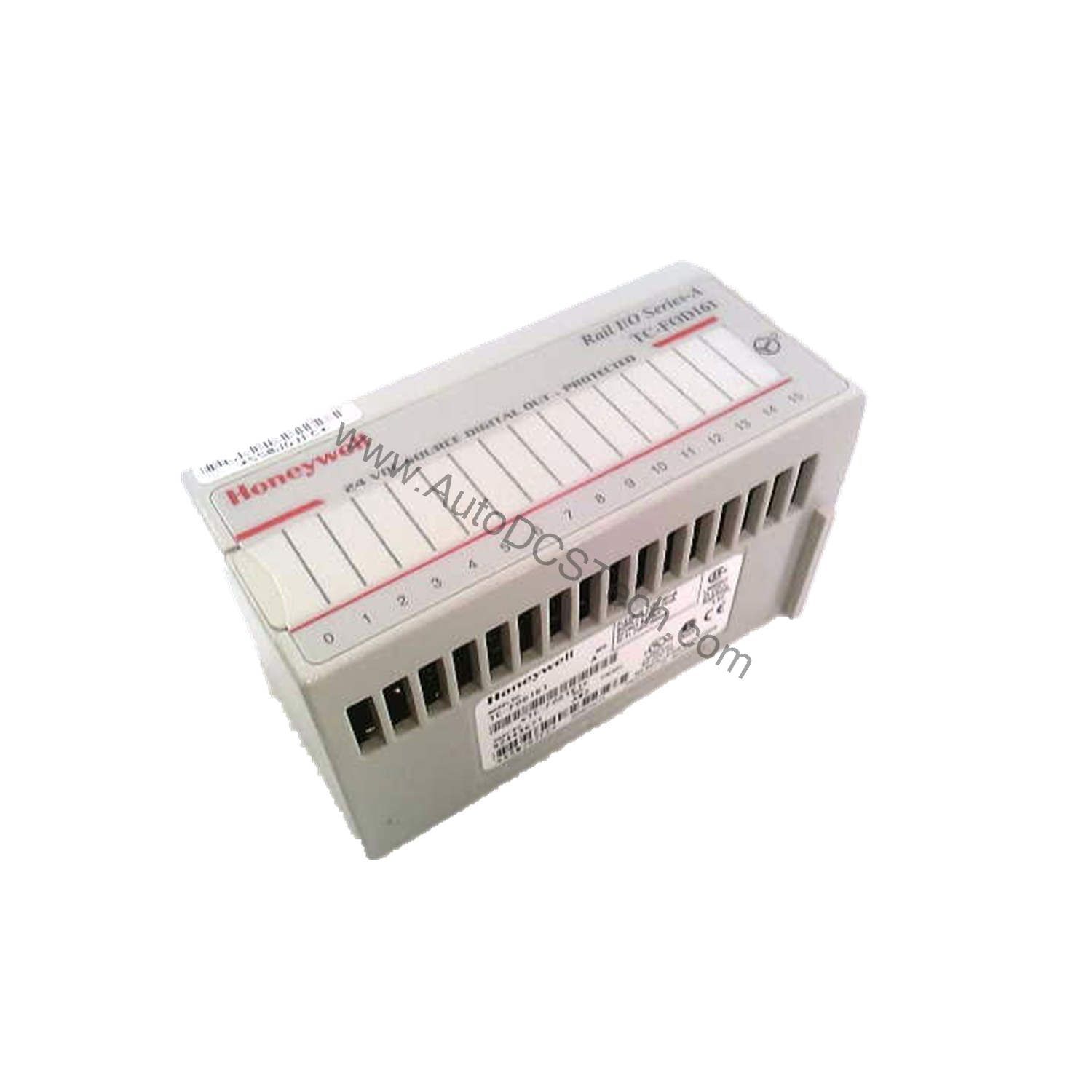

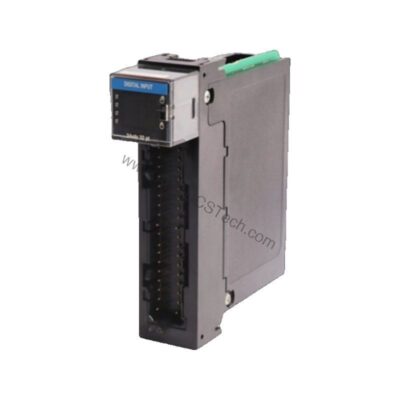

Honeywell TC-FID161 24 Vdc Sink Digital Input Module | 16-Channel

Technical Specifications Breakdown

Key parameters for the TC-FID161 are listed below for quick reference:

Industry Applications

For example, in a packaging line, the TC-FID161 can capture sensor signals to track product flow. Its 16-channel density reduces panel space, while the selectable filter times help reject noise from fast-switching equipment. In process plants, the Class I Division 2 certification makes it suitable for hazardous areas, ensuring safe operation in potentially explosive atmospheres.

Installation & Setup Guidance

Mount the module on a standard DIN rail. Ensure the external dc power voltage is within 19.2-31.2V dc (5% ac ripple). Use 12 gauge stranded wire maximum, with insulation rated at 90°C. Tighten terminal screws to 4-7 inch-pounds. Configure input filter times via the output image table; the default ON-to-OFF time is 256µs. Verify the ON-state voltage is at least 10V dc and does not exceed 31.2V dc to avoid damage.

Maintenance & Reliability

Periodically inspect wiring and terminal connections for tightness. Keep the module clean and free from dust. The module is tested to withstand 30g operating shock and 5g vibration per IEC 68-2-6, ensuring robust performance in demanding industrial settings. Check the channel status indicators to quickly identify any input faults. Ensure ambient temperature stays within 0 to 55°C for optimal operation.

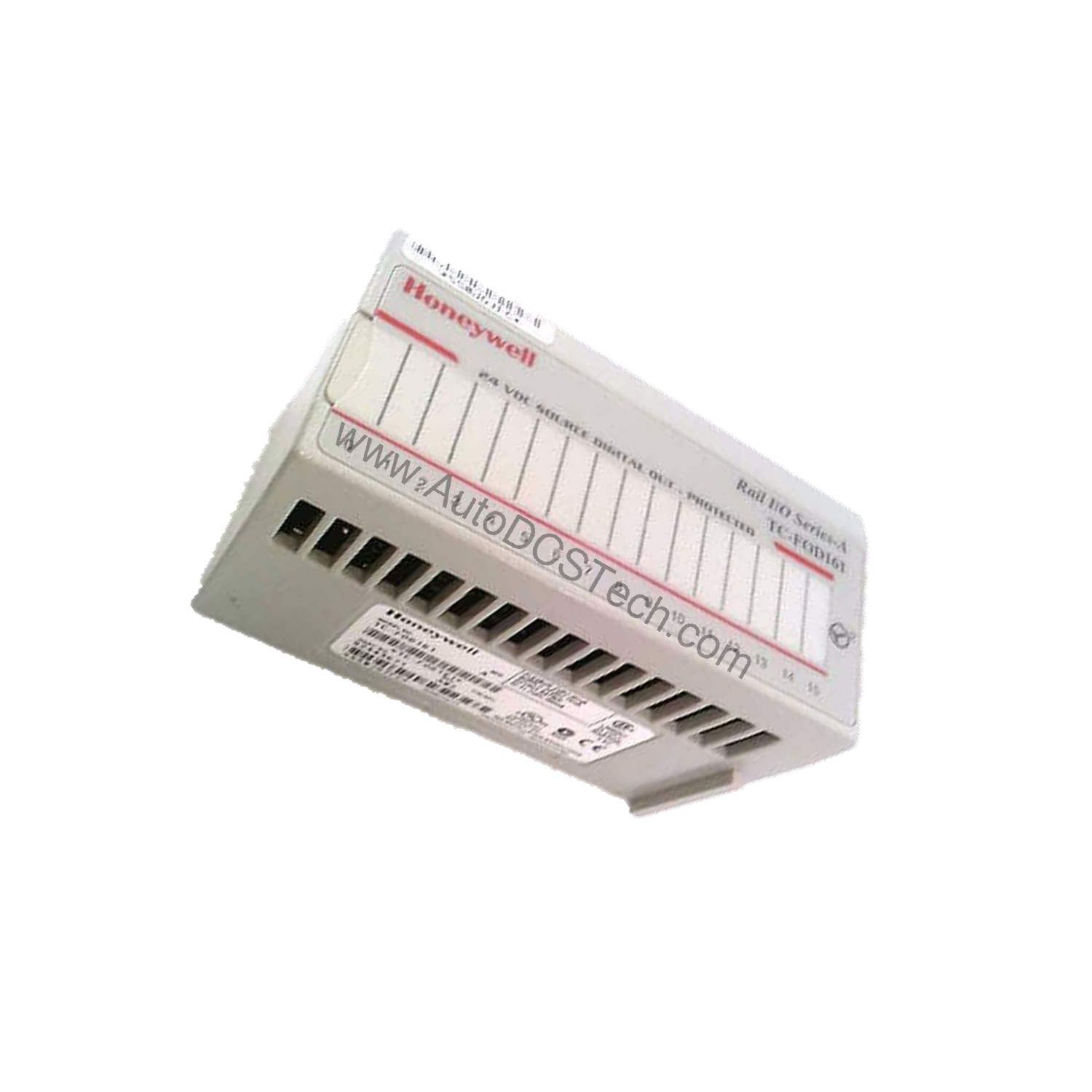

Reliable 16-Channel Digital Input for Industrial Control

In industrial automation, capturing discrete signals accurately is critical. The Honeywell TC-FID161 24 Vdc Sink Digital Input module provides a dependable interface between field devices and your control system. With 16 channels in a single group, this non-isolated, sinking input module is designed for high-density applications where space and reliability matter. Its DIN-rail mounting simplifies installation, while selectable input filter times allow you to tune signal processing to your process needs.

Compatibility & Integration

The TC-FID161 is a sinking input module, meaning it sources current to the field device. It is designed for use with Honeywell control systems that support Flexbus communication. The Flexbus current is 25mA maximum, so ensure the bus load is within limits. The module is non-isolated between channels, so common grounding is required. Verify compatibility with your specific Honeywell controller before integration.

Selection Guide & Purchasing Advice

When selecting a digital input module, consider channel count, isolation, and environmental ratings. The TC-FID161 offers 16 channels in a compact DIN-rail package, with a wide operating temperature range and hazardous area certifications. For reliable supply and expert support, contact AutoDCSTech. They can confirm lifecycle status and availability, ensuring you get the right part for your system.

Troubleshooting & Common Issues

If inputs do not register, check the external power voltage. It must be between 19.2 and 31.2V dc. Verify that the ON-state voltage is at least 10V dc. If the channel status indicator is off, the input may be below the OFF-state voltage threshold. Inspect wiring for loose connections or shorts. If filter times are too long, fast signals may be missed; adjust them via the output image table. For persistent issues, consult the Honeywell documentation.
