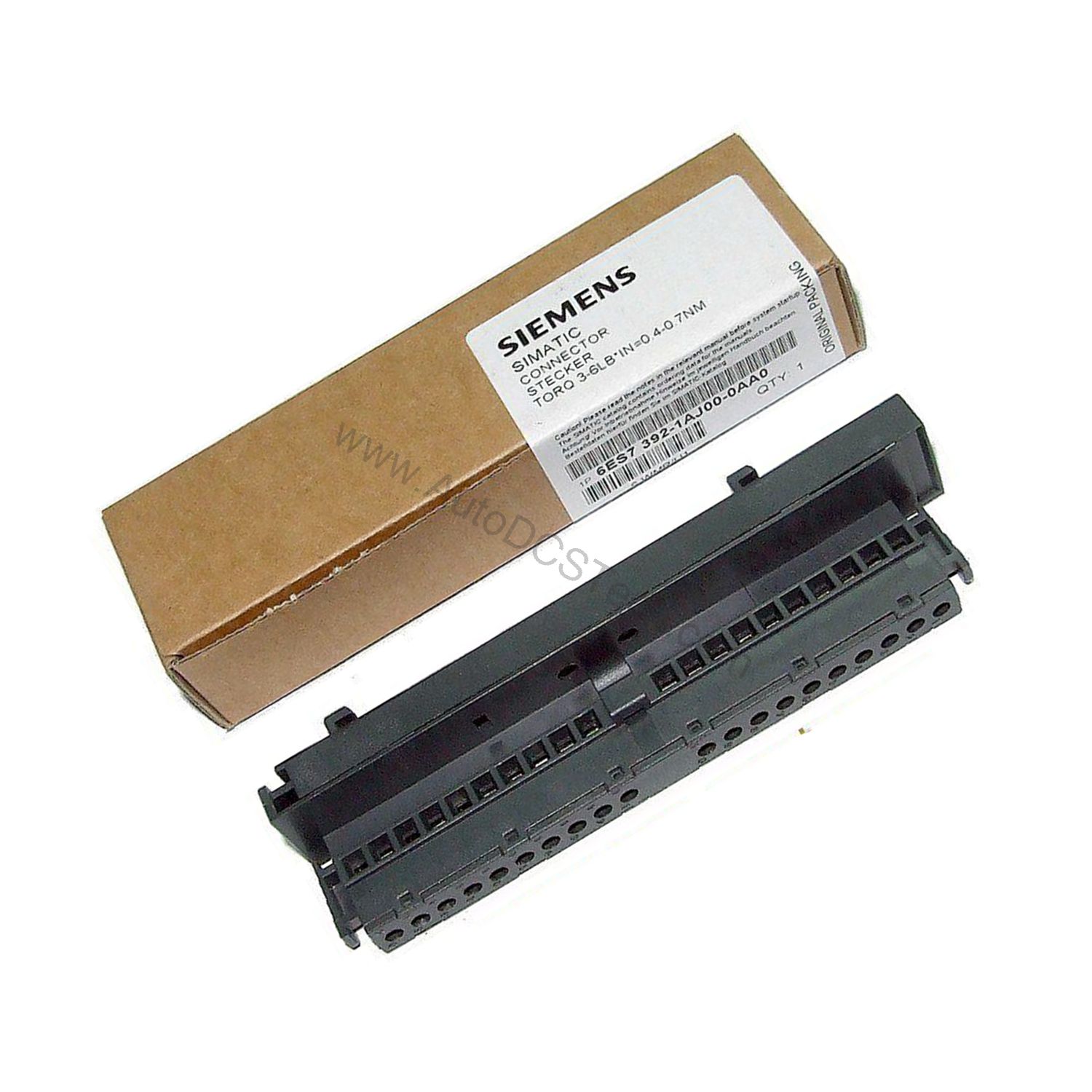

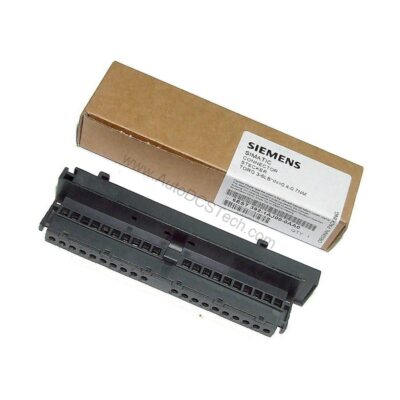

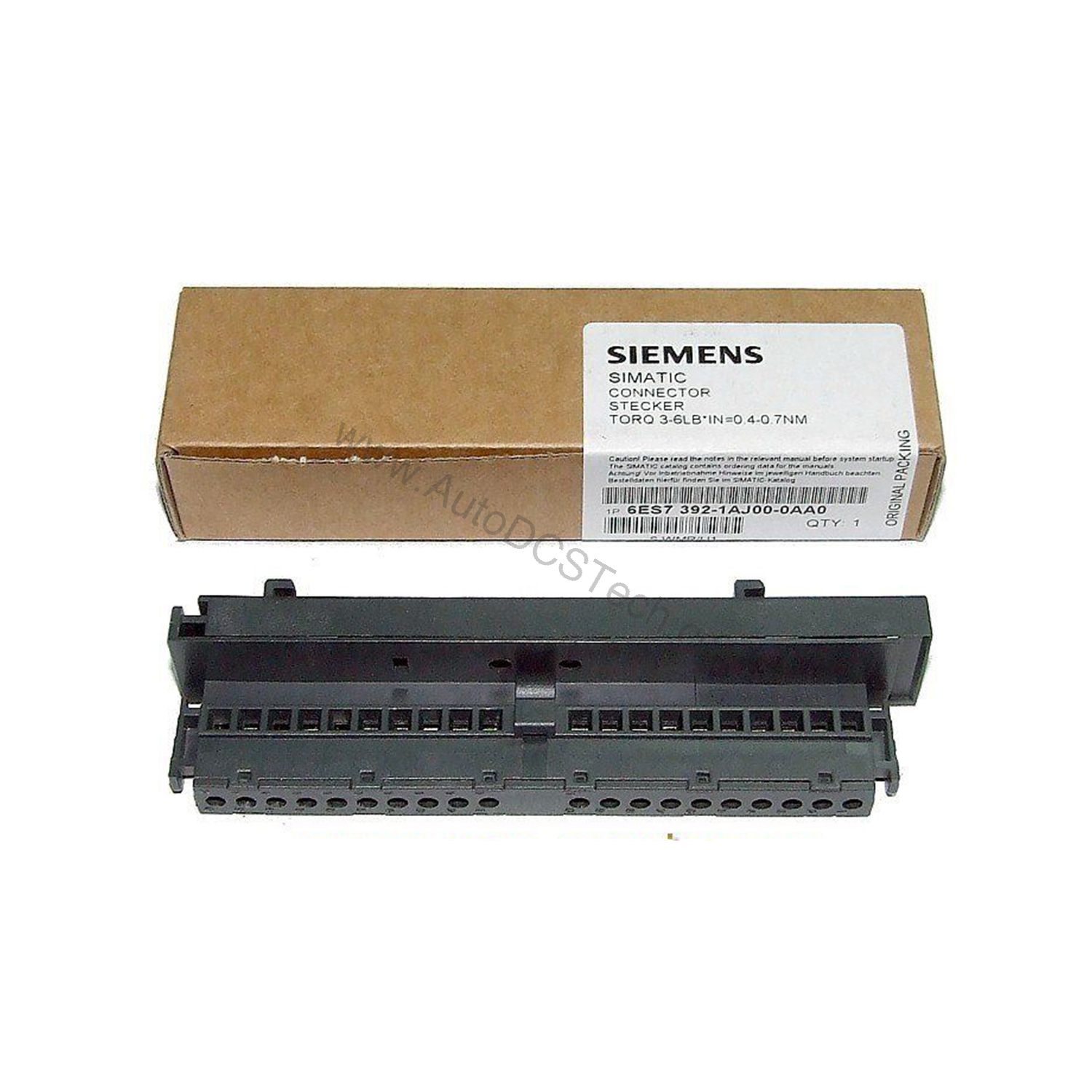

Introduction to the 6ES7392-1AJ00-0AA0 Front Connector
This front connector is engineered for signal modules, providing a secure and organized method to connect field wiring. It is a fundamental component for maintaining signal integrity in industrial control panels.
As a professional, you understand that loose connections or improper terminations can lead to costly downtime. This connector addresses that by offering a robust screw terminal design. It ensures each wire is held firmly, reducing the risk of intermittent signals. The 20-pole configuration provides ample I/O points for various automation tasks.
Key Features and Technical Specifications of 6ES7392-1AJ00-0AA0
Let's examine the technical details that make this connector a reliable choice. The 6ES7392-1AJ00-0AA0 is designed for straightforward installation and consistent performance.
- Connection Method: Screw terminals for secure, tool-tightened connections.
- Number of Poles: 20-pole design accommodates multiple I/O signals.
- Conductor Cross-Section: Accepts 0.25 mm² to 1.5 mm² for solid and flexible cables (with or without end sleeves).
- AWG Range: Supports 24 AWG to 16 AWG conductors.
- Stripping Length: 6 mm for consistent wire preparation.
- Tightening Torque: 0.4 N·m to 0.7 N·m ensures proper screw tension without damage.
- Operating Temperature: 0 °C to 60 °C for reliable operation in typical industrial environments.
- Storage Temperature: -40 °C to 70 °C for safe handling during transport.
- Dimensions (W x H x D): 23 mm x 131 mm x 36 mm, compact for space-saving panel layouts.
- Weight: Approximately 70 g (0.152 lb), lightweight for easy handling.
One distinctive feature is the ability to connect two conductors of up to 1.5 mm² total in a shared ferrule. This is particularly useful when you need to daisy-chain signals or share a common return line. It simplifies wiring and reduces the number of terminals required, saving space and time.
Real-World Applications for the 6ES7392-1AJ00-0AA0
This front connector is primarily used with SIMATIC S7-300 signal modules, which are common in manufacturing, process control, and material handling systems. For instance, in a bottling plant, the connector reliably links sensors and actuators to the PLC, ensuring precise control over filling and capping operations.
The secure connection prevents signal loss that could otherwise cause misalignment or jams. By choosing this connector, you minimize the risk of production interruptions.
Installation and Setup Guide
Proper installation is crucial for optimal performance. Begin by stripping the insulation to 6 mm from each wire. For flexible cables, you may use end sleeves according to DIN 46228 (Design A or E) to prevent fraying.
Insert the prepared wire into the terminal and tighten the screw to the recommended torque of 0.4 N·m to 0.7 N·m. Use a conical screwdriver with a 3 mm to 3.5 mm blade for best results. Ensure the wire is fully seated before tightening to avoid loose connections.
When routing cables, maintain a clean separation between power and signal lines to reduce electromagnetic interference. The connector's design allows for easy labeling, aiding in future maintenance and troubleshooting.
Maintenance and Reliability Tips
To ensure long-term reliability, periodically inspect the connector for signs of corrosion or loose screws. Vibration and thermal cycling can gradually loosen connections, so a routine check every few months is advisable. If you notice any discoloration or damage, replace the connector promptly.
Keep the surrounding area free of dust and moisture. While the connector is rated for 0 °C to 60 °C operation, extreme conditions can accelerate wear. Following these simple steps will extend the service life of your S7-300 system and reduce unexpected downtime.
Compatibility and Integration
The 6ES7392-1AJ00-0AA0 is designed specifically for SIMATIC S7-300 signal modules. It is not an universal connector, so ensure your module is compatible. This connector is used with modules that have a 20-pin interface, such as digital or analog I/O modules.
Integration is straightforward: align the connector with the module's pin header and press firmly until it clicks into place. The screw terminals are then accessible for wiring. This design ensures a secure mechanical and electrical connection, maintaining signal integrity.
Troubleshooting Common Issues
If you experience intermittent signals, first check the tightness of the screw terminals. A loose screw is the most common cause. Verify that the stripped length is correct (6 mm) and that no stray wire strands are causing short circuits.
Another issue could be using the wrong conductor size. The connector accepts 0.25 mm² to 1.5 mm². Using a larger wire may not fit properly, leading to poor contact. Always adhere to the specified AWG range (24 to 16 AWG).
If problems persist, inspect the module's pins for damage. Bent or broken pins can prevent proper mating. In such cases, replace the module or connector as needed.
Product Support and Availability
The 6ES7392-1AJ00-0AA0 is available through AutoDCSTech. We stock this connector to support your S7-300 system needs. Contact our team for current availability and lead times. We are ready to assist with your order and provide technical guidance.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7392-1AJ00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
