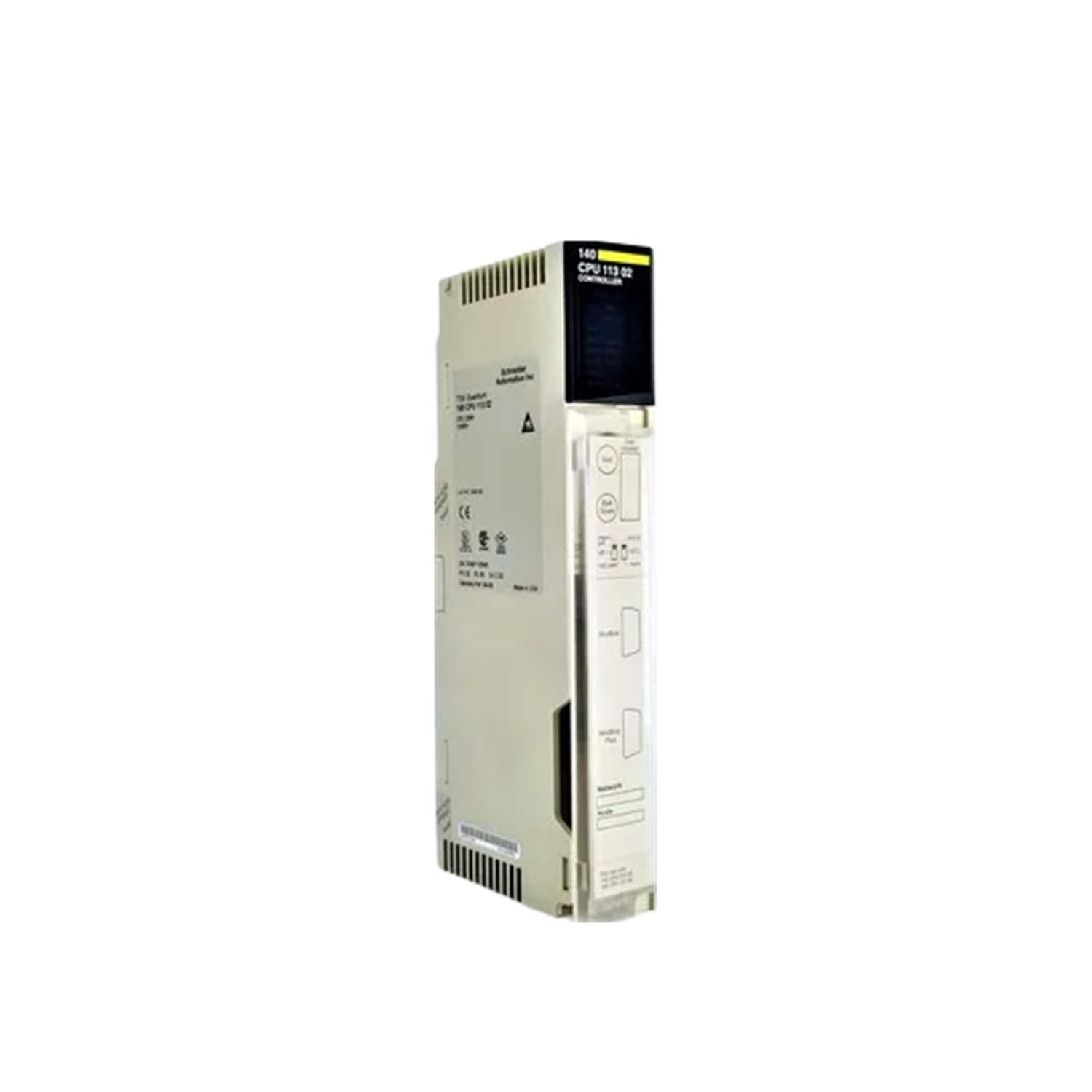

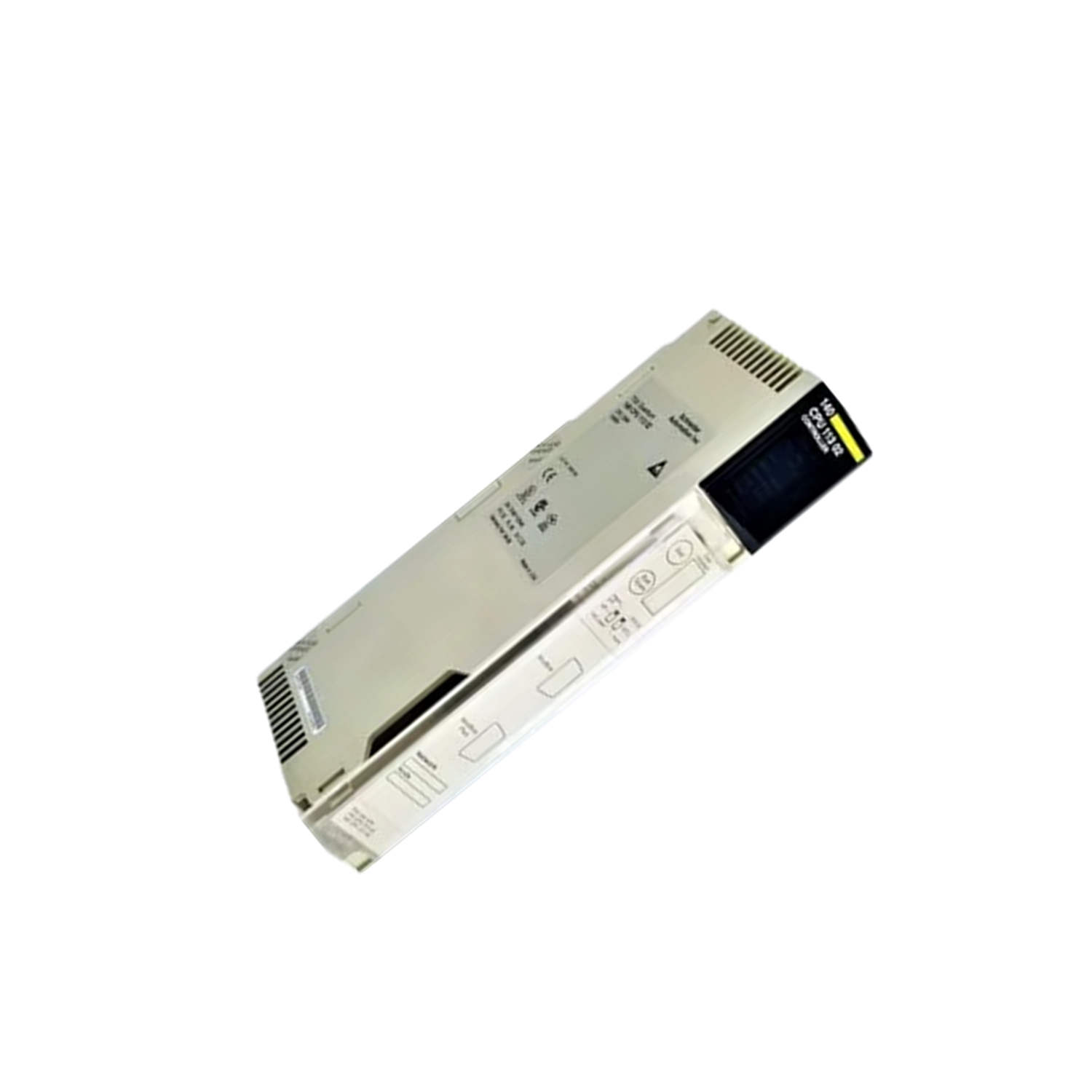

Product Overview
Industrial automation has evolved from simple relay logic to sophisticated distributed control systems. The Schneider Modicon Quantum 140CPU11302C processor represents this evolution, offering reliable performance for mid-range applications. As a processor in the Modicon Quantum series, it handles complex control tasks with precision. Its 20 MHz clock speed and 109 kB internal RAM provide sufficient power for most automation needs, while the compact design fits easily into existing panels.
Technical Specifications Breakdown
Key parameters for the 140CPU11302C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Processor |
| Product Line | Modicon Quantum |
| Part Number | 140CPU11302C |
| Clock Speed | 20 MHz |
| Internal RAM | 109 kB |
| Processing Time | 0.3–1.4 ms per 1K instruction (LL984) |
| Watchdog Timer | 250 ms |
| I/O Capacity (Local) | Max 64 inputs / 64 outputs |
| I/O Capacity (Distributed) | 30 in / 32 out per module, up to 500 in / 500 out network-wide |
| Network Communication | Supports up to 3 distributed and 2 remote networks |
| Communication Ports | 1 Modbus RS232, 1 Modbus Plus |
| Battery Type | Lithium, 1.2 Ah capacity |
| Battery Life | 10 years |
| Power Consumption | 780 mA bus current requirement |
| Environmental Ratings | 32–140°F (0–60°C) operation, 95% RH (non-condensing) |
Industry Applications
This processor excels in discrete manufacturing and process control environments. For example, in a bottling plant, the 140CPU11302C manages conveyor sequences and filling station logic. Its 20 MHz clock speed handles 1K instructions in 0.3–1.4 ms, ensuring timely responses. In water treatment facilities, the processor coordinates pump controls and valve actuations across distributed I/O networks. The ability to support up to 500 inputs and 500 outputs network-wide makes it suitable for medium-scale systems. The 250 ms watchdog timer provides fail-safe monitoring, reducing production downtime.
Installation & Setup Guidance
When installing the processor, mount it securely in a Modicon Quantum backplane. Ensure the bus current requirement of 780 mA is met by the power supply module. Connect the Modbus RS232 port for programming via a laptop, and use the Modbus Plus port for peer-to-peer communication. Configure the network parameters for up to 3 distributed and 2 remote networks. Always install the lithium battery before first power-up to retain memory. Operate the unit within 32–140°F (0–60°C) and avoid condensation above 95% RH.
Maintenance & Reliability
The lithium battery provides 10 years of life, minimizing replacement frequency. Periodically inspect the processor for dust accumulation and ensure ambient temperature stays within 0–60°C. The 95% RH non-condensing rating allows operation in humid environments. Check the watchdog timer functionality during routine maintenance to confirm system integrity. No internal adjustments are required; rely on the built-in diagnostics.
Compatibility & Integration
The processor integrates seamlessly with Modicon Quantum I/O modules via the backplane. It supports Modbus RS232 for serial communication with HMIs or SCADA systems, and Modbus Plus for high-speed peer-to-peer networking. This compatibility enables easy integration into existing Schneider Electric architectures. The distributed I/O capacity of 30 inputs and 32 outputs per module allows flexible expansion.
Selection Guide & Purchasing Advice
For reliable automation control, choose the 140CPU11302C for applications requiring moderate processing power and extensive I/O. At SpareTechPLC, we stock this processor and offer fast shipping. Verify current lifecycle status and availability with SpareTechPLC before ordering to ensure compatibility with your system.
Troubleshooting & Common Issues
If the processor fails to communicate, check the Modbus RS232 cable connection and port settings. A watchdog timeout indicates a program error or hardware fault; review the logic and inspect the backplane. Low battery voltage may cause memory loss; replace the lithium battery every 10 years as specified. For persistent issues, consult the Modicon Quantum manual.
Frequently Asked Questions
What is the clock speed of the 140CPU11302C?
The processor operates at 20 MHz.
How much internal RAM does it have?
It includes 109 kB of internal RAM.
What communication ports are available?
It has one Modbus RS232 port and one Modbus Plus port.
What is the battery life?
The lithium battery lasts up to 10 years.
What are the environmental limits?
It operates from 32°F to 140°F (0°C to 60°C) with up to 95% RH non-condensing.
