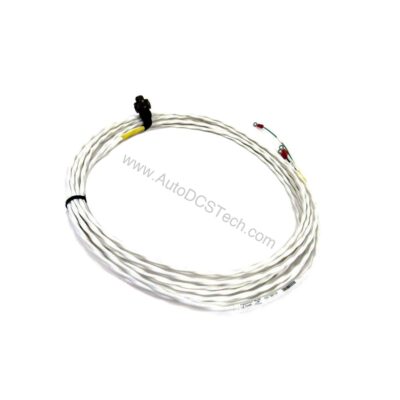

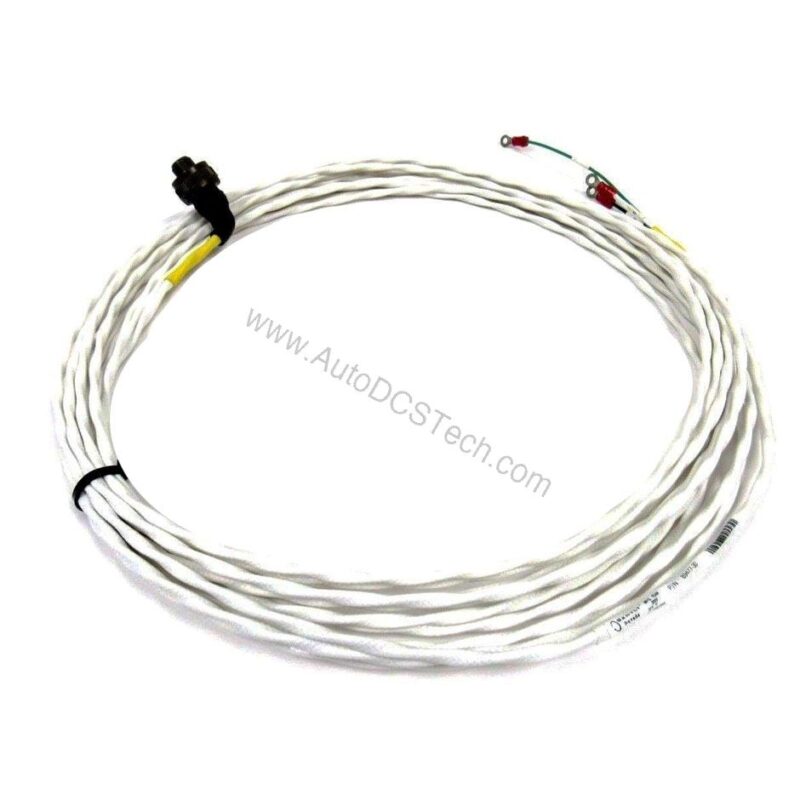

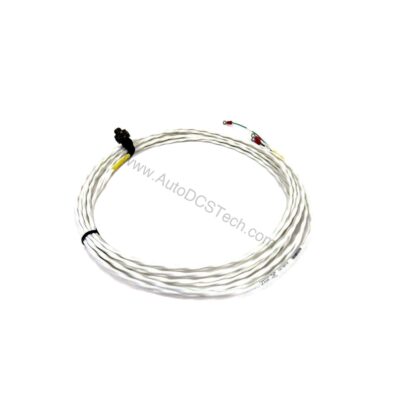

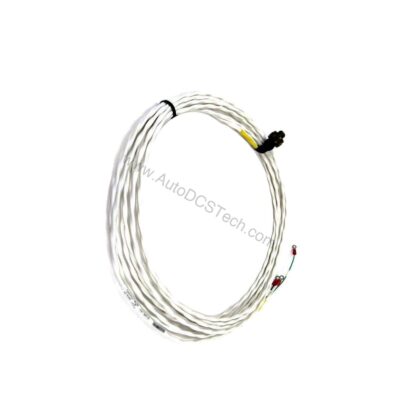

89477-12 12 ft Bently Nevada Interconnect Cable

Introduction to the 89477-12 Interconnect Cable

When signal integrity is critical in rotating machinery monitoring, the 89477-12 from Bently Nevada provides a dependable link between sensors and monitoring equipment. This 12-foot interconnect cable is engineered for industrial environments where noise rejection and secure connections matter.

Part of the 89477 interconnect cable series, this model uses a two-conductor 18 AWG twisted, shielded cable. The design minimizes electromagnetic interference, ensuring accurate data transfer. For engineers who demand reliable performance, the 89477-12 delivers consistent signal quality.

Key Features and Technical Specifications

The 89477-12 offers several features that make it a practical choice for industrial applications:

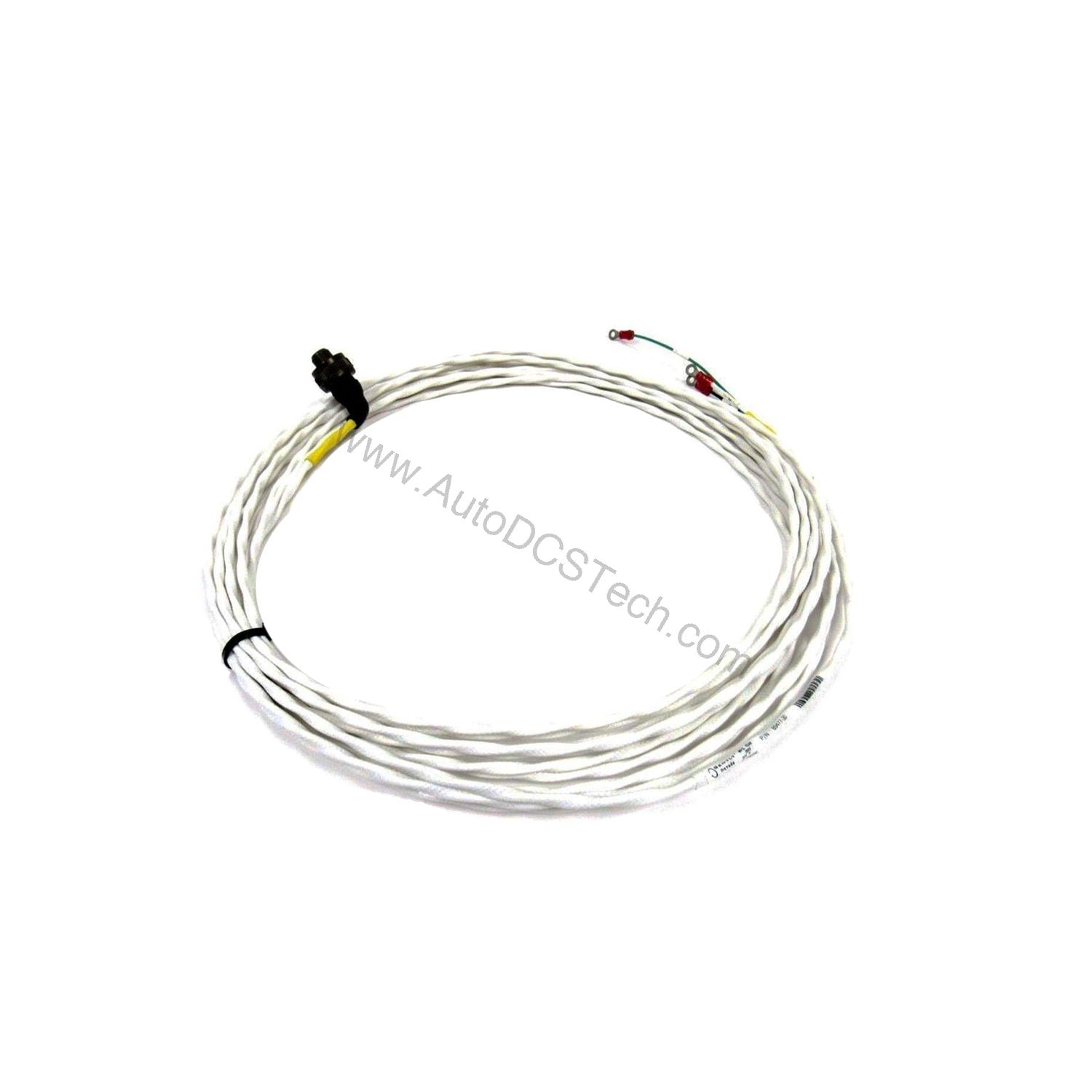

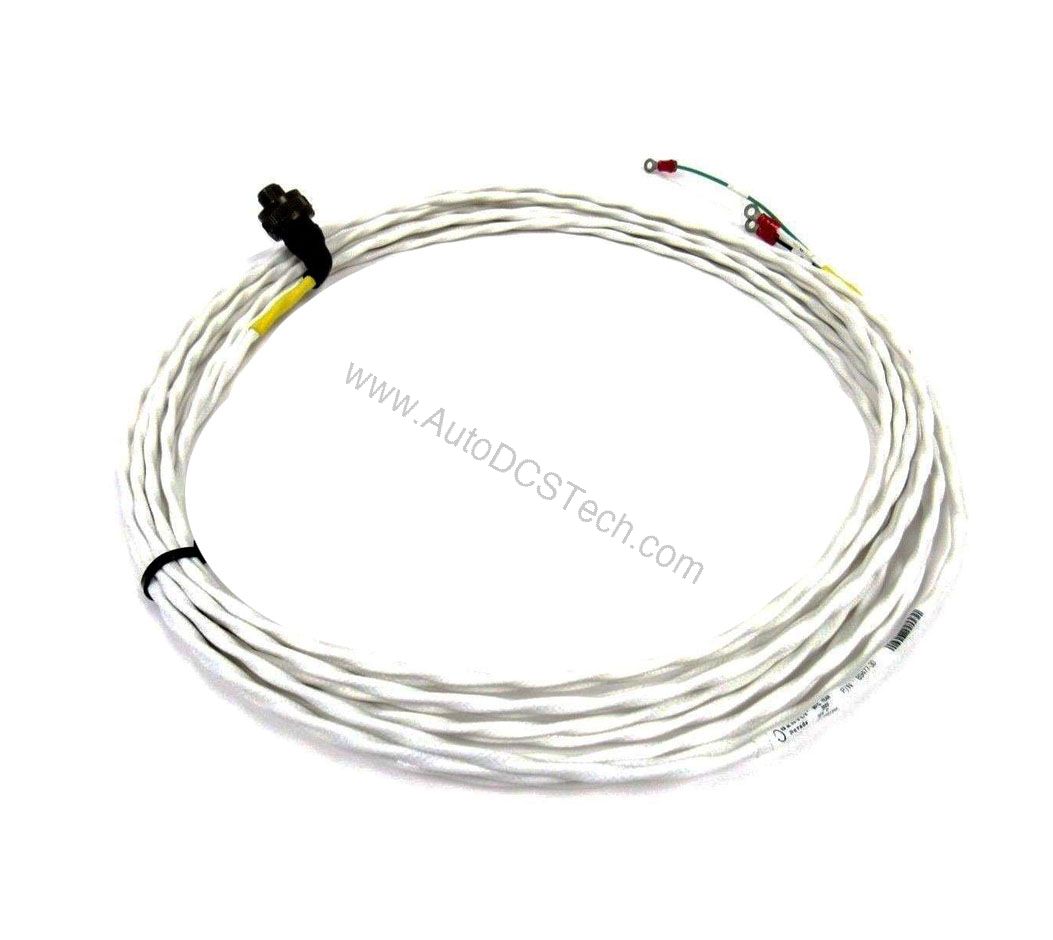

• Two-conductor 18 AWG twisted, shielded cable for noise reduction.
• Right angle two-socket plug at one end for space-constrained installations.
• Terminal lugs at the other end for secure field wiring.
• Minimum length of 2.0 ft (0.6 m) and maximum length of 99 ft (30 m) for flexibility.
• Factory warranty of 12 months ensures quality assurance.

These specifications directly impact installation efficiency. The right angle plug reduces strain on connections, while the shielded twisted pair maintains signal integrity over longer runs. By reducing signal degradation, the cable helps avoid costly downtime due to faulty readings.

Applications and Use Cases

The 89477-12 is suited for connecting vibration sensors, proximity probes, and other monitoring devices to Bently Nevada rack-based systems. In typical setups, it links field-mounted sensors to junction boxes or monitors. Because of its shielding, it performs well in electrically noisy environments, such as near motors or variable frequency drives.

For example, in a steam turbine train, the 89477-12 can carry tachometer signals from the sensor to the monitor, ensuring accurate speed readings. This reliability translates into better predictive maintenance and reduced unplanned outages.

Installation and Setup

Proper installation of the 89477-12 ensures optimal performance. Begin by routing the cable away from high-voltage power lines to minimize interference. Use the terminal lugs for secure connections to the sensor or junction box, and plug the right angle connector firmly into the monitor.

When selecting cable length, consider the distance between components. The 89477-12 offers a 12-foot length, which suits most local connections. For longer runs, other models in the 89477 series are available up to 99 feet. Always avoid sharp bends that could damage the shielding.

Maintenance and Reliability

Regular inspection of the 89477-12 helps maintain signal integrity. Check connectors for corrosion or loosening, and verify that the cable jacket is not cut or abraded. In harsh environments, periodic replacement may be necessary to prevent intermittent failures.

Because the cable is a passive component, its reliability is high. However, a faulty cable can cause false readings, leading to unnecessary maintenance actions. By keeping the cable in good condition, you reduce the risk of erroneous data and the associated costs.

Compatibility and Integration

The 89477-12 is designed for use with Bently Nevada monitoring systems, including 3500 series racks and standalone monitors. It is compatible with sensors that use two-wire connections, such as velocity transducers and proximity probes. The terminal lugs allow easy integration with existing wiring.

For new installations, verify that the sensor output matches the monitor input requirements. The cable itself does not alter signal characteristics, so it works with most standard configurations. Always consult the system manual for specific connection details.

Troubleshooting Common Issues

If you encounter signal loss or noise issues, first check the cable connections. Ensure the right angle plug is fully seated and the terminal lugs are tight. Next, inspect the cable for damage, especially at stress points near connectors.

If the cable tests faulty, replace it with a new 89477-12. Using a damaged cable can lead to intermittent readings, which are difficult to diagnose. By replacing suspect cables proactively, you minimize troubleshooting time and maintain system accuracy.

Availability and Support

The 89477-12 is available from AutoDCSTech as new, original factory-packed inventory. With a 12-month warranty, you can order with confidence. Contact AutoDCSTech for current pricing and lead times.
