Product Overview
When signal integrity is critical in industrial monitoring, the Bently Nevada 130539-15 Interconnect Cable delivers reliable performance. This 15-foot cable connects sensors to monitoring systems, ensuring accurate data transmission in demanding environments. Designed for Bently Nevada systems, it provides a secure and durable connection.
Technical Specifications

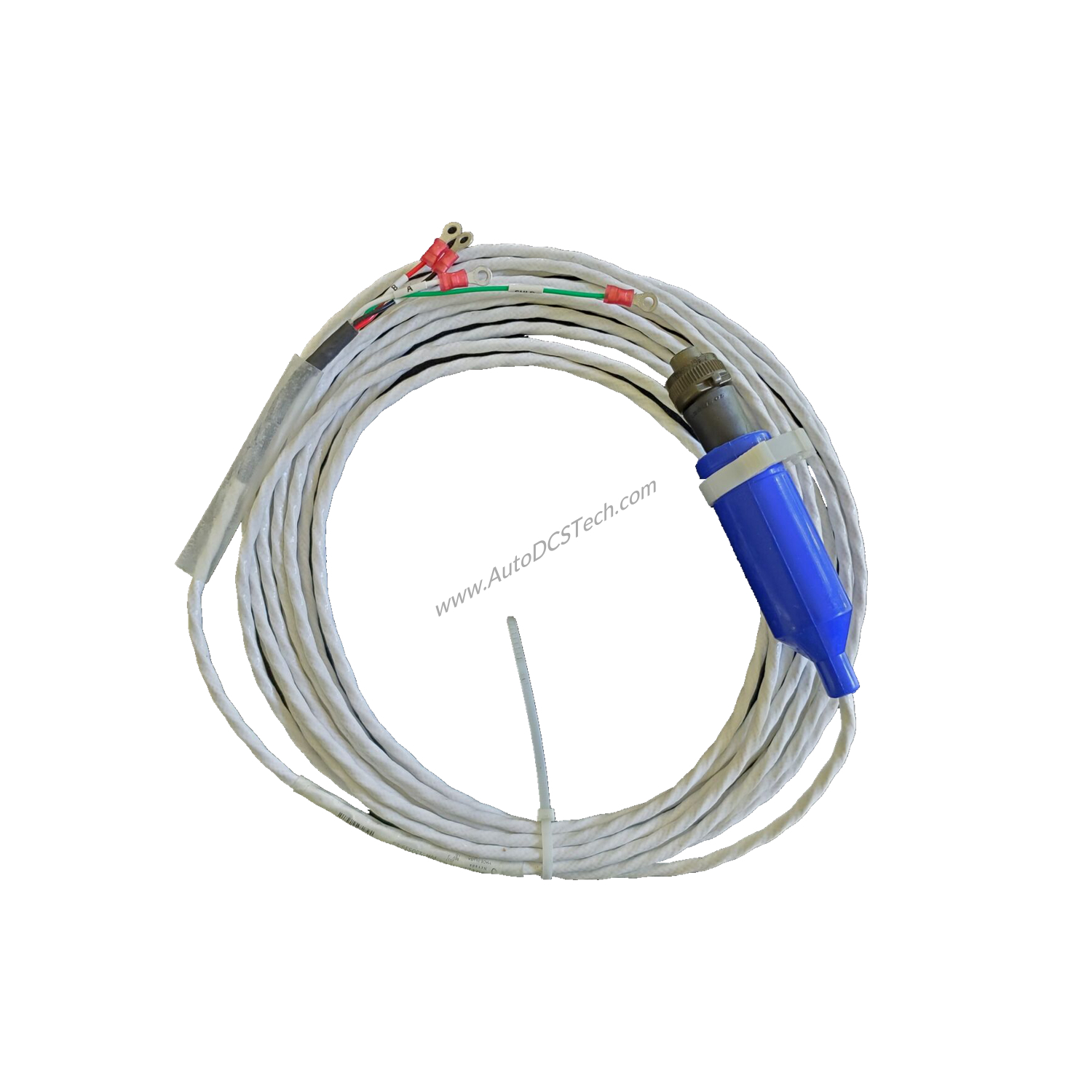

The 130539-15 features a 3-conductor shielded 18 AWG (1.0 mm²) cable. One end terminates with a 3-socket plug and a fluorosilicone elastomer boot, while the other end has terminal lugs. The cable length is 15 ft (4.57 m), ordered in 1.0 ft (305 mm) increments. Minimum length is 2.0 ft (0.6 m), maximum is 99 ft (30 m). A manual (part number 133080-01) assists with installation.
Industry Applications
This interconnect cable is ideal for vibration monitoring, machinery protection, and process control systems where Bently Nevada equipment is deployed. Its shielded construction minimizes electromagnetic interference, making it suitable for noisy industrial environments. In a typical turbine monitoring setup, the 130539-15 ensures reliable signal transmission from proximity probes to the monitor.
Installation & Setup Guidance
Installation requires careful handling of the fluorosilicone elastomer boot and 3-socket plug. Ensure the plug is fully seated and the boot provides a tight seal against contaminants. The terminal lugs should be securely fastened to the monitoring system terminals. Refer to manual 133080-01 for detailed steps. Avoid sharp bends that could damage the shielded cable.
Maintenance & Reliability
Regular inspection of the cable and connectors is recommended to maintain signal integrity. Check the fluorosilicone elastomer boot for cracks or wear, especially in high-temperature or chemical-exposure areas. Verify that terminal lugs remain tight and corrosion-free. Proper maintenance extends cable life and reduces downtime.
Compatibility & Integration
The 130539-15 is designed for Bently Nevada monitoring systems that accept 3-socket plug connections. It is compatible with various Bently Nevada transducers and monitors. Verify your system's connector type and cable length requirements before ordering. The shielded construction ensures compatibility with sensitive measurement circuits.
Selection Guide & Purchasing Advice
Before purchasing, confirm your required cable length. The 130539-15 is a 15 ft cable, but you can order custom lengths from 2.0 ft to 99 ft in 1.0 ft increments. Ensure your system uses a 3-socket plug and terminal lug connections. SpareTechPLC offers this cable with fast shipping and expert support to help you select the right length.
Frequently Asked Questions
Q: What is the maximum length for the 130539-15 cable?
A: The maximum length is 99 ft (30 m), ordered in 1.0 ft increments.
Q: Does the cable come with a manual?
A: A separate manual (part number 133080-01) is available to assist with installation.
Q: Can I use this cable with non-Bently Nevada systems?
A: The cable is designed for Bently Nevada systems with 3-socket plug and terminal lug connections. Verify compatibility with your equipment.
Q: What is the wire gauge of the 130539-15?
A: The cable uses 18 AWG (1.0 mm²) conductors.
Q: Is the cable shielded?
A: Yes, the cable is 3-conductor shielded to reduce electromagnetic interference.
