Product Overview

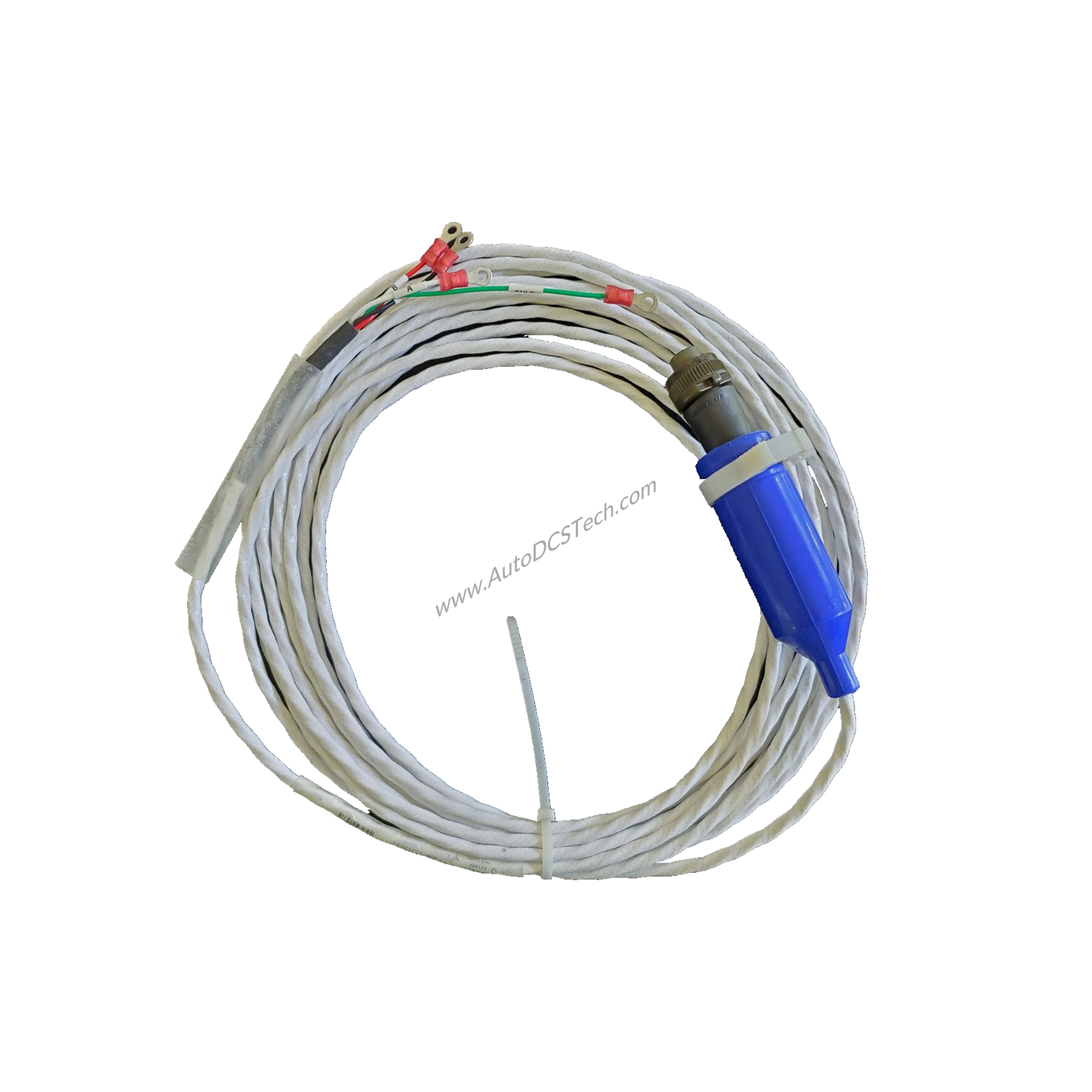

When you need a reliable connection for your Bently Nevada monitoring system, the 130539-15 Interconnect Cable delivers a robust solution. This 15-foot cable features a 3-conductor shielded 18 AWG (1.0 mm²) design with a 3-socket plug and fluorosilicone elastomer boot at one end and terminal lugs at the other. Built for industrial environments, it ensures signal integrity and durability.
Technical Specifications
The 130539-15 offers a cable length of 15 feet (4.57 meters), ordered in increments of 1.0 foot (305 mm). The minimum available length is 2.0 feet (0.6 m), and the maximum is 99 feet (30 m). The 3-conductor shielded 18 AWG (1.0 mm²) construction minimizes electrical noise interference. A fluorosilicone elastomer boot protects the 3-socket plug end, while terminal lugs provide secure field connections. A manual (part number 133080-01) assists with installation.
Industry Applications
This interconnect cable is ideal for vibration monitoring and machinery protection systems where Bently Nevada equipment is deployed. In power generation, oil and gas, or manufacturing plants, the 130539-15 connects sensors to monitoring modules, ensuring accurate data transmission. The shielded design is particularly valuable in high-electrical-noise environments common in industrial settings.
Installation Guidance
To install the 130539-15, first verify the cable length meets your requirements (minimum 2.0 ft, maximum 99 ft). Connect the 3-socket plug end to the corresponding module port, ensuring the fluorosilicone elastomer boot seats properly for environmental protection. At the other end, attach the terminal lugs to the sensor or termination block following the wiring diagram in manual 133080-01. Secure the cable away from high-voltage lines to maintain signal quality.
Maintenance and Reliability
The shielded construction and fluorosilicone elastomer boot enhance the cable's resistance to oil, chemicals, and temperature extremes. Periodically inspect the cable for cuts or abrasions, especially near connection points. Verify that the boot remains intact and the terminal lugs are tight. Regular inspection helps prevent signal degradation and extends service life.
Compatibility and Integration
The 130539-15 is designed for Bently Nevada monitoring systems that accept 3-socket plug connectors. It works with compatible sensors and modules requiring a 3-conductor shielded interface. For specific system compatibility, consult the manual or contact SpareTechPLC.
Selection Guide and Purchasing Advice
Before ordering, confirm the required cable length. The 130539-15 is a 15-foot variant; other lengths from 2 to 99 feet are available by specifying the desired length in feet. Ensure your system uses 3-conductor shielded connections with 18 AWG wire. SpareTechPLC stocks this cable and can assist with availability and replacement options. Please verify current lifecycle status with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the maximum length available for the 130539-15 cable series?
A: The maximum length is 99 feet (30 m), ordered in 1.0-foot increments.
Q: Does the 130539-15 come with installation instructions?
A: A separate manual (part number 133080-01) is available to assist with installation.
Q: Can I use this cable in outdoor or wet environments?
A: The fluorosilicone elastomer boot provides some environmental protection, but the cable is designed for industrial indoor use. Consult the manual for specific environmental ratings.
Q: What is the wire gauge of the 130539-15?
A: It uses 18 AWG (1.0 mm²) conductors.
Q: How do I order a different length?
A: Specify the desired length in feet (minimum 2.0 ft, maximum 99 ft) when ordering from SpareTechPLC.
