Product Overview

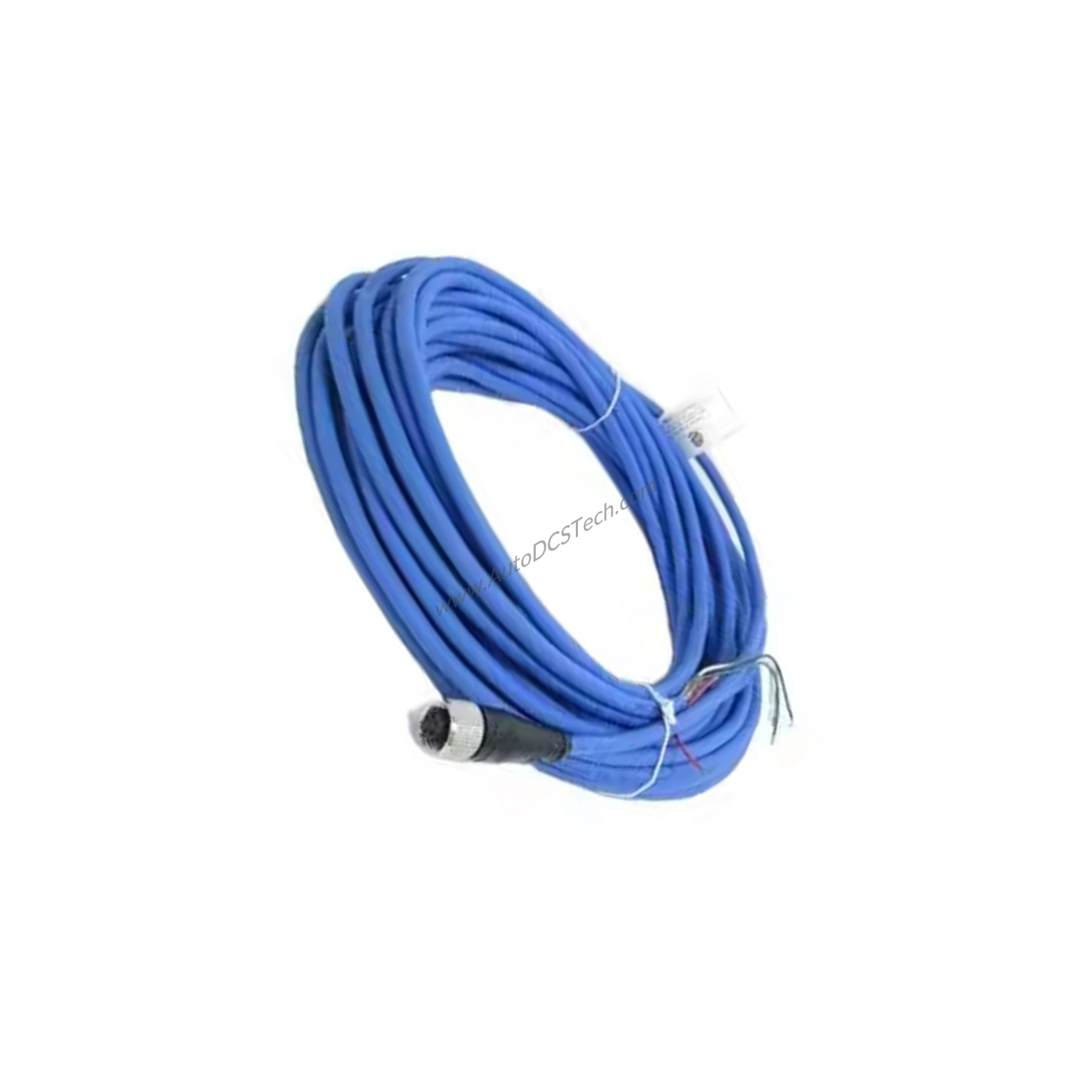

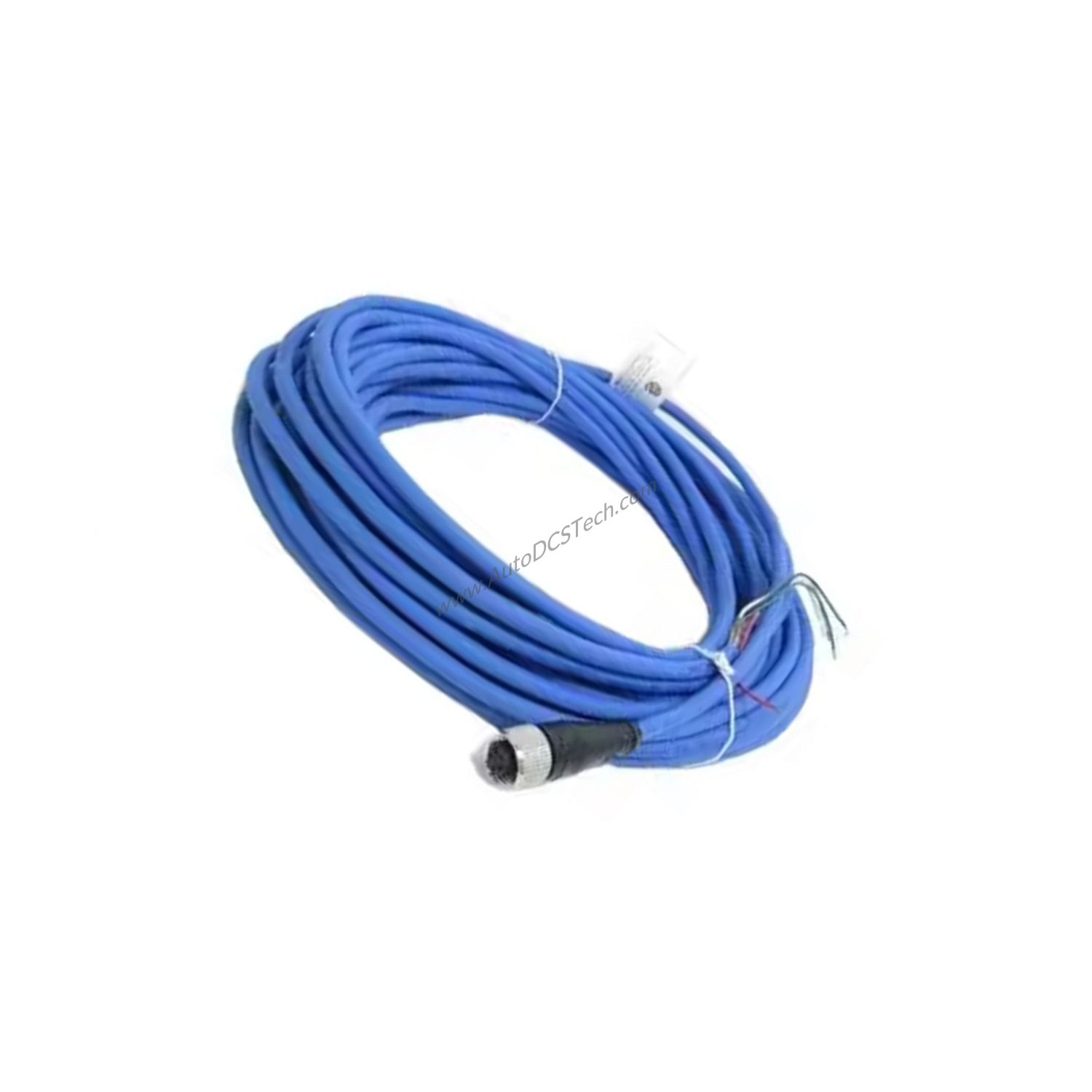

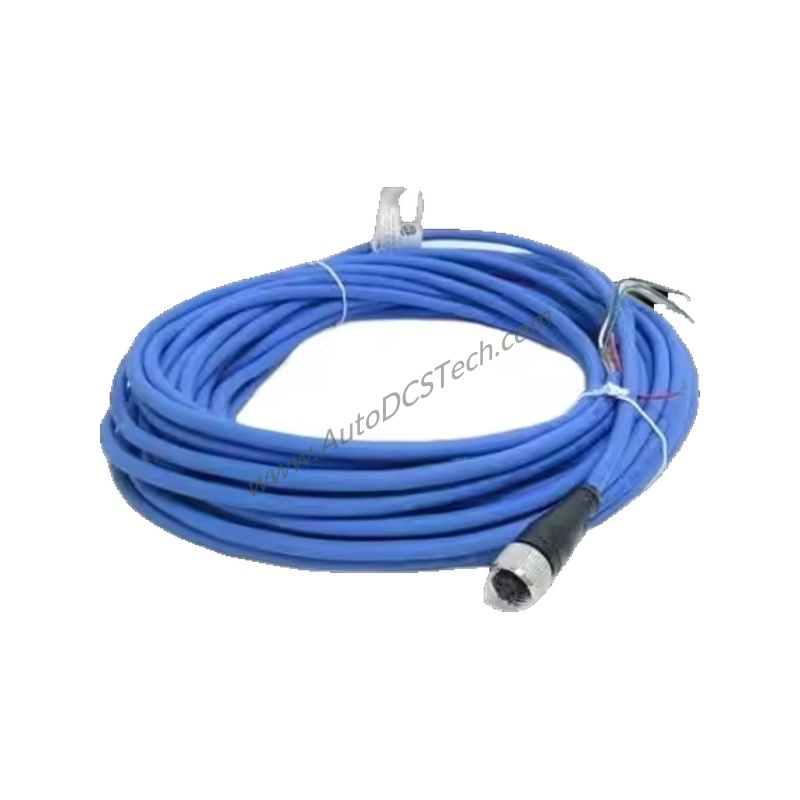

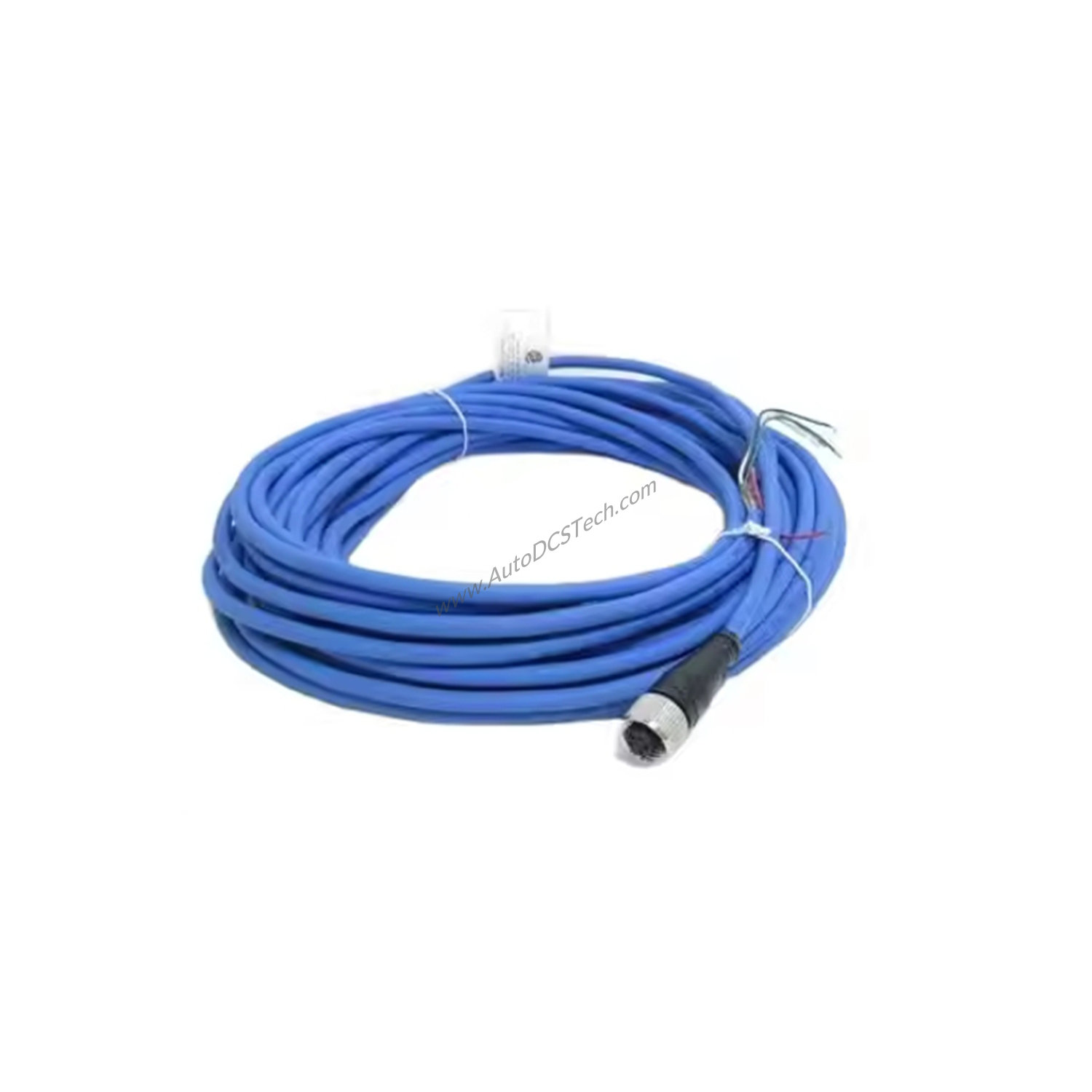

When vibration monitoring cables fail under harsh industrial conditions, the Bently Nevada 200152-15-00 Accelerometer Interface Standard Cable delivers dependable connectivity. This 15-meter cable, part of the 200151 series, connects accelerometers to monitoring systems with robust construction and environmental sealing. Designed for maintenance engineers who prioritize reliability, this cable minimizes signal degradation and reduces unplanned downtime.
Technical Specifications Breakdown
The 200152-15-00 features a 4-conductor, 22 AWG construction with a braided shield and drain wire, providing minimum 85% coverage to protect signal integrity. The PVC outer jacket resists wear in demanding environments. Nickel-plated coupling nuts ensure secure connections and corrosion resistance. Connectors provide an IP67 seal to transducers and mating hardware, preventing moisture ingress during thermal shocks. The cable operates within a temperature range of -20 ºC to +100 ºC (-4 ºF to +212 ºF). Note: flexing below -20 ºC may damage the cable; installations should prevent bending at lower temperatures.
Industry Applications
In rotating machinery monitoring, the 200152-15-00 connects Bently Nevada accelerometers to data acquisition systems in turbines, compressors, and pumps. Its IP67 seal makes it suitable for applications exposed to washdowns or high humidity, such as in oil and gas or power generation. The 15-meter length allows flexible routing from sensors to junction boxes or monitors, simplifying installation in tight spaces.
Installation & Setup Guidance
When installing the 200152-15-00, ensure the minimum bend radius of 73.7 mm (2.9 in) is respected to avoid internal conductor damage. The molded connectors provide a secure IP67 seal; verify that mating hardware is clean and dry before coupling. For installations where temperatures drop below -20 ºC, secure the cable to prevent flexing. Use the standard coupling nut (-00) to tighten connections finger-tight plus a quarter turn—do not overtighten.
Maintenance & Reliability
From a maintenance engineer's perspective, the 200152-15-00 reduces service calls by eliminating common failure points. The molded connectors resist vibration loosening, and the braided shield protects against electromagnetic interference. Periodically inspect the cable jacket for cuts or abrasion, especially near sharp edges. The nickel-plated coupling nuts resist corrosion, but check for signs of wear in harsh chemical environments. Following these simple checks extends cable life and maintains signal quality.
Compatibility & Integration
This cable is designed for Bently Nevada accelerometers with compatible connectors. It integrates seamlessly with Bently Nevada monitoring systems, ensuring accurate vibration data transmission. The 4-conductor, 22 AWG design supports standard accelerometer signals. Verify connector compatibility with your specific transducer model before ordering.
Buying Guide & Purchasing Advice
Before purchasing the 200152-15-00, confirm your accelerometer's connector type and required cable length. The -15 suffix indicates 15 meters; other lengths are available in the 200151 series. Ensure your installation environment stays within the -20 ºC to +100 ºC operating range. SpareTechPLC stocks this genuine Bently Nevada cable, ready to ship for your maintenance needs. Contact our team for assistance with compatibility or alternative configurations.
Frequently Asked Questions
Q: What is the minimum bend radius of the 200152-15-00?
A: The minimum bend radius is 73.7 mm (2.9 in). Exceeding this may damage internal conductors.
Q: Can this cable be used in outdoor or washdown environments?
A: Yes, the connectors provide an IP67 seal, making it suitable for damp or washdown areas.
Q: What temperature range does the 200152-15-00 support?
A: It operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF). Avoid flexing below -20 ºC.
Q: Is the cable shielded?
A: Yes, it has a braided shield with minimum 85% coverage and a drain wire.
Q: What is the connector type on the accelerometer end?
A: The cable includes a connector on the accelerometer end only, with a standard coupling nut.
