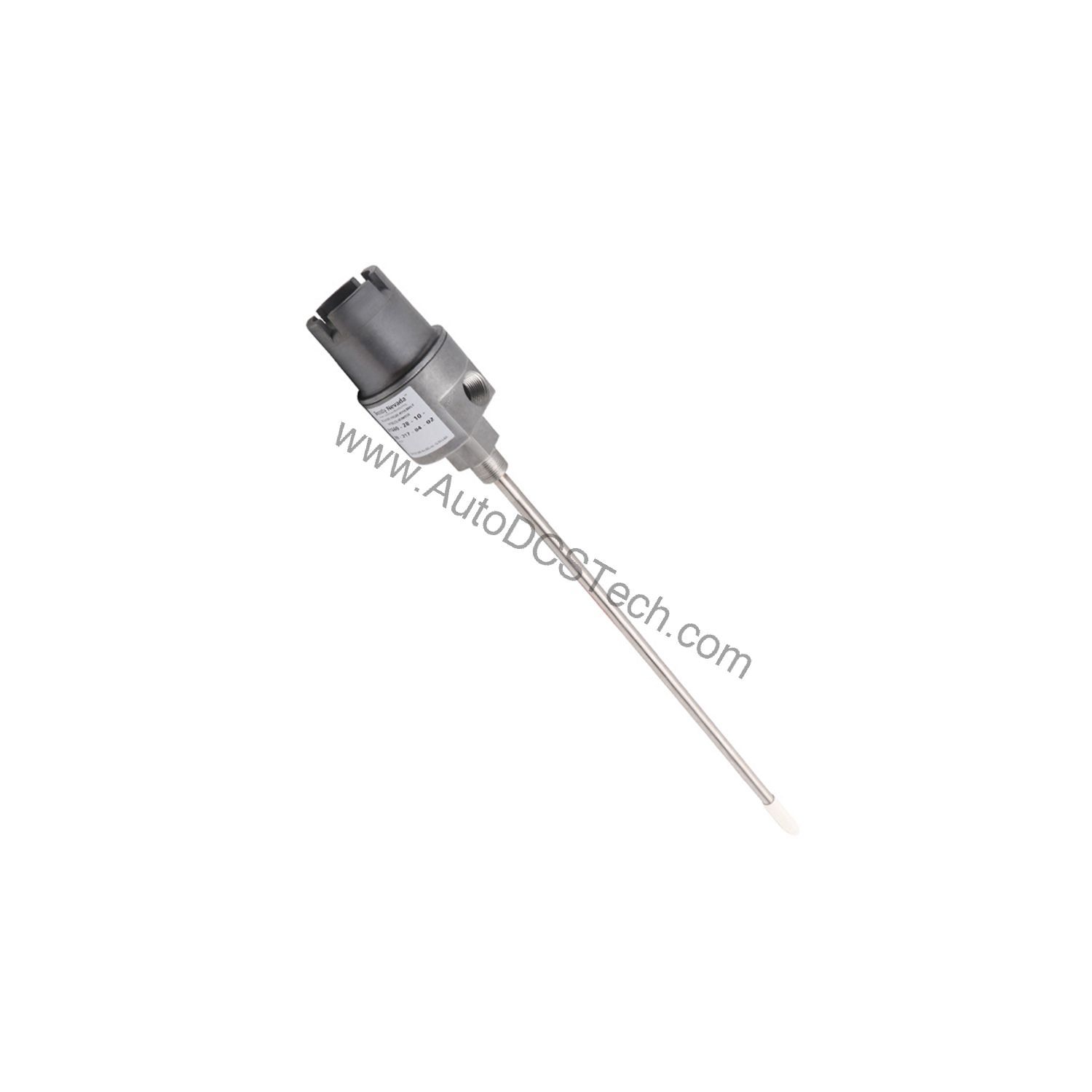

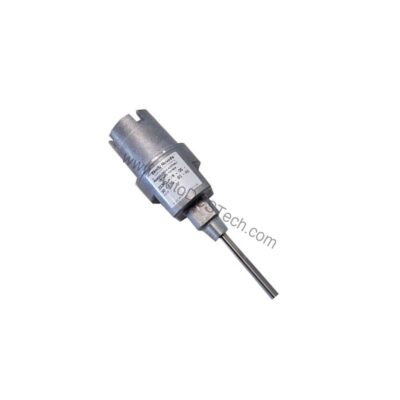

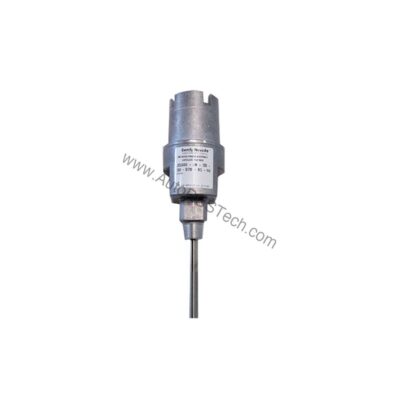

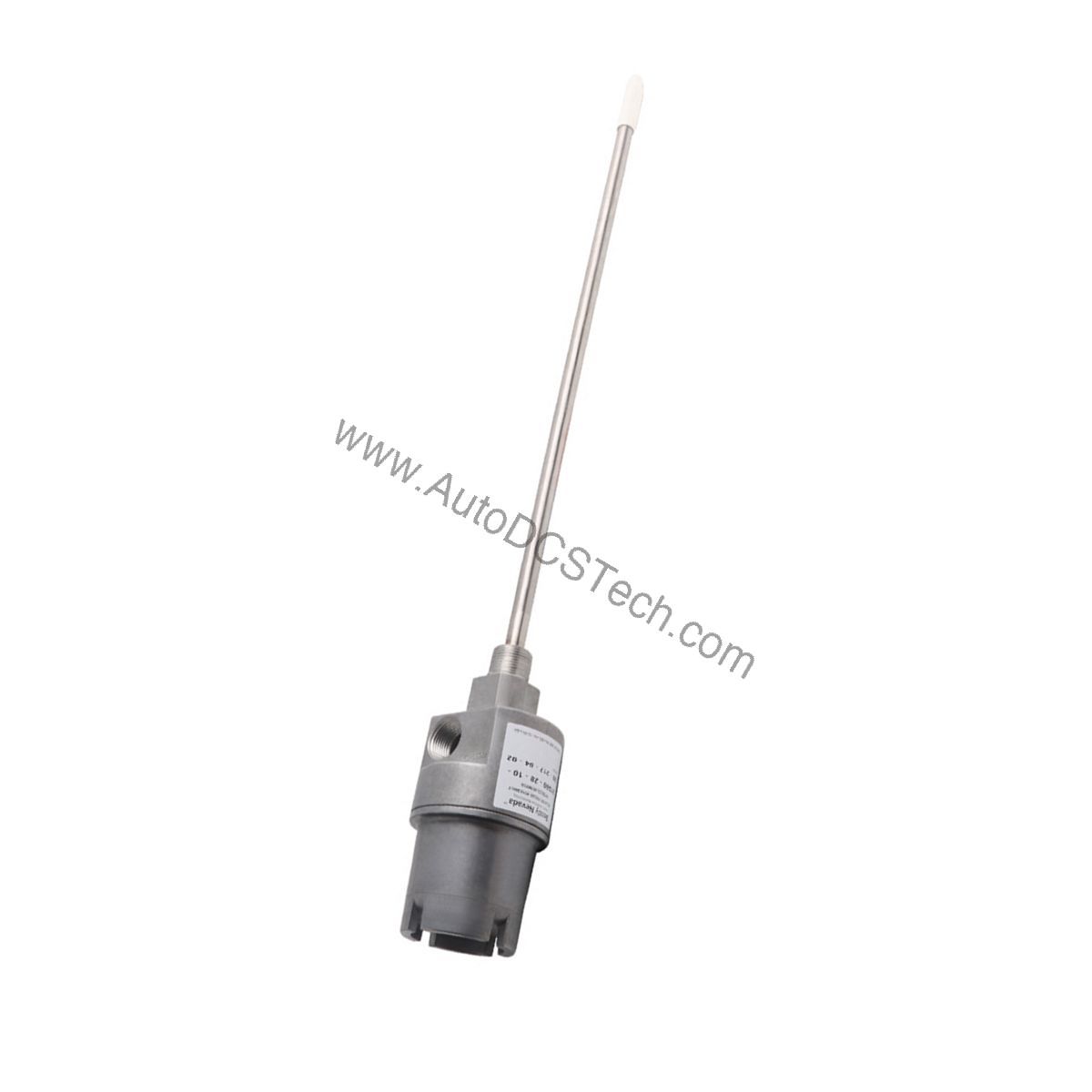

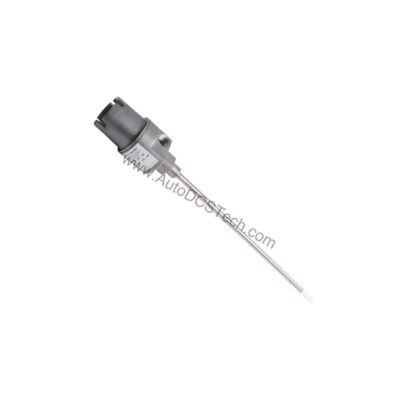

Bently Nevada 21000-16-10-15-092-03-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-16-10-15-092-03-02 are listed below for quick reference:

Industry Applications for the 21000 Housing Assembly

Refinery and Petrochemical Vibration Monitoring

In rotating machinery such as compressors, turbines, and pumps, the 21000-16-10-15-092-03-02 provides a secure, explosion-proof housing for proximity probes that measure shaft vibration and position. The CSA Class 1 Divisions 1 and 2 Groups C and D approval ensures safe operation in volatile atmospheres. The 1.0 m probe cable and 9.2 in probe penetration allow flexible installation depths, accommodating various machine casing thicknesses.

Power Generation Turbine Protection

For steam and gas turbines, continuous vibration monitoring is critical to prevent catastrophic failure. The 21000 assembly's Type 4 enclosure rating (CSA certified) protects the internal 3300 XL 8 mm probe from moisture and dust ingress. The optional standoff adapter (1.5 in) simplifies alignment with bearing housing ports, reducing installation time.

Installation & Setup Guidance

Mounting and Conduit Connections

Start by selecting the appropriate mounting thread – the 21000-16-10-15-092-03-02 comes with a 3/4-14 NPT thread. Use the supplied 3/4-14 NPT plug and reducer to adapt to 1/2-14 NPT if needed. The cable seal grip accommodates cable diameters from 1/8 to 3/8 inches, ensuring a tight seal. Always verify that the probe tip gap is set per the probe manufacturer's specifications before tightening the dome cover.

Probe Cable Routing

With a maximum (C)+(D) dimension of 32.9 in (83.5 cm) when using the 1.0 m cable, plan the conduit path to avoid sharp bends that could damage the cable. The visible probe P/N and S/N should be recorded for traceability. Ensure the housing is oriented so that the conduit ports face downward to prevent moisture accumulation.

Maintenance & Reliability

The 21000 housing requires minimal routine maintenance. Periodically inspect the O-rings and thread seal for signs of wear or contamination. Check that all conduit fittings remain tight, especially after thermal cycling. The aluminum body with 304 stainless steel sleeve resists corrosion in most industrial environments, but in highly aggressive atmospheres, consider the 24701 stainless steel housing for enhanced chemical resistance.

Robust Protection for Critical Vibration Monitoring

When machine reliability is non-negotiable, the Bently Nevada 21000-16-10-15-092-03-02 Proximity Probe Housing Assembly delivers the rugged, field-proven enclosure your rotating assets demand. Designed for externally mounted proximity probes in hazardous environments, this assembly combines a lightweight aluminum body with a 304 stainless steel sleeve to resist corrosion while maintaining structural integrity. The 21000 series is fully compliant with API 670 Standard, making it a trusted choice for refineries, chemical plants, and power generation facilities.

Compatibility & Integration

This assembly is designed for Bently Nevada 3300 XL 8 mm proximity probes with connector. The 21000-16-10-15-092-03-02 is fully compatible with Bently Nevada monitoring systems such as 3500 and 3300 racks. The CSA Type 4 enclosure and API 670 compliance ensure seamless integration into existing safety-instrumented systems without additional engineering.

Selection Guide & Purchasing Advice

When selecting a proximity probe housing, verify the required probe penetration (D dimension) and cable length. The 21000-16-10-15-092-03-02 offers a 9.2 in penetration and 1.0 m cable, suitable for many medium-sized machines. For longer cable runs or different probe types, consult the full 21000 ordering matrix. AutoDCSTech stocks this assembly as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
