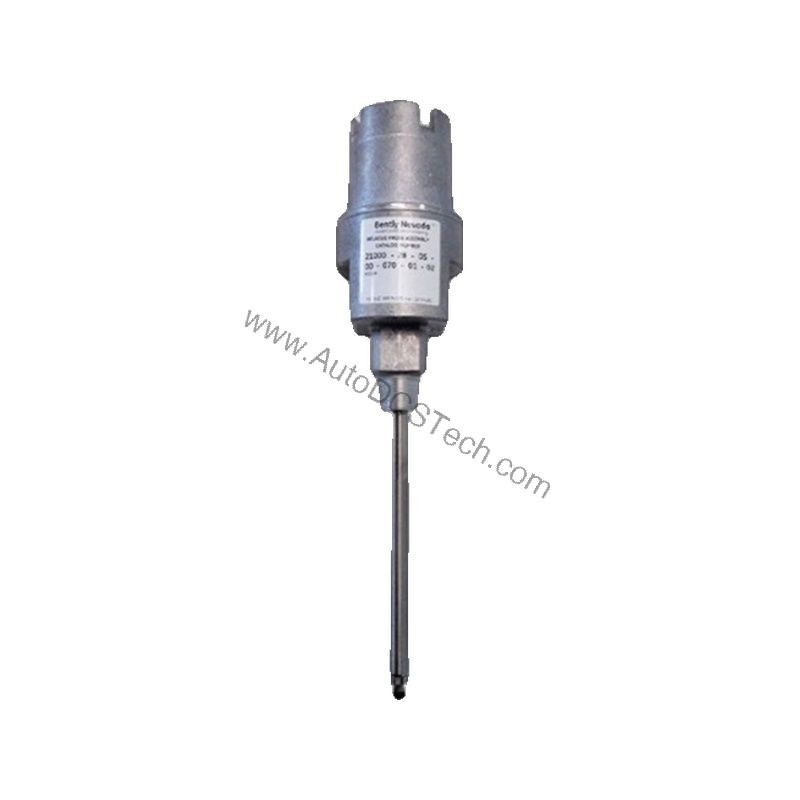

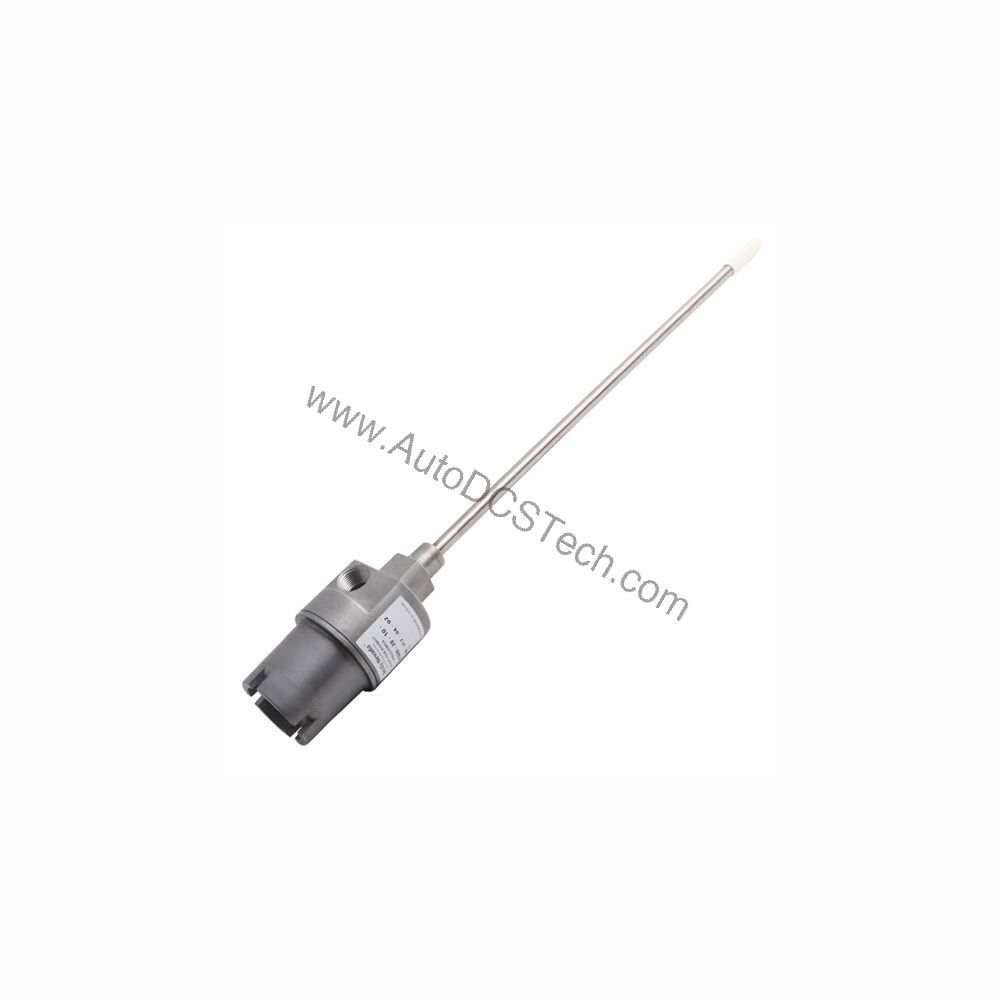

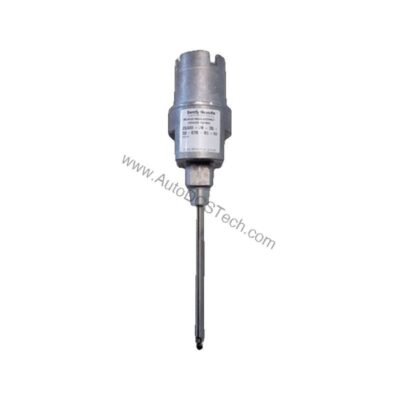

Bently Nevada 21000-34-05-15-018-04-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-34-05-15-018-04-02 are listed below for quick reference:

Industry Applications for the 21000 Housing Assembly

This assembly is designed for externally mounted proximity probes per API 670 Standard. Typical applications include:

Steam Turbine and Compressor Monitoring

In power generation and oil & gas, the 21000-34-05-15-018-04-02 provides a secure, explosion-proof enclosure for the 3300 XL 8 mm probe. The 1.5 in standoff adapter and 1.8 in probe penetration allow proper positioning relative to the shaft target, ensuring accurate vibration readings.

Hazardous Area Installations

With selectable hazardous area approvals and CSA Type 4 enclosure rating, this housing is suitable for intrinsically safe applications in refineries and chemical plants. The aluminum body with 304 stainless steel sleeve resists corrosion in harsh environments.

API 670 Compliant Systems

Fully compliant with API 670, the assembly includes a dome cover, threaded conduit ports, O-rings, and a thread seal. The 3/4-14 NPT mounting thread and plug fitting simplify installation into standard conduit systems.

Installation and Setup Guidance

Proper installation is critical for reliable probe performance. Follow these engineer-level guidelines:

1. Mounting: Use the 3/4-14 NPT mounting thread to attach the housing to a rigid, non-vibrating bracket. Ensure the standoff adapter (1.5 in) is correctly installed to position the probe at the optimal gap from the target surface.

1. Cable Routing: The 0.5 m (20 in) probe cable is pre-attached. Route the cable through the conduit port using the provided 3/4-14 NPT plug or an explosion-proof fitting (available separately). Avoid sharp bends or kinks.

1. Probe Penetration: Adjust the probe penetration to 1.8 in as specified. This ensures the probe tip is at the correct distance from the shaft for linear output.

1. Environmental Sealing: The CSA Type 4 enclosure rating means the housing is dust-tight and protected against splashing water. Ensure all O-rings and seals are properly seated before tightening the dome cover.

Maintenance and Reliability

Routine inspection of the housing assembly ensures long-term reliability:

• Visual Inspection: Periodically check for corrosion, cracks, or loose fittings. The aluminum body with 304 stainless steel sleeve offers good corrosion resistance, but aggressive chemicals may require more frequent checks.

• Cable Integrity: Verify the probe cable is not damaged or pinched. The 0.5 m length is fixed; avoid excessive pulling.

• Seal Condition: Replace O-rings if they show wear or hardening to maintain the CSA Type 4 seal.

• Probe Performance: Confirm the 3300 XL 8 mm probe output is within specification using a Bently Nevada calibration tool.

Selecting the Right Proximity Probe Housing Assembly for Critical Machinery Protection

When protecting rotating machinery in hazardous environments, the housing assembly is as crucial as the probe itself. The Bently Nevada 21000-34-05-15-018-04-02 offers a robust solution for vibration and position monitoring in demanding industrial settings. This guide helps you evaluate its suitability for your application based on real specifications.

Compatibility and Integration

The 21000-34-05-15-018-04-02 is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. The housing assembly includes the probe, cable, and fittings, making it a complete solution for new installations or replacements.

Selection Guide and Purchasing Advice

When selecting a housing assembly, verify that the suffix codes match your application requirements. The 21000-34-05-15-018-04-02 includes:

• Probe option 34: 3300 XL 8 mm probe with connector protector and selectable hazardous area approvals
• Cable length 05: 0.5 m
• Standoff adapter 15: 1.5 in
• Probe penetration 018: 1.8 in
• Fitting 04: One 3/4-14 NPT plug
• Mounting thread -02: 3/4-14 NPT

For different cable lengths, standoff adapters, or probe types, consult the Bently Nevada ordering guide. AutoDCSTech stocks this unit as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

• Incorrect Gap Voltage: If the probe output is out of range, check that the standoff adapter (1.5 in) and probe penetration (1.8 in) are correctly set. Also verify the target material and surface condition.

• No Output: Inspect the cable for breaks or loose connections at the probe and connector. The 0.5 m cable is factory-terminated; do not attempt to repair it.

• Erratic Readings: Ensure the housing is securely mounted and not vibrating relative to the machine. Check that the conduit fittings are tight and the dome cover is properly sealed.

• Hazardous Area Compliance: For explosion-proof ratings, verify that the housing is a CA version and ordered with the correct E:00, E:01, E:02, or E:04 option. The 21000-34-05-15-018-04-02 includes selectable hazardous area approvals via the probe option; confirm with the manufacturer if needed.
