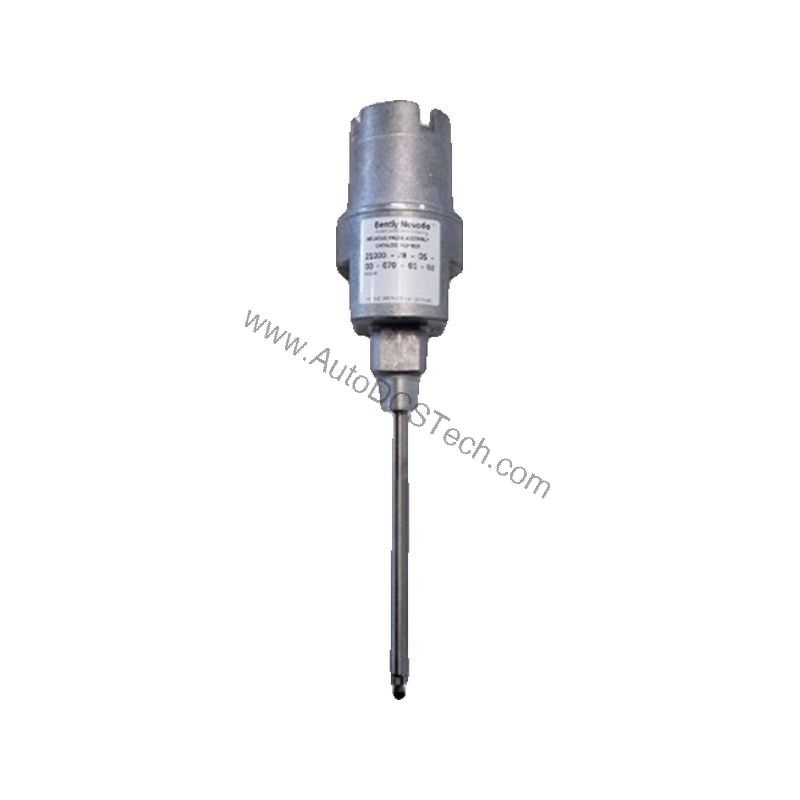

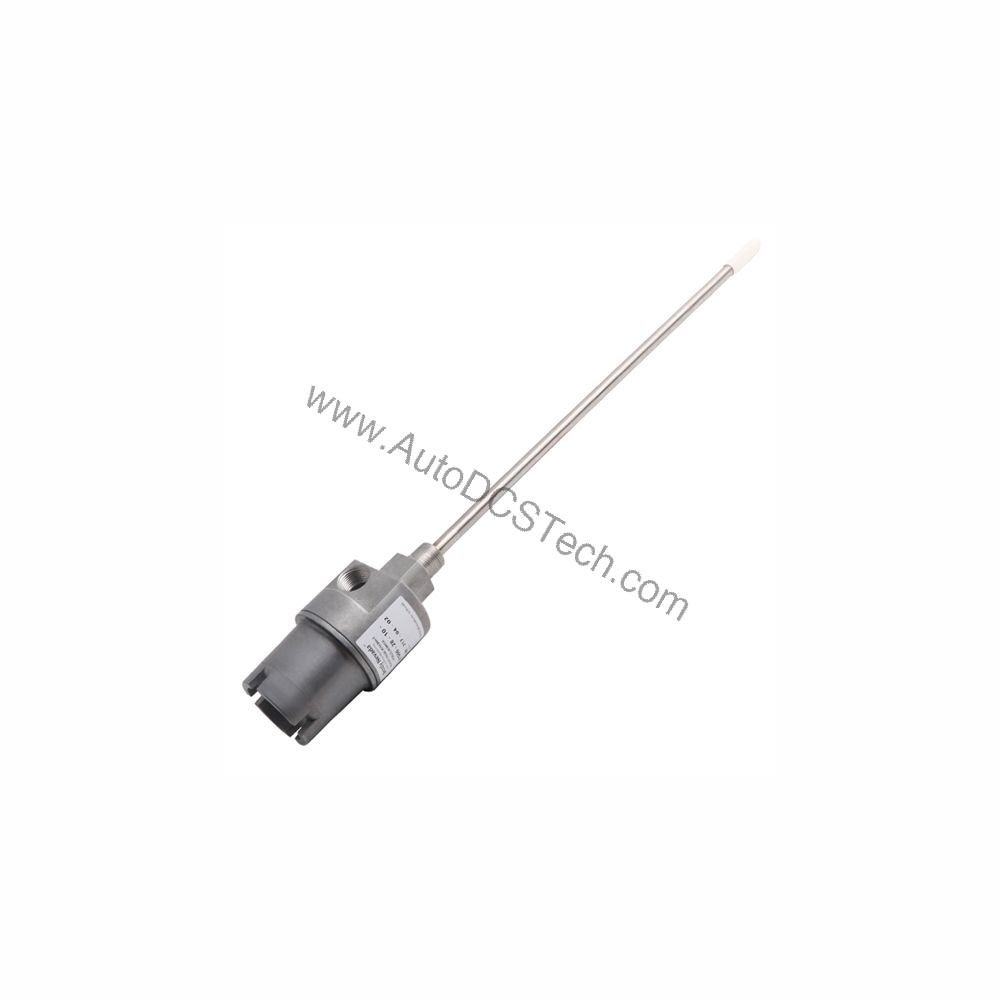

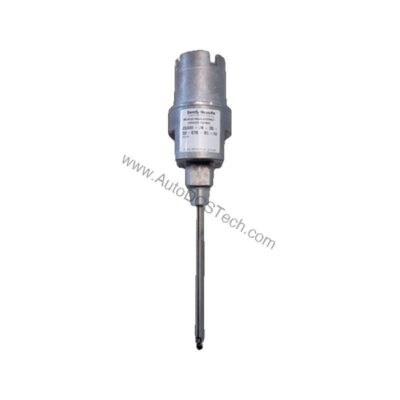

Bently Nevada 21000-34-05-15-056-04-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-34-05-15-056-04-02 are listed below for quick reference:

Industry Applications and Operational ROI

This housing assembly is engineered for externally mounted proximity probes per API 670 Standard. Typical applications include:

• Turbomachinery Monitoring: In steam turbines and gas turbines, the 21000-34-05-15-056-04-02 provides a stable, sealed environment for the 3300 XL 8 mm probe, ensuring accurate shaft vibration and position readings even in high-temperature, high-vibration zones.
• Compressor Protection: For centrifugal and axial compressors, the housing's CSA Type 4 enclosure rating and explosion-proof certification (with appropriate options) allow safe operation in hazardous areas classified for combustible gases or dusts.
• Pump and Motor Surveillance: In large pumps and motors, the 1.5 in standoff adapter and 5.6 in probe penetration accommodate various bearing housing geometries, reducing installation time and improving measurement repeatability.

Installation and Setup Guidance

Proper installation is key to achieving reliable vibration data. Follow these engineer-level steps:

1. Mounting Preparation: Ensure the mounting surface is clean and flat. The 3/4-14 NPT mounting thread requires compatible conduit or fitting. Use thread sealant on the NPT threads to prevent leakage.
2. Probe Insertion: The 0.5 m probe cable is pre-attached. Carefully feed the probe through the sleeve until the standoff adapter contacts the target surface. The 1.5 in standoff adapter sets the correct gap.
3. Connector Protection: The connector protector on the 3300 XL 8 mm probe shields the connection from moisture and debris. Verify the O-rings are seated properly before tightening the dome cover.
4. Conduit Connections: Use the provided 3/4-14 NPT plug for unused ports. For explosion-proof installations, ensure all fittings are rated for the area classification.

Maintenance and Reliability

The 21000-34-05-15-056-04-02 is designed for long-term, maintenance-free service in clean, dry environments. However, periodic inspections are recommended:

• Visual Check: Annually inspect the dome cover and conduit connections for signs of corrosion or damage. The aluminum body with 304 stainless steel sleeve resists most industrial atmospheres.
• Seal Integrity: Verify O-rings are not cracked or compressed. Replace if necessary to maintain the CSA Type 4 enclosure rating.
• Cable Condition: Examine the 0.5 m probe cable for cuts, abrasions, or kinks. Damaged cables can introduce noise or cause intermittent readings.

Robust Protection for Critical Vibration Monitoring

When monitoring rotating machinery in harsh industrial environments, the housing assembly is as critical as the probe itself. The Bently Nevada 21000-34-05-15-056-04-02 proximity probe housing assembly provides a rugged, sealed enclosure designed to protect the 3300 XL 8 mm probe while maintaining reliable, accurate measurements. This assembly is built for demanding applications in oil and gas, power generation, and petrochemical facilities where equipment uptime is paramount.

Compatibility and Integration

This housing assembly is fully compatible with Bently Nevada 3300 XL 8 mm proximity probes and associated monitoring systems (e.g., 3500, 3300, and 7200 series). The CSA Type 4 enclosure and API 670 compliance ensure seamless integration into existing safety-instrumented systems. For intrinsically safe applications, order the probe with appropriate hazardous area approvals.

Selection Guide and Purchasing Advice

When selecting a housing assembly, verify the probe cable length, standoff adapter, and probe penetration match your machine geometry. The 21000-34-05-15-056-04-02 is factory-sealed and includes a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech stocks new, original Bently Nevada parts to ensure your critical machinery stays online.
