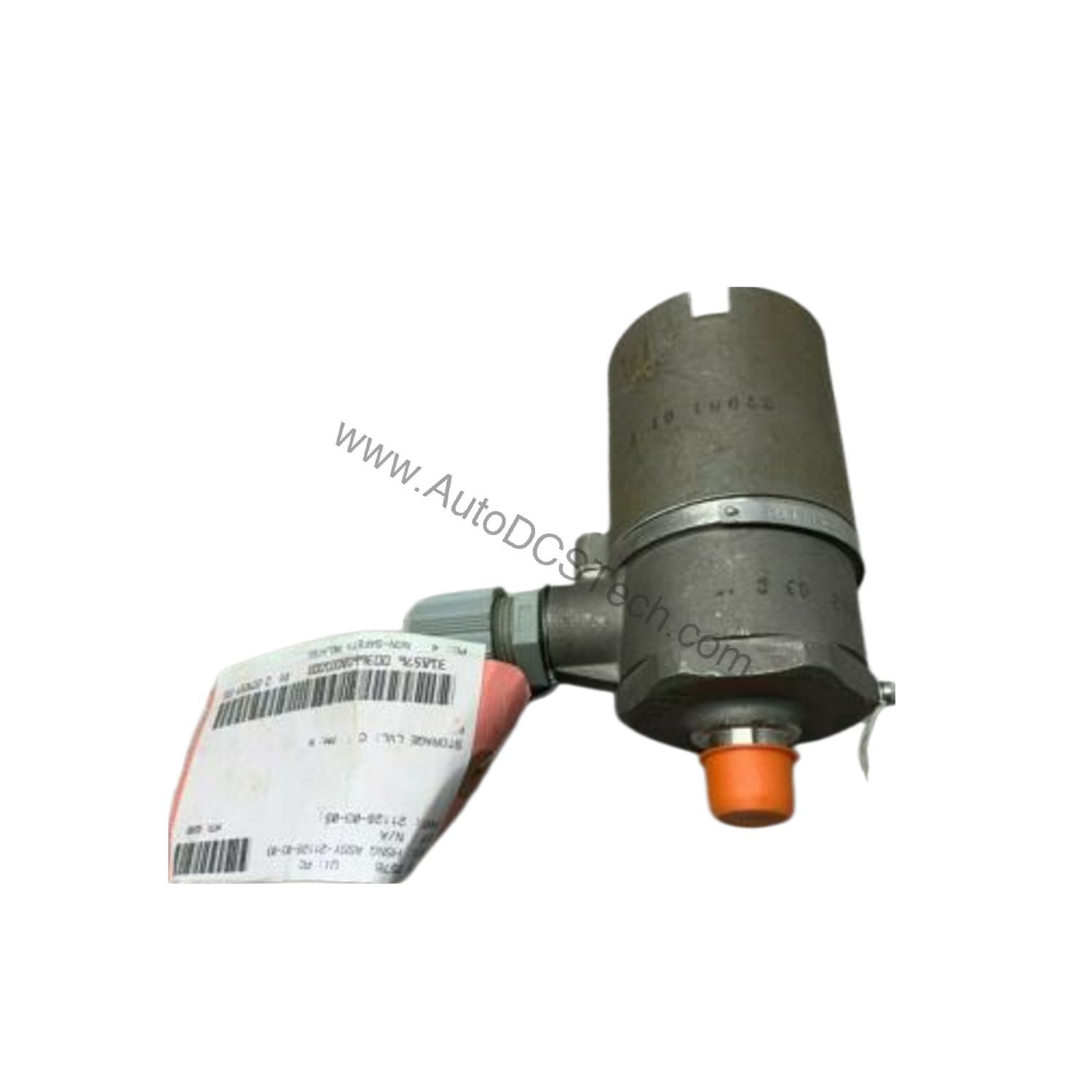

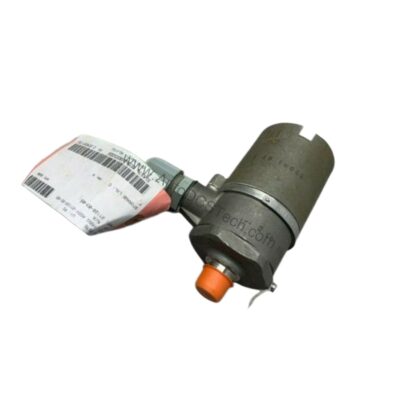

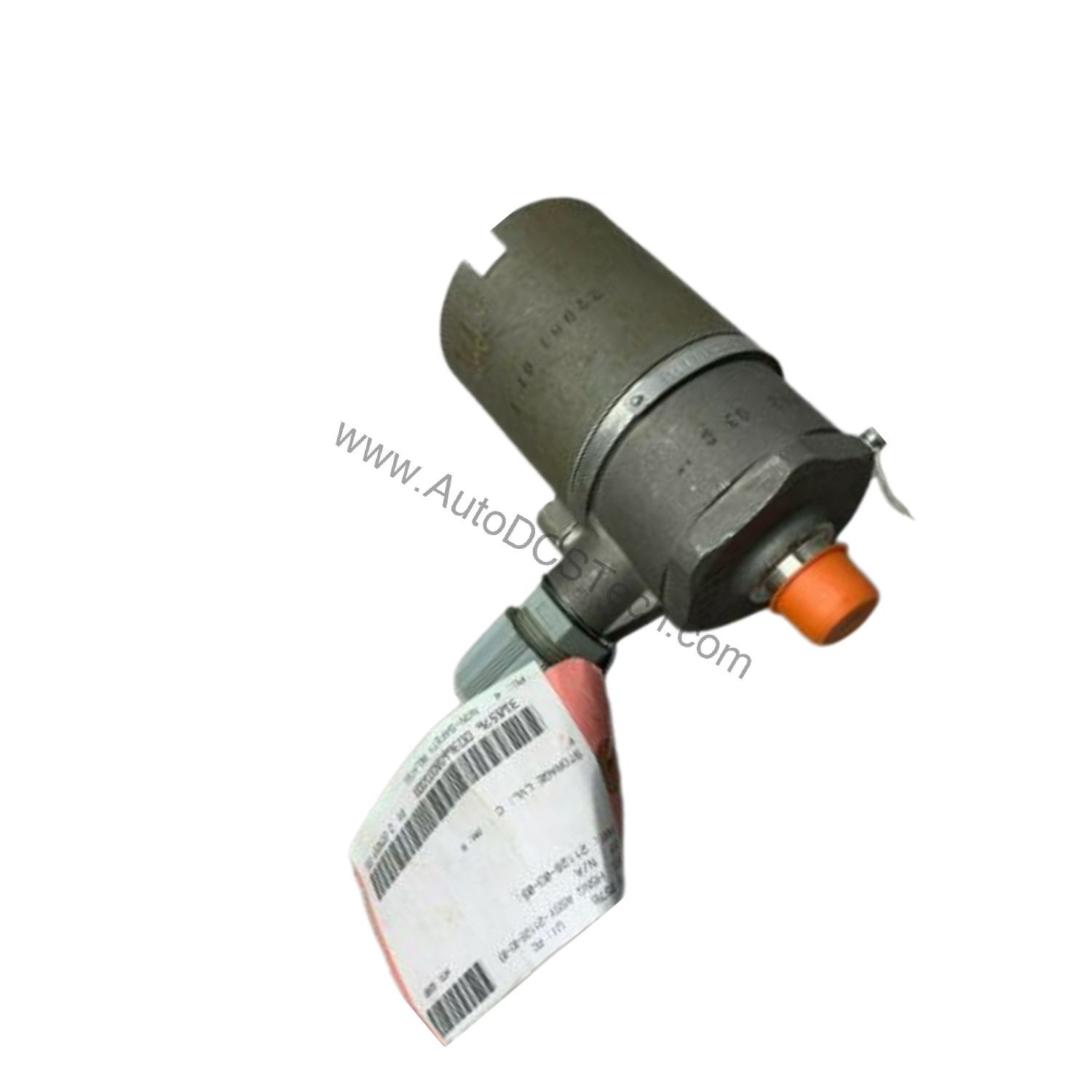

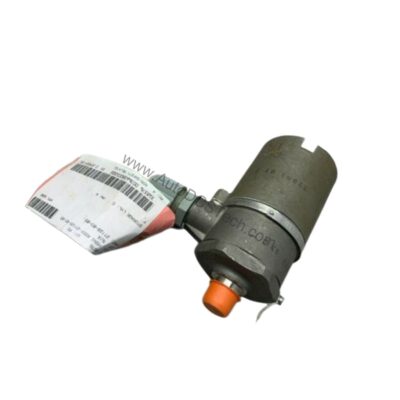

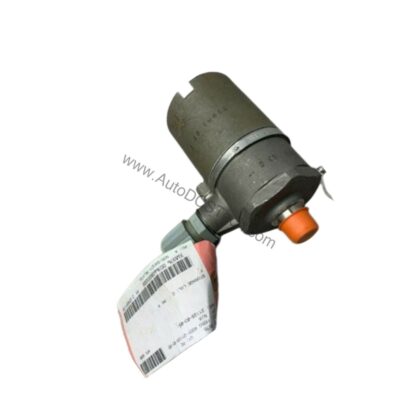

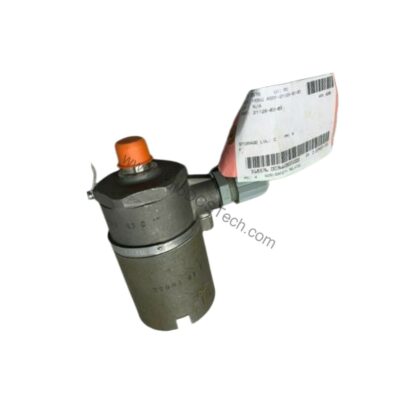

Bently Nevada 21128-03-03 Velocity Transducer Housing, NEMA 4X/IP65

Technical Specifications Breakdown

Key parameters for the 21128-03-03 are listed below for quick reference:

Application in Harsh Industrial Environments

Common uses include:

• Pump and compressor monitoring: In chemical plants or refineries, the housing shields sensors from hose-down cleaning and corrosive atmospheres.
• Turbine vibration sensing: In power generation, the 303 stainless steel construction resists corrosion from steam and moisture.
• Offshore and marine installations: The NEMA 4X and IP65 ratings protect against salt spray and high-pressure washdowns.

Installation Guidance for Engineers

Proper installation is critical to achieve the rated NEMA 4X and IP65 protection. Follow these steps:

1. Mounting: Use the 1/2-in 14 NPT mounting thread to secure the housing to a rigid structure. Ensure the mounting surface is clean and free of debris.
2. Cable entry: The 1/2-in NPT cable exit fitting accepts explosion-proof and cable grip fittings. Tighten fittings to manufacturer torque specifications to maintain the seal.
3. O-ring seal: Inspect the neoprene O-ring before each installation. Replace if damaged to prevent moisture ingress.
4. Sensor installation: For the 21128 housing, the internal mounting thread is 1/2-in 20 UNF. Use appropriate thread sealant to avoid leaks.

Maintenance and Reliability

Periodic inspection of the housing and O-ring is recommended. Check for signs of corrosion, physical damage, or seal degradation. The neoprene O-ring should be replaced if cracked or compressed. Clean the exterior with a mild detergent and water; avoid abrasive cleaners that could damage the stainless steel surface.

Robust Protection for Velocity Sensors

Industrial environments expose velocity transducers to hose-directed water, corrosive agents, physical abuse, and other harsh conditions. The Bently Nevada 21128-03-03 velocity transducer housing provides a rugged solution to shield sensitive sensors from these threats. Constructed from 303 stainless steel, this housing meets NEMA 4X and IP65 requirements when properly installed, ensuring reliable operation in demanding applications.

Compatibility and Integration

The 21128-03-03 housing is designed for Bently Nevada velocity sensors. For non-hazardous environments, the standard 21128 housing is preferred. For hazardous locations, order the CA21128 explosion-proof version (CSA certified for Classes I, II, III, Division 1, Groups B–G) with a CSA-approved velocity sensor installed. For BASEEFA-approved installations, use the BA42608 housing.

When using the 21128 housing, cable part number 89477-AA is necessary to connect the Velomitor sensor to a monitor. The tall cap option is available for installing a Velomitor CT or a 9200/74712 Seismoprobe with isolated base.

Selection Guide and Purchasing Advice

Choose the 21128-03-03 for standard non-hazardous environments requiring NEMA 4X/IP65 protection. Verify the sensor compatibility and required cable part number before ordering. Contact AutoDCSTech for current lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
