Technical Specifications Breakdown
Key parameters for the 21504-12-52-05-02 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Model | 21504 7200 Proximity Transducer Systems |
| Unthreaded Length Option | 120 mm |
| Overall Case Length Option | 5.2 in |
| Total Length Option | 0.5 metre (20 inches). Tolerance: +0.13 metre, -0.05 metre (+5 inches, -2 inches) |
| Connector Option | With miniature male coaxial connector |
| Tip Diameter | 8 mm |
| Threads | 3/8-24 |
| Input Power | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Calibrated Range | 80 mils (2.0 mm). Begins at approximately 10 mils (0.25 mm) from probe face |
| Scale Factor | 200 mV/mil (7.87 V/mm), ±4% (system); within ±9.5% including interchangeability errors |
| Linearity | Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line (system); within 2.3 mils (0.06 mm) including interchangeability errors |
| Frequency Response | 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz (600,000 cpm) |
| Temperature Sensitivity | Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm) |
| Operating Temperature (Proximitor) | -60°F to +212°F (-51°C to +100°C) |
| Operating Temperature (Probe & Extension Cable) | -30°F to +350°F (-34°C to +177°C) |
| Relative Humidity | To 95%, noncondensing |
| Corrosion Resistance (8 mm probes only) | Probe operation not affected by direct contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF |
| System Weight | 1.3 lbs (0.59 kg) |
Industry Applications for Vibration Monitoring
The 200 mV/mil scale factor and 80 mil range provide precise data for predictive maintenance. Its corrosion resistance to common industrial fluids makes it suitable for harsh environments like refineries and chemical plants.
Installation and Setup Guidance
Mount the probe with 3/8-24 threads into a suitable bracket or housing. Ensure the unthreaded length of 120 mm and overall case length of 5.2 in match the installation geometry. The total length of 0.5 metre (20 inches) with tolerance must be accounted for in cable routing. Connect using the miniature male coaxial connector. Verify the input power supply is within -17.5 Vdc to -26 Vdc at 12 mA maximum.
Maintenance and Reliability
Inspect the probe face and cable periodically for contamination or damage. The environmental limits allow operation from -30°F to +350°F for the probe. The system weight of 1.3 lbs simplifies handling. The probe is designed for long-term reliability in continuous monitoring applications.

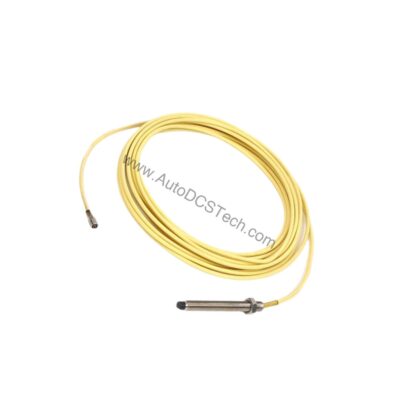

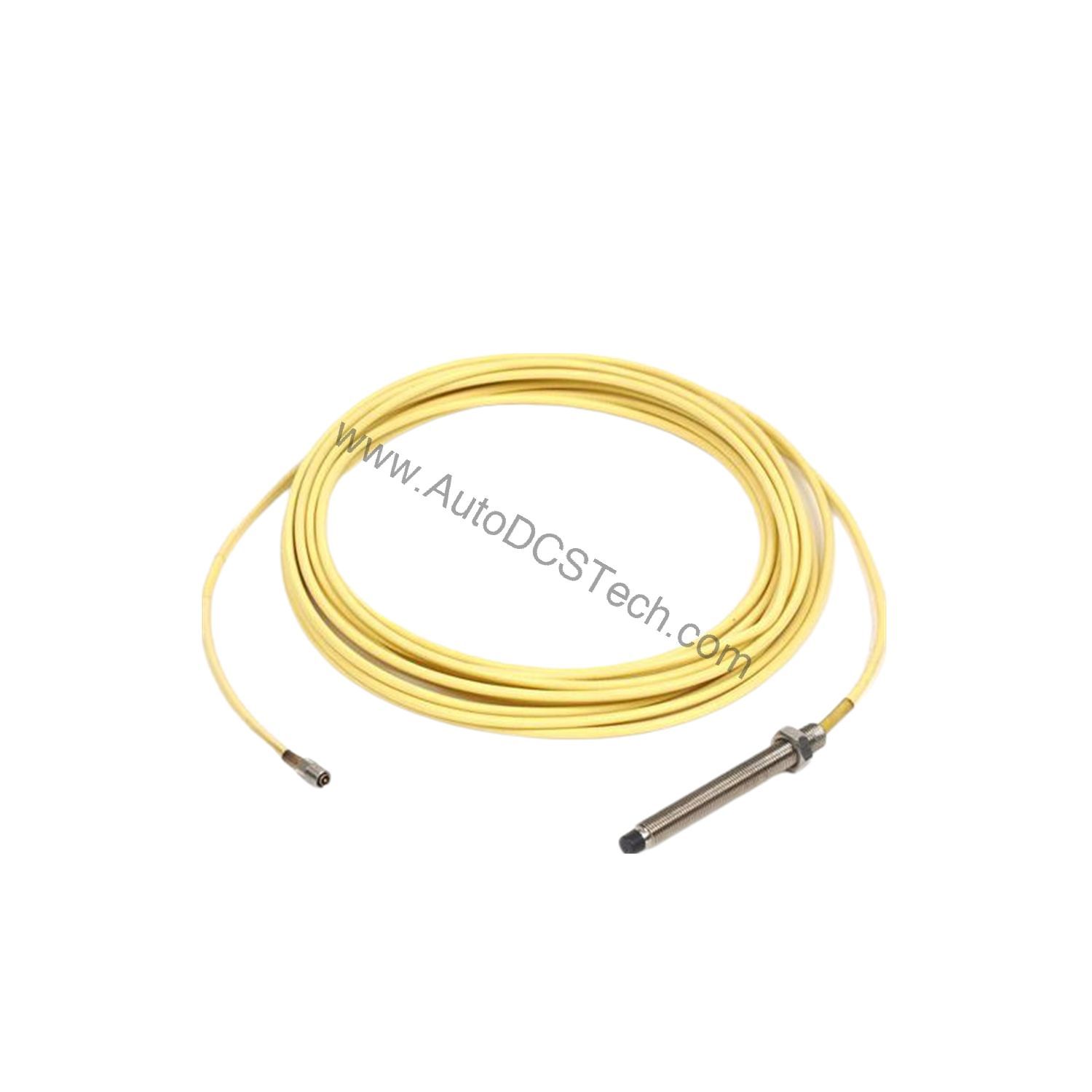

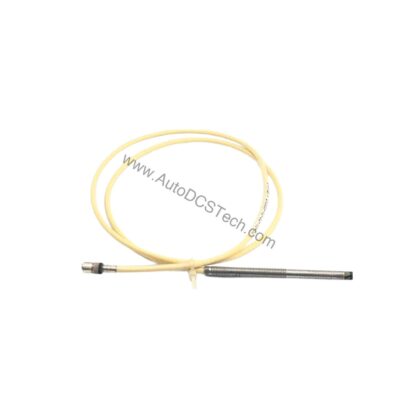

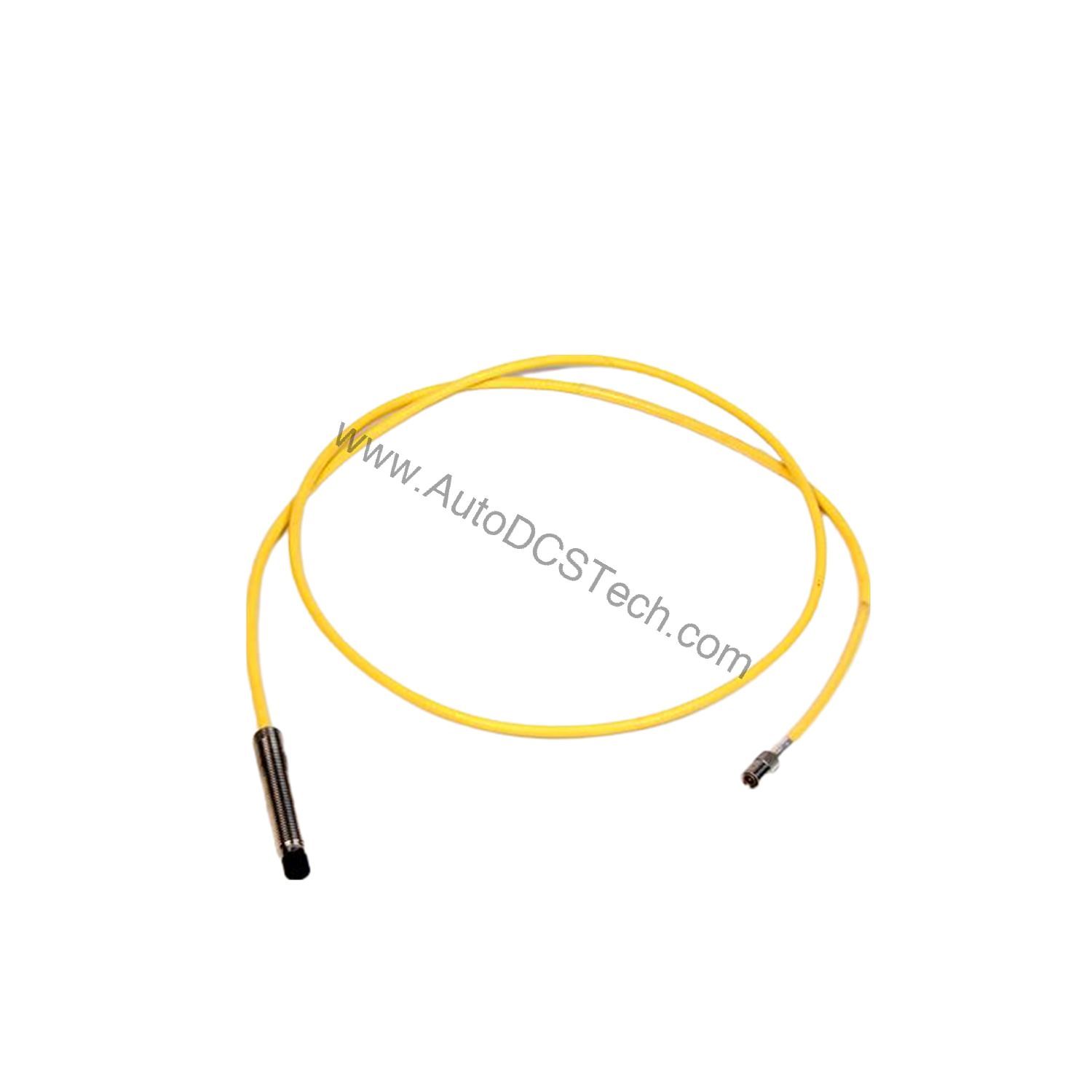

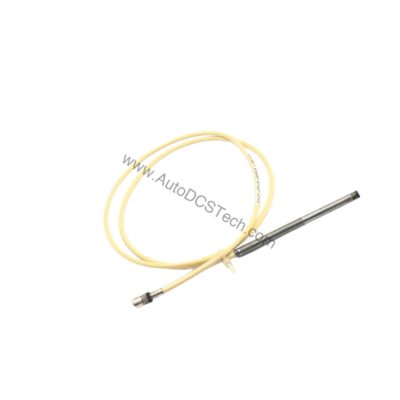

Understanding the Bently Nevada 21504-12-52-05-02 Proximity Probe
Rotating machinery vibration monitoring demands precise, reliable sensors. The Bently Nevada 21504-12-52-05-02 is a proximity probe designed for such critical applications. Part of the 7200 Proximity Transducer System series, this 8 mm diameter probe delivers accurate displacement measurements. It is a new, original unit in factory packaging, backed by a 12-month warranty from AutoDCSTech.
Selection Guide and Purchasing Advice
When selecting a replacement or new probe, verify the part number 21504-12-52-05-02 matches your system requirements. AutoDCSTech stocks this Bently Nevada unit as new and original in factory packaging. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 21504-12-52-05-02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
