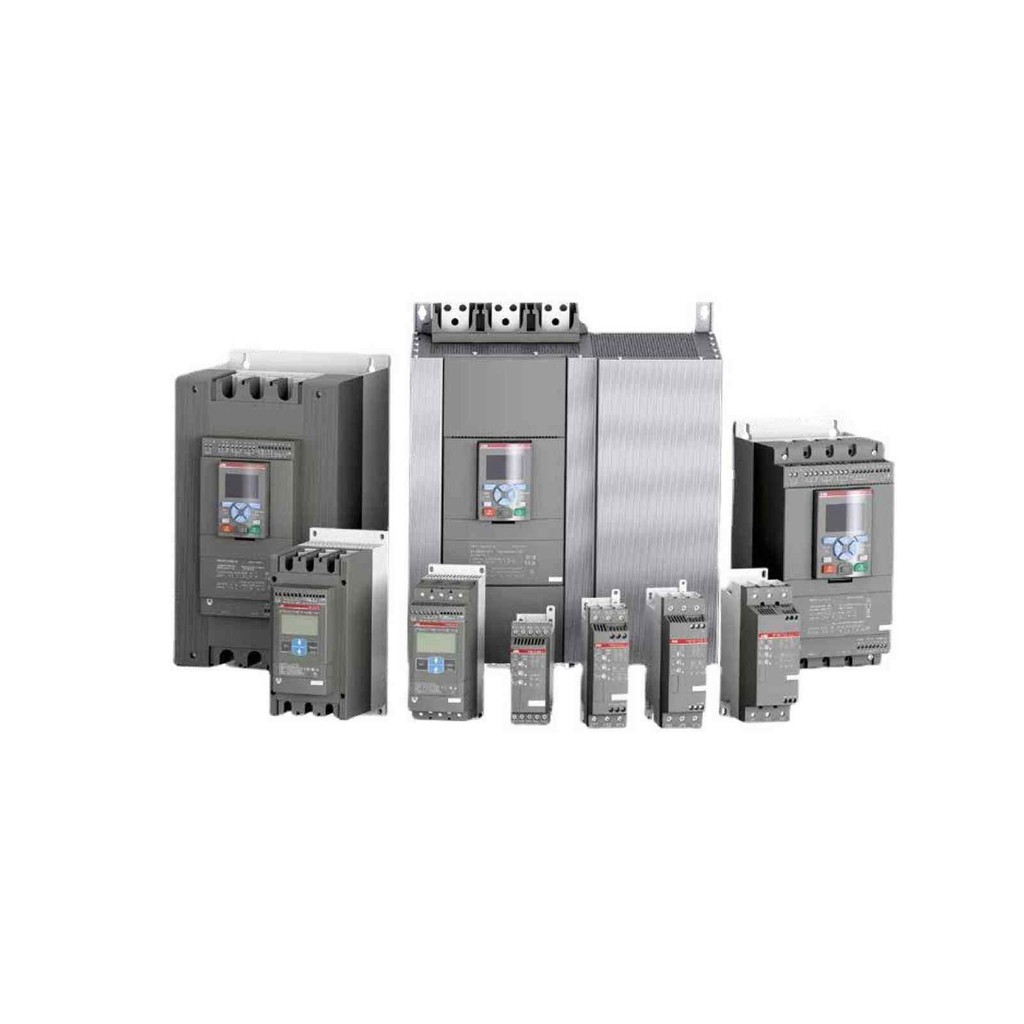

PSTX470-600-70 470 A 208-600 V AC Softstarter

What the ABB PSTX470-600-70 Softstarter Delivers

The ABB PSTX470-600-70 is a three-phase softstarter rated 470 A for inline motor starting across a 208 to 600 V AC operational voltage range. Its built-in bypass cuts continuous conduction losses, while the 100 to 250 V AC control supply simplifies panel design.

Engineers selecting this frame get precise control of acceleration and deceleration. The unit supports voltage and torque ramps, current limit, and kickstart. Consequently, mechanical stress on driven equipment drops, and maintenance intervals lengthen.

Key Specifications and Cost Implications

• Rated operational voltage: 208 to 600 V AC covers low- and medium-voltage networks.
• Rated operational current (inline): 470 A supports medium to large three-phase motors.
• Rated control supply voltage: 100 to 250 V AC at 50/60 Hz reduces external power supplies.
• Rated control circuit voltage: 24 V DC for interface logic.
• Built-in bypass: eliminates separate contactor and cabling costs.
• Starting capacity: 4xIe for 10 s handles high-inertia loads.
• Ramp time: 1 to 120 seconds allows tuning to process demands.

Each specification translates into measurable savings. The wide voltage span removes the need for multiple starter variants. Additionally, the integrated bypass avoids continuous thyristor losses, lowering energy bills. The 470 A rating supports motors up to 250 kW at 400 V in inline connection, so one frame covers several pump and fan duties.

Where This unit Reduces Operating Cost

Pump stations benefit from soft stopping, which curtails water hammer and pipe stress. Fans and compressors start smoothly, reducing belt and coupling wear. Conveyors gain controlled acceleration, limiting product spillage. In each case, the built-in bypass and electronic overload protection extend equipment life. Furthermore, the energy metering function gives operators data to optimize run schedules.

Integration and Communication

The softstarter provides hardwired start/stop/reset inputs and three programmable digital inputs. For network control, Modbus RTU is built in. Optional ANYBUS modules add other protocols. When wiring into a fieldbus network, confirm gateway and cable requirements with AutoDCSTech. The detachable display carries an IP66 and 4x outdoor rating, so configuration is possible without opening the enclosure.

Installation and Maintenance

Mount the unit vertically with clearance for airflow. Main circuit bars accept 8.5 mm hole diameter lugs and require 35 N·m tightening torque. Because the bypass carries current during run, inspect terminals periodically for thermal cycling. The ambient operating range of -25 to +60 °C suits most industrial enclosures. Clean the heatsink when dust accumulates, and verify fan operation through the fault signal relay.
