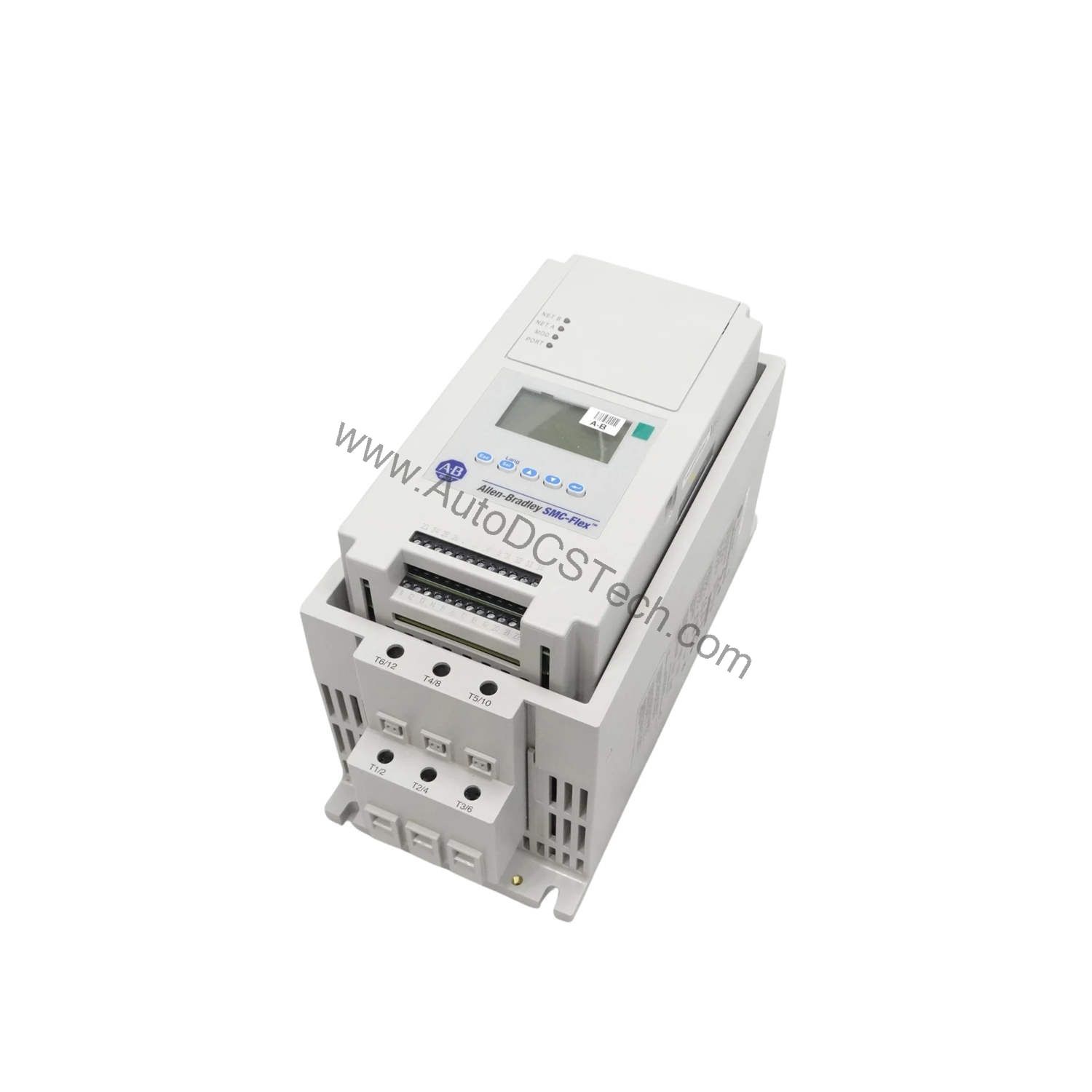

Allen-Bradley 150-F5FAD SMC-Flex Solid State Controller, 5A, IP65

Technical Specifications Breakdown

Key parameters for the 150-F5FAD are listed below for quick reference:

Industry Applications

For example, in food processing plants where washdowns are frequent, the IP65 enclosure protects internal electronics from water jets and cleaning agents. Similarly, in material handling systems, the 150-F5FAD provides soft start capabilities that reduce mechanical stress on conveyors and gearboxes, extending equipment life. The 5A rating and 3 Hp at 460V AC make it suitable for small to medium pumps, fans, and compressors.

Installation & Setup Guidance

When installing the 150-F5FAD, ensure the mounting surface is clean and the enclosure lid is properly sealed to maintain the IP65 rating. Connect the 230V AC three-phase input line to the designated terminals, observing correct phase rotation. The control voltage of 100-240V AC must be supplied from a separate source. Use the front panel keypad and LCD to configure operating modes such as soft start or current limit start. Always follow local electrical codes and the manufacturer's manual for wiring details.

Maintenance & Reliability

Periodic inspection of the enclosure seals and cooling vents is recommended to maintain the IP65 protection. Check for signs of corrosion or moisture ingress, especially in humid environments. The controller's protective features, including power loss, line fault, and overvoltage detection, help prevent damage. Store the unit within the specified temperature range when not in use. For detailed maintenance schedules, consult the product documentation.

Robust Motor Control for Harsh Environments

In demanding industrial settings, motor controllers face constant challenges from dust, moisture, and electrical disturbances. The Allen-Bradley 150-F5FAD SMC-Flex Solid State Controller provides a reliable solution for starting and protecting three-phase induction motors in tough environments. This controller combines a rugged IP65 (Type 4/12) enclosure with advanced microcomputer-based control, ensuring consistent performance even in washdown or dusty locations.

Compatibility & Integration

The 150-F5FAD includes a built-in DPI communication interface, enabling connection to DeviceNet, ControlNet, Ethernet, RS-485, and Profibus networks. This allows seamless integration into existing automation systems. The controller also features 4 programmable relay outputs for status indication and external bypass control.

Selection Guide & Purchasing Advice

When selecting the 150-F5FAD, verify that the motor's full-load current does not exceed 5A and that the supply voltage matches 230V AC three-phase. For applications requiring higher ratings, consider other SMC-Flex models. AutoDCSTech offers this controller with detailed support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
