Key Features and Technical Specifications

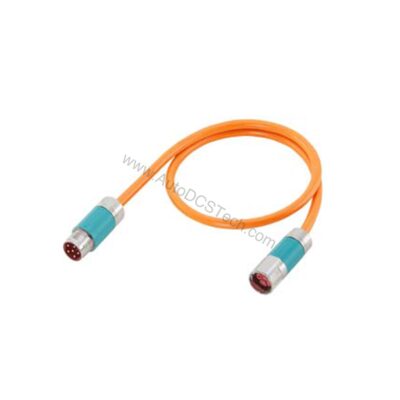

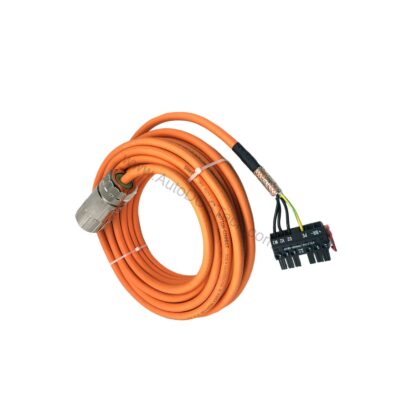

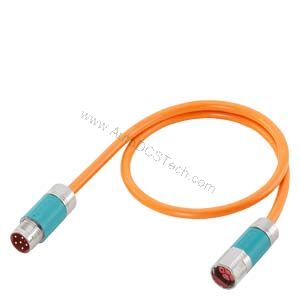

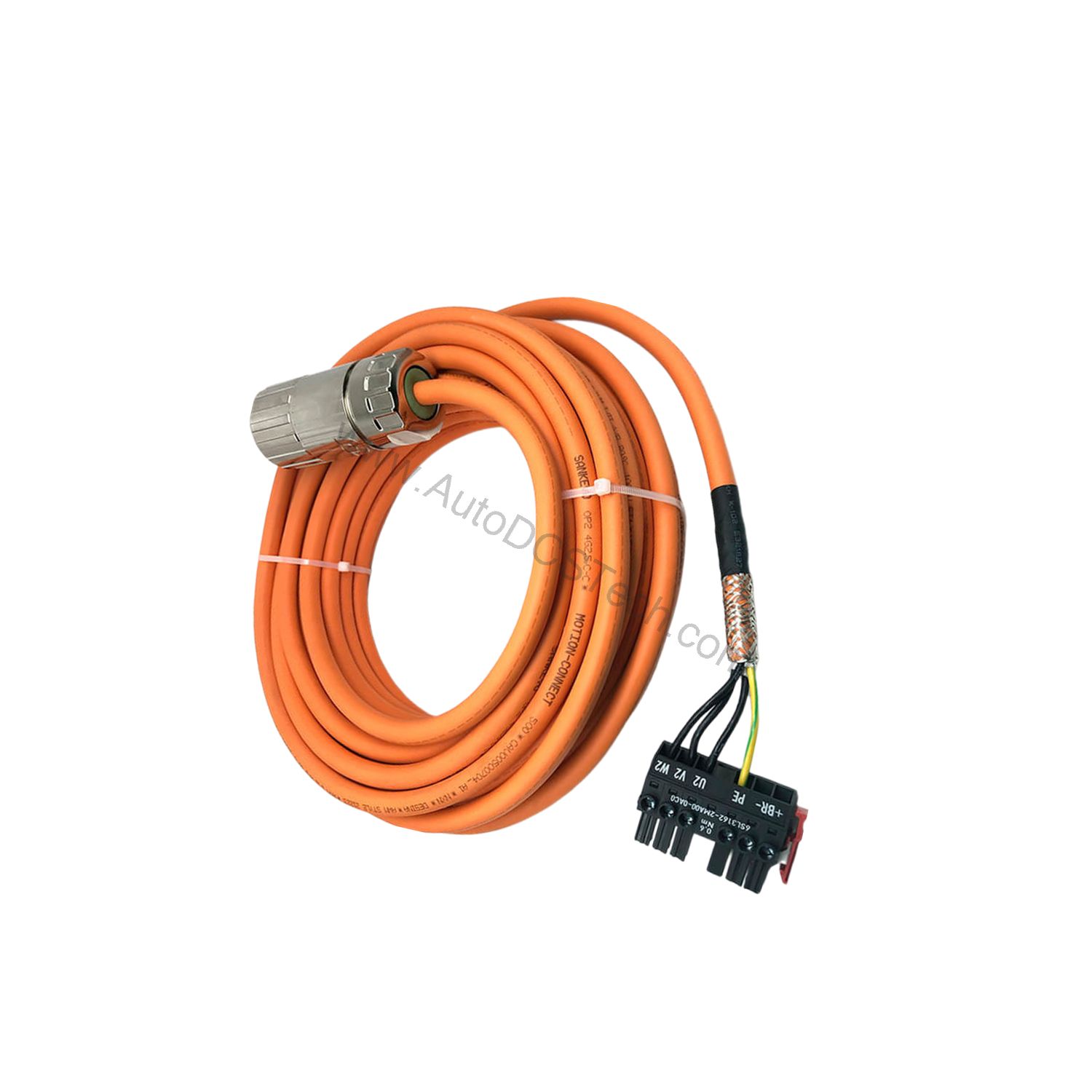

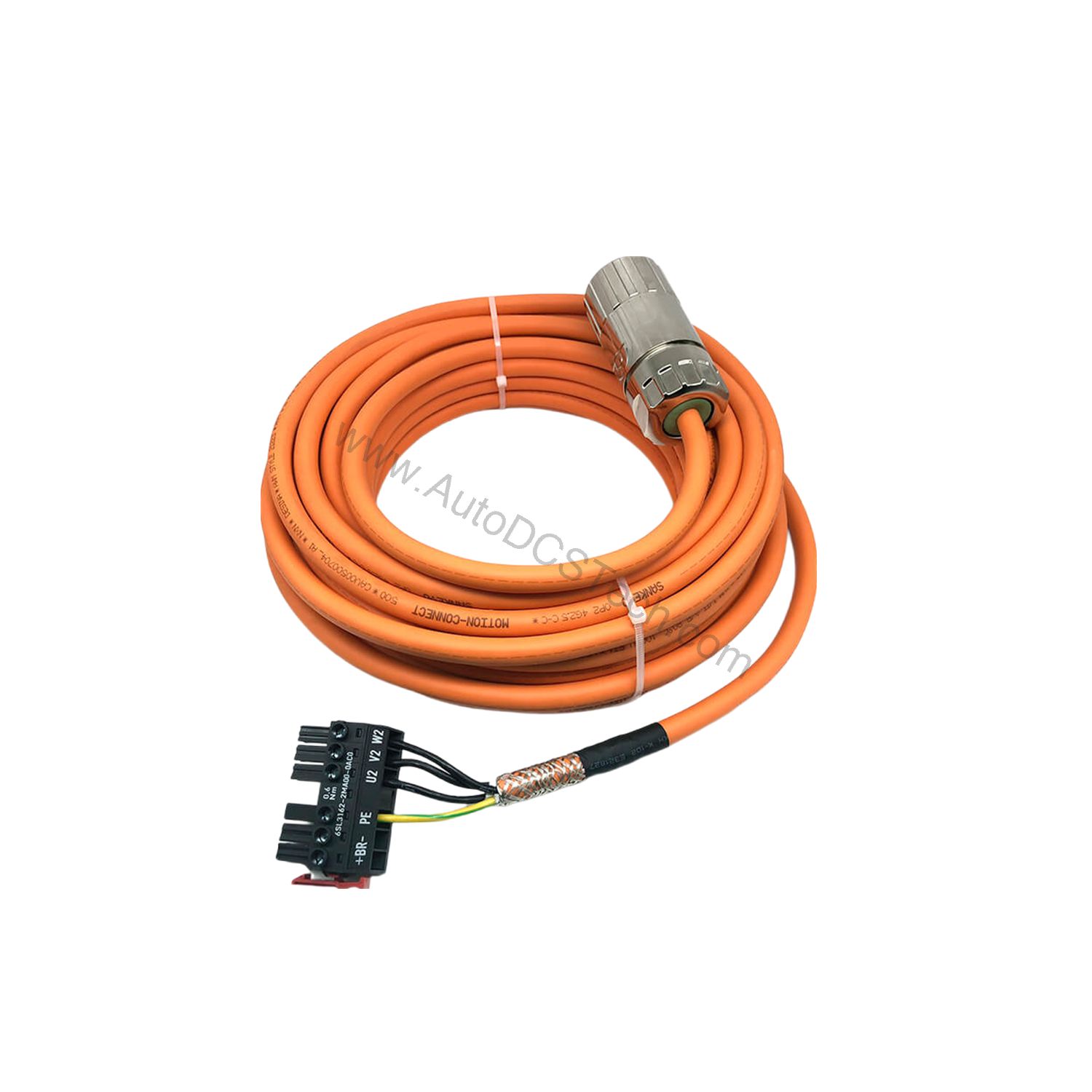

The 6FX5002-5DN06-1BA0 is a female straight connector with pre-wired terminals, featuring a 6-pole M23 design. Its shielded construction protects against electromagnetic interference, ensuring signal integrity. The cable length is 10 meters, and it comes without cable sleeves, offering flexibility for custom installations.
- Power cores: 12 A (1.5 mm²) and 15 A (2.5 mm²) – supports various motor sizes.
- Brake cores: 5 A (1.5 mm²) – reliable brake control.
- Operating voltage: AC/DC max 630 V – suitable for high-voltage applications.
- Degree of protection: IP66 and IP67 – dust-tight and protected against immersion.
- Operating temperature: -25 °C to 85 °C – performs in extreme climates.
- Tightening torque: 2 Nm – ensures secure connections.
- Material: Zinc die-casting housing, nickel-plated, brass locking – corrosion-resistant.
One standout feature is the IP66/IP67 rating, which means the connector can withstand powerful water jets and temporary immersion.
Applications and Use Cases
In automotive manufacturing, this cable connects servo motors to drives on assembly lines, where reliability is critical. Similarly, in food and beverage processing, the IP67 rating allows for frequent cleaning with high-pressure water. Furthermore, the chemical-resistant plastic housings (with individual testing recommended) make it suitable for applications with oil or chemical exposure. Ultimately, the 6FX5002-5DN06-1BA0 ensures uninterrupted operation in harsh settings.
Installation and Mounting Guide
Installing the 6FX5002-5DN06-1BA0 is straightforward. First, insert the connector and screw it down to the specified torque of 2 Nm. The M23 x 1 thread ensures a secure fit, and the width across flats (SW27) allows for easy tightening with standard tools. The mounting method includes inserted and screwed connections with shaking protection, preventing loosening due to vibration. Always verify that the cable is routed without sharp bends to maintain its shielding effectiveness.
Maintenance and Reliability
To ensure long-term performance, inspect the connector periodically for signs of wear or corrosion. The nickel-plated coating and brass locking material offer resistance to environmental factors, but regular checks are recommended. Because the temperature range depends on cable quality, avoid exceeding the specified limits. By following these simple steps, you can extend the service life of the 6FX5002-5DN06-1BA0 and reduce replacement costs.
Troubleshooting Common Issues
If you encounter intermittent power loss, first check the tightening torque of the connector. A loose connection can cause arcing and overheating. Also, inspect the cable for damage, especially at stress points. If the connector is exposed to aggressive chemicals, verify that the housing material is compatible with your specific media. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for expert guidance.
Product Support and Availability
The Siemens 6FX5002-5DN06-1BA0 is available from AutoDCSTech. Contact our team to check stock and lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6FX5002-5DN06-1BA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
