Bently Nevada 21505-00-28-05-02 8 mm Proximity Probe Vibration Sensor

Failure Mode Analysis & Prevention with the Bently Nevada 21505-00-28-05-02

Unplanned downtime from rotating machinery failures can cost thousands per hour. The Bently Nevada 21505-00-28-05-02 8 mm proximity probe is engineered to detect early signs of shaft vibration and displacement, enabling predictive maintenance. This article examines how this sensor helps prevent common failure modes in turbines, compressors, and pumps.

Product Overview

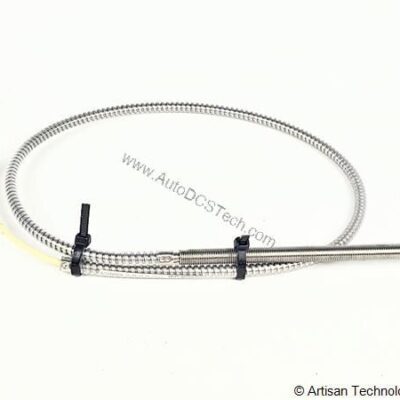

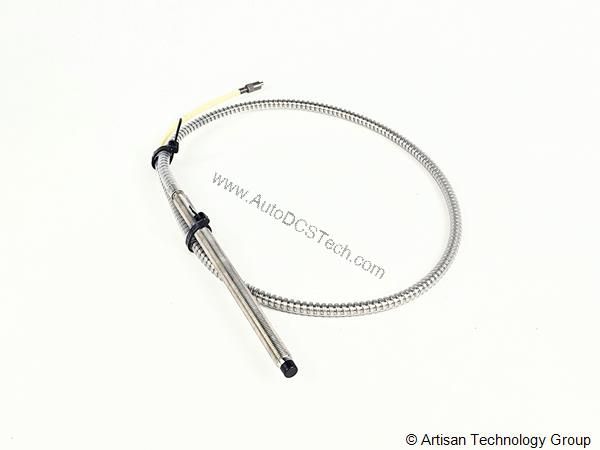

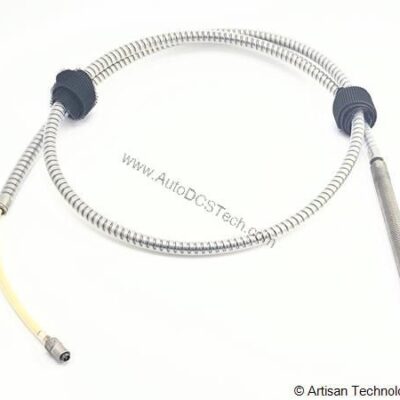

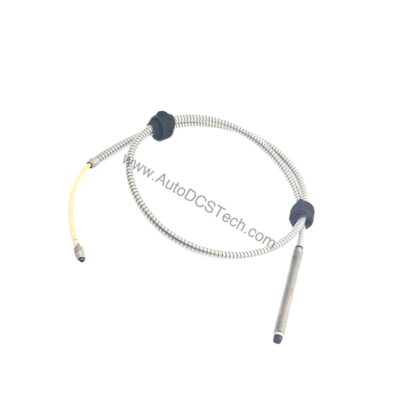

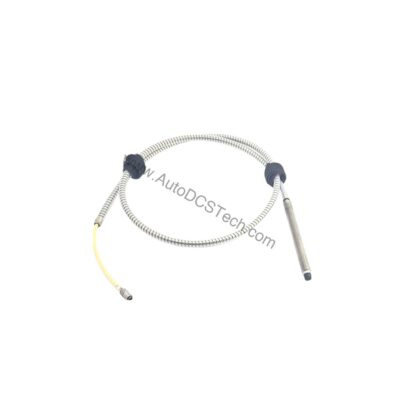

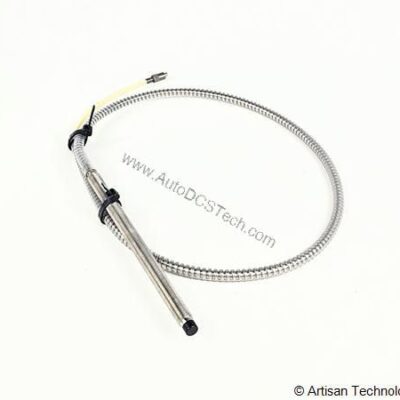

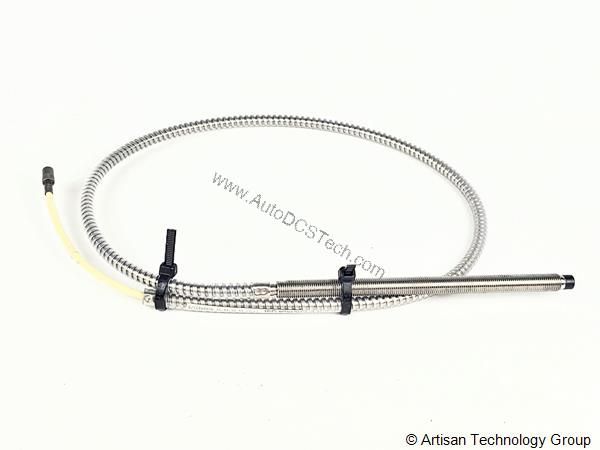

The 21505-00-28-05-02 is part of the Bently Nevada 7200 Proximity Transducer System. It is an 8 mm diameter, standard-case proximity probe with stainless steel lead armor and a 0.5 metre (20 inches) total length. The unthreaded length is 0.0 inches, overall case length is 2.8 inches, and it terminates with a miniature male coaxial connector (option 02). This sensor measures shaft vibration and position relative to the probe tip, providing critical data for machinery health monitoring.

Technical Specifications Breakdown

Key parameters for the 21505-00-28-05-02 are listed below for quick reference:

Industry Applications

For example, in steam turbines, shaft vibration above 10 mils can indicate bearing wear or imbalance. The 21505-00-28-05-02 provides a 200 mV/mil output, allowing precise trend analysis. In centrifugal compressors, the 0 to 10 kHz frequency response captures both low-speed runout and high-frequency blade pass vibrations. The probe's corrosion resistance to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, and DMF makes it suitable for harsh chemical environments.

Installation & Setup Guidance

Mount the probe using the 3/8-24 threaded case. Ensure the probe face is at least 0.25 mm (10 mils) from the target surface when the shaft is at rest, as the calibrated range begins at approximately 10 mils from the probe face. The unthreaded length of 0.0 inches means no unthreaded section; the entire case length (2.8 inches) is threaded. Use the miniature male coaxial connector for signal transmission to the proximitor. Verify power input of -17.5 Vdc to -26 Vdc at 12 mA maximum consumption. For best linearity, calibrate the system as an unit to achieve ±4% scale factor accuracy.

Maintenance & Reliability

Inspect the probe and cable periodically for physical damage, especially the stainless steel lead armor. The probe operates reliably from -30°F to +350°F (-34°C to +177°C). Avoid exposing the probe to corrosive agents beyond those listed; the probe is unaffected by direct contact with specified chemicals. The system weight of 1.3 lbs (0.59 kg) is manageable for most mounting configurations. No internal adjustments are required; the probe is a passive sensor.

Compatibility & Integration

The 21505-00-28-05-02 integrates with Bently Nevada 7200 series proximitors and monitoring systems. The miniature male coaxial connector mates with standard Bently Nevada extension cables. The 0.5 metre total length is suitable for close-coupled installations. For longer distances, use appropriate extension cables (not included). The output signal (200 mV/mil) is compatible with most vibration monitoring modules.

Selection Guide & Purchasing Advice

When selecting a proximity probe, match the total length and connector type to your existing system. AutoDCSTech stocks this Bently Nevada probe in new, factory-sealed condition with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
