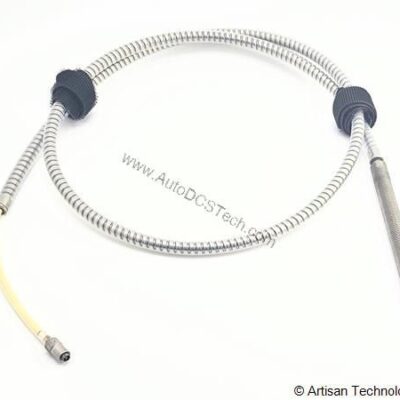

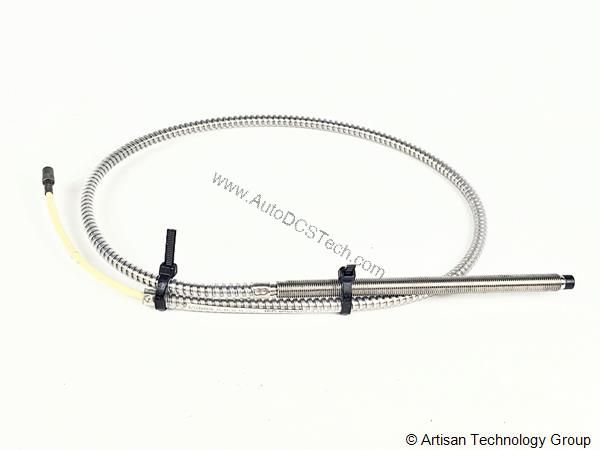

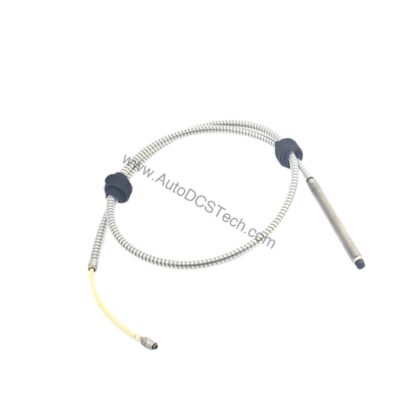

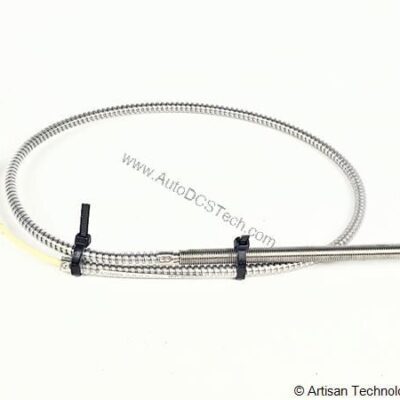

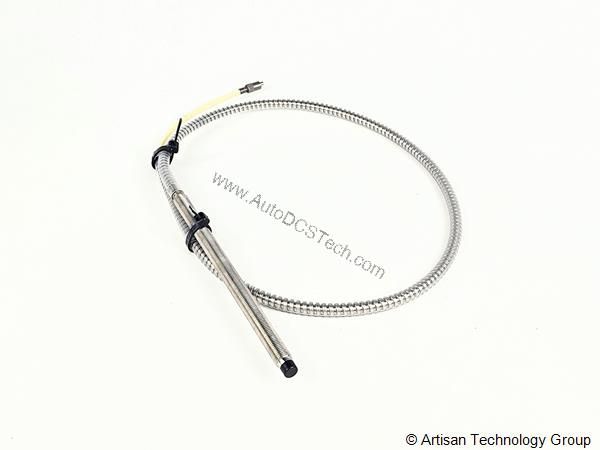

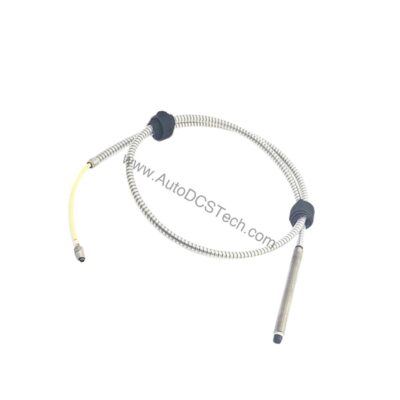

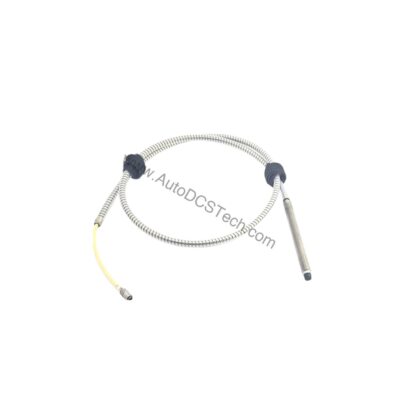

Bently Nevada 21505-00-32-90-02 8 mm Proximity Probe for Vibration Monitoring

Technical Specifications Breakdown

Key parameters for the 21505-00-32-90-02 are listed below for quick reference:

Industry Applications

In steam turbine trains, the 21505-00-32-90-02 mounts directly into bearing housings to monitor radial vibration. Its 200 mV/mil scale factor provides clear signals to protection systems, allowing operators to trend vibration levels and schedule maintenance before damage occurs. In centrifugal compressors handling corrosive gases, the stainless steel armor and corrosion resistance to sulfuric acid (10%) and MEK ensure reliable operation even when exposed to process leaks. The 9-metre cable length (351 inches) offers flexibility in routing to the proximitor, simplifying installation on large machinery.

Installation & Setup Guidance

Mount the probe using the standard 318-24 thread into a properly tapped hole in the bearing housing. Ensure the probe face is clean and free of debris before installation. Set the initial gap to approximately 50 mils (1.27 mm) from the shaft target surface, as this is the point where temperature sensitivity is characterized. Use the miniature male coaxial connector to attach the extension cable, ensuring a secure connection to avoid signal noise. Calibrate the system as a matched set to achieve the ±4% scale factor accuracy; if components are interchanged, expect up to ±9.5% error including interchangeability.

Maintenance & Reliability

Inspect the probe and cable periodically for physical damage, especially at connection points. The stainless steel armor protects against abrasion, but check for kinks or cuts in the cable jacket. Clean the probe face with a soft cloth if exposed to contaminants. The probe's operating range of -30°F to +350°F (-34°C to +177°C) covers most industrial environments, but avoid exceeding the temperature limits of the proximitor (-60°F to +212°F). Verify that relative humidity remains below 95% noncondensing to prevent moisture ingress.

Reliable Vibration Sensing for Critical Machinery

The Bently Nevada 21505-00-32-90-02 proximity probe is engineered to provide precise, continuous vibration data in harsh industrial environments. As part of the 7200 Proximity Transducer System, this 8 mm probe delivers the accuracy and durability required for round-the-clock monitoring of rotating assets.

Compatibility & Integration

The 21505-00-32-90-02 is designed for the Bently Nevada 7200 Proximity Transducer System. It works with compatible proximitors and extension cables to form a complete vibration monitoring channel. The 200 mV/mil output interfaces directly with Bently Nevada monitors and third-party data acquisition systems that accept standard proximity probe signals. For new installations, order the probe with the matching connector option to ensure plug-and-play compatibility.

Selection Guide & Purchasing Advice

When selecting a replacement or spare probe, verify the total length requirement for your machine train. The 9-metre option (351 inches) suits most medium-to-large rotating assets. AutoDCSTech stocks this Bently Nevada 21505-00-32-90-02 as new and original in factory packing with a 12-month warranty. Contact our team to confirm lifecycle status and availability before ordering. We also carry extension cables and proximitors to complete your system.
