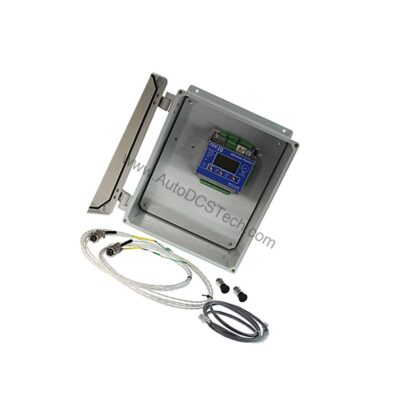

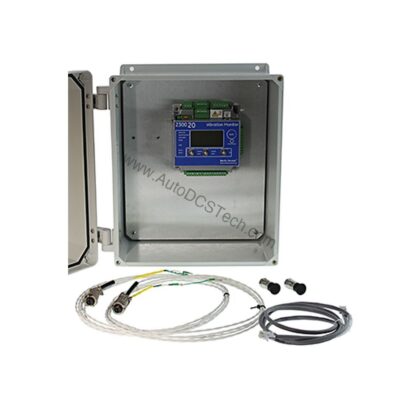

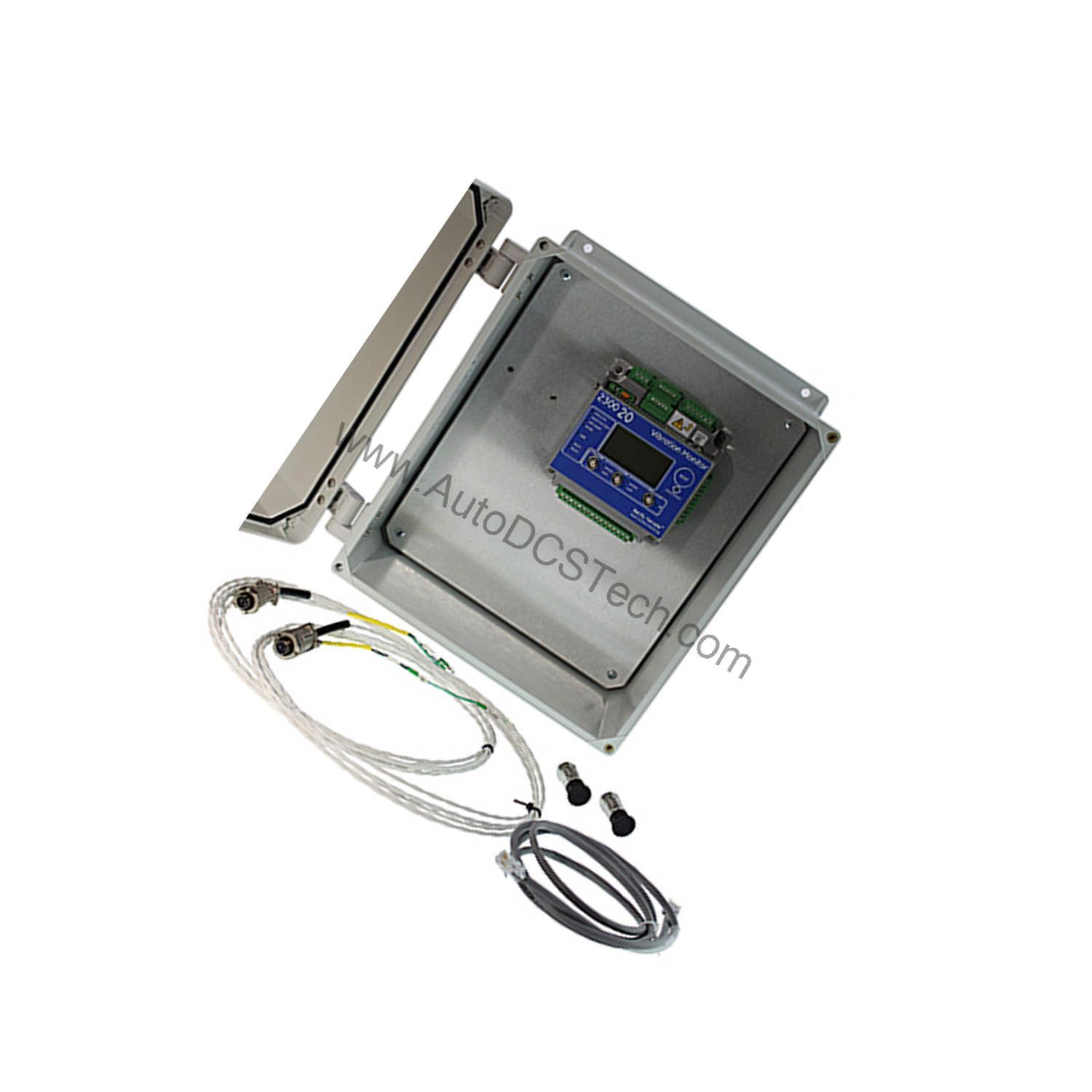

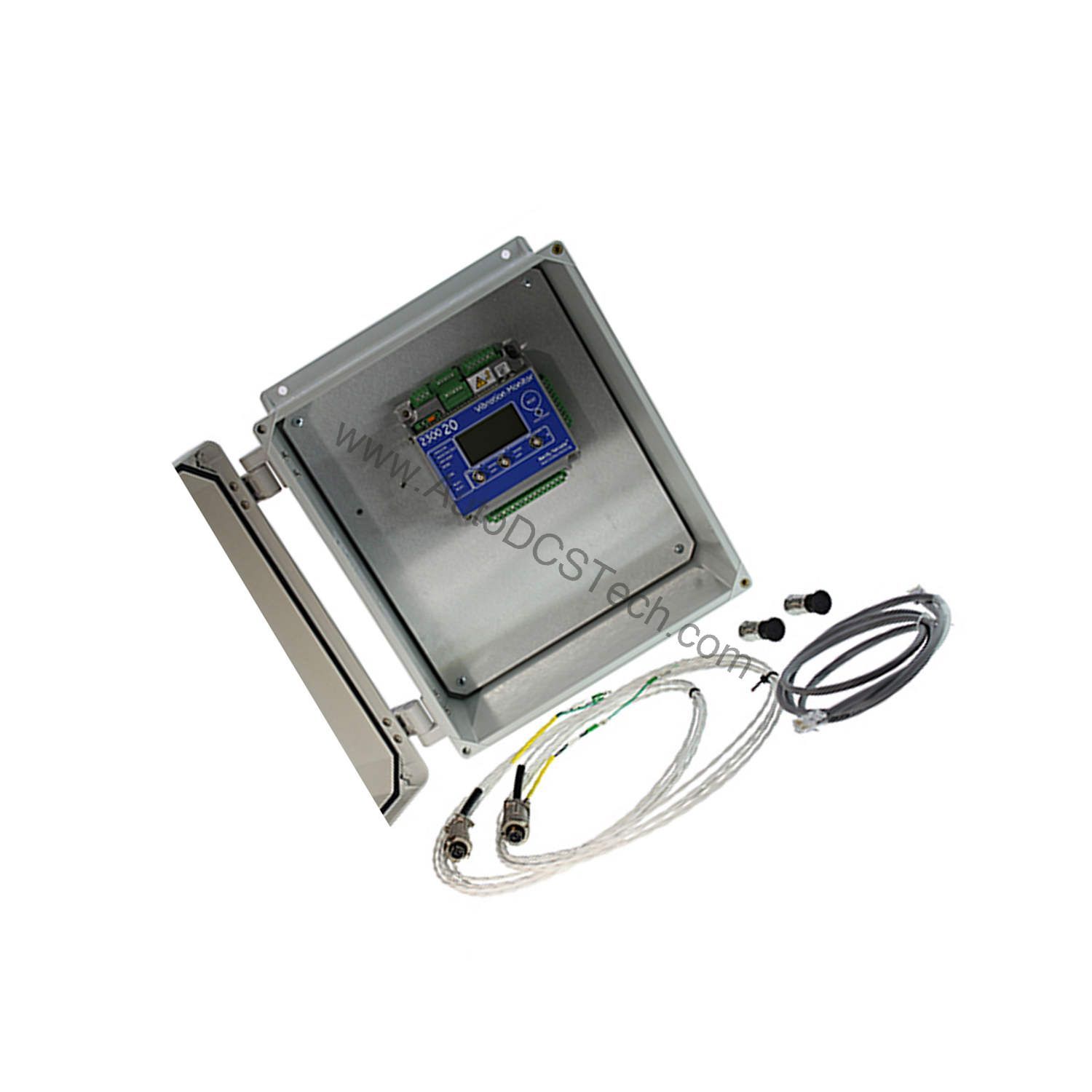

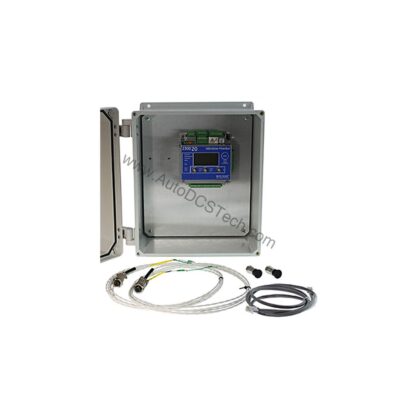

Bently Nevada 2300/20 Condition Monitoring System Kit Overview

Technical Specifications Breakdown

Key parameters for the 2300/20_KIT-001-02-00 are listed below for quick reference:

Industry Applications for Enhanced Reliability

With configurable channel types for ICP accelerometers, velocity, radial vibration, and thrust, it adapts to various machine protection needs. The included accelerometer sensors (AM3100T2-Z2) and cables (9571) enable quick deployment. By providing early warning of vibration changes, the system supports predictive maintenance strategies that reduce repair costs and improve operational uptime.

Installation and Setup Guidance

Mount the 2300/20 monitor using the included DIN rail adapter or panel mount. Connect the accelerometer sensors using the provided 17 ft. (5.2 m) cables. Ensure a 24 Vdc power supply (not included) is available within the specified input range (18~36 Vdc). Use the shielded Ethernet cable (6 ft. / 1.8 m) to connect to your network for communication with System 1 software. For hazardous area installations, select the stainless steel housing (05M6193-03); for nonhazardous areas, use the fiberglass housing (105M6193-01).

Maintenance and Reliability Tips

Regularly inspect the housing and cable connections for signs of wear or damage. Keep the unit within its operating temperature range (-30°C to +65°C) and humidity below 95% non-condensing. The real-time clock battery offers long life: 38 years powered at 50°C and 12 years unpowered at 50°C. Periodically verify that the Ethernet connection is active and that the monitor communicates with your monitoring software.

Reliable Condition Monitoring for Critical Machinery

The Bently Nevada 2300/20_KIT-001-02-00 is a comprehensive Condition Monitoring System Kit designed for continuous vibration and speed monitoring in industrial environments. This kit provides everything needed to start monitoring rotating machinery, helping prevent unplanned downtime and extending equipment life.

Compatibility and Integration

It supports Bently transducers and 2/3 wire custom transducers for accelerometers, Velomitor, and Proximitor. The module can store up to at least 5 alarm data captures during network disruptions (requires System 1 Evolution 21.1 or newer and Firmware release 3.2 or newer).

Selection Guide and Purchasing Advice

When ordering the 2300/20_KIT-001-02-00, verify your application’s hazardous area classification to choose the correct housing. The kit includes two accelerometer sensors and cables but excludes the Keyphasor sensor and 24 Vdc power supply. For expert assistance in selecting the right configuration, contact AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
