Cost-Effective Condition Monitoring with the Bently Nevada 2300/25_KIT-005-00

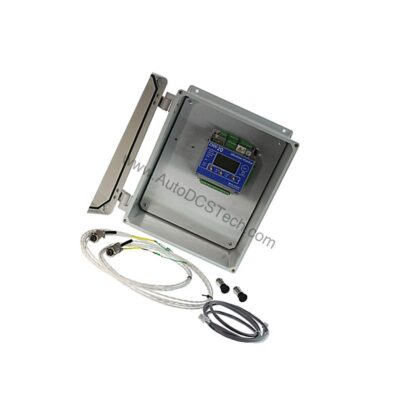

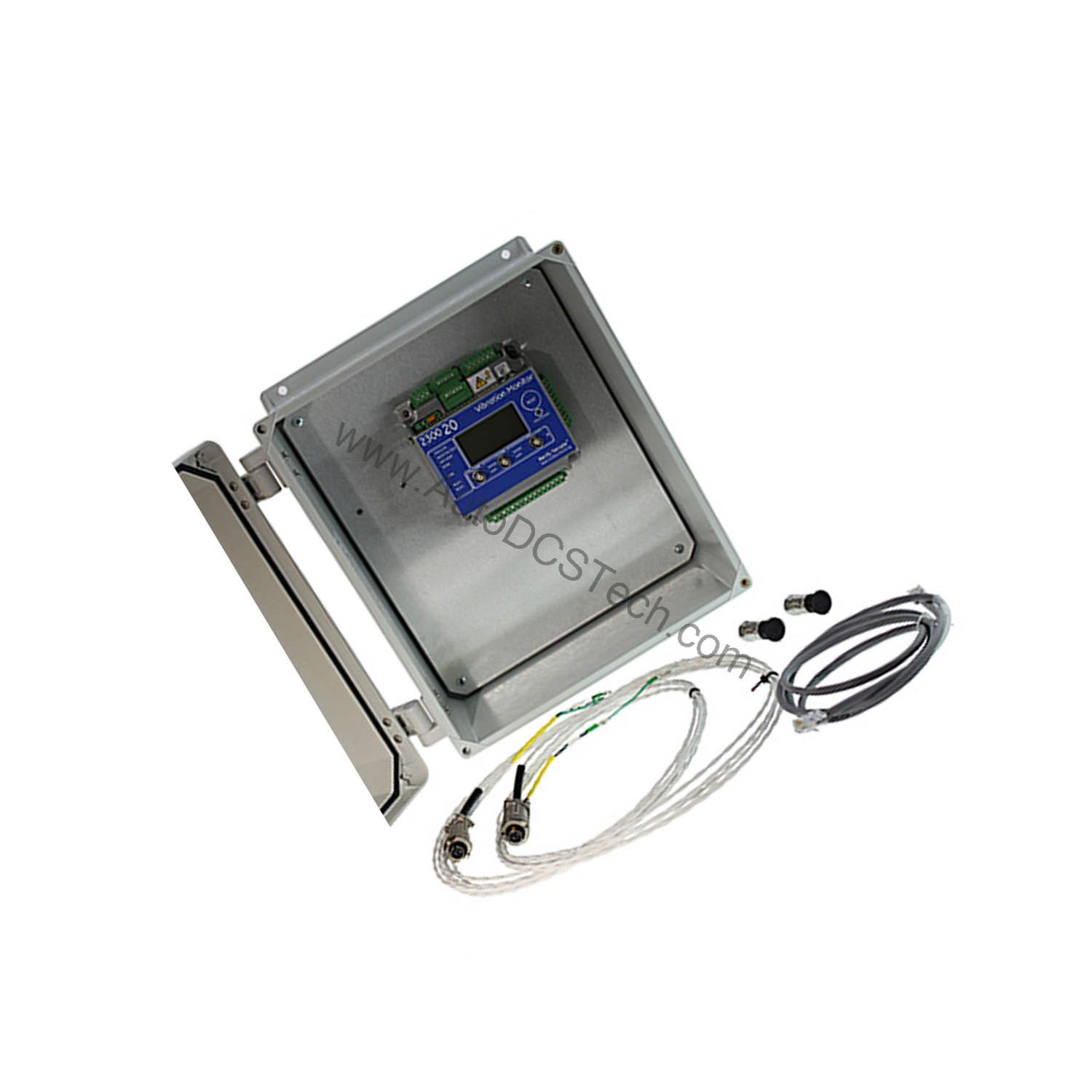

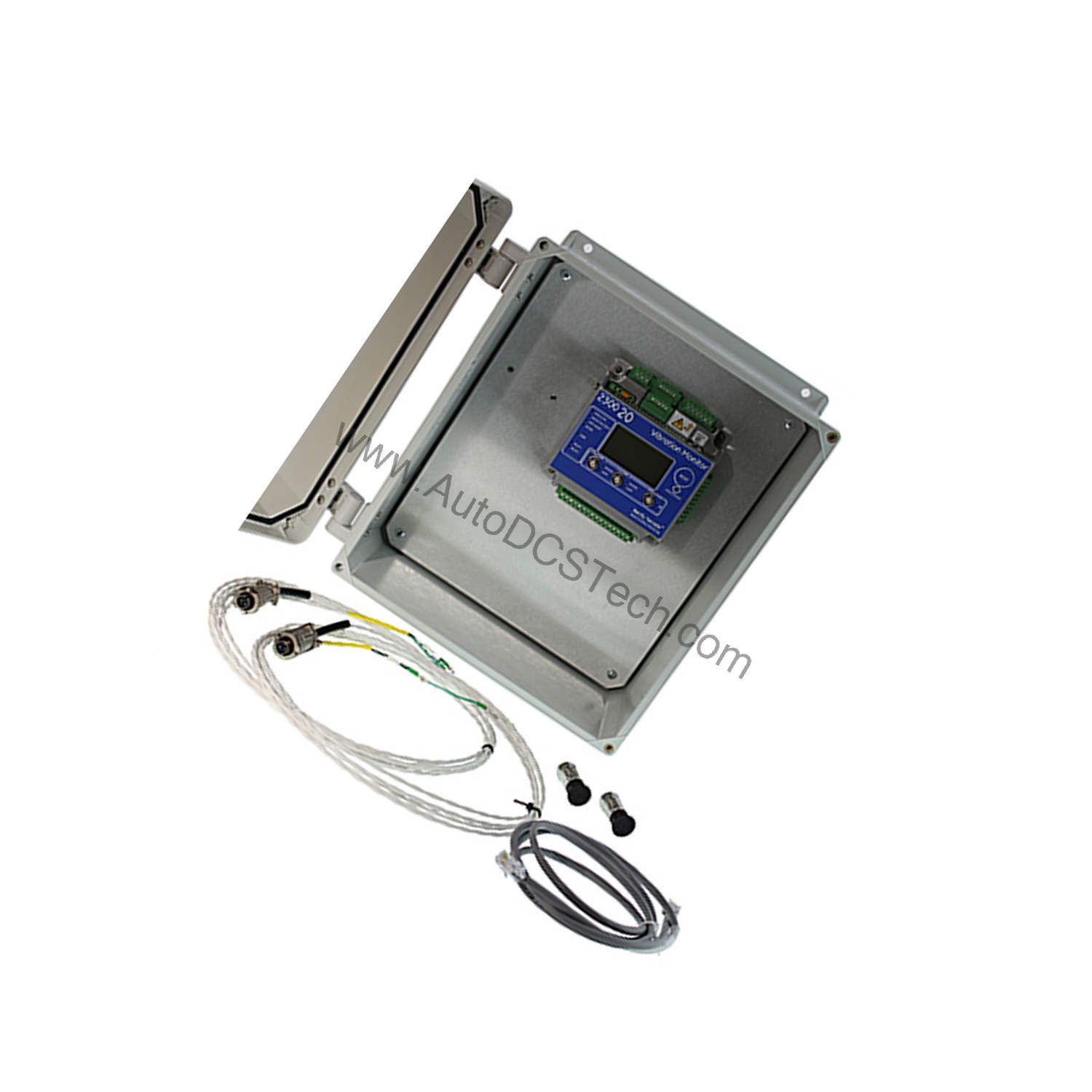

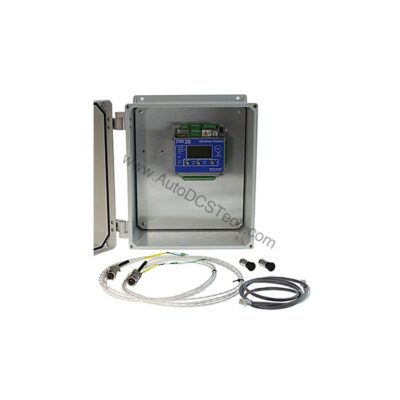

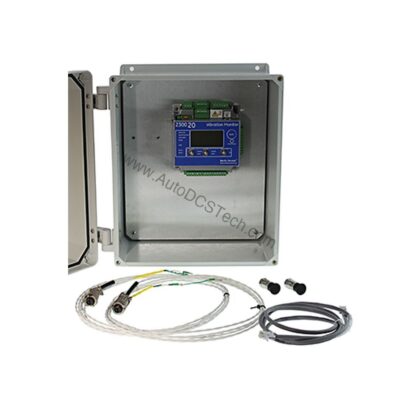

Industrial machinery downtime is expensive. The Bently Nevada 2300/25_KIT-005-00 Condition Monitoring System Kit offers a cost-effective solution for early fault detection, reducing unplanned outages and maintenance costs. This kit integrates a 2300/25 monitor, a Velomitor sensor (330500), and a choice of fiberglass or stainless steel housing, providing a complete package for vibration and speed monitoring.
Technical Specifications Breakdown
Key parameters for the 2300/25_KIT-005-00 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Power Input | 18~36 Vdc, max 7.5 W |
| Accelerometer Scale Factor Range | 5 to 1000 mV/g |
| Velocity Scale Factor Range | 5 to 1000 mV/in/s |
| Radial Vibration Scale Factor Range | 5 to 1000 mV/mil |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Dimensions (Width x Depth x Height) | 127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.) |
| Weight | 1.03 kg (2.26 lbs) |
| Ethernet | 10Base-T and 100Base-TX, conforms to IEEE802.3 |
| Relay Contact Life | 100,000 cycles @ 5 amps, 250 Vac |
Industry Applications and ROI
By continuously tracking vibration and speed, it enables predictive maintenance, extending equipment life and reducing repair costs. The configurable bandpass filter (0.2 Hz to 20 kHz) and multiple channel types (accelerometer, velocity, radial vibration, thrust) allow adaptation to various machine dynamics without additional hardware investment.
Installation and Setup Guidance
Mount the monitor via panel mount or DIN rail (adapter included). Connect the shielded Ethernet cable (1.8 m) to a network switch for communication with System 1 software. The housing kit options include fiberglass (nonhazardous area) or stainless steel (hazardous area). Ensure the 24 Vdc power supply (not included) is within 18~36 Vdc range. Use the LCD display and button inputs for initial configuration.
Maintenance and Reliability
The monitor's real-time clock battery lasts 38 years powered at 50°C, ensuring long-term data integrity. The epoxy-sealed relays provide reliable switching for alarm outputs. Inspect the housing and cables periodically for damage, especially in hazardous environments. The unit operates reliably in temperatures from -30°C to +65°C and up to 95% humidity.
Compatibility and Integration
The 2300/25_KIT-005-00 communicates via Ethernet (10Base-T/100Base-TX) and integrates with Bently Nevada System 1 software for advanced diagnostics. It supports Bently transducers and custom 2/3-wire transducers for accelerometers, Velomitors, and Proximitors. The monitor can store up to five alarm data captures during network disruptions (requires System 1 Evolution 21.1 or newer and firmware 3.2 or newer).
Selection Guide and Purchasing Advice
Choose this kit for a complete, pre-configured solution. The configuration 005 includes one Velomitor sensor and one housing. Verify your application's transducer requirements and hazardous area classification before ordering. Contact AutoDCSTech for lifecycle status and availability. We offer competitive pricing and fast shipping for industrial automation parts.
Troubleshooting and Common Issues
If the OK LED is off, check power input (18~36 Vdc) and connections. A Protection Fault LED indicates a hardware issue affecting alarm determination. Use the LCD display to review channel alarm status (Alert/Danger LEDs). Ensure Ethernet cable length does not exceed 100 meters. For relay issues, verify the relay circuit specification matches your load (e.g., 6 A @ 250 Vac max).
Availability & Condition at AutoDCSTech
| Part Number | 2300/25_KIT-005-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
