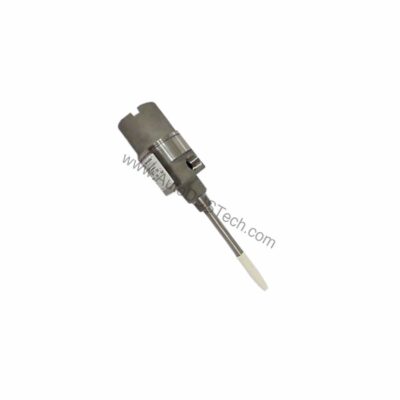

Bently Nevada 24701-16-05-25-059-04-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 24701-16-05-25-059-04-02 are listed below for quick reference:

Industry Applications for Reliable Shaft Monitoring

This housing assembly is designed for continuous vibration monitoring on critical rotating equipment such as steam turbines, centrifugal compressors, pumps, and large electric motors. The 3300 XL 8mm probe inside provides non-contact shaft displacement measurements, enabling early detection of rotor imbalance, misalignment, or bearing wear. The stainless steel construction resists corrosion in refinery, chemical, and offshore environments. The 5.9-inch probe penetration allows installation through thick machine casings, while the 2.5-inch standoff adapter positions the probe at the optimal gap from the shaft.

Installation and Setup Guidance

Proper installation is critical for accurate readings. Mount the housing using the 3/4-14 NPT thread into a pre-tapped hole on the machine casing. Ensure the probe tip is clean and free of debris. The standoff adapter must be ordered if the mounting thread option is -00; for this configuration, the adapter is included. The probe cable length is 0.5 m, so plan the routing to the junction box accordingly. After installation, verify the probe gap voltage using a Bently Nevada monitor to confirm the probe is within the linear range.

Maintenance and Reliability

The all-stainless-steel construction (303 body, 304 sleeve) provides resistance to moisture, chemicals, and mechanical impact. Periodically inspect the O-rings and thread seal for signs of wear or leakage. The dome cover should be tightened securely to maintain the environmental seal. No internal adjustments are required; the assembly is a passive mechanical enclosure. For long-term reliability, verify the cable and connector integrity during scheduled machine outages.

Robust Vibration Monitoring for Critical Machinery

In rotating machinery, accurate vibration measurement is essential to prevent unplanned downtime and catastrophic failures. The Bently Nevada 24701-16-05-25-059-04-02 Proximity Probe Housing Assembly provides a sealed, durable enclosure for the 3300 XL 8mm proximity probe, ensuring reliable shaft displacement readings in harsh industrial environments. This assembly integrates the probe, cable, standoff adapter, and fittings into a single unit, simplifying installation and reducing potential leak paths.

Compatibility and Integration

This housing assembly is specifically designed for the Bently Nevada 3300 XL 8mm proximity probe system. The 3/4-14 NPT mounting thread is a standard industrial connection, compatible with most machine casing ports. The assembly does not include the probe itself; the probe is ordered separately as part of the 3300 XL system.

Selection Guide and Purchasing Advice

When selecting a proximity probe housing assembly, verify that the probe option, cable length, standoff adapter, penetration, and mounting thread match your machine's requirements. The 24701-16-05-25-059-04-02 is a specific configuration optimized for a 2.5-inch standoff and 5.9-inch penetration. AutoDCSTech stocks this assembly as new and original in factory packing, backed by a 12-month warranty. Contact our team to confirm availability and lifecycle status before ordering.
