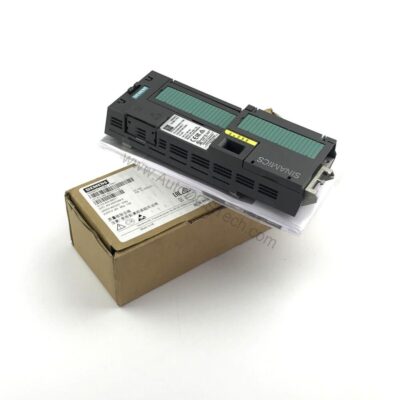

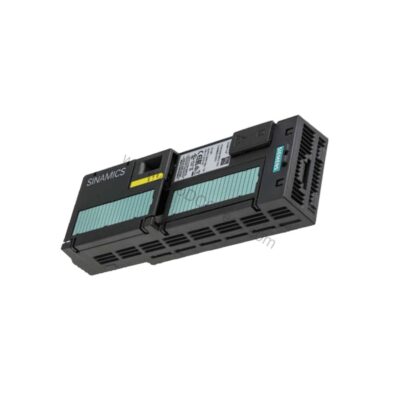

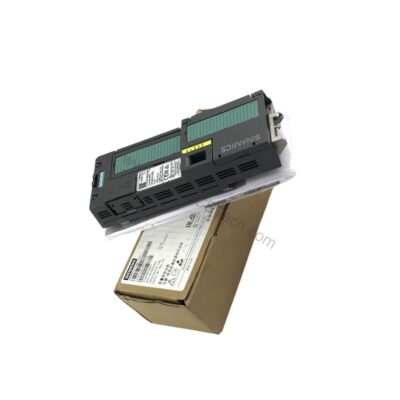

Introduction to the Siemens 6SL3244-0BB12-1PA1
When a drive system demands precise control and dependable communication, the 6SL3244-0BB12-1PA1 from Siemens delivers. This SINAMICS Control Unit CU240E-2 DP is engineered for modern automation environments where uptime and accuracy are non-negotiable.
As a maintenance engineer, you need components that simplify troubleshooting and reduce downtime. This control unit provides clear diagnostics and robust performance, making it a solid choice for your motor control applications.
Key Features & Technical Specifications
The 6SL3244-0BB12-1PA1 is packed with features that support flexible machine design. Its electrical and communication specifications are tailored for industrial use.
- Operating voltage via Power Module: DC 24 V
- External power supply range: DC 20 ... 29 V
- Max. power consumption: 0.50 A
- Power loss: 5.50 W
- Communication interface: PROFIBUS DP
- Standard digital inputs: 6 (switching level 0→1 at 11 V, 1→0 at 5 V)
- Fail-safe digital inputs: 1 (uses 2 × DI Standard)
- Digital outputs as relay changer: 2
- Analog/digital inputs: 2 (differential input)
- Analog outputs: 2 (non-isolated output)
These specs allow the control unit to handle a variety of feedback and control signals, which is essential for precise motor management.
Installation & Setup

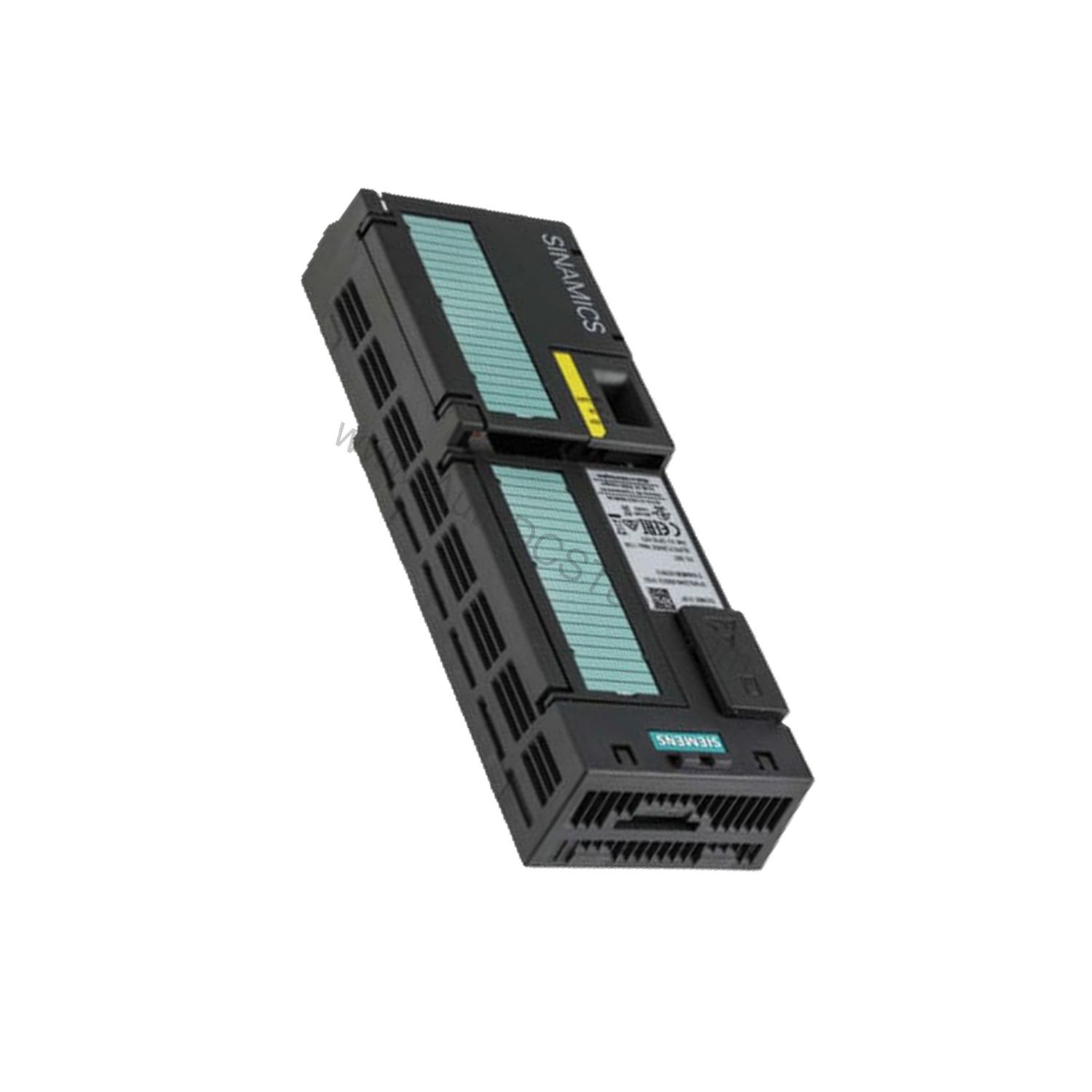

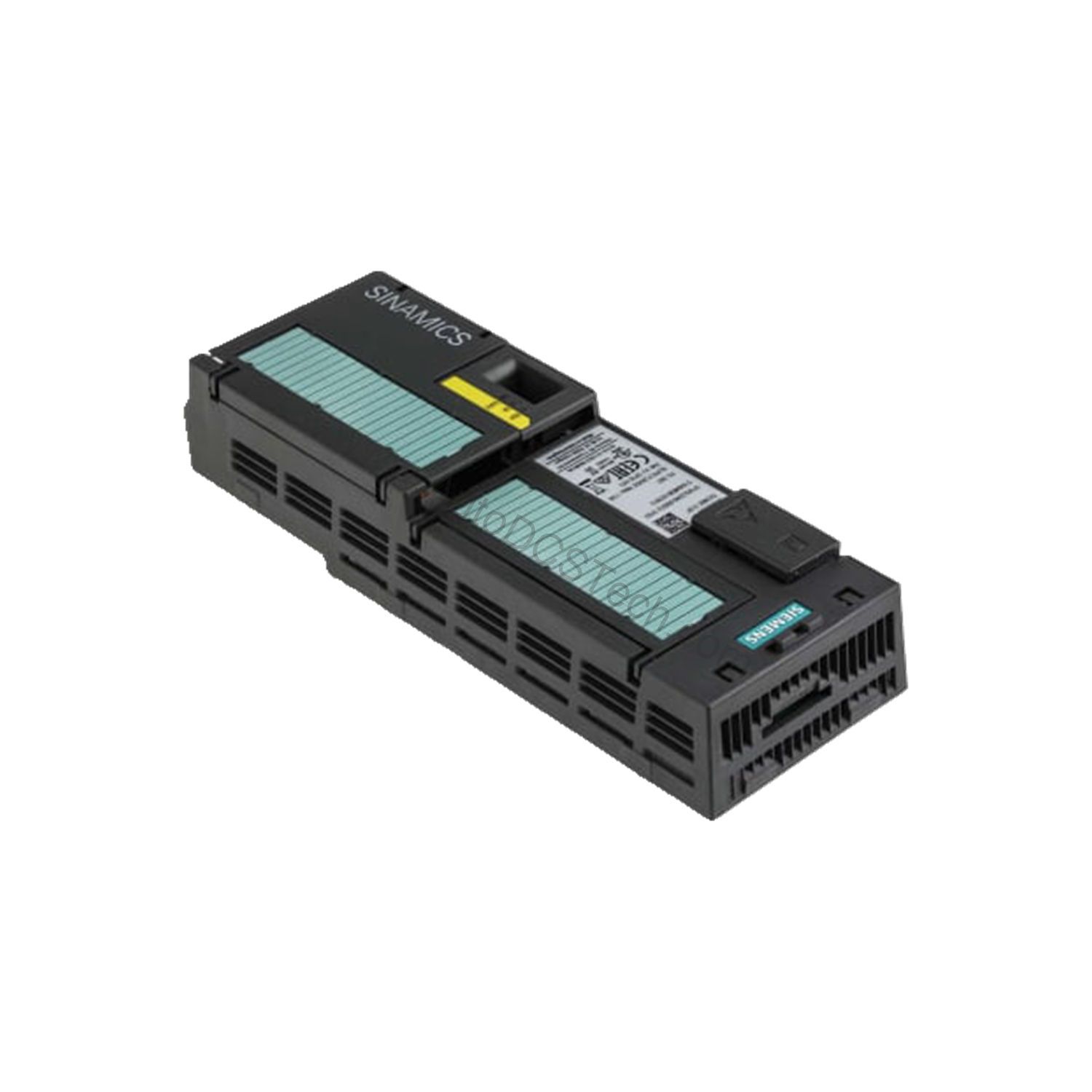

Mounting the 6SL3244-0BB12-1PA1 is straightforward. The unit has a compact design with dimensions of 73.0 mm width, 199.0 mm height, and 46.0 mm depth, and weighs only 0.49 kg. It is rated IP20 / UL open type, so it is suitable for enclosure mounting.
When wiring, use signal cables with a conductor cross-section of 0.05 ... 1.50 mm² (AWG 28 ... AWG 16). Ensure the external power supply stays within the DC 20 ... 29 V range to maintain reliable operation.
Maintenance & Reliability
For long-term reliability, periodic inspection is recommended. Check all connections for tightness and look for any signs of wear or environmental stress. The unit operates in ambient temperatures from -10 ... 55 °C and can be stored from -40 ... 70 °C, with a maximum operating relative humidity of 95%.
Because the control unit is a precision electronic device, avoid exposing it to excessive vibration or moisture. Regular verification of the PROFIBUS DP communication status can help catch issues early.
Closed-Loop Control Techniques
This control unit supports multiple control modes, giving you the flexibility to match the drive to your application. The available techniques include V/f linear, square-law, and parameterizable control, as well as V/f with flux current control (FCC) and V/f ECO linear/square-law.
Additionally, it offers sensorless vector control and encoderless torque control. This means you can achieve high performance without the need for extra feedback devices, simplifying your system and reducing cost.
Compatibility & Integration
The 6SL3244-0BB12-1PA1 communicates via PROFIBUS DP, a widely used fieldbus in industrial automation. This makes it easy to integrate into existing Siemens and third-party control systems.
It is designed to work with SINAMICS Power Modules, and its digital and analog I/O provide flexible interfacing with sensors, encoders, and actuators. The fail-safe digital input adds a layer of safety for critical applications.
Troubleshooting & Common Issues
If communication errors occur, first verify the PROFIBUS DP cable and connector integrity. Check that the bus address is set correctly and that the network terminator is properly placed.
For I/O issues, confirm that the switching levels are correct: the input transitions from 0 to 1 at 11 V and from 1 to 0 at 5 V. If an analog output seems inaccurate, ensure the load is within the specified range and that the output is not shorted.
Product Support & Availability
At AutoDCSTech, we keep the 6SL3244-0BB12-1PA1 in stock and ready to ship. Our team can assist with technical questions and provide documentation to support your installation.
Contact us for pricing and delivery options. We are committed to helping you maintain your automation systems efficiently.
Availability & Condition at AutoDCSTech
| Part Number | 6SL3244-0BB12-1PA1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
