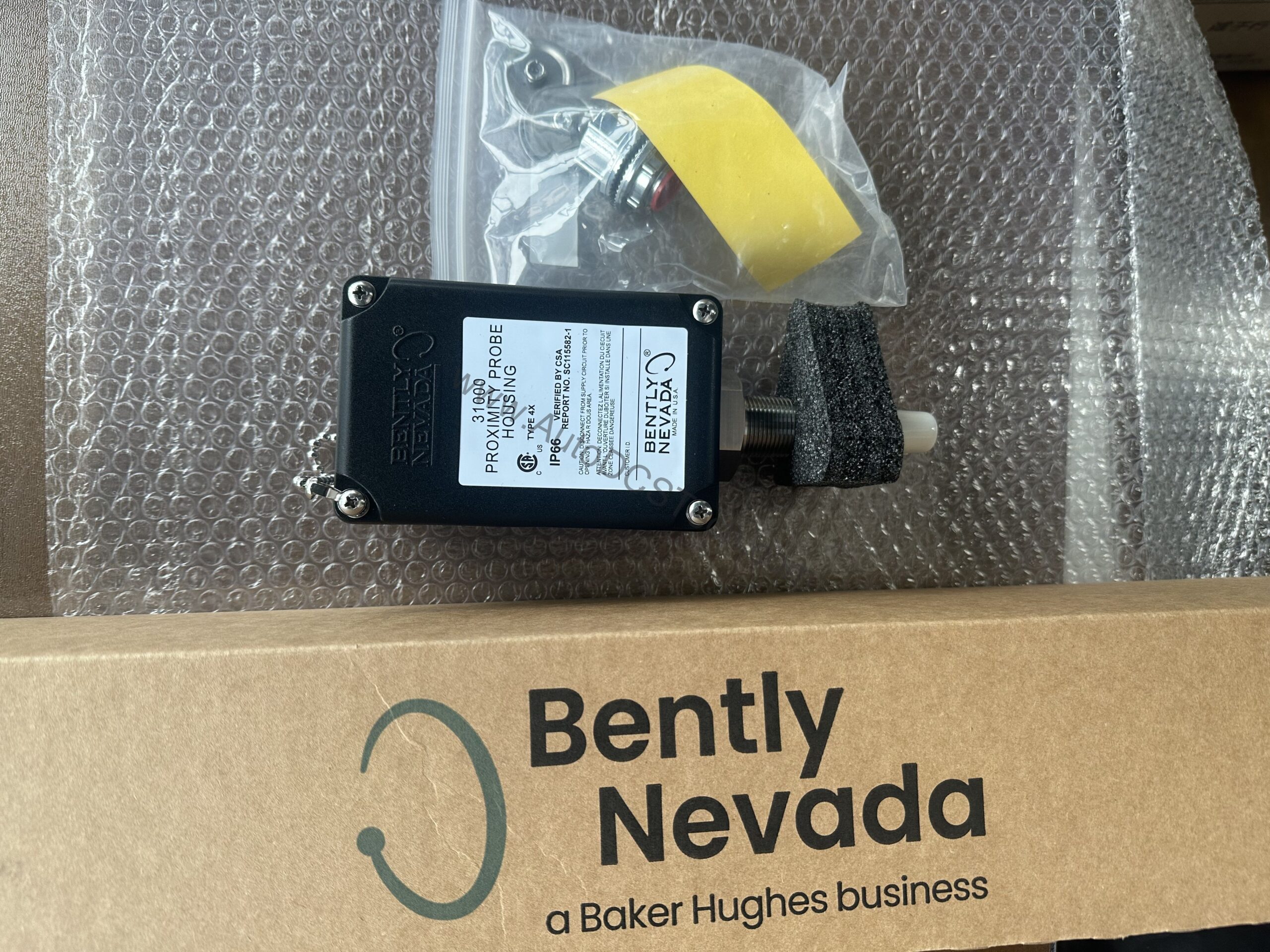

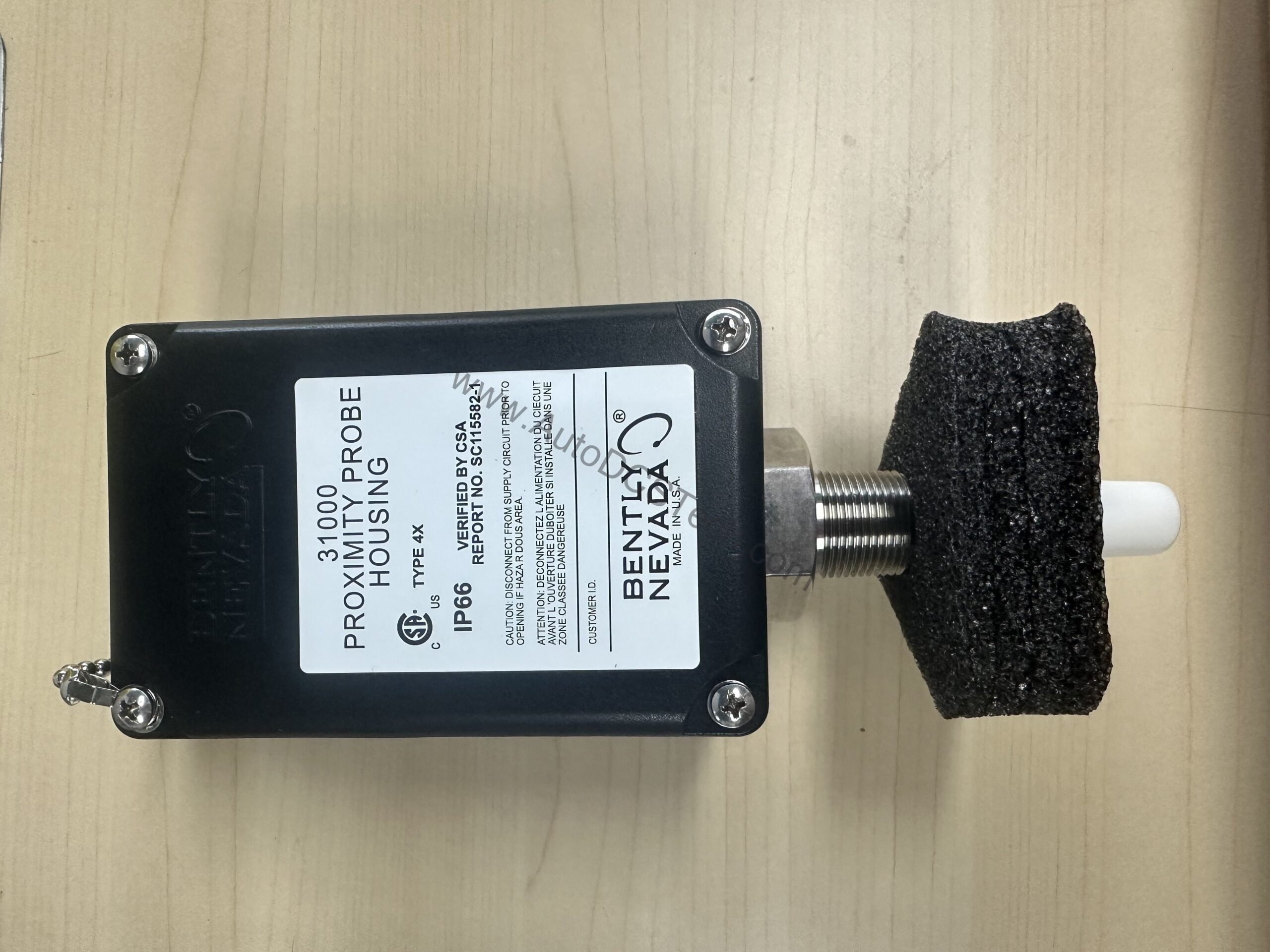

Bently Nevada 31000-28-10-00-235-00-02 Proximity Probe Housing

Technical Specifications Breakdown

Key parameters for the 31000-28-10-00-235-00-02 are listed below for quick reference:

Installation and Setup Guidance

Mount the housing using the 3/4-14 NPT thread. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). Ensure the O-ring between the sleeve and housing (Neoprene) is properly seated to maintain the seal. The probe cable length is 1.0 inch, and the probe penetration is 23.5 inches. No standoff adapter is required for this configuration.

Maintenance and Reliability

Regularly inspect the housing for signs of physical damage or environmental wear. Verify the integrity of the Neoprene O-ring and the Viton O-ring inside the probe case. The housing is not designed for internal or external pressure; do not pressure test. For applications requiring pressure seal verification, contact the custom design department.

Robust Protection for Critical Vibration Monitoring

The Bently Nevada 31000-28-10-00-235-00-02 is a proximity probe housing assembly engineered for demanding industrial applications. It is designed to seal differential pressure between the probe tip and the housing main body when used with a 3300 XL 8 mm probe. This component is essential for reliable vibration and position monitoring in rotating machinery, ensuring data integrity in harsh environments.

Designed for Harsh Industrial Environments

This housing assembly is built to withstand extreme conditions. The Type 4X and IP66 ratings ensure protection against hose-directed water and corrosion, making it suitable for outdoor and washdown areas. The glass-reinforced PPS thermoplastic housing with conductive fibers provides electrostatic dissipation, certified to CENELEC EN50014 for hazardous locations. The housing impact strength is certified by BASEEFA to withstand 4 Joule impacts at -39°C and 115°C, and CSA verified for 7 Joule impacts at room temperature.

Compatibility and Integration

This housing is specifically designed for use with the 3300 XL 8 mm probe. The 31000 series ensures reliable differential pressure sealing. The sleeve and retaining chain are made of AISI 304 stainless steel, while the outer sleeve and exterior screws are AISI 303 stainless steel, providing corrosion resistance.

Selection Guide and Purchasing Advice

When selecting a proximity probe housing, consider the environmental conditions and probe compatibility. AutoDCSTech offers this genuine Bently Nevada part with expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
