Product Overview

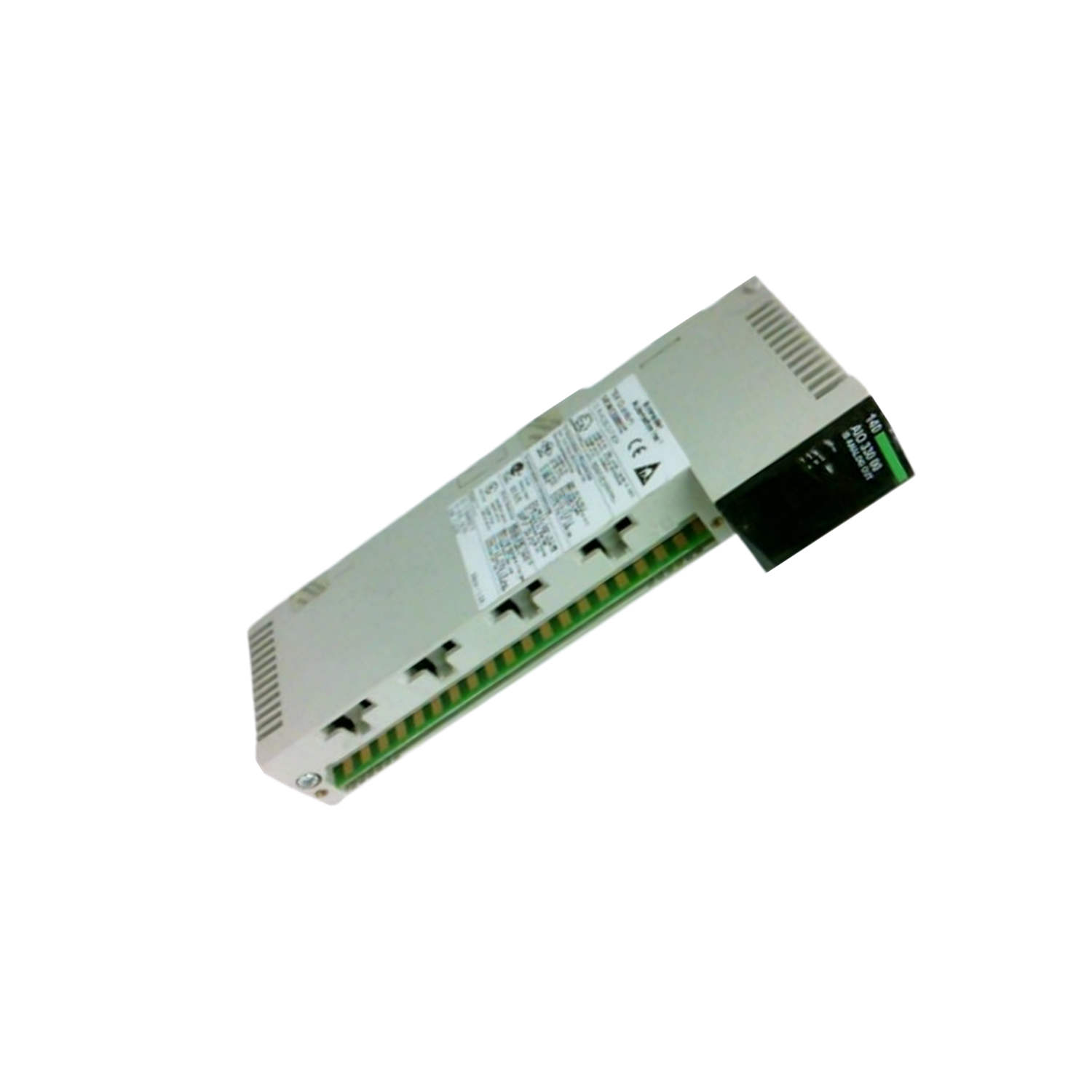

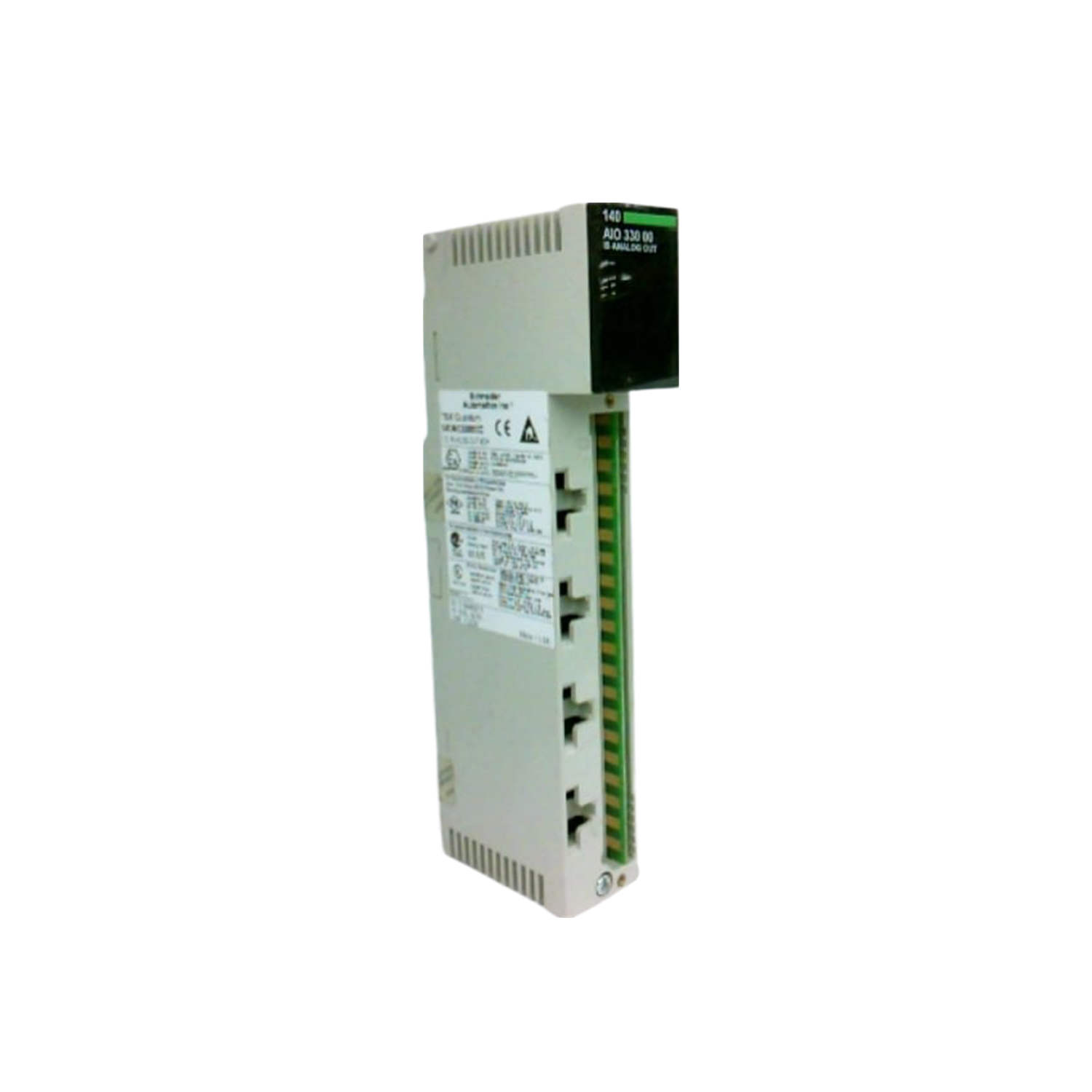

As a maintenance engineer, you need reliable components that ensure safety in hazardous environments. The Schneider Electric 140AIO33000 is an intrinsically safe analog output module from the Modicon Quantum series. It provides 8 outputs with an accuracy of ±0.2% at a reference temperature of 25°C, making it ideal for precise control in zone 20, 21, or 22 areas. This module reduces the risk of ignition in explosive atmospheres, a critical factor for plant uptime and safety.
Technical Specifications Breakdown
Key parameters for the 140AIO33000 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Number of Outputs | 8 |
| Accuracy | ±0.2% of full scale at 25°C |
| Maximum Loop Resistance | 500 Ohm |
| Accuracy Drift | 40 ppm/°C |
| Protection Type | Internal Fuse |
| Linearity | ±1 LSB |
| Power Dissipation | 12.5 W |
| Update Time | 4 ms |
| Bus Current Requirement | 2.5 A |
| Setting Time | 1 ms to ±0.1% of final value |
| Module Format | Standard |
Industry Applications
This module excels in chemical processing and oil & gas facilities where intrinsic safety is mandatory. The 8 analog outputs control valves and actuators in hazardous zones. The ±0.2% accuracy ensures consistent product quality, while the 500 Ohm loop resistance supports long cable runs. By using this intrinsically safe module, you avoid the cost and complexity of external safety barriers, improving operational ROI.
Installation & Setup Guidance
Mount the module in a standard Modicon Quantum rack. Ensure the bus current requirement of 2.5 A is met by the power supply. Wire outputs per the 0...20 mA or 4...20 mA ranges specified. Hot swapping is not allowed per intrinsic safety standards, so power down before insertion. Use shielded twisted-pair cables to maintain signal integrity.
Maintenance & Reliability
The internal fuse protects against overloads, reducing unplanned downtime. With an accuracy drift of only 40 ppm/°C, the module maintains performance across temperature changes. Operate within 0...60 °C ambient temperature. Inspect connections periodically for corrosion, especially in dusty environments. The module's CE and II1 G/D-EEx ia IIC marking confirms its suitability for explosive gas and dust zones.
Compatibility & Integration
The module integrates with Modicon Quantum automation platforms and is compatible with Concept V2.2 and above, ProWORX, and Unity Pro software. It supports output ranges of 0...20 mA, 0...25 mA, and 4...20 mA with 15-bit resolution. Isolation between channels and bus is rated at 1780 Vrms for 60 seconds AC, ensuring robust noise immunity.
Selection Guide & Purchasing Advice
When selecting this module, verify your system's bus current and power dissipation limits. The 140AIO33000 is a standard format module, fitting most Quantum racks. For lifecycle status and availability, contact SpareTechPLC. We stock this part and can advise on alternatives if needed.
Troubleshooting & Common Issues
If output readings drift, check ambient temperature; the module's drift is 40 ppm/°C. For open circuit faults on 4...20 mA loops, inspect wiring and loop resistance (max 500 Ohm). If the module fails to communicate, verify bus current (2.5 A) and software compatibility. Always follow intrinsic safety guidelines when servicing.
