Product Overview: TCSEGDB23F24FA Modbus Plus Proxy Module
Legacy Modbus Plus networks often isolate critical plant data from modern Ethernet supervisory systems. The Schneider Electric TCSEGDB23F24FA ConneXium proxy module solves this by translating Ethernet Modbus TCP traffic into Modbus Plus messaging. Consequently, engineers can integrate existing Modbus Plus slaves into a Modicon M340 automation platform without replacing field devices.

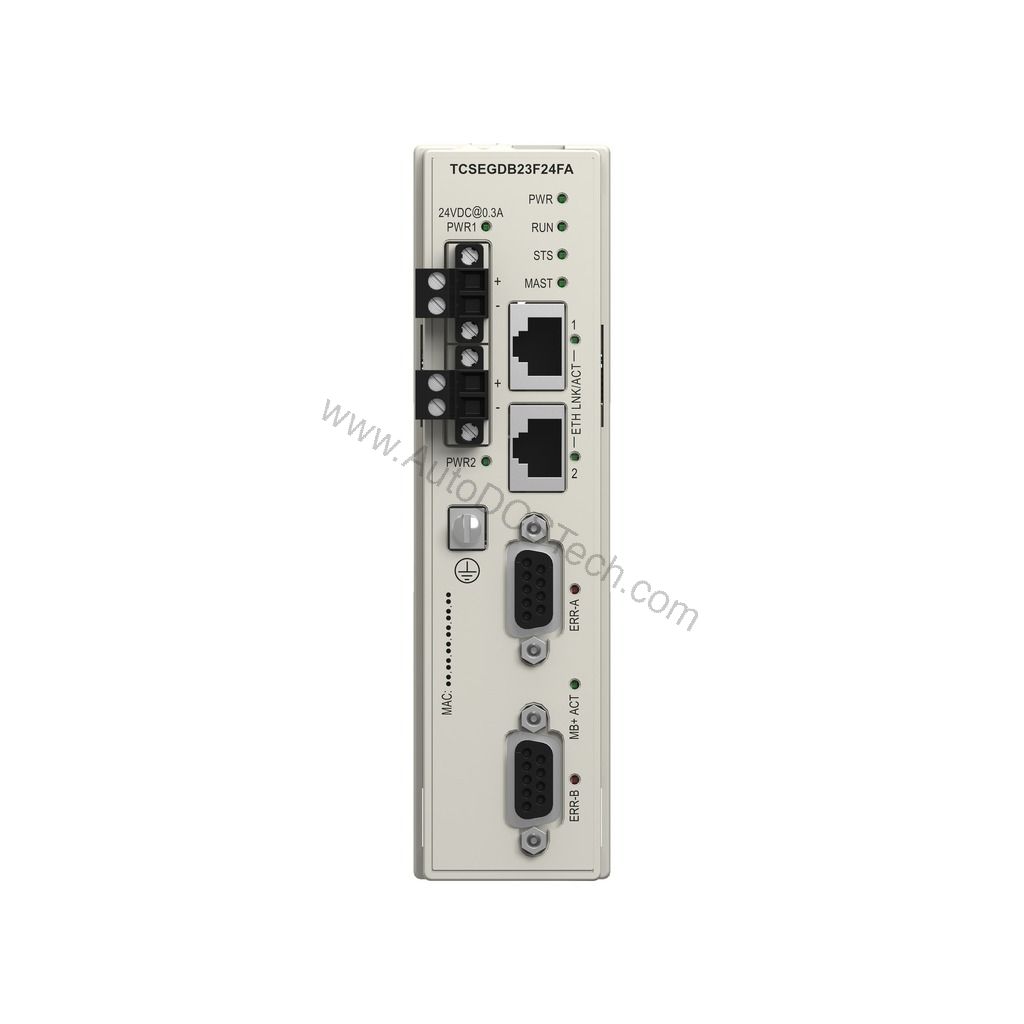

This communication gateway provides two RJ45 Ethernet TCP/IP ports and two SUB-D9 Modbus Plus ports. Therefore, it supports dual-network redundancy and flexible topology design. The module draws 300 mA at 24V DC external, ensuring compatibility with standard industrial power supplies.
Key Features and Verified Specifications
The TCSEGDB23F24FA delivers engineering-grade precision for protocol conversion. Its verified parameters include:
- Protocol support: Ethernet Modbus TCP to Modbus Plus
- Ports: 2 x RJ45 (Modbus TCP) + 2 x SUB-D9 (Modbus Plus)
- Number of slaves: Up to 128
- Current consumption: 300 mA at 24V DC external
- Communication services: Modbus TCP messaging, Modbus Plus messaging, FDR, SNMP, Global Data, Peer cop dialogue
- Platform: Modicon M340 automation platform
Notably, the 128-slave capacity allows large-scale legacy networks to migrate gradually. Additionally, FDR and SNMP services simplify device replacement and network monitoring.
Applications and Integration Scenarios
Process engineers use the TCSEGDB23F24FA to connect older Modbus Plus drives, PLCs, and I/O blocks to Ethernet-based SCADA. For example, a water treatment plant can retain its Modbus Plus flow meters while upgrading the control room to Modbus TCP. Similarly, automotive assembly lines often have Modbus Plus remote I/O that must report to an M340 controller. In both cases, the proxy module acts as a transparent bridge, preserving existing wiring and device configurations.
Because the module supports Global Data and Peer cop dialogue, it also enables peer-to-peer communication between legacy segments. Consequently, deterministic control loops remain intact during migration.
Installation and Commissioning Notes
Mount the TCSEGDB23F24FA in a standard M340 rack or compatible enclosure. First, connect the 24V DC external supply, observing the 300 mA current draw. Then, attach Ethernet cables to the RJ45 ports and Modbus Plus cables to the SUB-D9 connectors. After power-up, configure the module via its embedded web interface or the M340 engineering software. Since the module supports SNMP, network managers can monitor link status remotely.
For Modbus Plus cabling, follow the manufacturer's trunk and drop specifications. Always verify termination and grounding to avoid communication errors.
Reliability and Maintenance
The TCSEGDB23F24FA has an active lifecycle status in the ConneXium range. To ensure long-term reliability, inspect connections every six months and confirm that the 24V DC supply remains within tolerance. Because the module has no moving parts, wear is minimal. However, environmental factors such as excessive heat or vibration can affect performance. Therefore, install the gateway in a clean, dry control cabinet.
If communication faults occur, check the Ethernet link LEDs and Modbus Plus status indicators. Additionally, verify that the slave count does not exceed 128. For persistent issues, refer to official Schneider Electric documentation or contact AutoDCSTech.
Ordering and Support
The TCSEGDB23F24FA is in stock and ready to ship from AutoDCSTech. Contact AutoDCSTech with your exact requirements for precise matching.
Availability & Condition at AutoDCSTech
| Part Number | TCSEGDB23F24FA |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
