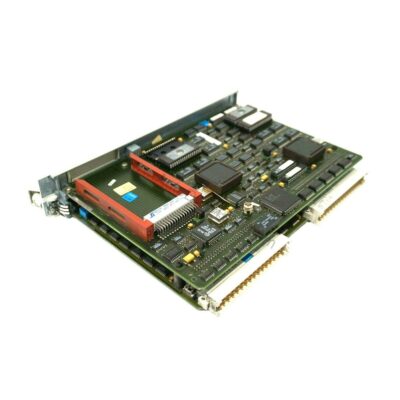

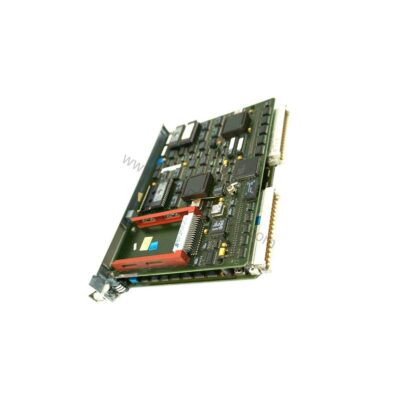

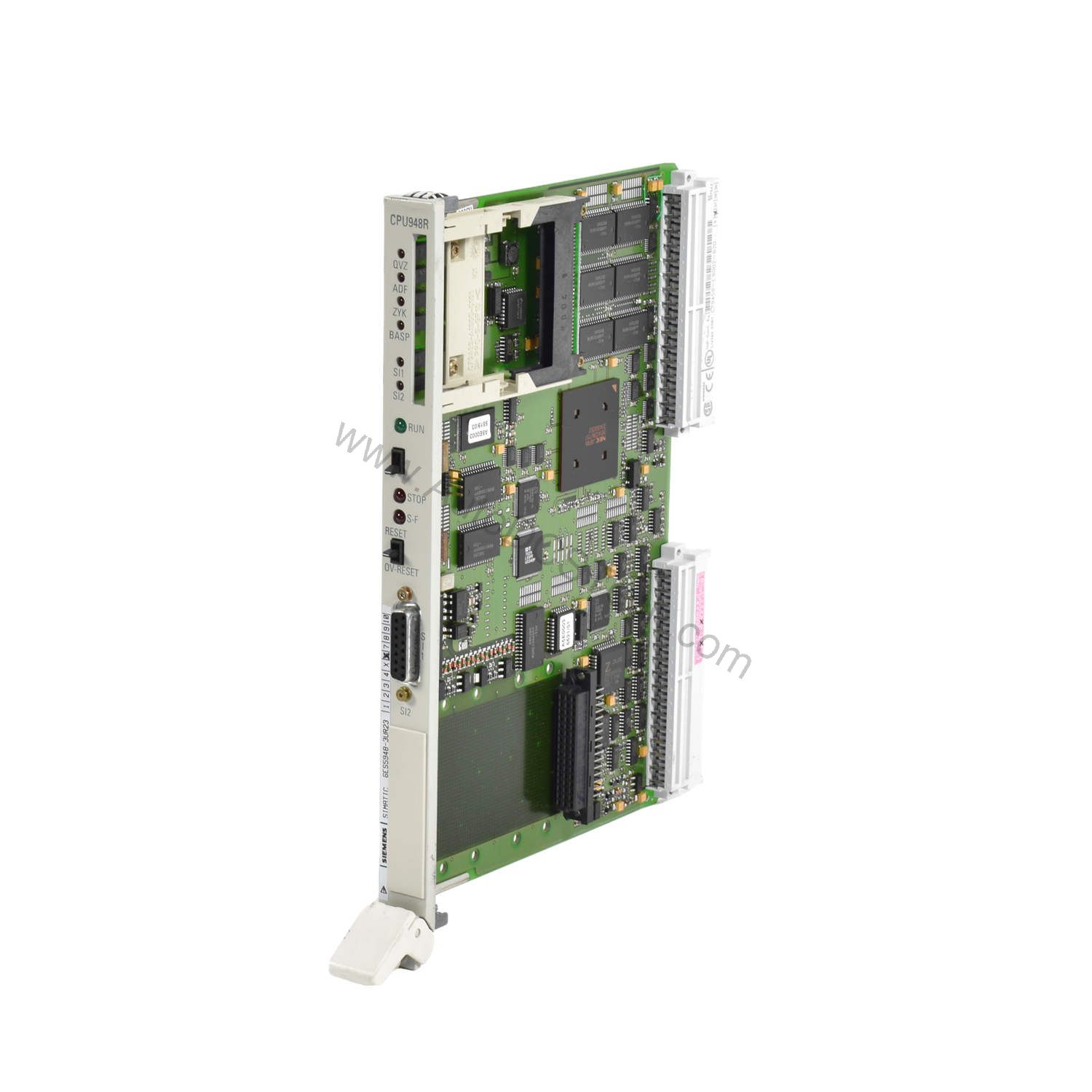

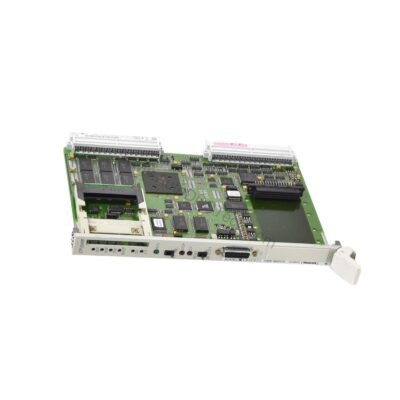

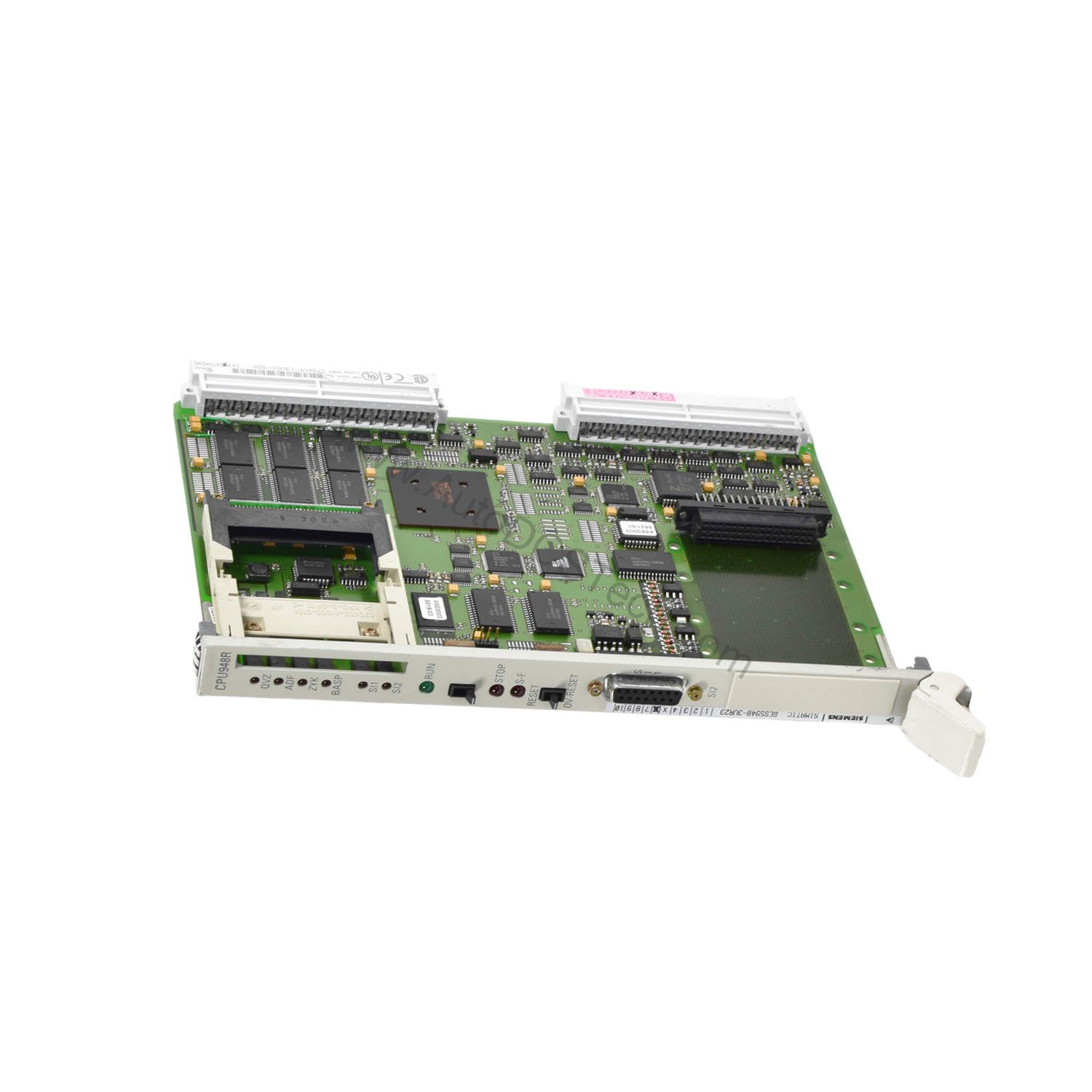

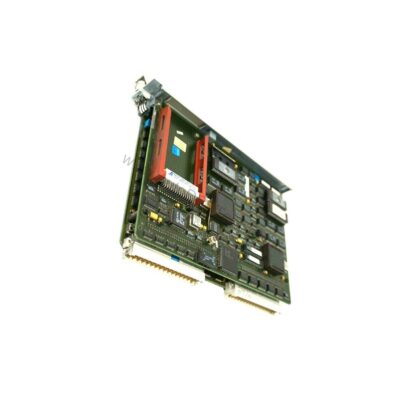

6ES5948-3UR23 1664 KB RAM S5-155H CPU Module

Introduction to the 6ES5948-3UR23

When your SIMATIC S5-155H system demands reliable, high-capacity processing, the 6ES5948-3UR23 delivers. This Siemens CPU 948R processor module is engineered for central controllers in redundant S5-155H configurations. It provides substantial onboard memory and flexible external storage options, making it a solid choice for demanding industrial applications.

Part of the Siemens SIMATIC S5 family, this module is designed to handle complex logic and data management tasks. Its single-width form factor simplifies installation in existing racks. For engineers maintaining or upgrading S5-155H systems, this CPU offers a dependable path to keep operations running efficiently.

Key Features & Technical Specifications

• Internal memory: 1664 Kbytes RAM for user program and data.
• External memory support: up to 4096 Kbytes Flash EPROM via memory submodule.
• One 20 mA current loop interface (TTY) for OP/PG/PC connectivity via 15-way Cannon socket.
• One slot for PG interface module to connect TTY devices.
• One slot for memory submodule (Flash EPROM).
• Single-width module design for compact installation.

The standout feature is the 1664 KB internal RAM, which allows large user programs to run without frequent external memory access. This reduces cycle times and improves overall system responsiveness. The external Flash EPROM support (up to 4096 KB) provides non-volatile storage for program backup and updates, enhancing data integrity and simplifying maintenance.

Applications & Use Cases

Its high memory capacity suits applications with extensive recipe management or data logging. The TTY interface enables reliable communication with operator panels and programming devices, even in electrically noisy environments. For cost-conscious operations, this module helps minimize downtime by supporting quick program transfers and robust data storage.

Installation & Setup

Installing the 6ES5948-3UR23 is straightforward. Ensure the module is properly seated in the S5-155H central controller rack. Connect the TTY interface using a compatible 15-way Cannon plug, and verify the 20 mA current loop wiring for correct polarity. For external memory, insert the Flash EPROM submodule into the designated slot before powering the system. Always follow Siemens installation guidelines to avoid damage.

Maintenance & Reliability

Regular inspection of the module and its connections is recommended to ensure long-term reliability. The Flash EPROM memory retains data without power, reducing the risk of program loss. The TTY interface is less susceptible to voltage spikes than RS-232, lowering the chance of communication failures. These features contribute to lower maintenance costs and reduced unplanned downtime.

Compatibility & Integration

This CPU module is specifically designed for SIMATIC S5-155H central controllers. It supports connection to operator panels (OP), programming devices (PG), and PCs via the TTY interface. The memory submodule slot accepts compatible Flash EPROM modules, allowing flexible memory expansion. Integration with existing S5-155H I/O systems is seamless, preserving your current investment.

Troubleshooting & Common Issues

If the CPU fails to start, check the memory submodule seating and battery backup. Communication issues on the TTY line often stem from incorrect wiring or baud rate settings—verify these against your device manual. For persistent problems, consult the Siemens S5-155H documentation or contact AutoDCSTech for technical support.

Product Support & Availability

The 6ES5948-3UR23 is available from AutoDCSTech. Contact us for current stock and lead times.
