Introduction
In the evolving landscape of industrial automation, the demand for precise and reliable analog control has never been greater. As factories transition to more flexible and responsive production lines, the need for components that deliver consistent signal accuracy under varying conditions becomes paramount. The Schneider Electric TSXASZ401 analog output module is engineered to meet these modern challenges, providing a robust solution for Modicon TSX Micro automation platforms.
Product Overview

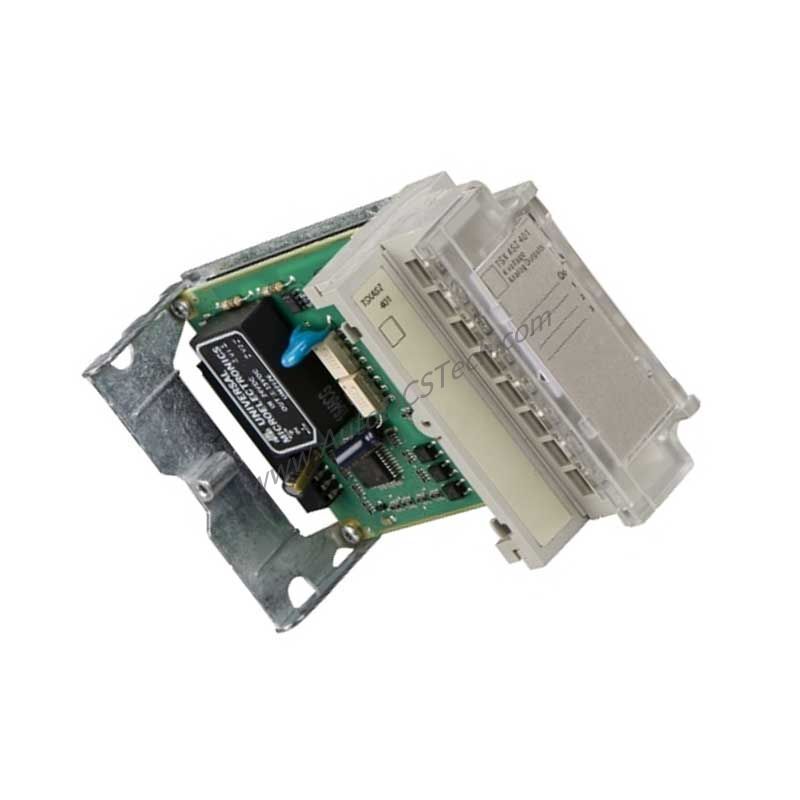

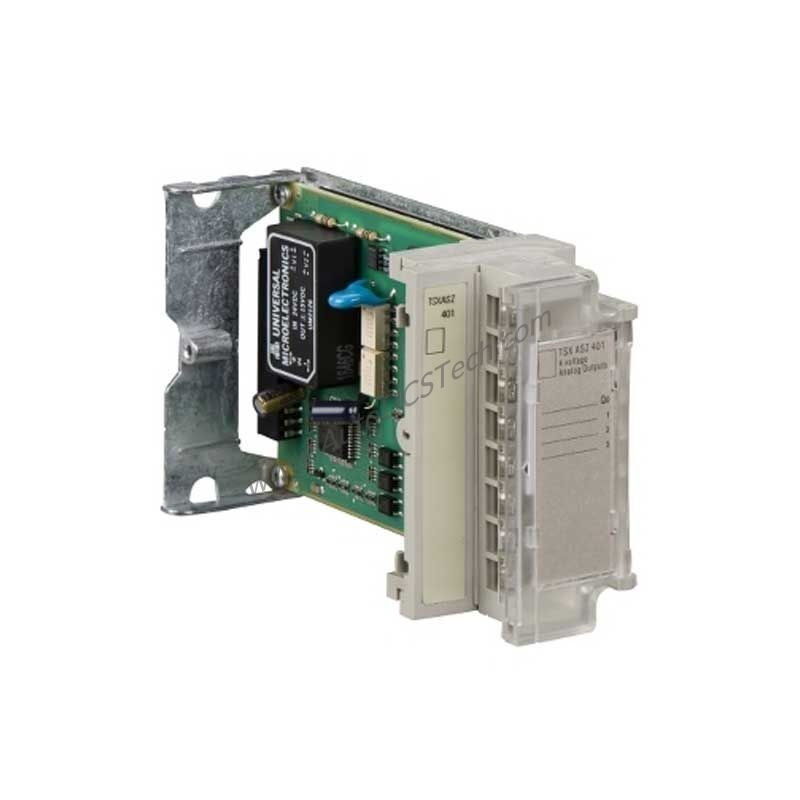

The TSXASZ401 is an analog output module from Schneider Electric, part of the trusted Modicon TSX Micro automation platform family. This module offers four independent output channels, each capable of delivering either 0 to 10 V or +/- 10 V signals. With a rapid response time of 400 microseconds, it is well-suited for applications requiring quick and accurate analog control. The module features 11-bit analog-to-digital conversion for both output ranges, ensuring fine resolution for precise adjustments.
Technical Specifications Breakdown
- Output Type and Load: The module supports two output voltage ranges: 0 to 10 V and +/- 10 V. The minimum output load requirement is >= 2 Ohms, making it compatible with a wide variety of actuators and control devices.
- Response Time: A response time of 400 µs enables the module to react swiftly to control commands, critical for processes where timing is essential.
- Protection and Isolation: Integrated short-circuit protection safeguards the module and connected equipment. An isolation voltage of 1000 V AC provides robust electrical separation between channels and the backplane.
- Temperature Stability: With a temperature drift of 0.096% per 10 °C, the TSXASZ401 maintains stable output accuracy across varying thermal environments.
- Power and Compliance: The module consumes 90 mA from the backplane and is RoHS compliant, meeting environmental standards.
Industry Applications
In process control environments, such as chemical mixing or water treatment, the TSXASZ401 delivers precise voltage signals to regulate valves, pumps, and actuators. Its dual-range output capability allows engineers to standardize on a single module for both unipolar and bipolar control loops, simplifying inventory and reducing spare parts costs. The short-circuit protection feature minimizes downtime by preventing damage from wiring faults.
Installation and Setup Guidance
Mount the TSXASZ401 module into any available slot of a Modicon TSX Micro PLC rack. Ensure the backplane power is off before insertion. Connect output wiring to the terminal block, observing polarity for bipolar outputs. The module is automatically recognized by the PLC configuration software; no manual addressing is required. Verify the output load meets the minimum 2 Ohms requirement for each channel to ensure proper operation.
Maintenance and Reliability
Routine inspection of connections and environmental conditions helps maintain reliable performance. The module's solid-state design has no moving parts, reducing wear. The temperature drift specification of 0.096% per 10 °C indicates stable operation even in environments with moderate temperature fluctuations. Periodic verification of output accuracy against a calibrated meter is recommended for critical applications.
Compatibility and Integration
The TSXASZ401 is designed for seamless integration with the Modicon TSX Micro automation platform. It works with all TSX Micro PLC processors and can be mixed with other analog and digital I/O modules in the same rack. The module does not require external power supply beyond the backplane current of 90 mA.
Selection Guide and Purchasing Advice
Before purchasing, confirm that your PLC system is a Modicon TSX Micro series. Verify that the required output type (0 to 10 V or +/- 10 V) matches your application. The TSXASZ401 is an active product; please verify current lifecycle status and availability with SpareTechPLC before ordering. SpareTechPLC offers this module with fast shipping and expert support.
Frequently Asked Questions
Q1: Can the TSXASZ401 output both 0 to 10 V and +/- 10 V simultaneously on different channels?
Yes, each of the four channels can be independently configured for either 0 to 10 V or +/- 10 V output, as supported by the module's 11-bit conversion for each range.
Q2: What is the minimum load resistance for the TSXASZ401 outputs?
The minimum output load is >= 2 Ohms per channel. Operating below this value may cause inaccurate output or trigger short-circuit protection.
Q3: Does the TSXASZ401 require external power?
No, the module draws its operating power from the PLC backplane, with a current consumption of 90 mA.
Q4: Is the TSXASZ401 compatible with older TSX Micro PLCs?
Yes, it is designed for the entire Modicon TSX Micro automation platform range.
Q5: What type of protection does the TSXASZ401 have?
The module includes short-circuit protection on its output channels, safeguarding against wiring faults.
