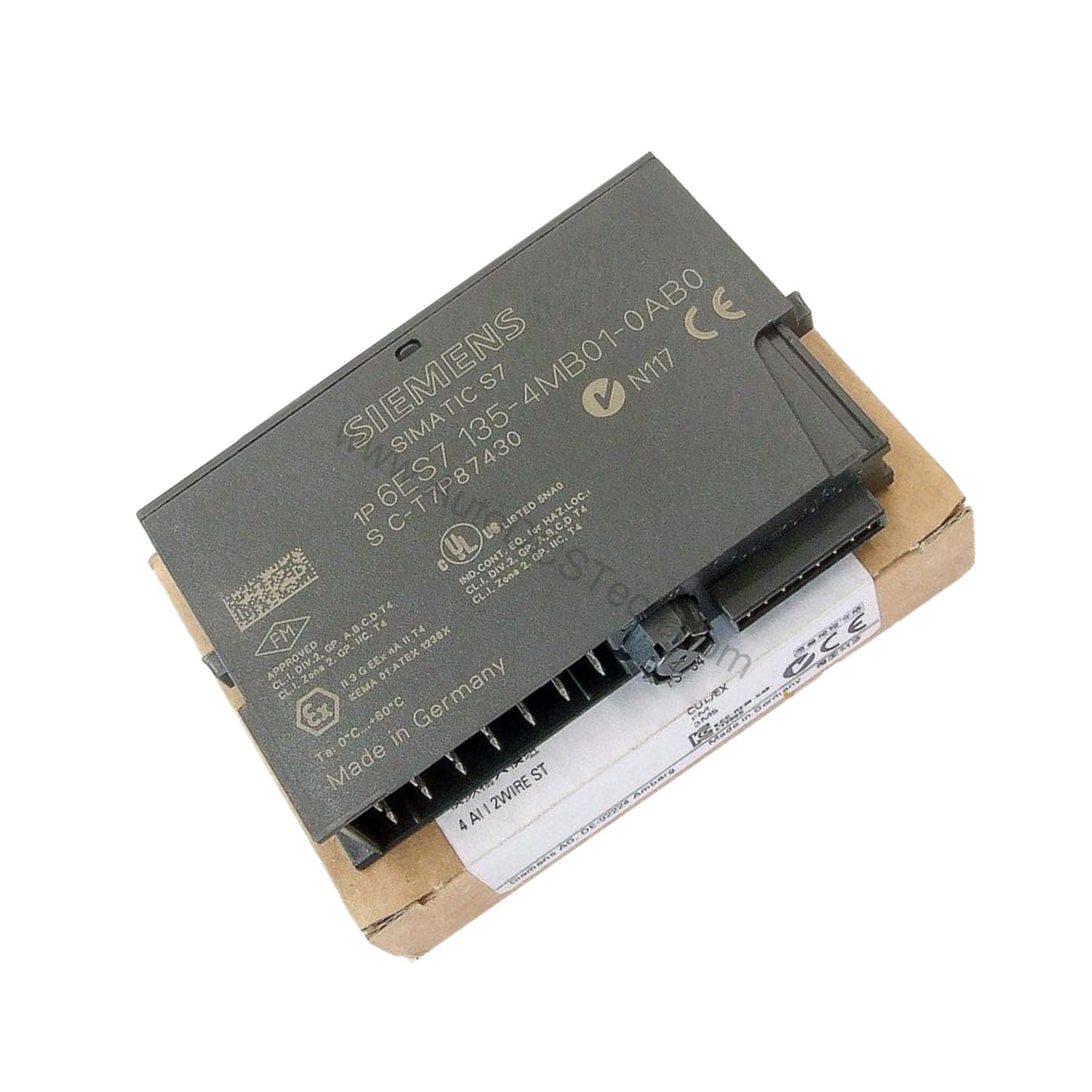

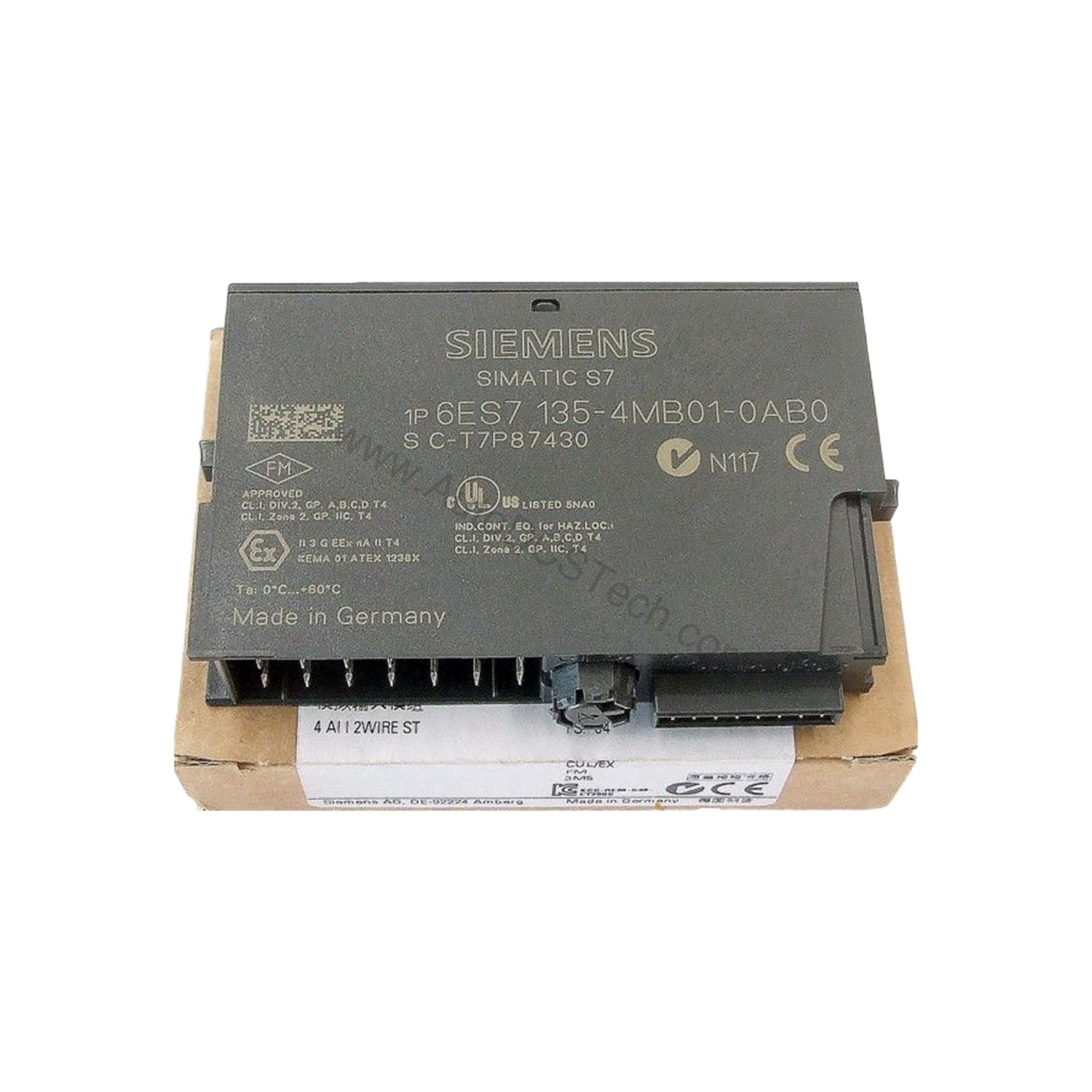

6ES7135-4MB01-0AB0 2AO I High Feature Analog Module

Key Features and Technical Specifications

The 6ES7135-4MB01-0AB0 is packed with features that enhance performance and reliability. Below is a breakdown of its core specifications:

• Outputs: 2 current outputs, supporting two-wire connection.
• Output ranges: ±20 mA (resolution 15 bits + sign) and 4 to 20 mA (resolution 15 bits).
• Isolation: Galvanic isolation between channels and backplane bus, and between channels and electronics power supply.
• Supply voltage: Rated L+ at 24 VDC, with reverse battery protection.
• Diagnostics: Group error display via red SF LED; diagnostic information readable.
• Substitute values: Yes, parameterizable.
• Isochronous operation: Supported, with TDPmin of 3.75 ms and TWAmin of 1.5 ms.
• Dimensions (W x H x D): 15 x 81 x 52 mm (total dimensions depend on terminal module).
• Weight: Approx. 40 g.

One standout feature is the high accuracy. The operational limit is ±0.07% at 250 Ω load impedance, ensuring precise control. Additionally, crosstalk between outputs is better than 60 dB, minimizing interference in multi-channel applications.

Real-World Applications and Use Cases

In process industries, precise current control is critical for valves, actuators, and transmitters. The 6ES7135-4MB01-0AB0For example, in a chemical plant, the module can drive a 4-20 mA loop to position a control valve accurately, maintaining product quality. Its fast settling time (0.25 ms for resistive loads) supports rapid adjustments, reducing process variability.

Furthermore, the module's isochronous operation capability makes it suitable for high-speed synchronized control systems, such as those found in packaging machinery or printing presses. The minimum synchronous DP cycle time of 3.75 ms ensures timely data exchange with the controller.

Installation and Setup Guidance

Proper installation is vital for optimal performance. The 6ES7135-4MB01-0AB0 mounts on a standard Siemens terminal module. Note that terminals 4, 8, A4, A8, A3, and A7 are only available on specified terminal modules—verify compatibility before wiring.

For current outputs, use shielded cables up to 200 m to maintain signal integrity. Ensure the load impedance does not exceed 500 Ω for current outputs (with inductive loads up to 1 mH). The module provides an open circuit voltage of 18 V, sufficient for most two-wire transmitters.

Maintenance and Reliability Tips

Routine inspection is key to long-term reliability. Periodically check the module's status LED and diagnostic information to catch faults early. The 6ES7135-4MB01-0AB0 features a group error display (red SF LED) and readable diagnostics, simplifying troubleshooting.

Given its robust design, the module withstands harsh conditions, but ensure the ambient temperature stays within the specified range. The temperature error is only ±0.001%/K, so minimal drift occurs even with temperature fluctuations. Regular verification of output accuracy against a calibrated meter can prevent unnoticed degradation.

Addressing Analog Output Challenges with the 6ES7135-4MB01-0AB0

This 2AO I High Feature analog electronic module is engineered to deliver stable, accurate signals in industrial environments. With two outputs for current, it supports both ±20 mA and 4 to 20 mA ranges, offering flexibility for various actuators and control loops.

Engineers often face issues like signal drift, crosstalk, or slow response times. The 6ES7135-4MB01-0AB0 mitigates these with a conversion time of max. 1.0 ms per channel and settling times as low as 0.25 ms for resistive loads. This ensures rapid, dependable updates for your control system.

Compatibility and Integration

The 6ES7135-4MB01-0AB0 is part of the Siemens SIMATIC ET 200 family, designed for distributed I/O systems. The module is isolated from the load voltage L+, enhancing safety in mixed-voltage environments.

For system integration, the module communicates with the controller via the backplane bus, with a parameter length of 7 bytes. This allows configuration of output ranges and substitute values. Ensure your PLC or DCS supports the required DP cycle times (TDPmin 3.75 ms) to leverage full performance.

Troubleshooting Common Issues

If you encounter signal issues, start by checking the wiring and load impedance. The module's destruction limit is 15 V continuous at outputs to MANA (75 V for max. 1 ms), so avoid overvoltage conditions. If the SF LED is lit, read the diagnostic information to pinpoint the fault.

For persistent problems, verify the supply voltage (24 VDC) and reverse polarity protection. The module's current consumption is max. 150 mA from L+, so ensure your power supply can handle the load. If issues persist, consult the official Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7135-4MB01-0AB0 is available from AutoDCSTech, a trusted industrial automation parts supplier. We ensure genuine Siemens products with reliable delivery. Contact us for current stock and pricing.
