6ES7131-4BD00-0AA0 4 DI 24V DC ET 200S Module

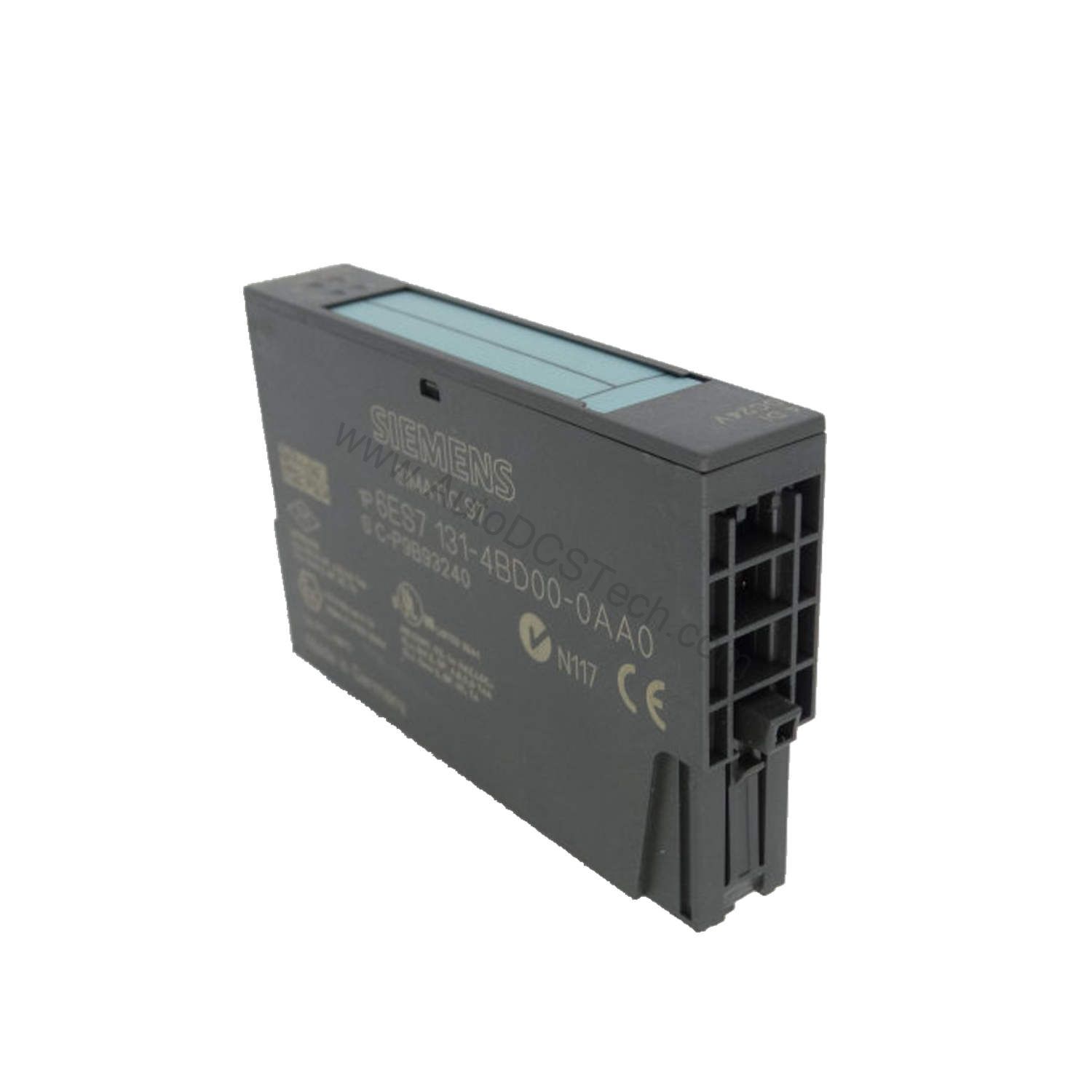

Introduction to the 6ES7131-4BD00-0AA0

When your ET 200S system demands reliable digital input sensing, the 6ES7131-4BD00-0AA0 from Siemens delivers a compact solution. This module provides four digital inputs rated for 24V DC, drawing power directly from the power module. With a slim 15mm width, it fits neatly into crowded control panels without sacrificing performance.

Engineers often face space constraints and signal integrity issues in distributed I/O. The 6ES7131-4BD00-0AA0 is part of the SIMATIC DP family, specifically built for ET 200S stations.

Key Features and Technical Specifications

The 6ES7131-4BD00-0AA0 offers a set of specs that matter for real-world automation tasks. Below is a breakdown of its core parameters, all traceable to the official datasheet.

• Number of digital inputs: 4
• Rated input voltage: 24V DC (from power module)
• Signal "0" range: -30 to +5V
• Signal "1" range: +15 to +30V
• Input current at signal "1": typ. 7 mA at 24V
• Input delay (0 to 1): min. 2 ms, typ. 3 ms, max. 4.5 ms
• Input delay (1 to 0): min. 2 ms, typ. 3 ms, max. 4.5 ms
• Encoder supply output current: rated 500 mA, range 0 to 500 mA
• Power loss: typ. 0.7 W
• Isolation: tested with 500V DC
• Dimensions: 15mm width, 81mm height, 52mm depth
• Weight: approx. 35 g

One distinctive spec is the input delay range. With a typical delay of 3 ms, this module responds quickly to state changes, making it suitable for high-speed counting or position feedback. The isolation between channels and backplane bus (tested at 500V DC) ensures signal integrity in noisy industrial environments.

Applications and Use Cases

For instance, in packaging machinery, the module can monitor sensor inputs for product presence. Similarly, in material handling systems, it can detect limit switch states.

Furthermore, because the module supports 2-wire sensors with a permissible quiescent current of 1.5 mA, it can interface directly with proximity sensors. This capability simplifies installation and reduces the need for external interface circuits.

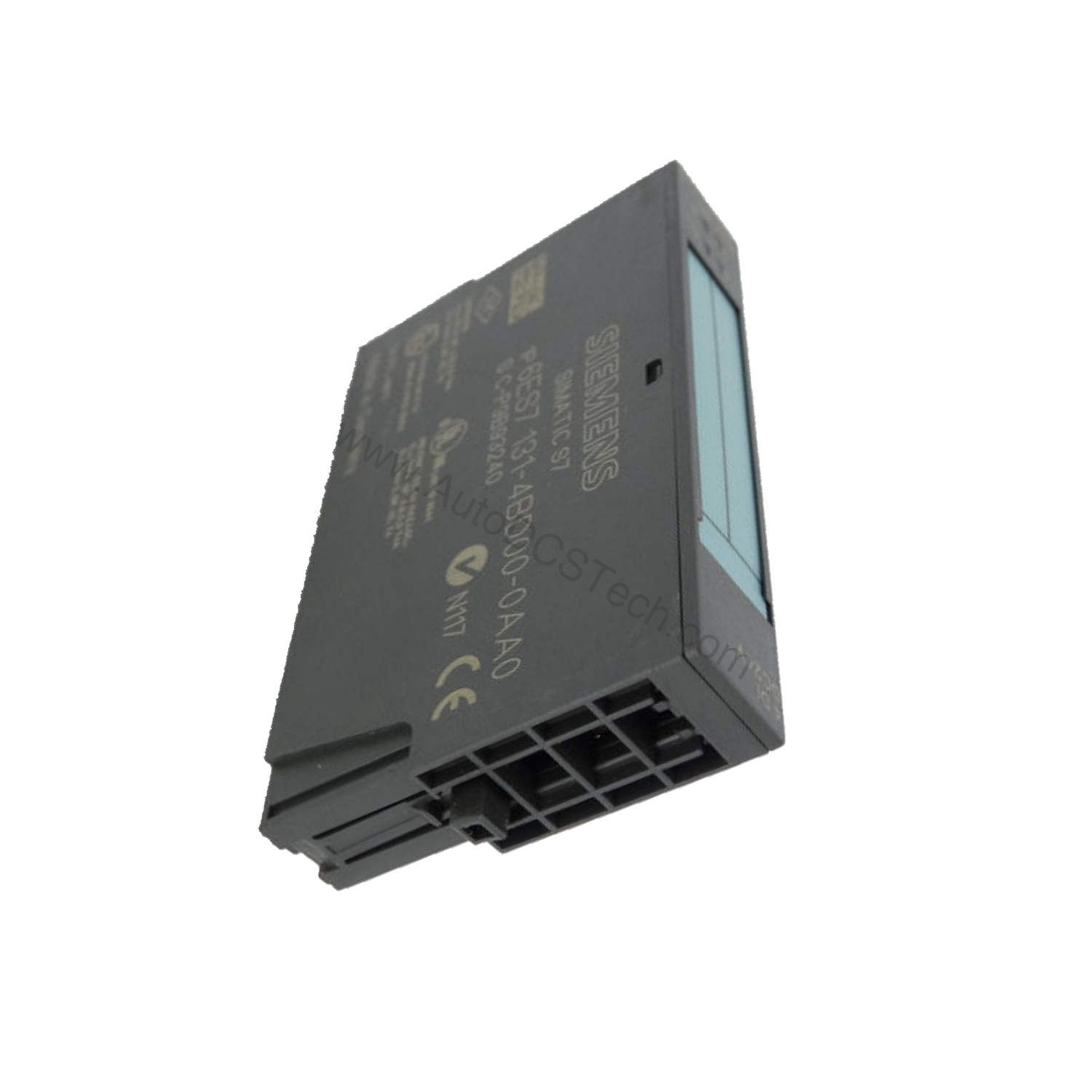

Installation and Setup

Mounting the 6ES7131-4BD00-0AA0 is straightforward. It snaps onto the ET 200S rail and connects to the backplane bus automatically. The module draws its 24V DC supply from the power module, so no separate wiring is needed for the logic supply. For field wiring, use shielded cables up to 1000 m or unshielded up to 600 m, depending on your noise environment.

When connecting encoders, note that the module provides an encoder supply output with a rated current of 500 mA. Ensure your encoder's current draw does not exceed this limit. Also, the permissible potential difference between different circuits is 75V DC/60V AC, so plan your grounding accordingly.

Maintenance and Reliability

Regular inspection of the module's status LEDs (green for each digital input) helps verify operation. Since the module has no diagnostic functions, rely on the input LEDs for quick visual checks. The module's power loss of only 0.7 W means minimal heat generation, contributing to long-term reliability.

To maintain signal integrity, periodically check that cable connections are tight and that the module is securely seated on the rail. Avoid exposing the module to excessive vibration or moisture, as these can affect performance.

Compatibility and Integration

The 6ES7131-4BD00-0AA0 is designed for Siemens ET 200S distributed I/O systems. It communicates via the backplane bus, requiring no additional network configuration. The module is compatible with SIMATIC DP masters, making it a drop-in solution for existing installations.

For address space, the module uses 4 bits with packing or 1 byte without packing. This flexibility allows efficient use of I/O memory. Integration with Siemens TIA Portal or STEP 7 is seamless, as the module is fully supported.

Troubleshooting and Common Issues

If an input does not respond, first check the signal voltage. For signal "1", the voltage must be between +15V and +30V. If the voltage is below +15V, the module may interpret it as "0". Also, verify that the encoder supply current does not exceed 500 mA; overloading can cause the output to drop.

Another common issue is input delay. If your application requires faster response, note that the delay is not parameterizable and is fixed at 2 to 4.5 ms. Ensure your control logic accounts for this delay.
