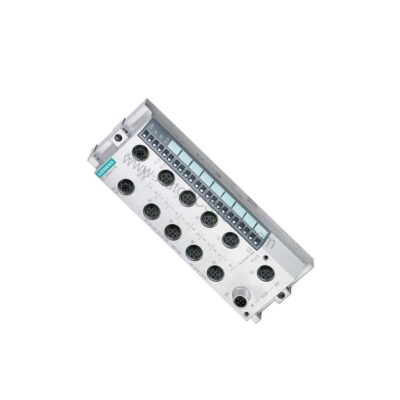

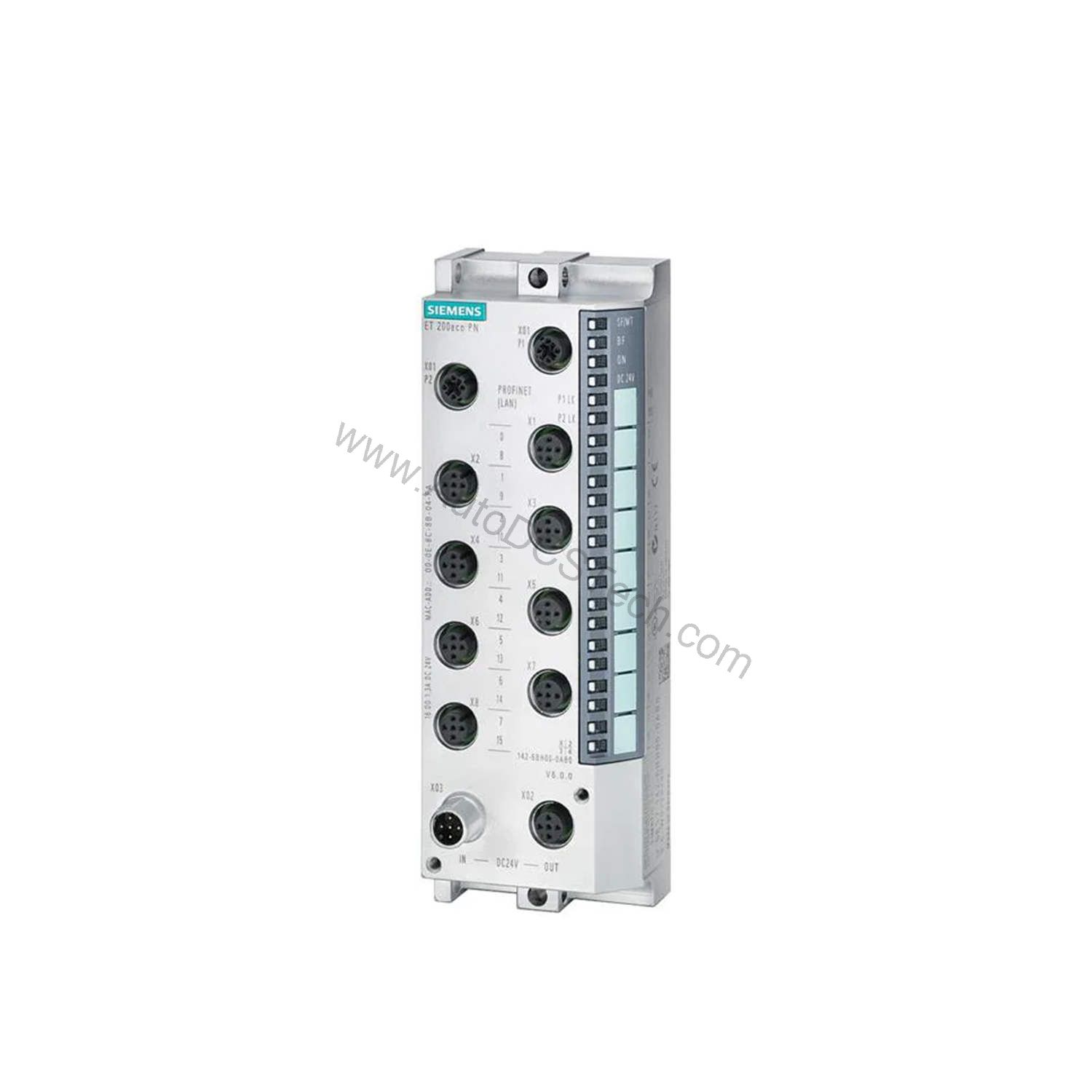

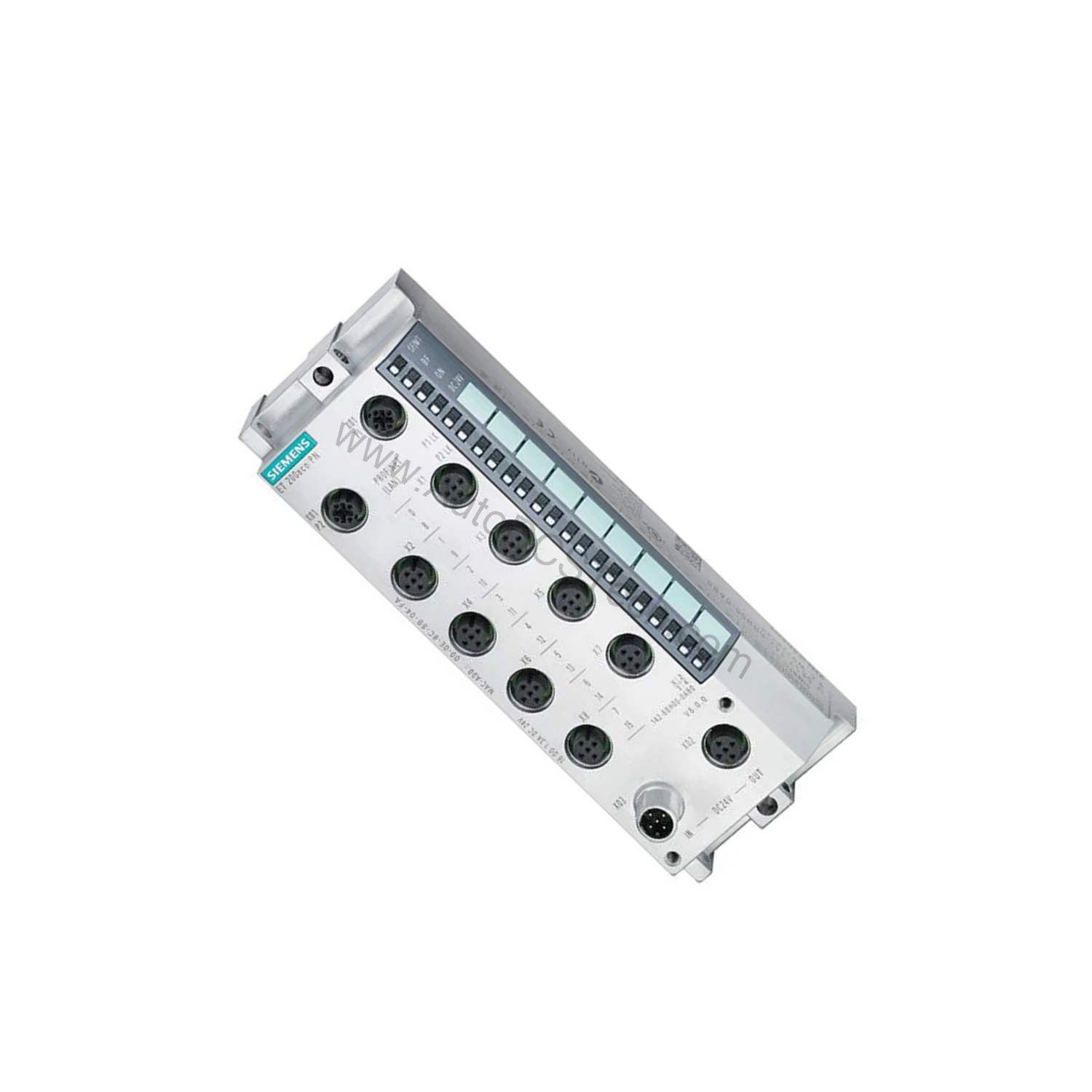

6ES7147-6BG00-0AB0 8 DIO 24V DC IP67 ET 200eco PN

Key Features and Technical Specifications of the 6ES7147-6BG00-0AB0

The 6ES7147-6BG00-0AB0 is packed with features that enhance operational efficiency:

• Digital I/O: 8 inputs and 8 outputs, each group of 4 electrically isolated from the next.
• Output Current: Each output can handle up to 1.3A, with a total group current of 3.9A at 60°C.
• Input Characteristics: Meets IEC 61131 Type 3, with a typical input current of 7mA at 24V.
• Switching Frequency: Up to 100Hz for ohmic loads, 0.5Hz for inductive loads, and 1Hz for lamp loads.
• Protection: Electronic short-circuit protection with a typical response threshold of 1.8A.
• Supply Voltage: Nominal 24V DC, with a permissible range of 20.4V to 28.8V.
• Power Consumption: Typical 6.5W, with a max input current of 4A from the load supply.
• Isolation: 707V DC type test between load circuits and other parts; 1500Vrms interface test per IEEE 802.3.

One standout feature is the ability to parallel two outputs for redundant load control, enhancing system reliability. Additionally, the module supports MRP (Media Redundancy Protocol) for network resilience, ensuring minimal downtime in ring topologies.

Real-World Applications for the 6ES7147-6BG00-0AB0

Common use cases include:

• Material Handling: Controlling conveyors and sorting equipment in dusty warehouses.
• Automotive Manufacturing: Monitoring sensors and actuators on assembly lines where coolant and oil are present.
• Food & Beverage: Managing washdown processes with high-pressure water, thanks to IP67 sealing.
• Machine Tools: Interfacing with proximity switches and solenoid valves in compact machine cells.

Because of its rugged design, the 6ES7147-6BG00-0AB0 reduces the need for protective cabinets, lowering installation costs and simplifying maintenance access.

Installation and Setup Guidance

Mounting the module is straightforward: it attaches directly to a machine frame or wall using the integrated M12 connectors for both power and I/O. The PROFINET interface uses two M12 ports, allowing easy daisy-chaining without external switches. Ensure the supply voltage is within the specified range (20.4V to 28.8V DC) and that the load supply 2L+ is connected correctly. The module provides reverse polarity protection, but always double-check wiring before energizing.

For optimal performance, keep the total output current per group below 3.9A and respect the derating at higher temperatures. The module supports up to 8 simultaneously active inputs at 60°C, so plan your sensor wiring accordingly.

Maintenance and Reliability Tips

Routine inspection is essential to maintain long-term reliability. Periodically check the M12 connectors for tightness and signs of corrosion, especially in humid environments. Verify that the green 'ON' LED indicates proper supply voltage and the red/yellow 'SF/MT' LED remains off, signaling no collective fault. The module's electronic short-circuit protection prevents damage from wiring errors, but always replace damaged cables promptly.

However, avoid using abrasive cleaners that could degrade the housing over time.

Compatibility and Integration

The 6ES7147-6BG00-0AB0 is part of the SIMATIC ET 200eco PN family, designed for seamless integration into PROFINET networks. It supports PROFINET IO with IRT for high-speed, deterministic communication. The integrated switch allows line topology, reducing wiring and switch costs. It also supports SNMP, DCP, LLDP, ping, and ARP for network diagnostics and management.

This module is not suitable for safety-related shutdown applications (as per data) and does not support PROFIsafe. For standard automation tasks, it pairs with Siemens S7-1200/1500 controllers or any PROFINET master.

Troubleshooting Common Issues

If you encounter a fault, the module provides diagnostic alarms and readable diagnostic information. The 'SF/MT' LED indicates a collective error, which could be due to a wire break on actuator or sensor lines, or a short circuit. Use the diagnostic functions in your engineering software to pinpoint the exact channel. For supply voltage issues, check the green 'ON' LED; if it is off, verify the 24V supply and polarity.

Should the output current exceed the threshold, the electronic short-circuit protection will activate, and the channel will switch off. After clearing the fault, the output automatically resumes operation. For persistent issues, consult the official Siemens manual or contact AutoDCSTech for support.
