6ES7212-1BE40-0XB0 CPU 1212C AC/DC/Relay PLC

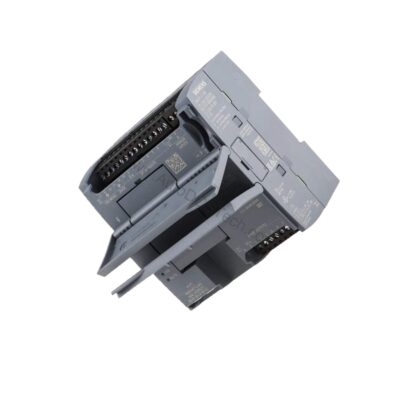

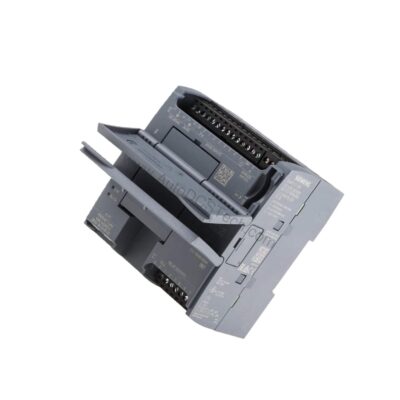

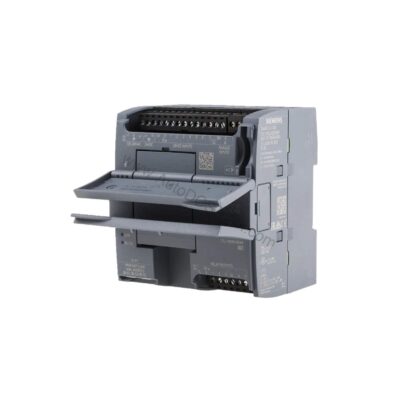

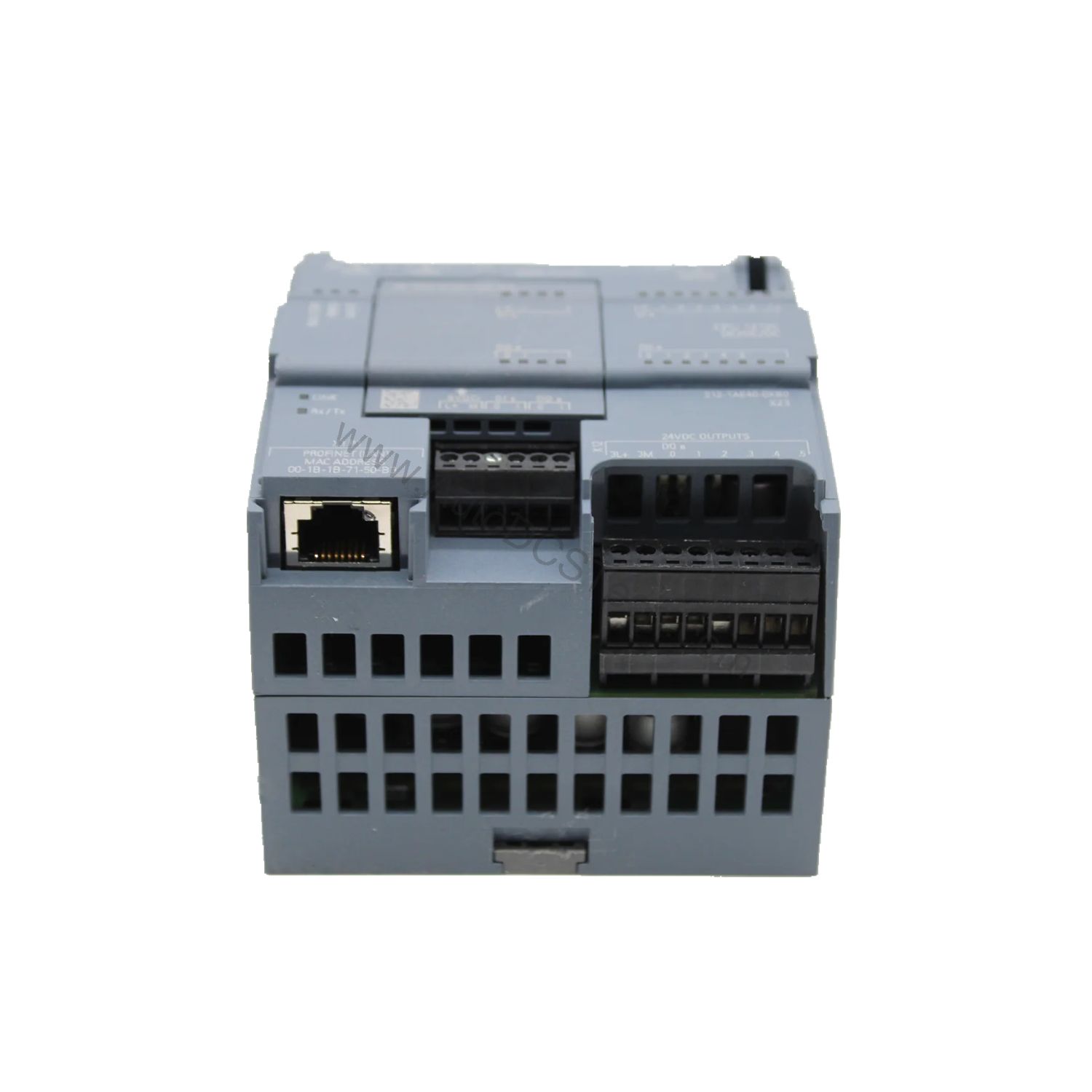

Overview of the Siemens 6ES7212-1BE40-0XB0 CPU 1212C

When a compact controller must handle reliable logic, the 6ES7212-1BE40-0XB0 from Siemens delivers. This CPU 1212C is part of the SIMATIC S7-1200 family, engineered for small to mid-size machines. It combines onboard I/O, a robust power supply, and flexible communication in a space-saving design.

With an AC power supply accepting 85-264 V AC at 47-63 Hz, this CPU suits global installations. Maintenance engineers appreciate the straightforward integration and the ability to monitor diagnostics via the integrated web server.

Key Features and Technical Specifications

The 6ES7212-1BE40-0XB0 provides a balanced set of features for real-world control tasks. Its onboard I/O includes 8 digital inputs (24 V DC), 6 relay outputs (2 A), and 2 analog inputs (0-10 V DC). The program/data memory is 75 KB, sufficient for moderate applications.

• Supply voltage: AC 85-264 V, 47-63 Hz
• Digital inputs: 8, 24 V DC, source/sink
• Digital outputs: 6 relay, 2 A resistive
• Analog inputs: 2, 0-10 V DC, 10-bit resolution
• High-speed counters: 6 (single-phase up to 100 kHz)
• PROFINET interface: 1 port, 100 Mbit/s
• Work memory: 75 KB integrated
• Power loss: typ. 11 W

One distinctive feature is the high-speed counting capability. With single-phase inputs rated at 100 kHz, the CPU can track fast pulses from encoders or flow meters. This eliminates the need for a separate counter module in many applications.

Applications and Use Cases

The 6ES7212-1BE40-0XB0 fits a range of industries. In packaging lines, it manages conveyor sequencing and simple sorting. For HVAC systems, it controls fans and dampers based on analog sensor inputs. In material handling, it coordinates small lifts or transfer stations.

Because the CPU supports PROFINET, it can act as an IO controller or device. This allows integration into larger networks, sharing data with HMIs or SCADA systems. The relay outputs are well-suited for switching AC loads like motor starters, while the analog inputs read temperature or pressure transmitters.

Installation and Setup

Mounting the 6ES7212-1BE40-0XB0 is straightforward. It snaps onto a standard 35 mm DIN rail, requiring minimal space. The compact dimensions—90 mm wide, 100 mm high, 75 mm deep—make it easy to fit in small enclosures.

Wiring is simplified by the removable terminal blocks. For digital inputs, use 24 V DC signals; the input delay is parameterizable from 0.2 ms to 12.8 ms. Relay outputs can switch up to 2 A resistive; for lamp loads, limit to 30 W DC or 200 W AC. Always follow the wiring diagram in the manual to avoid overloading.

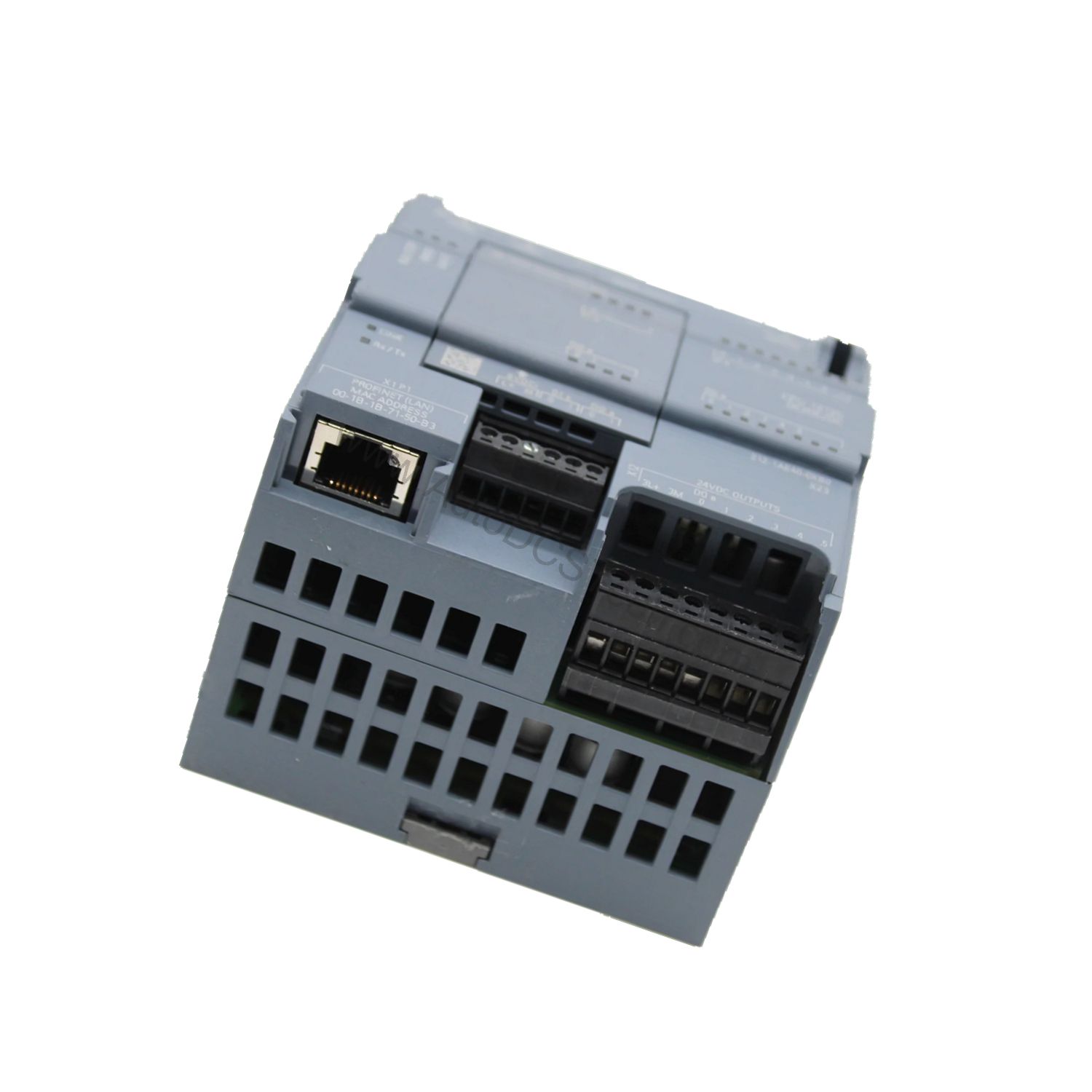

For communication, connect an RJ45 cable to the PROFINET port. The interface supports autonegotiation and autocrossing, so a standard Ethernet cable works. Configure the IP address via the DCP protocol or the programming software.

Maintenance and Reliability

From a maintenance perspective, the 6ES7212-1BE40-0XB0 is designed for long service life. The relay outputs are rated for 10 million mechanical operations, reducing replacement frequency. The CPU operates in temperatures from -20 °C to 60 °C (horizontal), making it robust for industrial environments.

Periodic inspection is recommended, especially for relay contacts. Check for signs of arcing or wear, particularly if switching inductive loads. The diagnostic buffer and LEDs (RUN/STOP, ERROR, MAINT) provide quick status indication, helping technicians identify issues fast.

Because the CPU has no battery for backup, it uses a maintenance-free memory backup. This eliminates battery replacement tasks, lowering total cost of ownership.

Compatibility and Integration

It supports PROFINET IO Controller and Device, as well as open IE communication (TCP/IP, UDP, ISO-on-TCP). For legacy networks, optional communication modules add PROFIBUS or AS-Interface.

Programming is done with STEP 7 V16 or higher, using LAD, FBD, or SCL languages. The CPU supports up to 3 communication modules, 1 signal board, and 2 signal modules, allowing I/O expansion. It also supports Modbus and OPC UA server functions, enabling data exchange with third-party systems.

Common Issues and Troubleshooting

One common issue is input signal noise. If digital inputs are subject to electrical interference, use shielded cables (max 500 m) and ensure proper grounding. For high-speed counters, keep cable lengths under 50 m to maintain signal integrity.

Another issue is relay output welding due to inrush currents. To prevent this, use snubber circuits or solid-state relays for highly inductive loads. The CPU's diagnostic buffer logs events, so check it when a fault occurs.

If the PROFINET connection drops, verify the cable and switch settings. The CPU supports autonegotiation, but some switches may require manual configuration. Also, check that the IP address is unique on the network.

Support and Availability

The 6ES7212-1BE40-0XB0 is available from AutoDCSTech. Contact them for current stock and pricing.
