Product Introduction

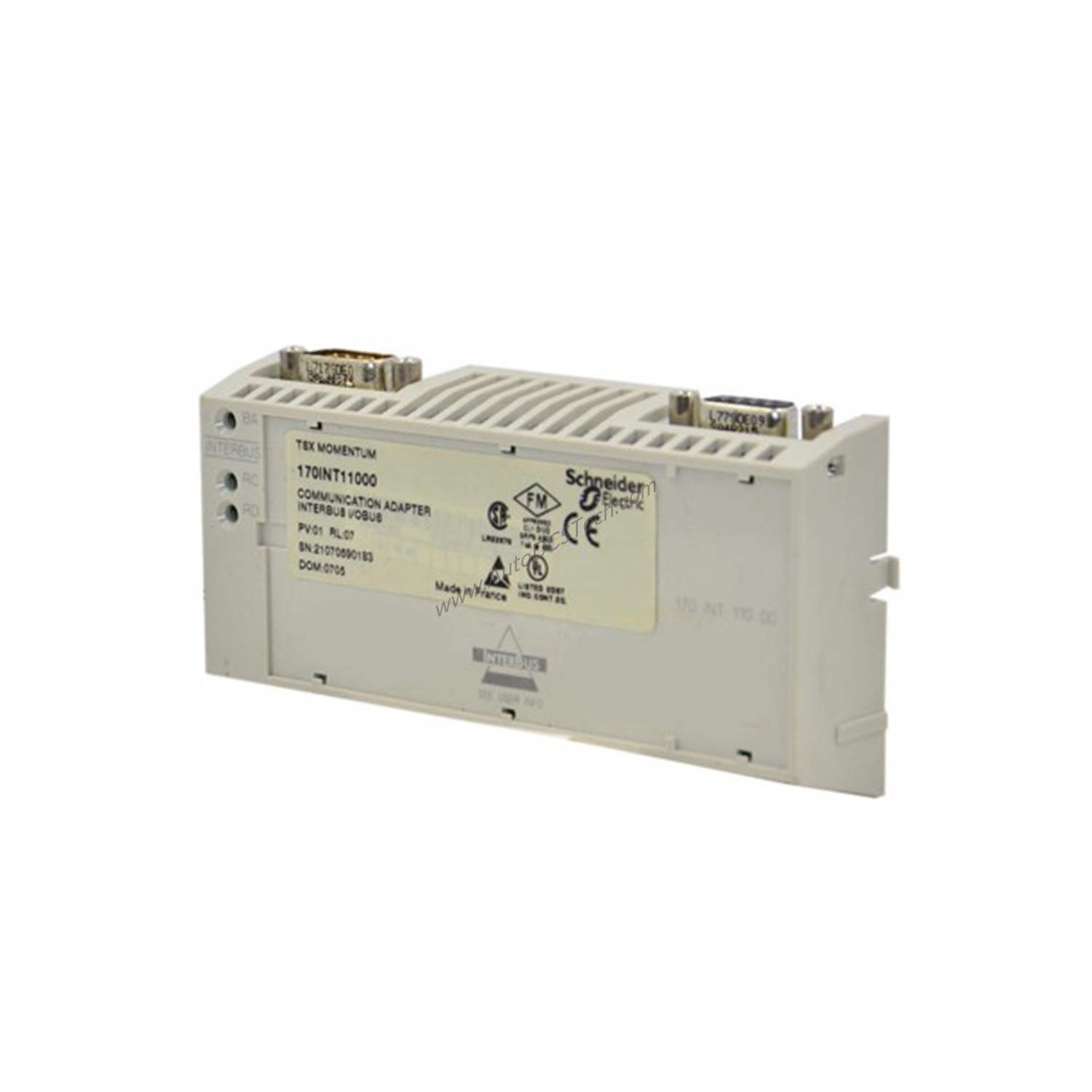

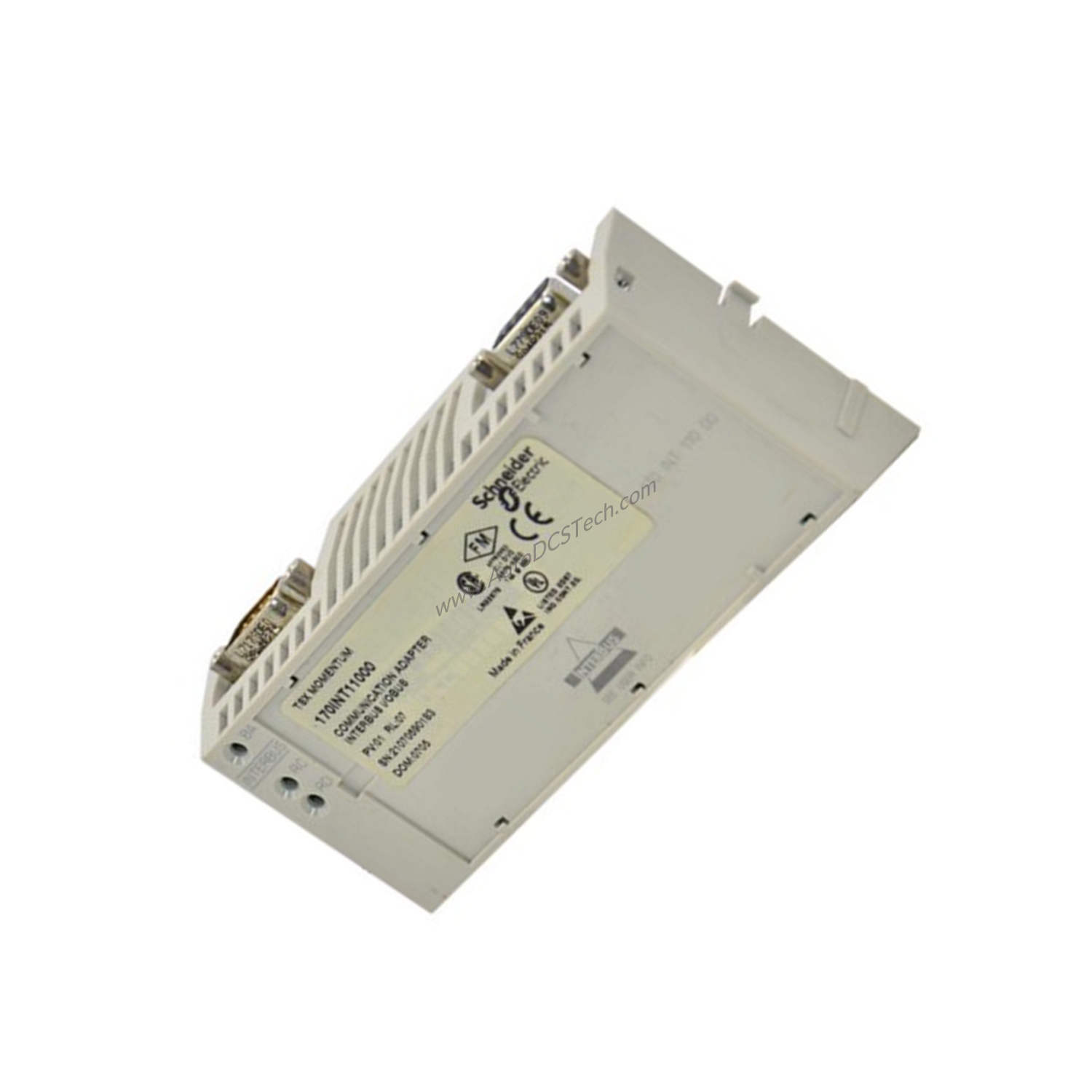

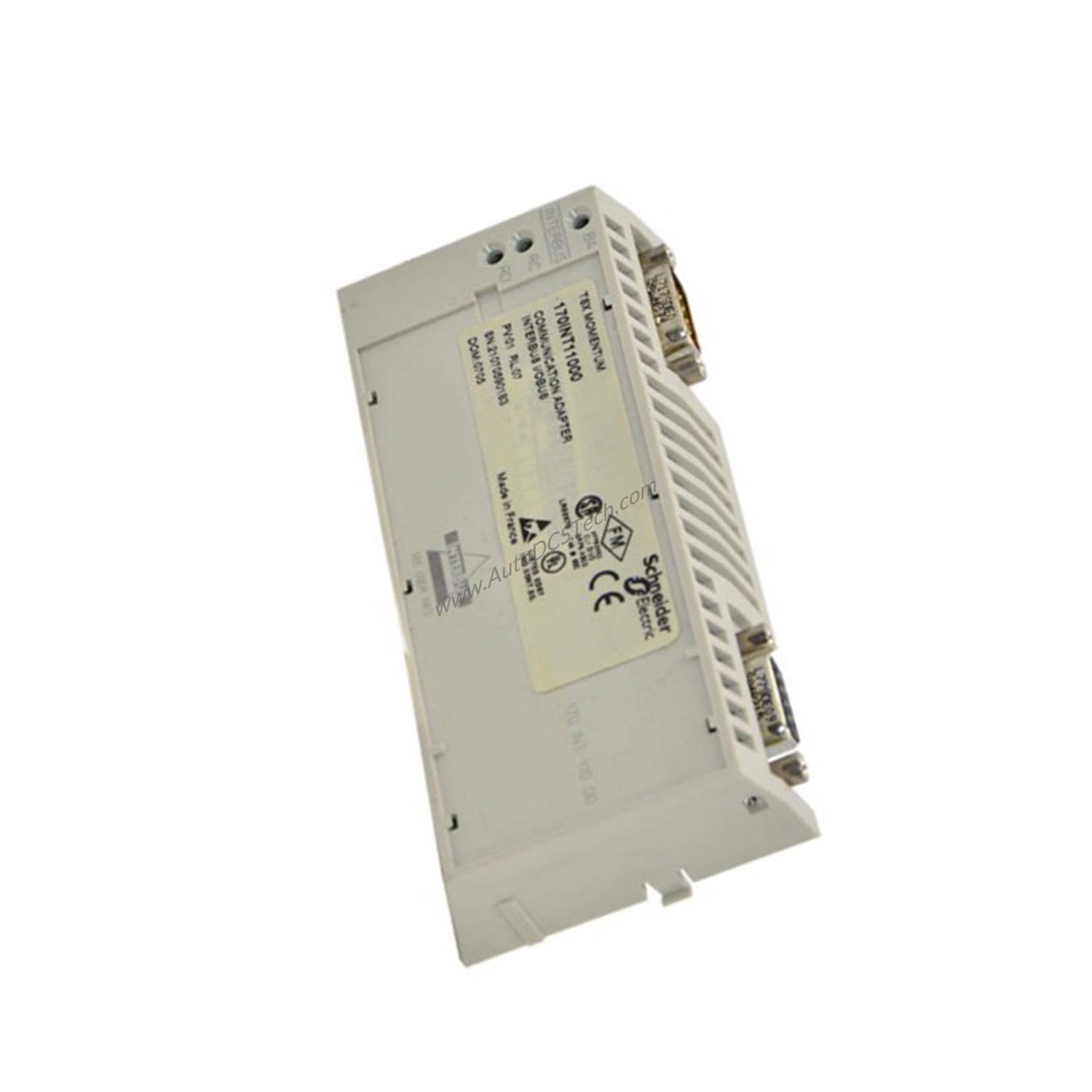

When industrial networks demand fast and reliable data transmission, the Schneider 170INT11000 Communication Adapter delivers a robust solution. Part of the Modicon Momentum series, this module is engineered for efficient communication using the Interbus Generation SUPI II protocol. It supports a transmission rate of 500 kilobits per second, ensuring quick data exchange in demanding environments. The device operates over twisted pairs cable within a ring network topology, making it a dependable choice for industrial automation systems.
Technical Specifications Breakdown
The 170INT11000 offers several key specifications that define its performance and integration capabilities:
- Communication Protocol: Interbus Generation SUPI II enables seamless integration with existing Interbus networks.
- Transmission Rate: 500 kilobits per second provides fast data throughput for real-time control.
- Network Topology: Ring network structure ensures reliable data flow and fault tolerance.
- Electrical Connection: Two 9-pin D-Sub Interbus connectors simplify wiring and connectivity.
- Access Method: Master/Slave and continuous shift register offer flexible network design options.
- Power Consumption: Less than 200 to 400 milliamperes at 5 Volts DC, with power dissipation of 0.8 Watt (without fiber-optic adapter).
- Protection Class: IP20 guards against solid foreign objects.
- Operating Temperature: 0 to 60°C (non-condensing) ensures stable performance in typical industrial settings.
- Storage Temperature: -40 to 85°C (non-condensing) allows safe storage in varied climates.
Industry Applications
This communication adapter excels in applications requiring deterministic data transfer over long distances. For example, in material handling systems, the 170INT11000 connects multiple sensors and actuators across a ring network, supporting up to 254 devices per segment. Its maximum cable distance of more than 3,280 feet (1,000 meters) between devices enables coverage of large warehouses or production floors. In packaging lines, the CRC-16 control parameter ensures data integrity, reducing errors in high-speed operations.
Installation & Setup Guidance
Mount the 170INT11000 in a clean, dry environment with IP20 protection. Use twisted pairs cable to connect the two 9-pin D-Sub Interbus connectors in a ring topology. Ensure each segment does not exceed 254 devices and that cable distances stay within the specified limits: more than 3,280 feet (1,000 meters) between devices or 1,312.14 feet (400 meters) between two modules. Power the module with a 5 Volts DC supply, drawing less than 200 to 400 milliamperes. Verify the ring network is closed properly to maintain communication.
Maintenance & Reliability
Regular inspection of cable connections and environmental conditions helps maintain reliable operation. The 170INT11000 operates in non-condensing environments from 0 to 60°C, so avoid exposure to moisture or extreme temperatures. Check for physical damage to connectors and cables periodically. With low power dissipation of 0.8 Watt, the module generates minimal heat, reducing stress on surrounding components. Following these practices extends service life and minimizes downtime.
Compatibility & Integration
This adapter integrates seamlessly with Modicon Momentum automation platforms and other Interbus-compatible devices. It uses the Interbus Generation SUPI II protocol, ensuring interoperability with existing Interbus networks. The master/slave and continuous shift register access methods allow flexible configuration with various controllers. For replacement or upgrades, verify compatibility with your current system architecture.
Selection Guide & Purchasing Advice
Before purchasing the 170INT11000, confirm your network requires Interbus Generation SUPI II protocol and ring topology. Check that your power supply provides 5 Volts DC and can handle the module's current draw of less than 200 to 400 milliamperes. Ensure your installation environment meets IP20 protection and temperature ranges. SpareTechPLC offers this communication adapter with detailed support to help you integrate it smoothly into your automation system. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If communication errors occur, first verify the ring network is complete and all connectors are secure. Check cable distances: they must not exceed more than 3,280 feet (1,000 meters) between devices or 1,312.14 feet (400 meters) between two modules. Confirm the power supply delivers 5 Volts DC and the module draws less than 200 to 400 milliamperes. The CRC-16 control parameter helps detect data corruption; if errors persist, inspect twisted pairs cable for damage or interference. Ensure ambient temperature stays within 0 to 60°C.
Frequently Asked Questions
Q1: What communication protocol does the 170INT11000 use?
A1: It uses the Interbus Generation SUPI II protocol.
Q2: How many devices can I connect per segment?
A2: You can connect 0 to 254 devices per segment.
Q3: What is the maximum cable distance between two modules?
A3: The maximum distance is 1,312.14 feet (400 meters) between two modules.
Q4: What is the power consumption of this adapter?
A4: It consumes less than 200 to 400 milliamperes at 5 Volts DC.
Q5: What type of cable does it require?
A5: It requires twisted pairs cable.
