Product Overview

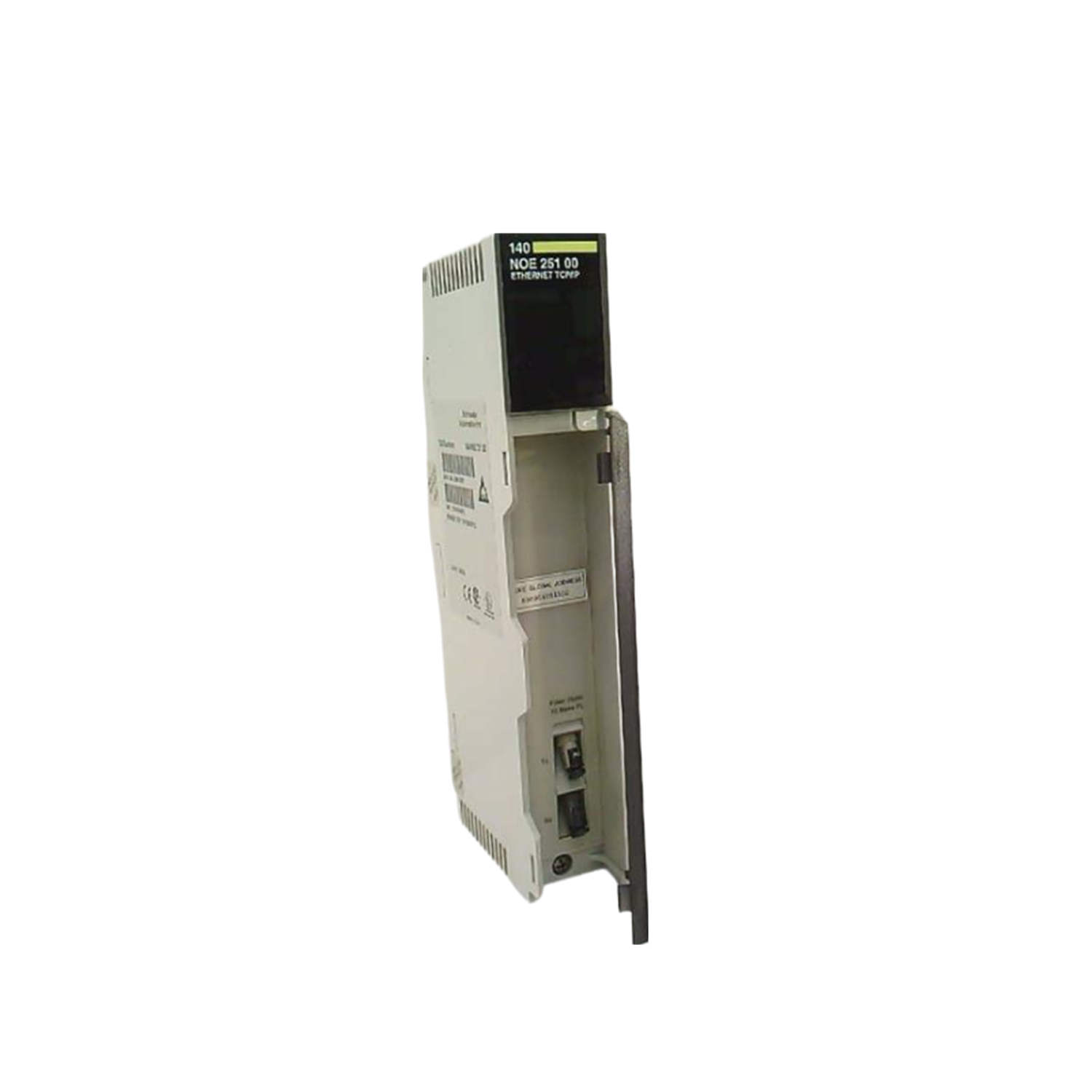

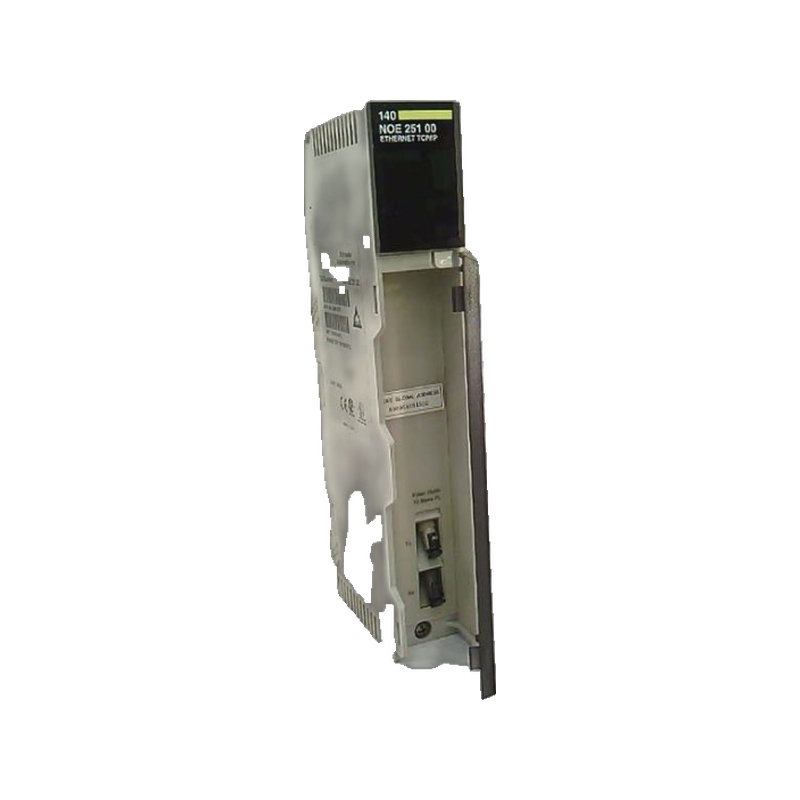

The Schneider Electric Modicon Quantum 140NOE25100C is an Ethernet module engineered for reliable communication in industrial environments. It supports fiber-optic cables, making it a robust choice for applications requiring high noise immunity and long-distance data transfer. This module is particularly well-suited for material handling, packaging, and textile machinery, where consistent network performance is critical.
Technical Specifications Breakdown
Key parameters for the 140NOE25100C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Ethernet Module |
| Product Line | Modicon Quantum |
| Part Number | 140NOE25100C |
| Fiber-Optic Cables Supported | Yes |
| Number of Channels | 1 Channel |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH, non-condensing |
| Maximum Storage Humidity | 80% RH, non-condensing |
| Maximum Operating Altitude | 1000m above sea level |
| Maximum Storage Altitude | 1000m above sea level |
| Operating Environment | Clean indoor environment (no corrosive chemicals) |
Industry Applications
Material Handling: The 140NOE25100C provides stable Ethernet connectivity for conveyor systems and automated storage, leveraging fiber-optic cables to resist electromagnetic interference common in warehouse environments.
Packaging Machinery: In high-speed packaging lines, this module ensures low-latency data exchange between sensors and controllers, supporting consistent operation within the 0 to 40 degrees Celsius temperature range.
Textile Machinery: Textile plants often operate in humid conditions. With a maximum operating humidity of 80% RH non-condensing, this Ethernet module maintains reliable communication even in such environments.
Installation & Setup Guidance
Mount the 140NOE25100C in a clean indoor cabinet free from corrosive chemicals. Ensure the ambient temperature stays between 0 and 40 degrees Celsius. Use fiber-optic cables as supported by the module to maximize signal integrity over longer distances. Connect the single channel to your network switch or controller following standard Ethernet wiring practices for fiber optics. Verify that the module is securely seated in the Modicon Quantum backplane before powering up.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on the fiber-optic connectors and ensure the operating environment remains within specified limits: temperature 0 to 40 degrees Celsius, humidity below 80% RH non-condensing, and altitude not exceeding 1000m above sea level. Clean the enclosure with a dry cloth if needed. No disassembly of the module is required for routine maintenance.
Compatibility & Integration
This Ethernet module is part of the Modicon Quantum series by Schneider Electric. It integrates seamlessly with other Quantum-series components. The fiber-optic support allows connection to remote I/O racks or higher-level control systems over longer distances than copper Ethernet.
Selection Guide & Purchasing Advice
When selecting the 140NOE25100C, consider your network topology and distance requirements. If your facility has high electrical noise or spans long distances, the fiber-optic capability is a key advantage. SpareTechPLC offers this module with verified authenticity. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the module does not communicate, check the fiber-optic cable connections for damage or dirt. Ensure the operating temperature is within 0 to 40 degrees Celsius and humidity is below 80% RH non-condensing. Verify that the module is properly seated in the backplane and that the network configuration matches your system. For persistent issues, consult the Modicon Quantum user manual.
