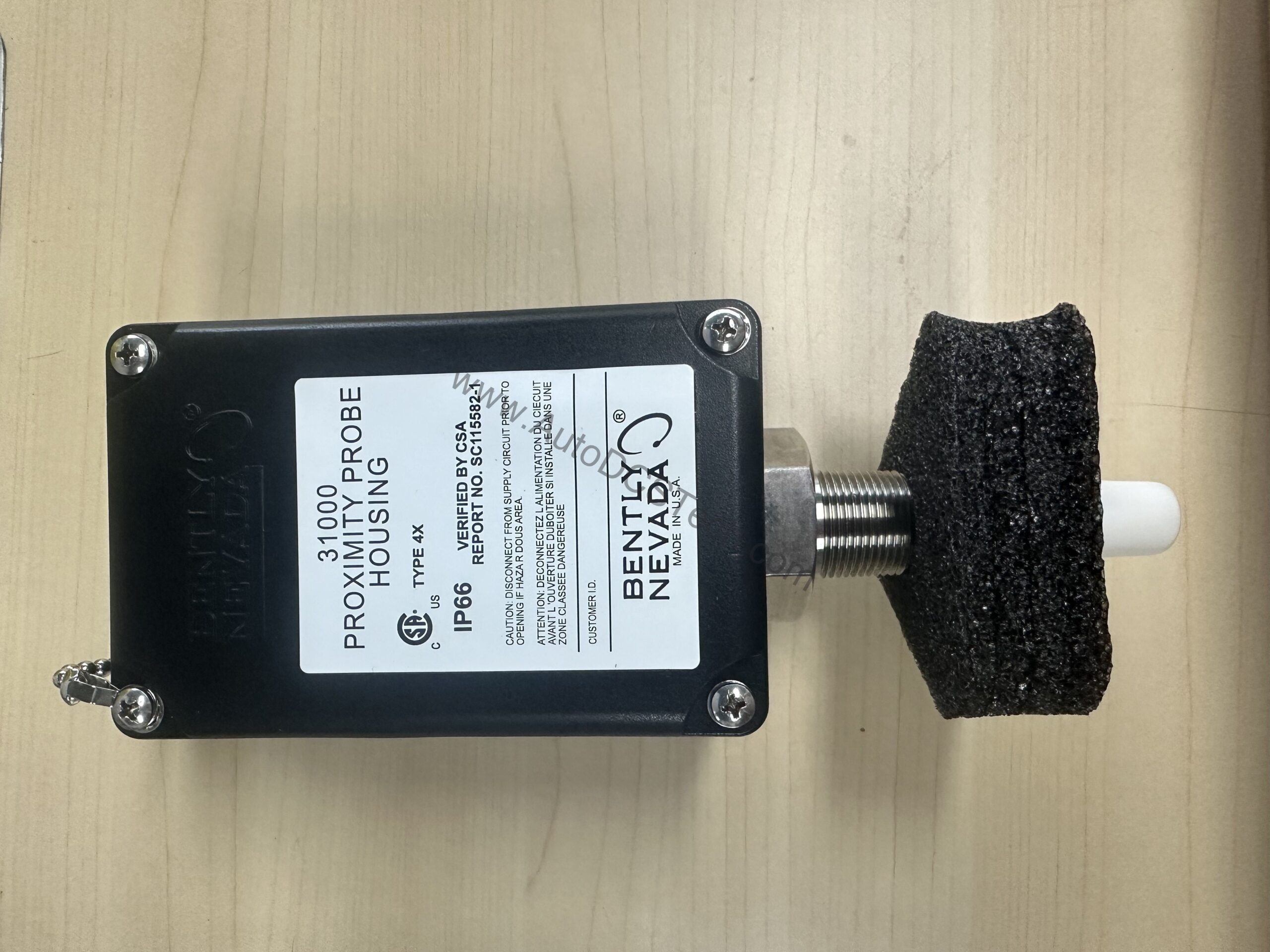

Bently Nevada 31000-30-05-15-031-03-02 Proximity Probe Housing for 3300 XL 8mm Probe

Technical Specifications Breakdown

Key parameters for the 31000-30-05-15-031-03-02 are listed below for quick reference:

Installation Guidance for Maintenance Engineers

When installing the 31000-30-05-15-031-03-02, ensure the mounting thread (3/4-14 NPT) is properly sealed to maintain the IP66 rating. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). Use the included fittings: two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and a cable seal grip with grommets for cable sizes from 1/8 to 3/8 inches. Always verify the standoff adapter length (minimum 1.5 in) and probe penetration (3.1 in) to ensure correct probe positioning.

Maintenance and Reliability Tips

Periodically inspect the O-ring (Neoprene) and sleeve materials (AISI 304 and 303 stainless steel) for signs of wear or corrosion. The housing's impact strength is verified, but avoid unnecessary mechanical stress. For long-term reliability, verify the environmental temperature stays within -51°C to +105°C. If the housing shows signs of damage, replace it promptly to maintain protection ratings.

Robust Protection for Critical Vibration Monitoring

For maintenance engineers tasked with ensuring uptime in harsh industrial environments, the Bently Nevada 31000-30-05-15-031-03-02 proximity probe housing offers a reliable solution for protecting 3300 XL 8mm probes. This component is built to withstand extreme conditions, from freezing temperatures to high-impact scenarios, making it a cornerstone of effective machine health monitoring.

Engineered for Extreme Environments

This housing is designed for applications where reliability is non-negotiable. The glass-reinforced PPS thermoplastic with conductive fibers provides electrostatic dissipation, certified to CENELEC EN50014 for hazardous areas. The Type 4X and IP66 ratings ensure protection against water ingress and corrosion, making it suitable for outdoor and washdown environments. The housing also meets BASEEFA impact certification, withstanding 4 Joule impacts at -39°C and 115°C, and 7 Joule impacts at room temperature per CSA.

Selection Guide and Purchasing Advice

Before ordering, confirm that the 31000-30-05-15-031-03-02 matches your probe requirements. This housing is specifically configured for a 3300 XL 8mm probe with a 0.5m cable. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers this Bently Nevada housing as a genuine, new unit, ready for immediate deployment in your critical machinery monitoring system.
