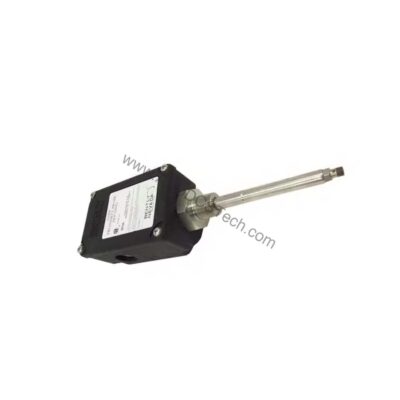

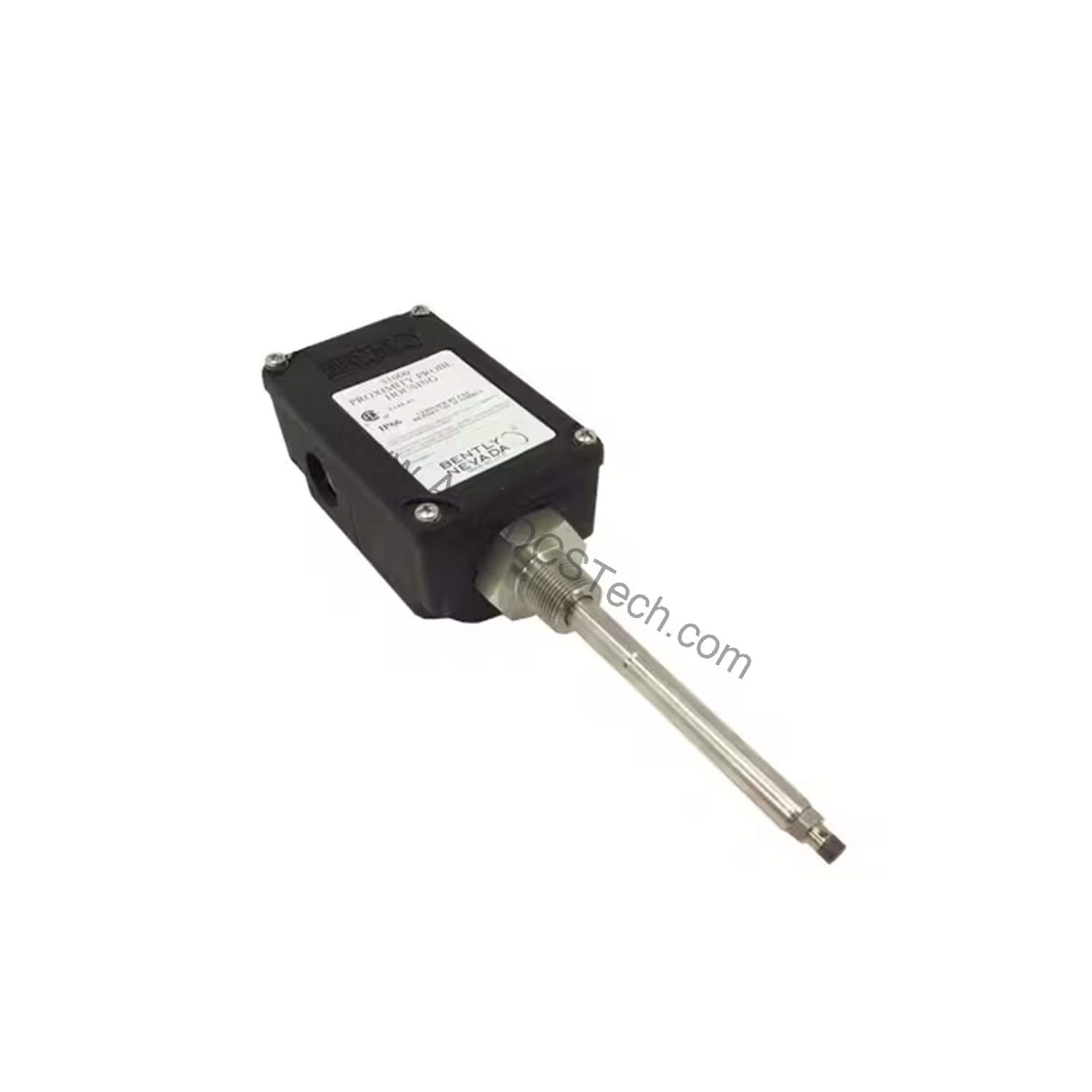

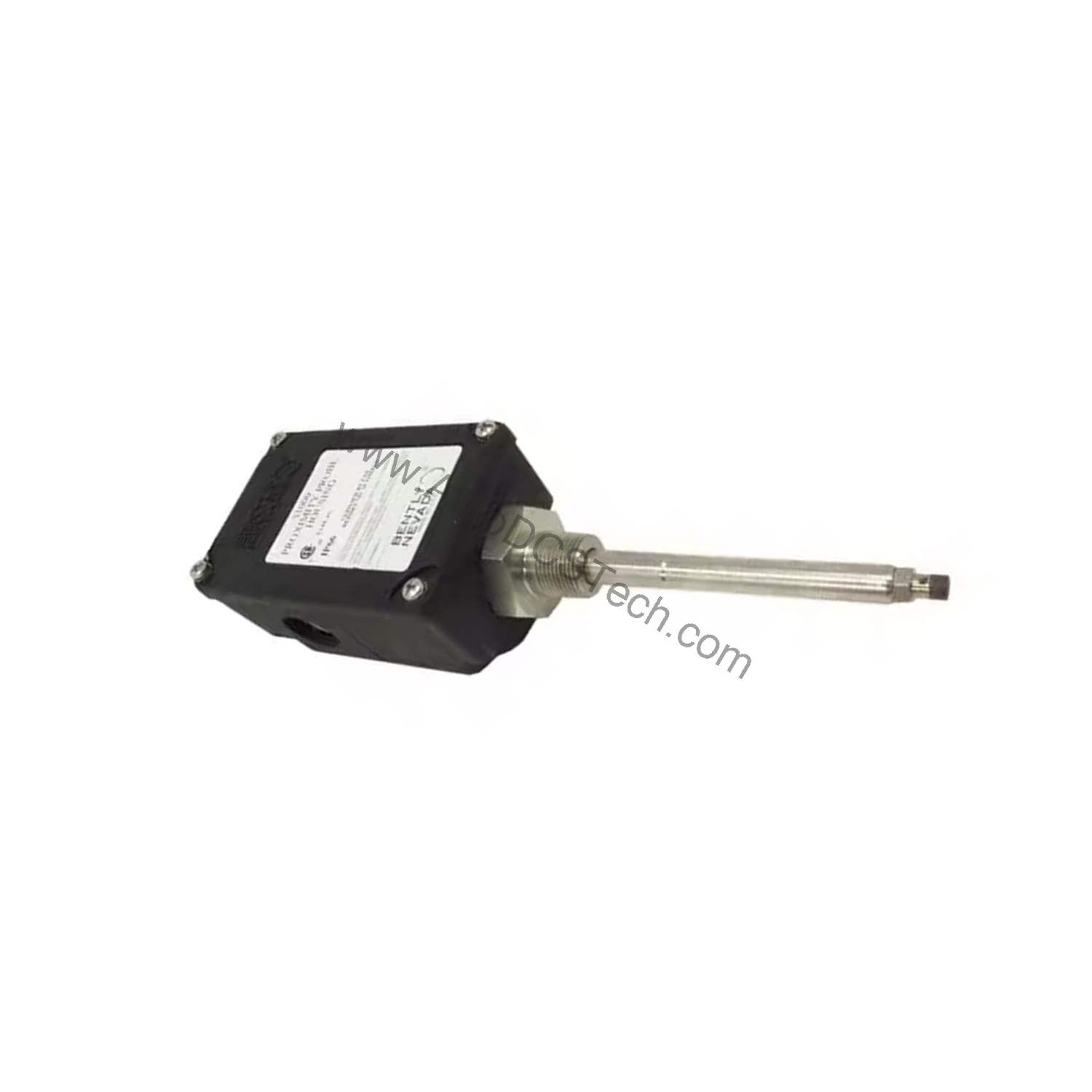

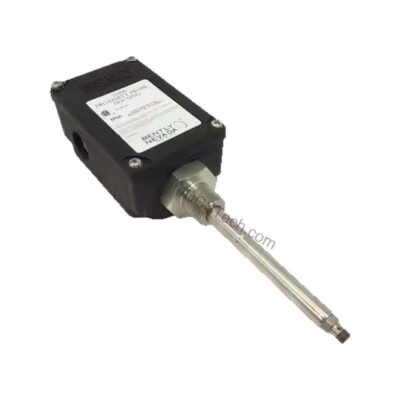

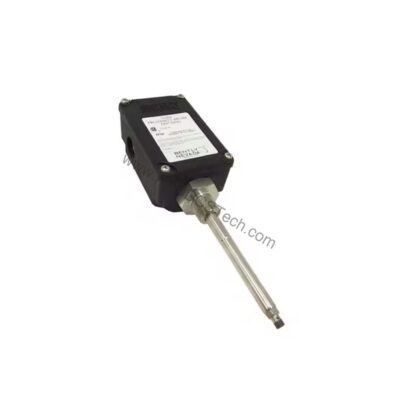

Bently Nevada 32000-00-00-04-420-01-02 Metric Proximity Probe Housing

Technical Specifications Breakdown

Key parameters for the 32000-00-00-04-420-01-02 are listed below for quick reference:

Industry Applications and Operational ROI

This housing is purpose-built for rotating machinery monitoring in oil and gas, power generation, and petrochemical facilities. The 40 mm standoff adapter and 420 mm probe penetration accommodate deep probe insertion into bearing housings or casings, ensuring accurate vibration and position measurements. The Type 4X and IP66 ratings allow installation in washdown areas or outdoor locations without additional enclosures, reducing total installed cost. By protecting the probe from environmental degradation, this housing extends sensor life and minimizes unplanned maintenance—directly improving operational ROI.

Installation and Setup Guidance

Mount the housing using the 3/4-14 NPT thread option, which is required when ordering the standoff adapter. Ensure the mounting surface is clean and flat to maintain seal integrity. The O-ring material is Neoprene, so avoid overtightening to prevent extrusion. For hazardous area installations, note the CENELEC EN50014 rating for electrostatic dissipation of plastic materials. Always follow the manufacturer's torque specifications for the M25 fitting and plugs.

Maintenance and Reliability

The glass-reinforced PPS housing with conductive fibers provides chemical resistance and static dissipation. The AISI 304 and 303 stainless steel components resist corrosion in humid or corrosive atmospheres. Inspect the O-ring and fittings periodically—especially after temperature cycling between -51°C and +105°C. The housing has been impact-tested to withstand 4 Joule impacts at extreme temperatures, ensuring ruggedness in harsh environments.

Selecting the Right Protective Enclosure for Vibration Monitoring

When protecting sensitive proximity probes in demanding industrial environments, the housing choice directly impacts measurement reliability and system uptime. The Bently Nevada 32000-00-00-04-420-01-02 Metric Proximity Probe Housing is engineered to shield probe assemblies from moisture, dust, and physical impact while maintaining signal integrity.

Compatibility and Integration

This housing is designed for Bently Nevada 32000 series proximity probe systems. The probe not required and probe cable not required options (00) indicate that this is a standalone housing—you must order the probe and cable separately. Verify that your probe diameter and cable length match the housing's internal clearance before assembly.

Selection Guide and Purchasing Advice

When ordering, confirm that your probe penetration requirement matches the 420 mm option. If your application needs a different standoff or penetration, contact AutoDCSTech for alternative configurations. The 32000-00-00-04-420-01-02 is a factory-configured assembly; please verify current lifecycle status and availability with AutoDCSTech before ordering.
