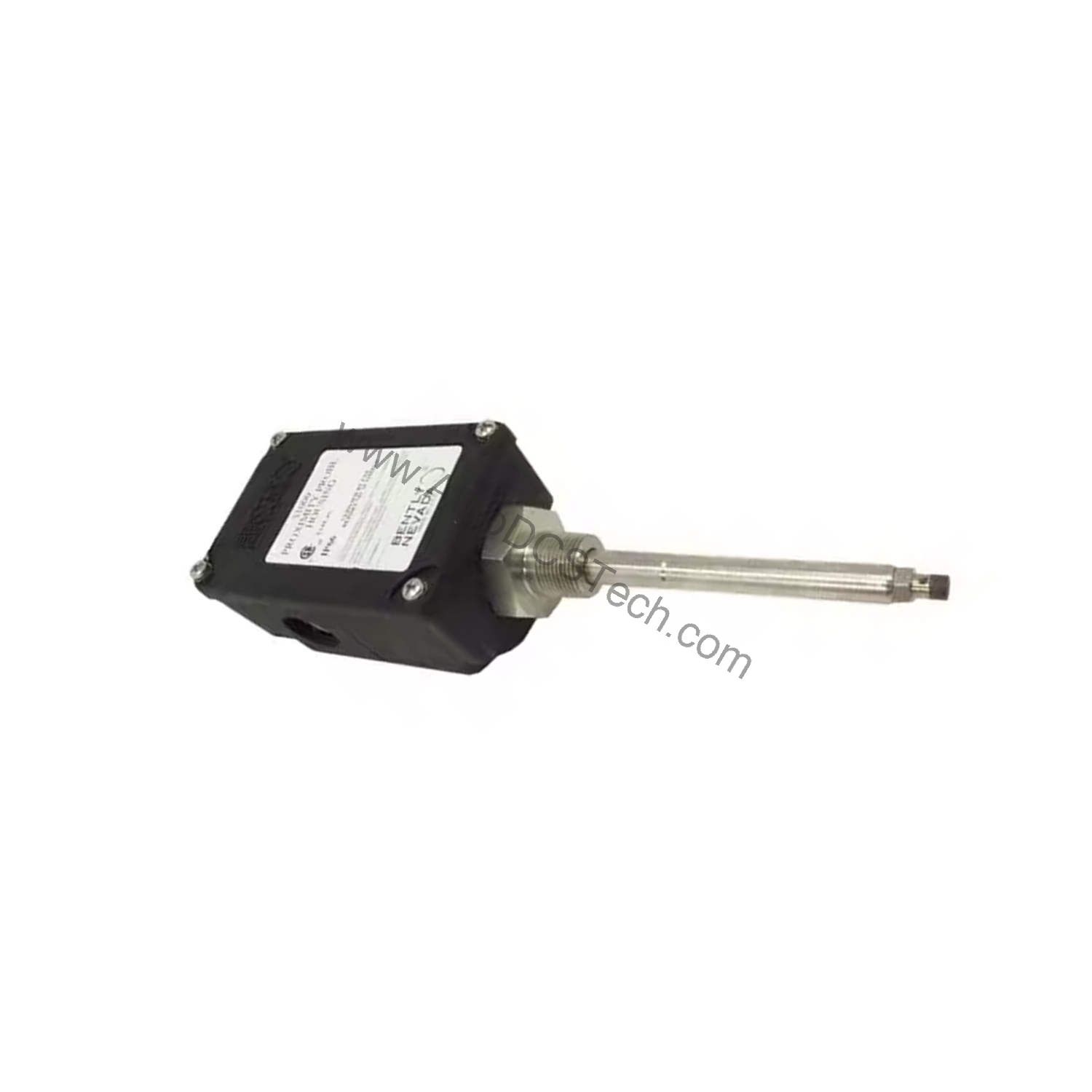

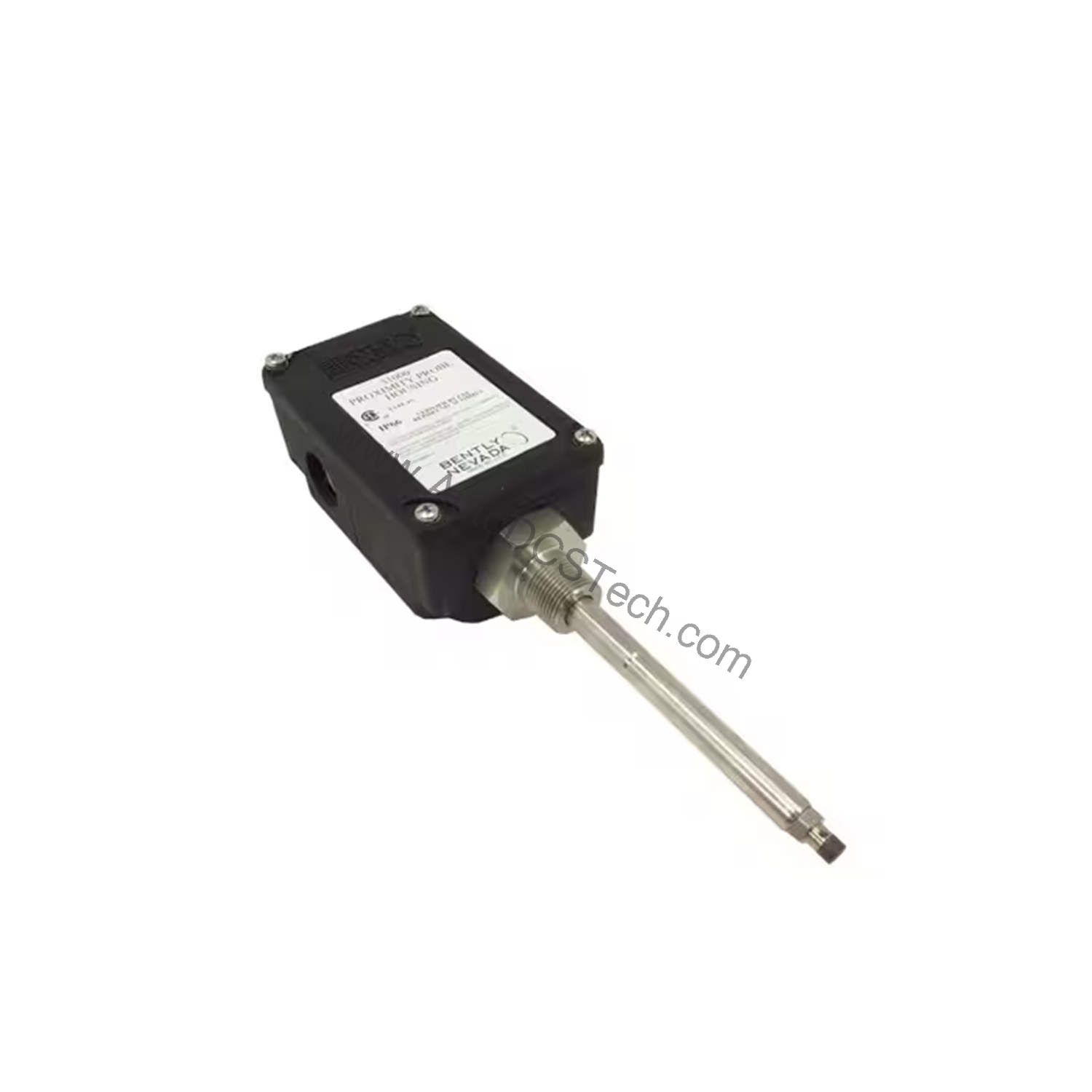

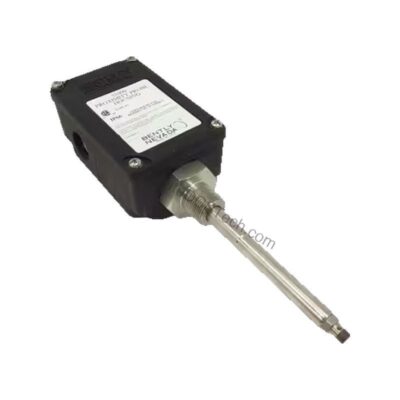

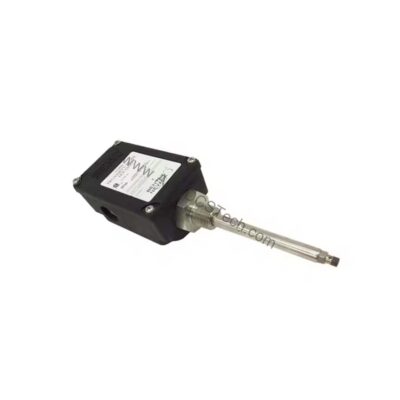

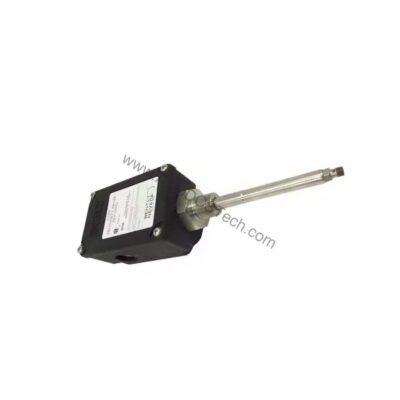

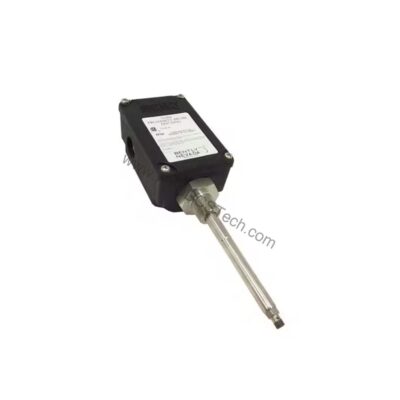

Bently Nevada 32000-00-00-04-470-01-02 31000 Proximity Probe Housing, 40 mm Standoff, 470 mm Probe Penetration

Technical Specifications Breakdown

Key parameters for the 32000-00-00-04-470-01-02 are listed below for quick reference:

Industry Applications for Reliable Monitoring

The 40 mm standoff and 470 mm probe penetration accommodate standard proximity probe installations in bearing housings. The Type 4X and IP66 ratings allow outdoor or washdown-area placement without compromising sensor integrity.

Installation & Setup Guidance

When installing the 32000-00-00-04-470-01-02, use the 3/4-14 NPT mounting thread for secure attachment. Tighten the retaining nut to 29.4 N·m (260 in·lb) as recommended. Ensure the M25 fitting and plugs are properly sealed to maintain the IP66 rating. The housing must be grounded through the conductive PPS material to satisfy CENELEC electrostatic dissipation requirements.

Maintenance & Reliability

Inspect the O-ring and sealing surfaces periodically, especially after temperature cycling. The Neoprene O-ring should be replaced if any cracking or compression set is observed. Verify that the stainless steel sleeve and retaining chain remain free of corrosion. The housing impact strength is certified for 4 Joule impacts at extreme temperatures, so avoid mechanical abuse during service.

Robust Protection for Critical Machinery Monitoring

For maintenance engineers working with rotating machinery, the Bently Nevada 31000 series proximity probe housing provides a rugged, sealed enclosure for vibration and position sensors. The 32000-00-00-04-470-01-02 model is built to withstand demanding environments while ensuring reliable data acquisition.

Compatibility & Integration

This housing is designed for Bently Nevada 31000 series proximity probes. The 00 probe and cable options indicate that the probe and cable are ordered separately. The 470 mm probe penetration works with standard sensor lengths. Confirm probe compatibility with your monitoring system before ordering.

Selection Guide & Purchasing Advice

Select the 32000-00-00-04-470-01-02 when you need a 40 mm standoff and 470 mm probe penetration in a rugged, sealed housing. For other configurations, refer to the Bently Nevada 31000 series options. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
