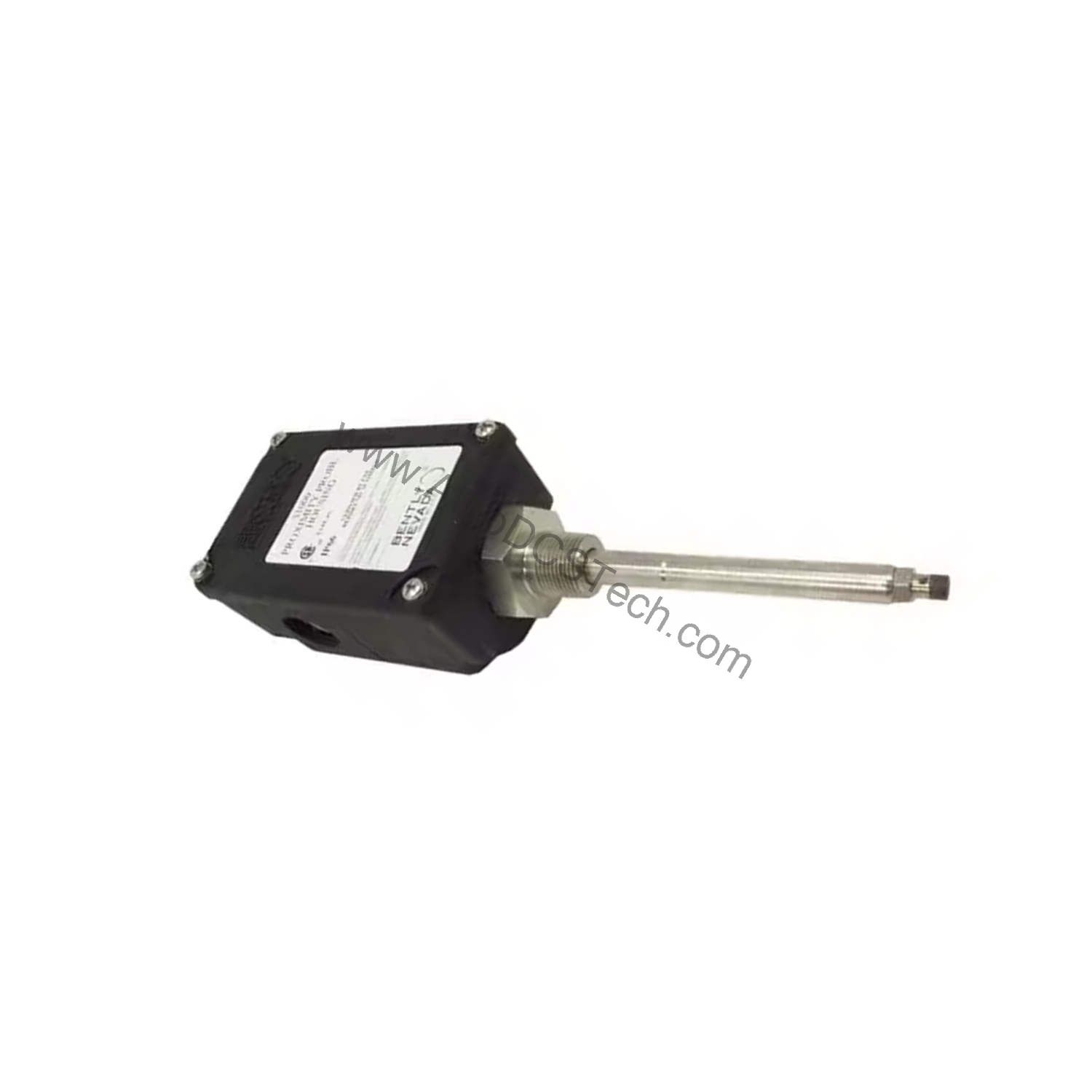

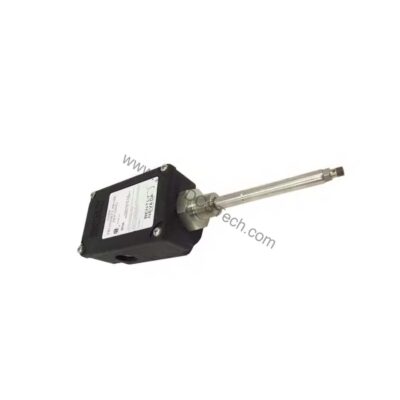

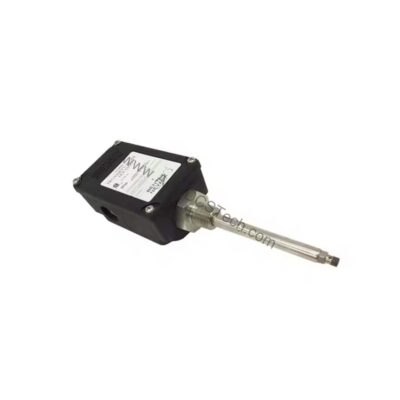

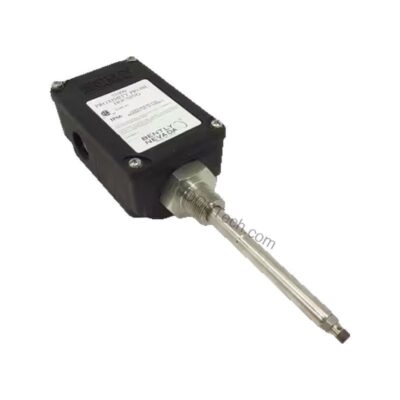

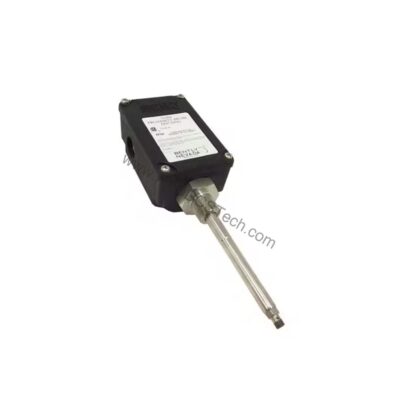

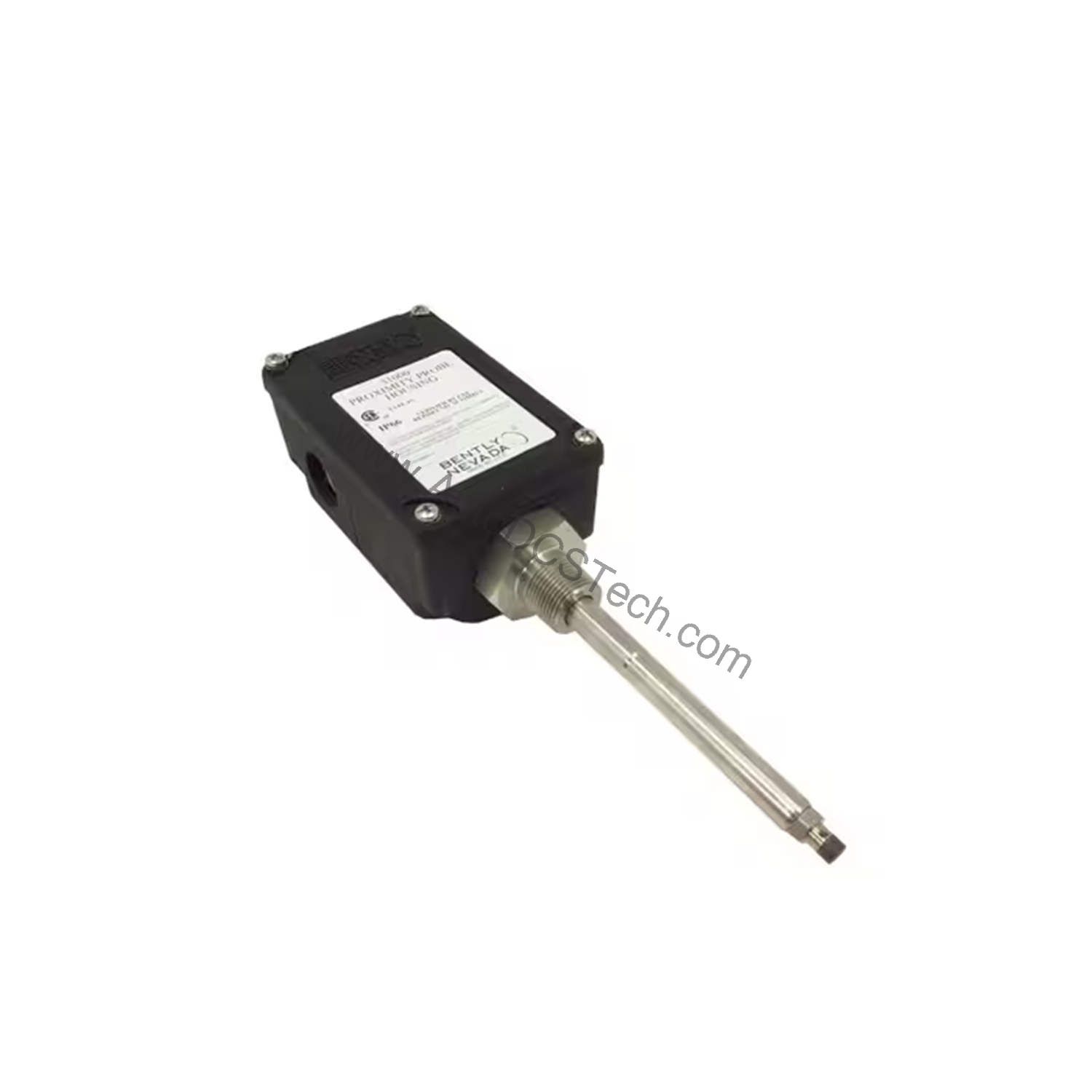

Bently Nevada 32000-28-05-05-110-03-02 Metric Proximity Probe Housing

Technical Specifications Breakdown

Key parameters for the 32000-28-05-05-110-03-02 are listed below for quick reference:

Industry Applications for the Bently Nevada Housing

Typical applications include:

• Turbine and compressor monitoring: The IP66 rating ensures reliable operation in outdoor or washdown areas.
• Pump and motor protection: Withstands impacts up to 7 Joules at room temperature, reducing failure risks from accidental strikes.
• Refinery and chemical plants: The conductive PPS material meets CENELEC EN50014 for electrostatic dissipation in hazardous areas.

Installation & Setup Guidance

Mount the housing using the 3/4-14 NPT thread option. Ensure the standoff adapter (50 mm) is correctly aligned to achieve the 110 mm probe penetration. Use the supplied M20 fitting and cable seal grip for armored probe cable to maintain the IP66 seal. Always verify the O-ring is seated properly before final tightening.

Maintenance & Reliability

Inspect the housing periodically for cracks or degradation, especially after exposure to extreme temperatures (-51°C to +105°C). The stainless steel sleeve and retaining chain resist corrosion, but check the Neoprene® O-ring for wear. The housing is certified to withstand two 4 Joule impacts at -39°C and at 115°C, ensuring long-term durability.

Compatibility & Integration

This housing is designed for the 3300 XL 8 mm probe with multiple approvals. The 0.5 metre probe cable length suits tight installations. The fittings option includes two plugs and an M20 fitting, making it compatible with standard junction boxes.

Selection Guide & Purchasing Advice

When ordering the 32000-28-05-05-110-03-02, confirm your mounting thread and probe cable length requirements. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
