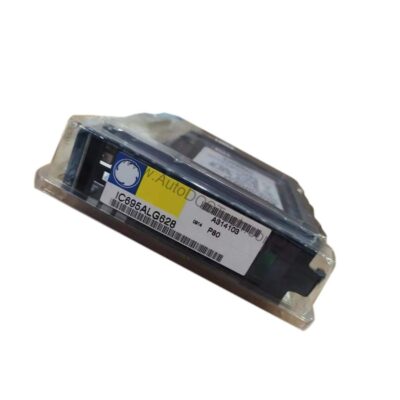

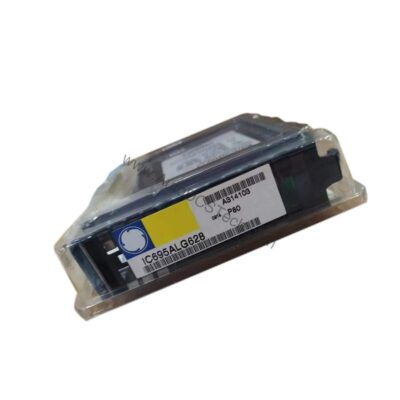

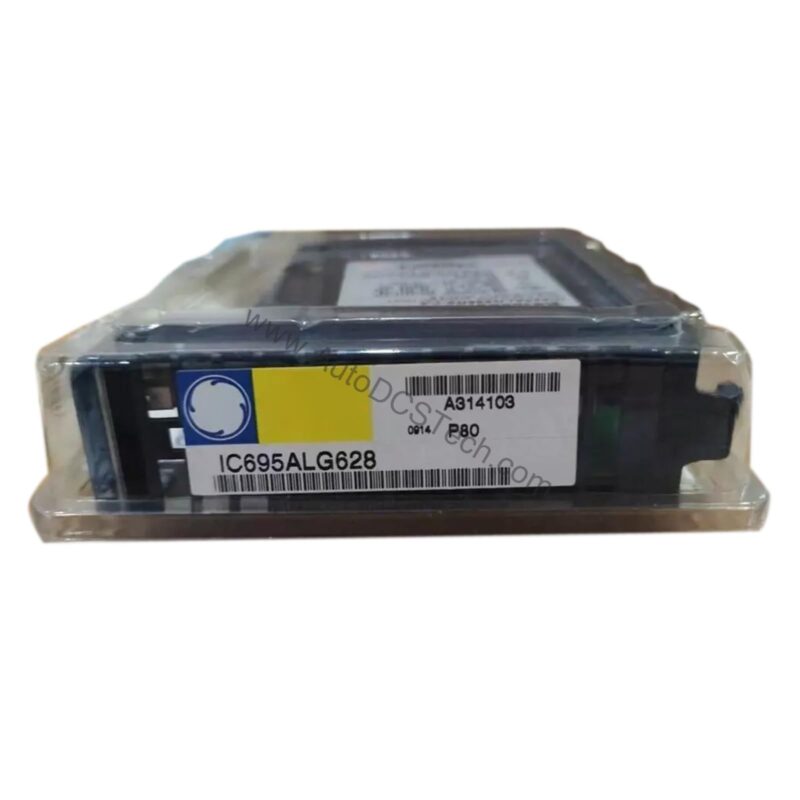

IC695ALG628: Analog Input with HART Communication
The IC695ALG628 is the Analog Input with HART Communication covered on this page. The attribute that decides whether it fits the existing installation without modification is 4.83 watts maximum.
This configuration's analog input with hart communication is the attribute that drives the replacement decision. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. analog input with hart communication sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 4.83 watts maximum against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG628 |
| Series | PACSystem RX3i |
| Part Number | IC695ALG628 |
| Product Description | Non-isolated analog input module |
| Module Type | Analog Input with HART Communication |
| No of Channels | 8 single-ended or 4 differential |
| HART Protocol | Supported |
| Voltage Range | +/-10V DC, 0 to 10V DC, +/-5V DC, 0 to 5V DC, 1 to 5V DC |
| Current Range | 0 to 20mA, 4 to 20mA, +/-20mA |
| Resolution | 24 bit |
| Configurable Input Filter | 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 500 Hz |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
| Storage Temperature | -40 to 185 degrees Fahrenheit |
| Humidity | 5 to 95%, non-condensing |
| Overvoltage | ±60 VDC continuous, maximum |
| Overcurrent | ±28mA continuous, maximum |
| Open Circuit Detection time | 1 second maximum |
| Input Impedance | >100 k? voltage inputs |
| Current Input Resistance | 249 ? ±1% |
| Backplane Power consumption | 330 mA maximum @ 5.0V +5% / -2.5%, 600 mA maximum @ 3.3V +5% / -3% |
| Power Dissipation | 4.83 watts maximum |
| Autocalibration | Performed during power-up |
| Terminal Blocks | Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) |
| Programmer Version | Machine Edition version 5.0 SP3 and later |
| Output Data Format | Configurable as floating point IEEE 32 bit or 16-bit integer in a 32-bit field. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695alg626-pacsystem-rx3i-analog-input-module-with-hart | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG628 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
