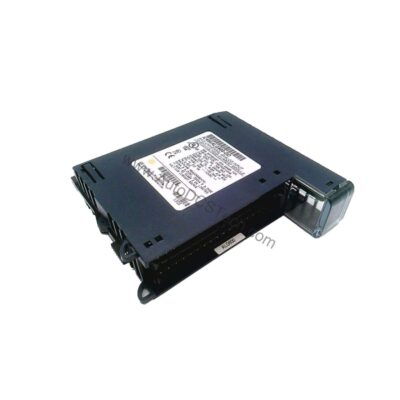

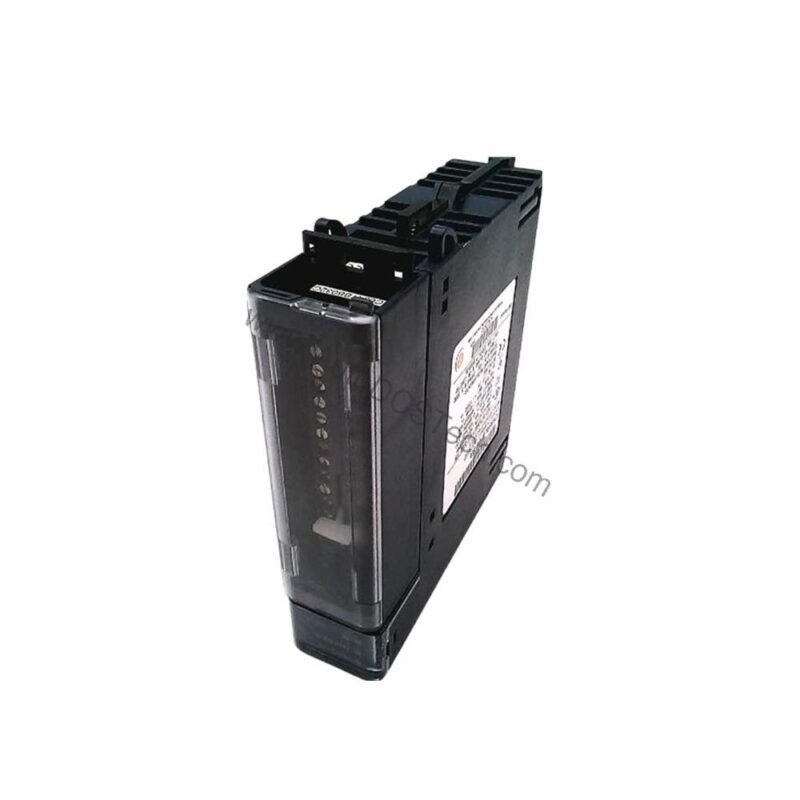

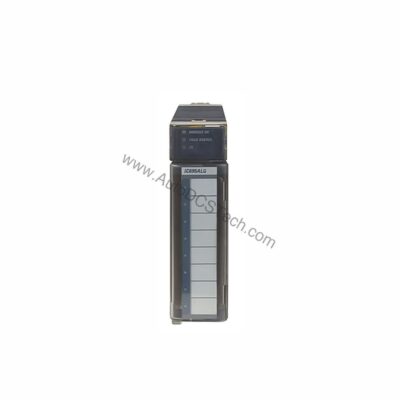

IC695ALG626: Analog Input w/HART comms
The IC695ALG626 is the Analog Input w/HART comms covered on this page. The attribute that decides whether it fits the existing installation without modification is 16 single-ended or 8 differential.
On this unit analog input w/hart comms is the figure that decides fit and function. A processor or controller is selected on memory, scan time and platform compatibility before anything else. analog input w/hart comms sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 16 single-ended or 8 differential against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG626 |
| Series | PACSystem RX3i |
| Part Number | IC695ALG626 |
| Module Type | Analog Input w/HART comms |
| Channels | 16 single-ended or 8 differential |
| Voltage Range | +/-10 V DC, 0 to 10 V DC, +/-5 V DC, 0 to 5 V DC, 1 V DC to 5V DC |
| Current Range | 0 to 20mA, 4 to 20mA, ±20mA |
| HART Protocol | Version 5.0 |
| Resolution | 24-bit ADC |
| Internal Power | 3.3V: 600mA, 5V: 450 mA |
| Operating Temperature | 32 to 140°F |
| Storage Temperature | -40 to +185°F |
| Humidity | 5 to 95% non-condensing |
| Input Filter | 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 500 Hz |
| Overvoltage | ±60 VDC continuous |
| Overcurrent | ±28mA continuous |
| Open Circuit Detection | 1 second max |
| Input Impedance | >100 kΩ voltage inputs |
| Current Input Resistance | 249 Ω ±1% |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695alg628-analog-input-module-with-hart-for-pacsystem-rx3i | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG626 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
