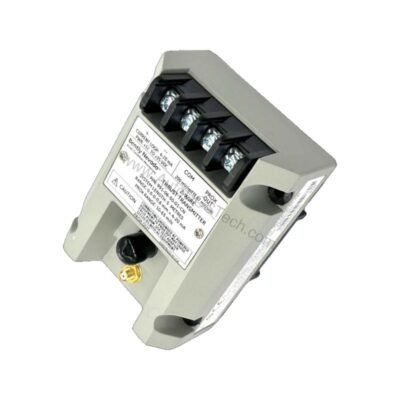

Why Choose the 991-06-50-02-01 for Axial Thrust Monitoring?
When machine reliability depends on precise axial position measurement, the 991-06-50-02-01 from Bently Nevada provides a proven solution. This probe vibration transmitter is engineered to convert proximity probe signals into a standard 4-20 mA output, enabling seamless integration with PLCs, DCS, and SCADA systems. Its compact DIN-rail mount and robust environmental ratings make it a practical choice for industrial environments.
With a full-scale range of 0.6-0-0.6 mm and a linear range of 0.25 to 1.65 mm, this transmitter is specifically suited for axial thrust monitoring in rotating machinery. Whether you are upgrading an existing system or specifying new equipment, the 991-06-50-02-01 delivers accurate, real-time data to protect your assets.
Key Features and Technical Specifications
The 991-06-50-02-01 is built to meet demanding industrial requirements. Below are the core specifications extracted from the manufacturer's data:
- Product Type: Probe Vibration Transmitter (Thrust Transmitter)
- Full-Scale Option: 0.6-0-0.6 mm
- System Length: 5.0 meters (16.4 feet)
- Mounting: Bulkhead screws; DIN rail mount
- Output Signal: 4-20 mA (two-wire configuration)
- Power Requirement: +12 to +35 Vdc at transmitter terminal
- Linear Range: 0.25 to 1.65 mm (for Prox Out)
- Operating Temperature: -35°C to +85°C
- Storage Temperature: -51°C to +100°C
- Weight: 0.43 kg (0.9 lbm)
- Agency Approval: CSA Division 2
One distinctive feature is the Not OK/Signal Defeat function: the output drops to less than 3.6 mA within 100 µs of a Not OK condition, and restores within 0.1 seconds after the condition clears. This fast response enhances safety by immediately signaling a fault.
Applications and Use Cases
The 991-06-50-02-01 is designed for axial thrust monitoring in turbines, compressors, and pumps. Its 4-20 mA output simplifies integration with existing control systems, making it ideal for retrofits and new installations. For example, in a steam turbine, the transmitter continuously monitors thrust bearing wear, providing early warning of potential damage. Similarly, in a centrifugal compressor, it helps maintain proper rotor position, preventing costly downtime.
Installation and Setup

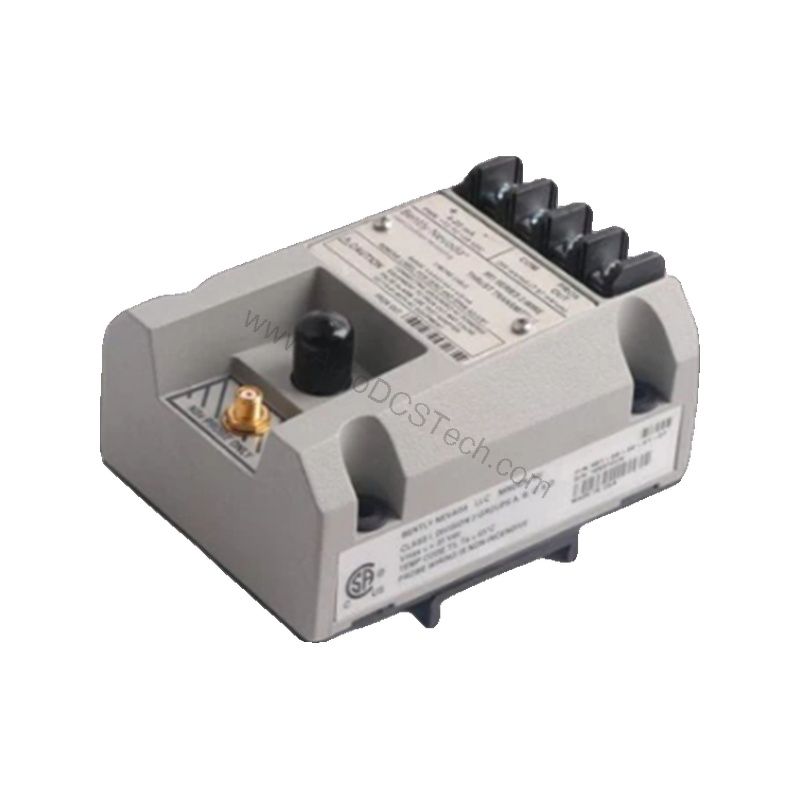

Mounting the 991-06-50-02-01 is straightforward. The DIN rail mount allows quick installation in standard cabinets, while bulkhead screws provide secure attachment in vibration-prone areas. The system length of 5.0 meters (16.4 feet) offers flexibility in probe placement. Ensure the power supply provides +12 to +35 Vdc at the transmitter terminal, and connect the 4-20 mA loop to your monitoring system. Always follow the manufacturer's manual for detailed wiring and configuration.
Maintenance and Reliability
Routine inspection of the transmitter and probe is recommended to ensure consistent performance. The wide operating temperature range (-35°C to +85°C) allows operation in harsh environments, but periodic checks of the mounting and cable integrity are advisable. Because the transmitter is not safety-rated, maintenance should follow general industrial practices: verify output signals, check for physical damage, and confirm that the Not OK function operates correctly. For any issues, consult the official Bently Nevada documentation or contact AutoDCSTech.
Compatibility and Integration
The 991-06-50-02-01 accepts one non-contacting 3300 NSv proximity probe and extension cable. Its 4-20 mA output is universally compatible with most PLC and DCS analog input modules. The two-wire configuration simplifies wiring, and the maximum loop resistance of 1,000 Ω (including cable at 35 Vdc) ensures reliable signal transmission over long distances. No special communication protocols are required, making integration straightforward.
Troubleshooting Common Issues
If the output signal is not within the expected 4-20 mA range, first verify the power supply voltage at the transmitter terminal. Check the probe and extension cable for damage or loose connections. If the Not OK function activates, inspect the probe gap and target surface. The current limiting at 23 mA typical prevents overcurrent damage. For persistent issues, refer to the manufacturer's troubleshooting guide or contact AutoDCSTech for support.
Product Support and Availability
The 991-06-50-02-01 is available through AutoDCSTech. For current lifecycle status and availability, please verify with our team before ordering. We are ready to assist with your industrial automation needs.
