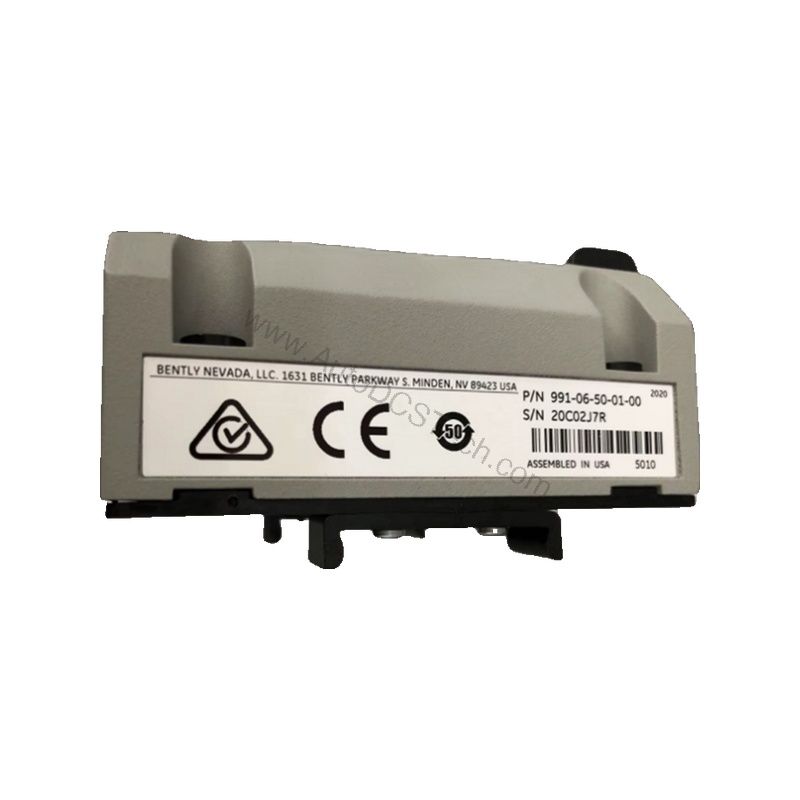

Introduction to the Bently Nevada 991-06-50-03-05
In the evolution of industrial rotating machinery, accurate thrust position monitoring has always been critical. The 991-06-50-03-05 from Bently Nevada represents a modern solution for axial measurement, combining proven eddy-current sensing with a convenient DIN-rail mountable transmitter.
This probe vibration transmitter is designed for axial thrust applications, converting proximity probe signals into a standard 4-20 mA loop. It accepts one non-contacting 3300 NSv proximity probe and extension cable, making it a versatile choice for turbomachinery and other critical assets.
Key Features and Technical Specifications
The 991-06-50-03-05 offers a full-scale range of 0.6-0-0.6 mm, with a linear range of 0.25 to 1.65 mm for proximity output. This allows precise measurement of axial displacement, essential for detecting thrust bearing wear or misalignment.
- Output Signal: 4-20 mA, two-wire configuration
- Power Requirement: +12 to +35 Vdc at transmitter terminal
- Loop Accuracy: Within ±1.5% over full-scale range (typical)
- Maximum Loop Resistance: 1,000 ohms including cable at 35 Vdc
- Current Limiting: 23 mA typical
- Not OK/Signal Defeat: Output drops below 3.6 mA within 100 µs
- Operating Temperature: -35°C to +85°C
- Storage Temperature: -51°C to +100°C
- Weight: 0.43 kg (0.9 lbm)
The transmitter includes non-interacting external zero and span adjustments, simplifying calibration. Its DIN rail mounting with clips and screws (option 03) ensures secure installation in standard cabinets.
Applications and Use Cases
Axial thrust monitoring is vital for large rotating equipment such as steam turbines, compressors, and pumps. The 991-06-50-03-05 excels in these environments, providing real-time data to control systems.
For example, in a steam turbine train, the transmitter continuously measures thrust bearing displacement. If the shaft moves beyond safe limits, the 4-20 mA signal alerts operators, enabling timely intervention. This proactive approach reduces downtime and prevents catastrophic failures.
Additionally, the transmitter's fast Not OK response (less than 3.6 mA within 100 µs) ensures that any sensor fault is immediately communicated, enhancing overall system safety.

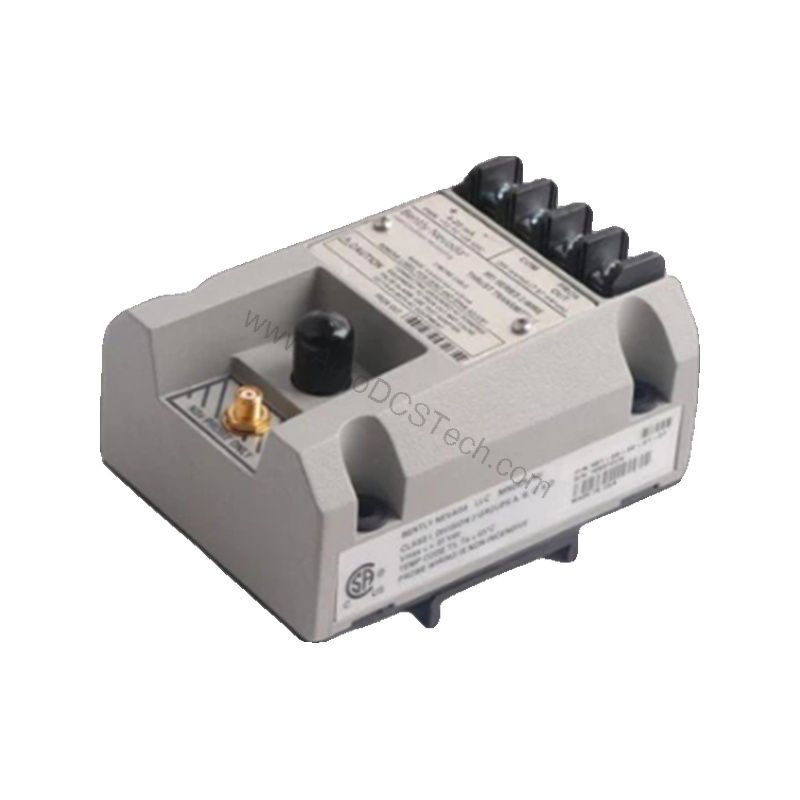

Installation and Setup

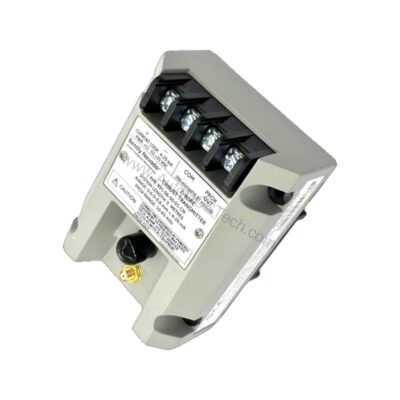

Mounting the 991-06-50-03-05 is straightforward. The DIN rail clip allows quick attachment to standard rails, while the screw option provides extra rigidity in high-vibration areas.
Wiring requires a two-wire connection for the 4-20 mA loop, with power supplied from +12 to +35 Vdc. Ensure the loop resistance does not exceed 1,000 ohms to maintain accuracy. The system length of 5.0 meters (16.4 feet) provides flexibility in probe placement.
Before commissioning, verify that the probe and extension cable are compatible with the 3300 NSv series. Refer to the Bently Nevada manual for detailed wiring diagrams and setup procedures.
Maintenance and Reliability
Regular inspection of the probe and cable is recommended to ensure consistent performance. Check for any physical damage or contamination on the probe tip, as this can affect measurement accuracy.
The transmitter's electronics are sealed for industrial environments, but periodic verification of the loop current and zero/span settings is prudent. The operating temperature range of -35°C to +85°C allows use in harsh conditions, but avoid exceeding these limits.
Given its robust design, the 991-06-50-03-05 offers long service life, reducing lifecycle costs. Its typical current limiting at 23 mA protects the loop from overcurrent conditions.
Compatibility and Integration
The transmitter outputs a standard 4-20 mA signal, which interfaces easily with most PLCs, DCS, and SCADA systems. It is designed for axial measurement, but can be used in any application requiring proximity probe signal conversion.
The agency approvals include CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval, making it suitable for hazardous areas and marine applications. Always verify that the installation meets local codes and standards.
Troubleshooting Common Issues
If the output signal is erratic, check the probe gap and cable connections. A loose connection can cause intermittent readings. Also, verify that the supply voltage is within +12 to +35 Vdc.
If the output goes below 3.6 mA, the Not OK condition is active. This could indicate a probe fault or a break in the cable. The signal restores within 0.1 seconds after the condition is removed.
For persistent issues, consult the Bently Nevada documentation or contact AutoDCSTech for technical support.
Product Support and Availability
The 991-06-50-03-05 is available through AutoDCSTech, a leading supplier of industrial automation parts. Contact us for current pricing and lead times. We offer fast worldwide shipping and dedicated technical support.
