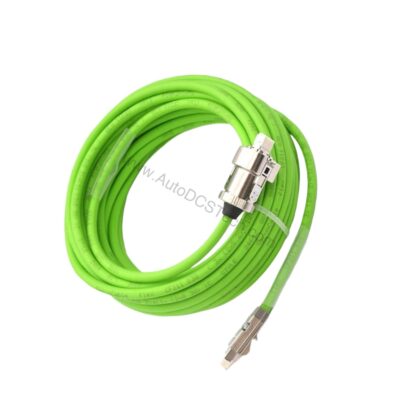

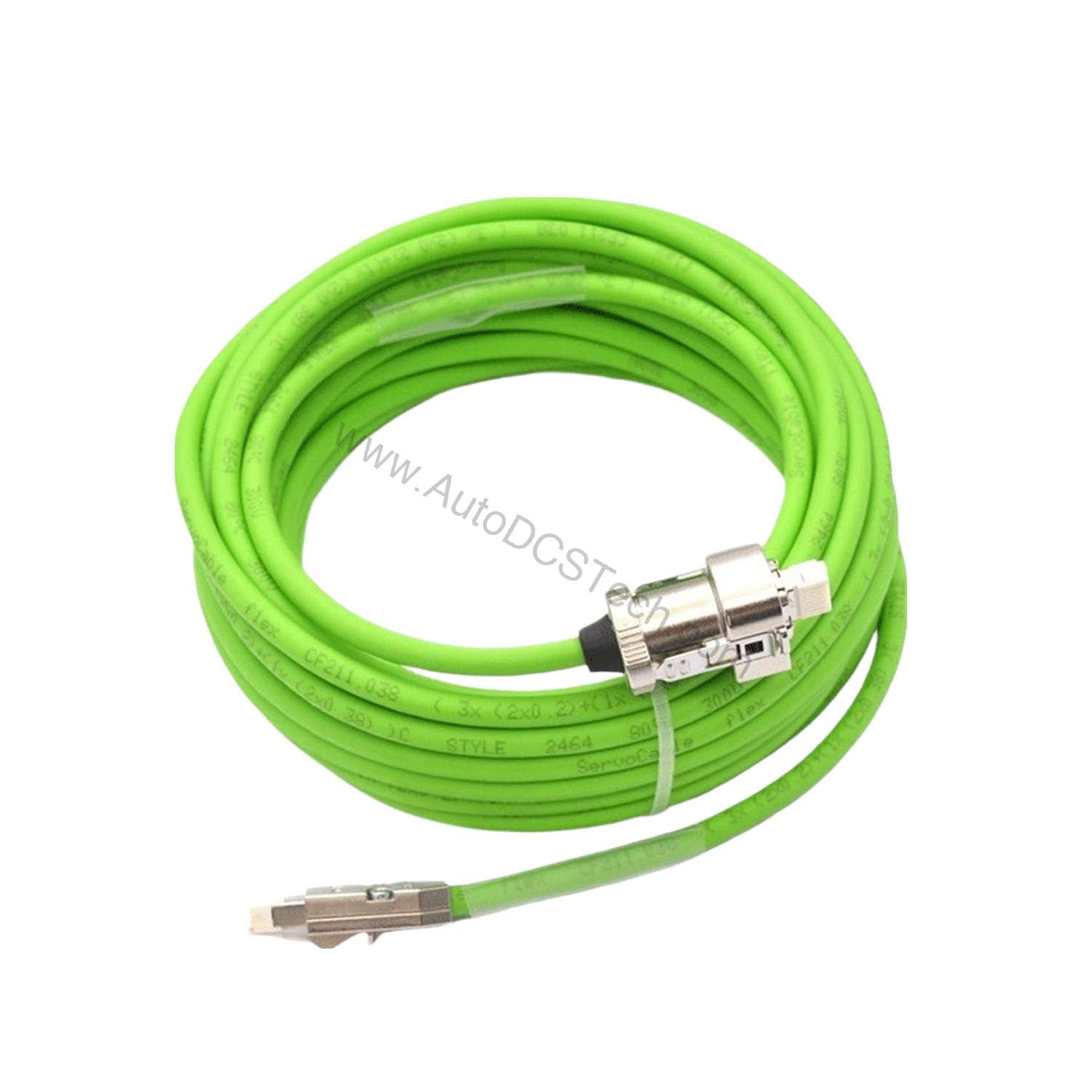

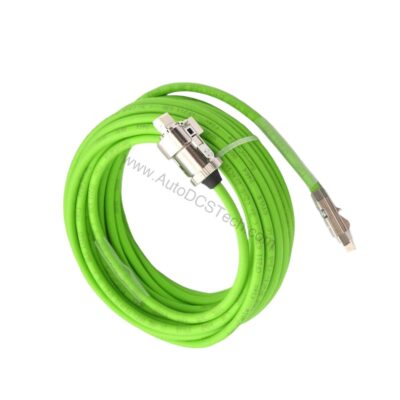

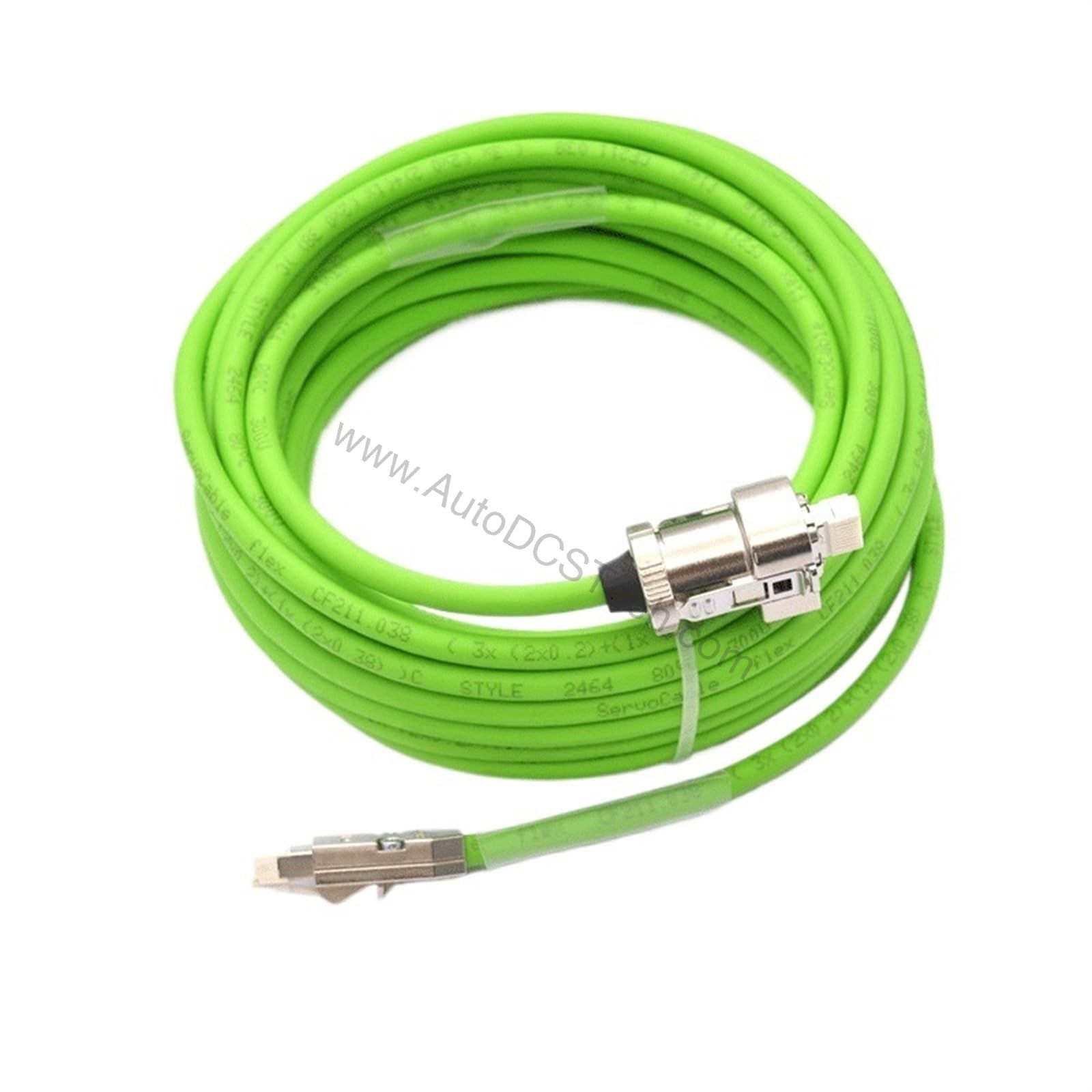

6FX5002-2DC10-1BF0 Signal Cable, 24V, IP20/IP67

Key Features and Technical Specifications

• Pre-assembled type: 6FX5002-2DC10 with DRIVE-CLiQ plug connectors.
• Protection rating: IP20/IP67, suitable for cabinet and field installation.
• Integrated 24 V supply: Powers DRIVE-CLiQ components directly.
• Length: Configurable, with standard lengths available.
• Compliance: RoHS compliant since 07/01/2006.
• Active product lifecycle: PM300, ensuring long-term availability.

The IP67 rating is a standout feature, providing protection against dust and water ingress—critical for applications where cables are exposed to washdown or harsh conditions. This reduces downtime caused by environmental damage.

Applications and Use Cases

In automotive assembly lines, the 6FX5002-2DC10-1BF0 ensures uninterrupted data flow between SINAMICS S120 drives and controllers. For example, in a robotic welding cell, this cable maintains precise motion control despite constant flexing and exposure to sparks. Similarly, in packaging machinery, its IP67 rating withstands periodic washdowns, maintaining signal integrity. The cable's robust construction minimizes signal loss, which is essential for high-speed synchronized motion.

Installation and Setup

Because the cable comes pre-assembled, installation is straightforward. Simply connect the DRIVE-CLiQ plugs to the corresponding ports on the motor module and control unit. Ensure the connectors are fully seated and locked to achieve the rated IP protection. For IP67 applications, verify that the mating connectors are also IP67-rated. Avoid sharp bends and excessive strain on the cable during routing to preserve signal quality.

Maintenance and Reliability

Regular inspection of the cable and connectors is recommended to detect wear or damage early. Check for cuts, abrasions, or loose connections, especially in areas of high flex. The IP67 rating reduces the risk of contamination, but periodic cleaning of connectors with a dry cloth can prevent debris buildup. By following these practices, you extend the service life of the cable and maintain system uptime.

Solving the Challenge of Reliable Signal Transmission

In automation, a single faulty signal cable can halt an entire production line. The 6FX5002-2DC10-1BF0 from Siemens is engineered to prevent such failures. As a pre-assembled signal cable for SINAMICS DRIVE-CLiQ, it ensures robust communication between motor modules and control units, even in demanding industrial environments.

This cable is part of the MOTION-CONNECT 500 series, designed for fixed installation and high mechanical load. Its pre-assembled connectors eliminate field wiring errors, reducing installation time and improving system reliability.

Compatibility and Integration

The 6FX5002-2DC10-1BF0 is specifically designed for use with SINAMICS S120 Motor Modules and SINUMERIK 840D sl systems. It is fully compatible with DRIVE-CLiQ communication, ensuring seamless integration into existing Siemens automation architectures. For other systems, verify compatibility with your drive's communication interface.

Common Issues and Troubleshooting

Signal loss or intermittent communication errors often stem from damaged cables or loose connectors. If you experience such issues, first inspect the cable for visible damage. Ensure all connectors are securely tightened. If problems persist, test with a known-good cable to isolate the fault. The pre-assembled nature of this cable minimizes wiring errors, but environmental factors like excessive bending or pulling can still cause failures.

Product Support and Availability

The 6FX5002-2DC10-1BF0 is an active product (PM300), ensuring ongoing support and availability. AutoDCSTech stocks this cable and can provide expedited shipping. Contact our team for pricing and delivery options.
