Introduction to the Siemens 6GK1901-1BB20-2AA0

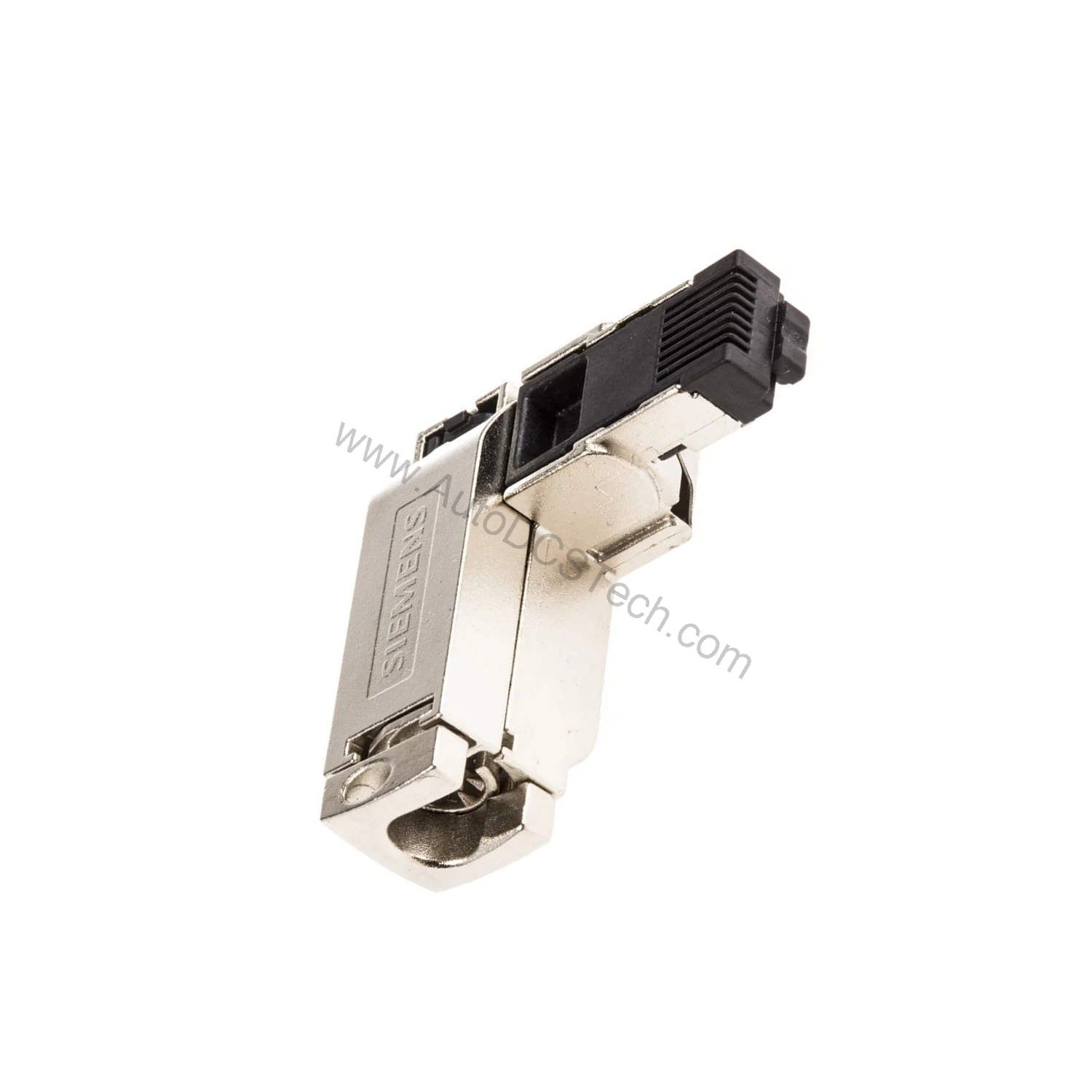

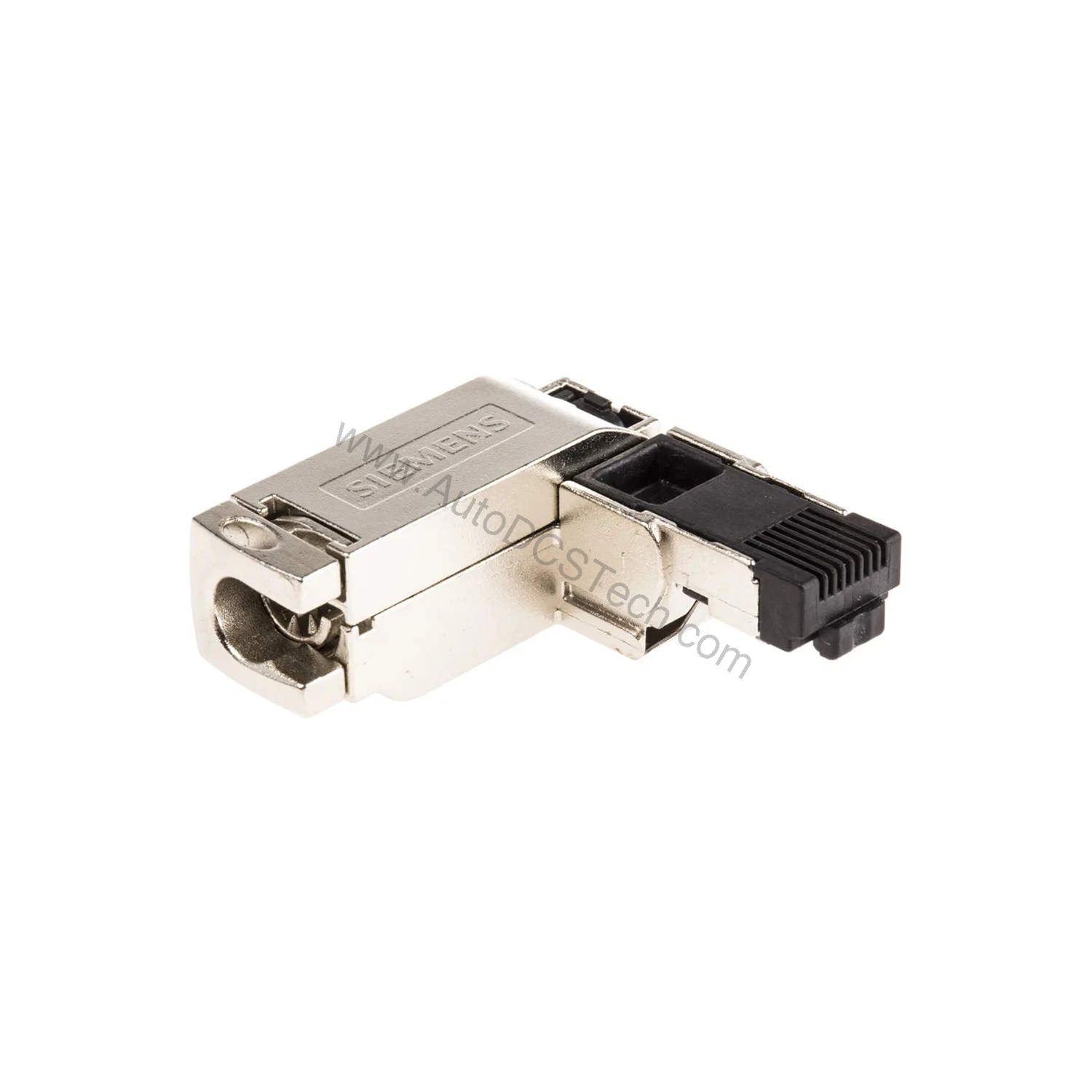

When industrial networks demand robust and rapid connections, the 6GK1901-1BB20-2AA0 delivers. This Siemens IE FC RJ45 plug 90 (2x2) is engineered for FastConnect installation, enabling quick assembly without special tools. Its rugged metal housing ensures durability in harsh factory environments.
Designed for 10/100 Mbit/s data rates, this connector supports Power over Ethernet (PoE and PoE+) for devices like IP cameras or wireless access points. With a 90° cable outlet, it fits neatly into space-constrained panels and cabinets.
Key Features and Technical Specifications
The 6GK1901-1BB20-2AA0 offers several standout features that simplify installation and boost reliability:
- FastConnect system: one-step insulation displacement for 4-core TP FC cables (AWG22), reducing wiring time.
- RJ45 interface for network components and end devices, with 4 connection points for IE FC TP leads.
- 90° cable exit allows flexible routing and saves space in control cabinets.
- Wide operating temperature range from -40 °C to +85 °C, suitable for demanding industrial settings.
- IP20 protection rating for indoor use.
- Reusable up to 10 times, lowering replacement costs.
- PoE and PoE+ support enables power and data over a single cable.
Applications and Use Cases
In automated production lines, the 6GK1901-1BB20-2AA0 connects sensors, drives, and controllers to industrial Ethernet networks. Its FastConnect design accelerates installation, especially when deploying many field devices. For example, in a bottling plant, technicians can terminate cables quickly, reducing downtime during changeovers.
Additionally, the connector's PoE capability simplifies powering remote I/O modules or barcode scanners, eliminating separate power cabling. This reduces material costs and installation effort.
Installation and Setup
Installing the 6GK1901-1BB20-2AA0 is straightforward. Strip the IE FC TP cable, insert the wires into the insulation displacement contacts, and close the housing. The metal shell provides strain relief and shielding. Ensure the cable diameter is 6.5 mm and the conductor cross-section is 0.33 mm² for a secure fit.
Always verify the locking mechanism engages properly to maintain IP20 protection. For optimal performance, follow Siemens guidelines for cable routing and bending radius.
Maintenance and Reliability
Routine inspection of the connector and cable assembly helps maintain signal integrity. Check for loose connections or damage to the metal housing. Because the plug is reusable up to 10 times, you can replace cables without replacing the connector, saving cost and reducing waste.
Operating within the specified temperature range (-40 °C to +85 °C) and humidity (95% at 25 °C, non-condensing) ensures long-term reliability. Periodic cleaning of the RJ45 contacts with a dry cloth is acceptable, but avoid solvents.
Compatibility and Integration
The 6GK1901-1BB20-2AA0 is part of the Siemens IE FC family, compatible with IE FC TP standard cables 2x2. It works with any industrial Ethernet switch or device that has an RJ45 port, supporting 10/100 Mbit/s. The connector meets Cat5 structured cabling standards, ensuring interoperability with standard network infrastructure.
Troubleshooting and Common Issues
If a connection fails, first check the cable termination—ensure all four wires are fully inserted and the housing is closed securely. Verify that the cable type is IE FC TP 2x2 and the diameter matches 6.5 mm. Also confirm the device supports PoE if you rely on power over the cable.
In high-vibration environments, periodically tighten the locking mechanism to prevent accidental disconnection. If the connector is reused multiple times, inspect the contacts for wear.
Product Support and Availability
The Siemens 6GK1901-1BB20-2AA0 is available from AutoDCSTech. Contact our team for current stock and delivery options.
Availability & Condition at AutoDCSTech
| Part Number | 6GK1901-1BB20-2AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
