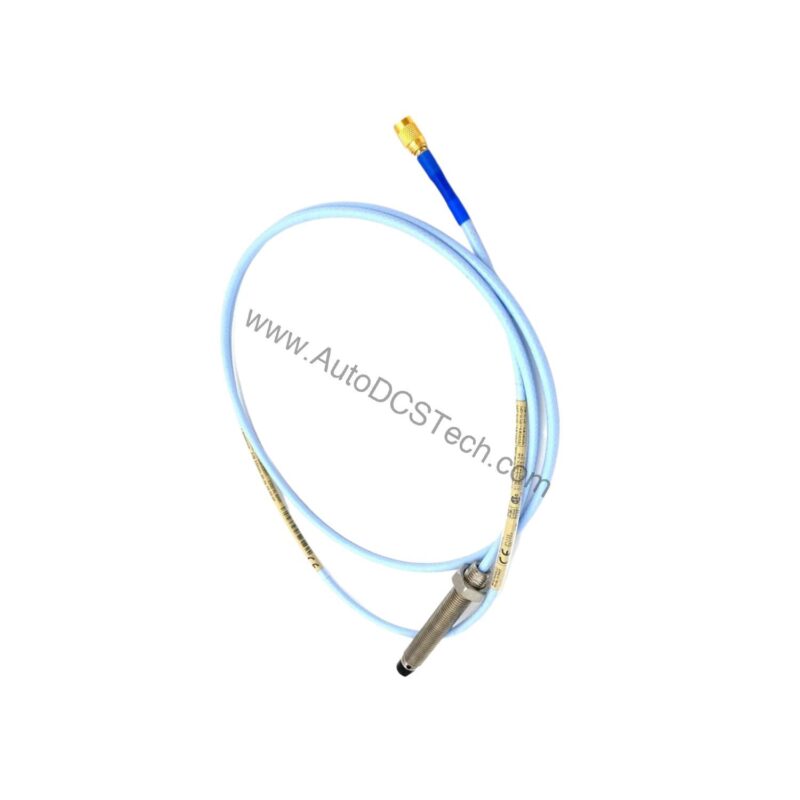

330101-00-33-10-02-CN: 3300 XL 8 mm Probe
The 330101-00-33-10-02-CN is the 3300 XL 8 mm Probe covered on this page. The attribute that decides whether it fits the existing installation without modification is 323 g/m (11.4 oz).
This configuration's 3300 xl 8 mm probe is the attribute that drives the replacement decision. In a machine protection or condition-monitoring installation 3300 xl 8 mm probe is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 323 g/m (11.4 oz) against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 330101-00-33-10-02-CN |
| Nominal Probe DC Resistance | 7.59 ± 0.50 Ω at 1.0 m |
| Extension Cable Capacitance | 69.9 pF/m typical |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG), max 305 m |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard 5 or 1 m system) |
| Deviation from best fit straight line | < ±0.025 mm (±1 mil) at 0°C to +45°C |
| Probe Tip Material | PPS |
| Probe Case Material | AISI 303 or 304 SST |
| Weight | 323 g/m (11.4 oz) |
| Temperature Range | -52°C to +177°C (standard) |
| Pressure Seal | Viton O-ring |
| Humidity | <3% change in ASF at 93% RH per IEC 68-2-3. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-330101-00-33-10-12-05-3300-xl-8-mm-probe-without-armor | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 330101-00-33-10-02-CN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
