Technical Specifications Breakdown
Key parameters for the 330101-00-35-05-02-05 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| Unthreaded Length Option | 00 - 0.0 in |
| Overall Case Length Option | 35 = 3.5 in |
| Total Length Option | 05 = 0.5 meter (1.6 feet) |
| Connector and Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| Approvals | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Linear Range | 2 mm (80 mils) |
| Incremental Scale Factor (ISF) - Standard 5 or 1 meter System | 7.87 V/mm (200 mV/mil) ± 5% |
| Recommended Gap Setting for Radial Vibration | -9 Vdc [approximately 1.27 mm (50 mils)] |
Industry Applications
The 2 mm linear range and high sensitivity (7.87 V/mm) allow early detection of shaft misalignment, unbalance, or bearing wear. Its robust PPS tip and stainless steel case withstand harsh conditions, reducing unplanned downtime.
Installation & Setup Guidance
Mount the probe using the 3/8-24 UNF thread into a suitable mounting hole, ensuring the tip is positioned within the linear range (0.25 to 2.3 mm from target). Use the recommended gap setting of -9 Vdc (approximately 1.27 mm) for radial vibration measurements. Connect the miniature coaxial ClickLoc connector to the extension cable, then route the standard cable to the Proximitor sensor. Field wiring should use 3-conductor shielded triad cable (0.2 to 1.5 mm²) with a maximum length of 305 meters (1,000 feet) between sensor and monitor.
Maintenance & Reliability
The patented TipLoc and CableLoc designs provide a robust bond and 330 N (75 lbf) pull strength, enhancing reliability. Inspect the probe cable and connector periodically for damage. Avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature pressure seal failure. The probe operates reliably in high humidity (less than 3% change in Average Scale Factor after 56 days at 93% humidity per IEC 68-2-3).
Robust Vibration Monitoring for Critical Machinery

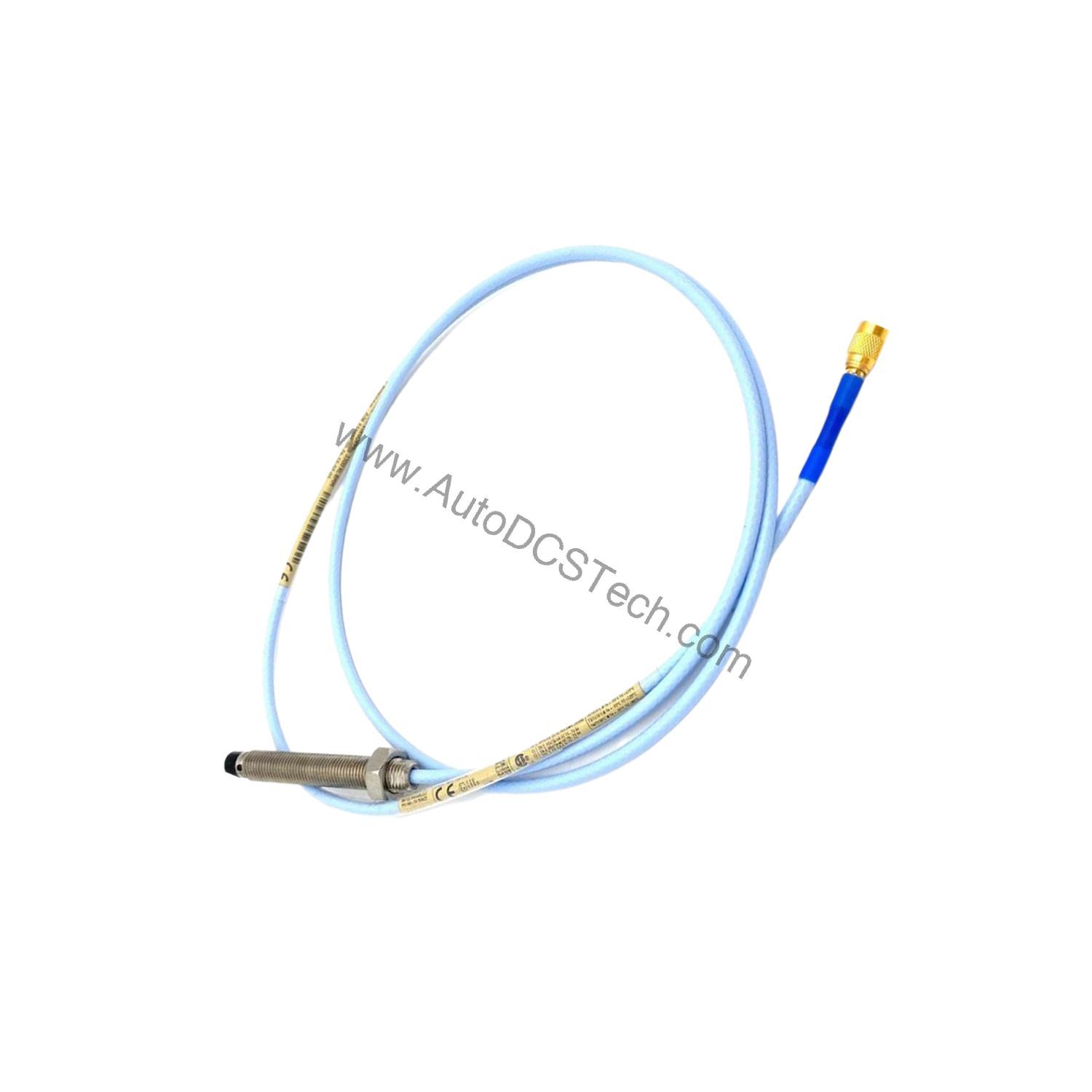

As a maintenance engineer, you understand that reliable vibration data is essential for protecting rotating assets. The Bently Nevada 330101-00-35-05-02-05 is a 3300 XL 8 mm Probe designed for precise shaft vibration and position measurement. This probe features a 3/8-24 UNF thread and is supplied without armor, making it suitable for standard industrial environments where ruggedness and accuracy are paramount.
Selection Guide & Purchasing Advice
When selecting a replacement probe, verify the total length (0.5 meter) and thread type (3/8-24 UNF) match your application. The 330101-00-35-05-02-05 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Troubleshooting & Common Issues
If you observe erratic readings, first check the probe tip clearance and cable connections. Ensure the target surface is clean and within the linear range. Verify the Proximitor sensor and monitor settings match the probe's scale factor. If the probe has been exposed to extreme temperatures or physical abuse, inspect for damage to the PPS tip or stainless steel case.
Availability & Condition at AutoDCSTech
| Part Number | 330101-00-35-05-02-05 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
