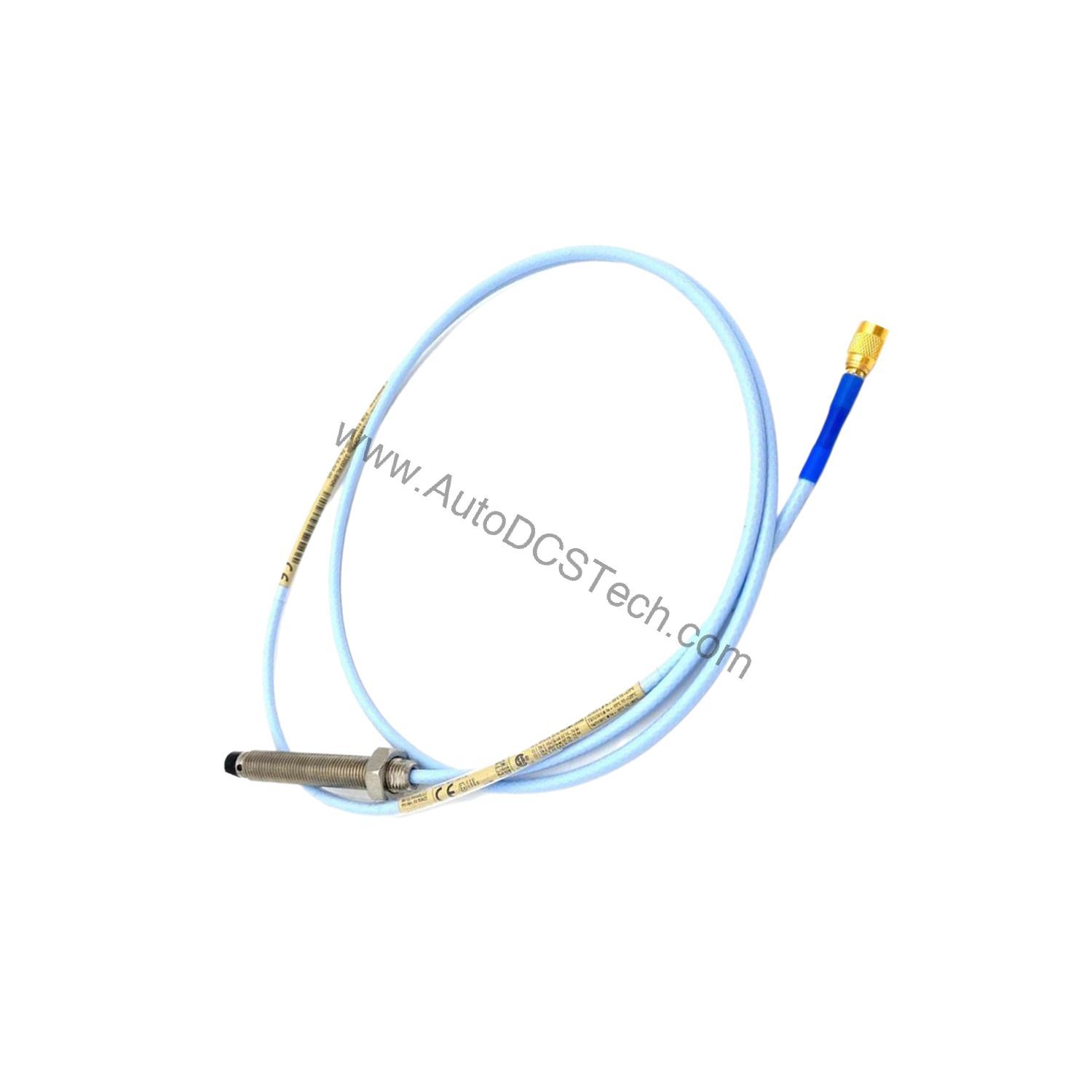

Bently Nevada 330101-00-35-10-02-00 3300 XL 8 mm Probe for Reliable Vibration Monitoring

Technical Specifications Breakdown

Key parameters for the 330101-00-35-10-02-00 are listed below for quick reference:

Industry Applications

In a typical steam turbine application, the 330101-00-35-10-02-00 mounts in a casing to measure shaft relative motion. Its 2 mm linear range and high sensitivity (7.87 V/mm) allow precise tracking of vibration amplitude and phase. The robust stainless steel case and PPS tip withstand oil, moisture, and temperature extremes common in power generation and petrochemical plants.

Installation and Setup Guidance

Mount the probe using the 3/8-24 UNF thread with recommended torque of 11.2 N•m (100 in•lbf) for standard forward mounted probes. Set the gap to -9 Vdc (approximately 1.27 mm or 50 mils) for radial vibration measurement. Use 3-conductor shielded triad cable for field wiring, with a maximum length of 305 meters (1,000 feet) between the Proximitor sensor and monitor. Ensure the probe tip is clean and free of debris before installation.

Maintenance and Reliability

The patented TipLoc and CableLoc designs provide a robust bond and 330 N (75 lbf) pull strength, reducing the risk of cable damage. Inspect the probe and cable periodically for wear or contamination. The probe operates reliably in humidity up to 93% with less than 3% change in Average Scale Factor. For extended temperature applications, the probe tip can withstand up to +218°C (+425°F).

Precision Vibration Monitoring for Critical Machinery

In rotating machinery, undetected shaft vibration can lead to catastrophic failures, unplanned downtime, and costly repairs. The Bently Nevada 330101-00-35-10-02-00 3300 XL 8 mm probe provides the accuracy and durability needed for continuous vibration monitoring in harsh industrial environments. This non-contact eddy current probe measures shaft displacement with high repeatability, enabling early detection of developing faults.

Compatibility and Integration

This probe is designed for use with Bently Nevada 3300 XL Proximitor sensors and compatible monitoring systems. The miniature coaxial ClickLoc connector ensures a secure, quick connection. Standard cable length of 1.0 meter (3.3 feet) suits typical mounting distances. The probe is available with optional FluidLoc cable for oil leak prevention.

Selection Guide and Purchasing Advice

When selecting a vibration probe, consider the machine's operating temperature, required cable length, and mounting thread. The Bently Nevada 330101-00-35-10-02-00 offers proven performance for critical asset protection. For lifecycle status and availability, please verify with AutoDCSTech before ordering. Our team can help match the right probe to your application.

Troubleshooting and Common Issues

If the probe output is erratic, check the gap voltage and ensure the target surface is clean and within the linear range. Verify cable connections and inspect for damage. For signal noise, confirm proper shielding and grounding of field wiring. If the probe fails to respond, measure DC resistance at the connector (7.59 ± 0.50 Ω for 1.0 m probe) to check for open or short circuits.
