Technical Specifications Breakdown
Key parameters for the MVI46-MNETC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Backplane Current Load | 800 mA @ 5 Vdc |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock | 30 g operational, 50 g non-operational |
| Vibration | 5 g from 10 to 150 Hz |
| Processor Compatibility | Rockwell Automation SLC 5/02 M0/M1 capable or newer |
| Ethernet Port | 10/100 MB Application port, RJ45 connector |
| Electrical Isolation | 1500 Vrms at 50 Hz to 60 Hz for 60 seconds (per IEC 60950: 1991) |
| Ethernet Broadcast Storm Resiliency | ≤5000 ARP frames/sec, ≤5 minutes duration |
Industry Applications
Streamlining Data Acquisition in Process Control
In process industries, the module is used for polling remote I/O and sensors over Modbus TCP/IP. With support for up to 30 Clients and 16 commands each, it can efficiently gather data from multiple devices, reducing scan times and improving process visibility.
Enabling Floating-Point Transactions in Energy Management
The MVI46-MNETC supports the Enron version of Modbus protocol, which is essential for floating-point data transactions. This is particularly valuable in energy monitoring systems where precise measurement values must be transferred without data loss.
Enhancing Machine Monitoring in Discrete Manufacturing
Discrete manufacturing lines often use Modbus TCP/IP to connect to variable frequency drives and smart sensors. The module's optimized polling characteristic polls servers with communication problems less frequently, ensuring reliable data flow even in noisy environments.
Installation & Setup Guidance
Proper installation is critical for reliable operation. The module can be placed in a local or remote rack. Ensure the backplane current load does not exceed 800 mA @ 5 Vdc. Use the supplied RJ45 to DB-9 cable for the debug/configuration port. For Ethernet connections, use a standard RJ45 cable.
Before powering up, verify the processor is SLC 5/02 M0/M1 capable or newer. Configure the module using the CFG port with RS-232. No hardware handshaking is required. Set the IP address and other network parameters to match your network scheme.
When programming, use the MSG instruction for message transfer to access special functions like Event Commands and Command Control. The Client command control word allows you to enable or disable commands from ladder logic. Remember that conditional write commands are not supported.
Maintenance & Reliability
Regular inspection of the module and its connections is recommended. Check for dust accumulation on the RJ45 connectors and ensure the operating temperature stays within 0°C to 60°C. The module is designed for 5% to 95% relative humidity without condensation. Avoid exposing it to shock or vibration beyond the rated limits (30 g operational, 50 g non-operational, 5 g vibration).
Periodically review network error counters and port status data available in user data memory. This helps identify potential communication issues early. The built-in Modbus network analyzer can be used for deeper diagnostics.

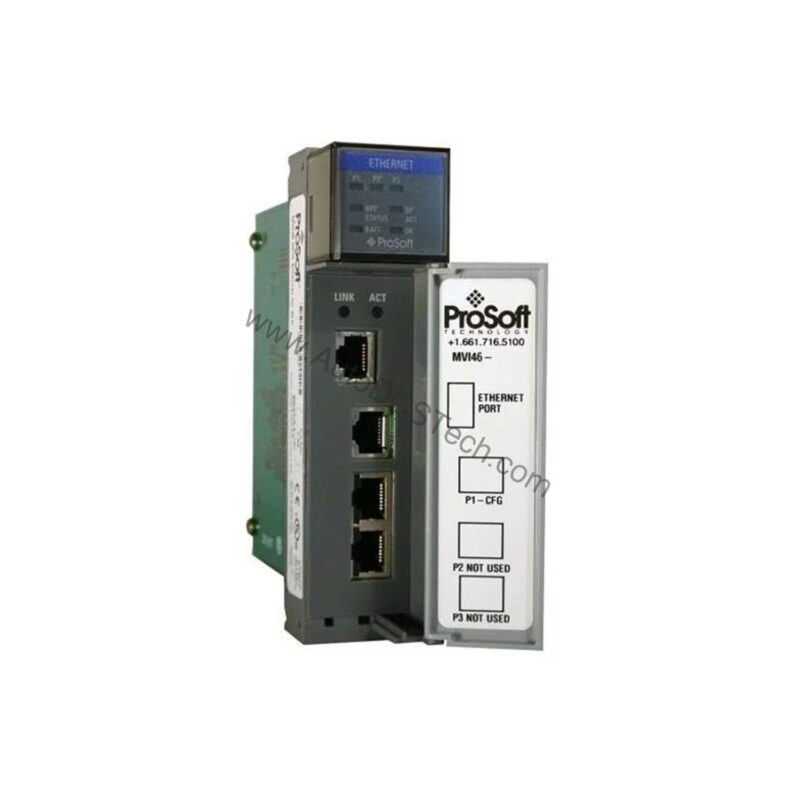

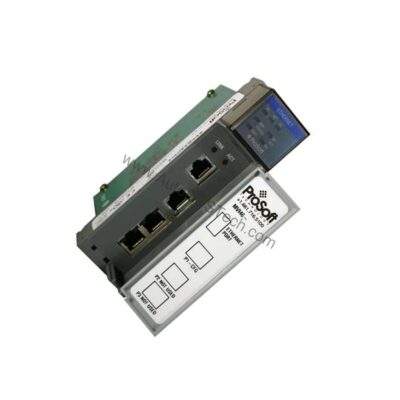

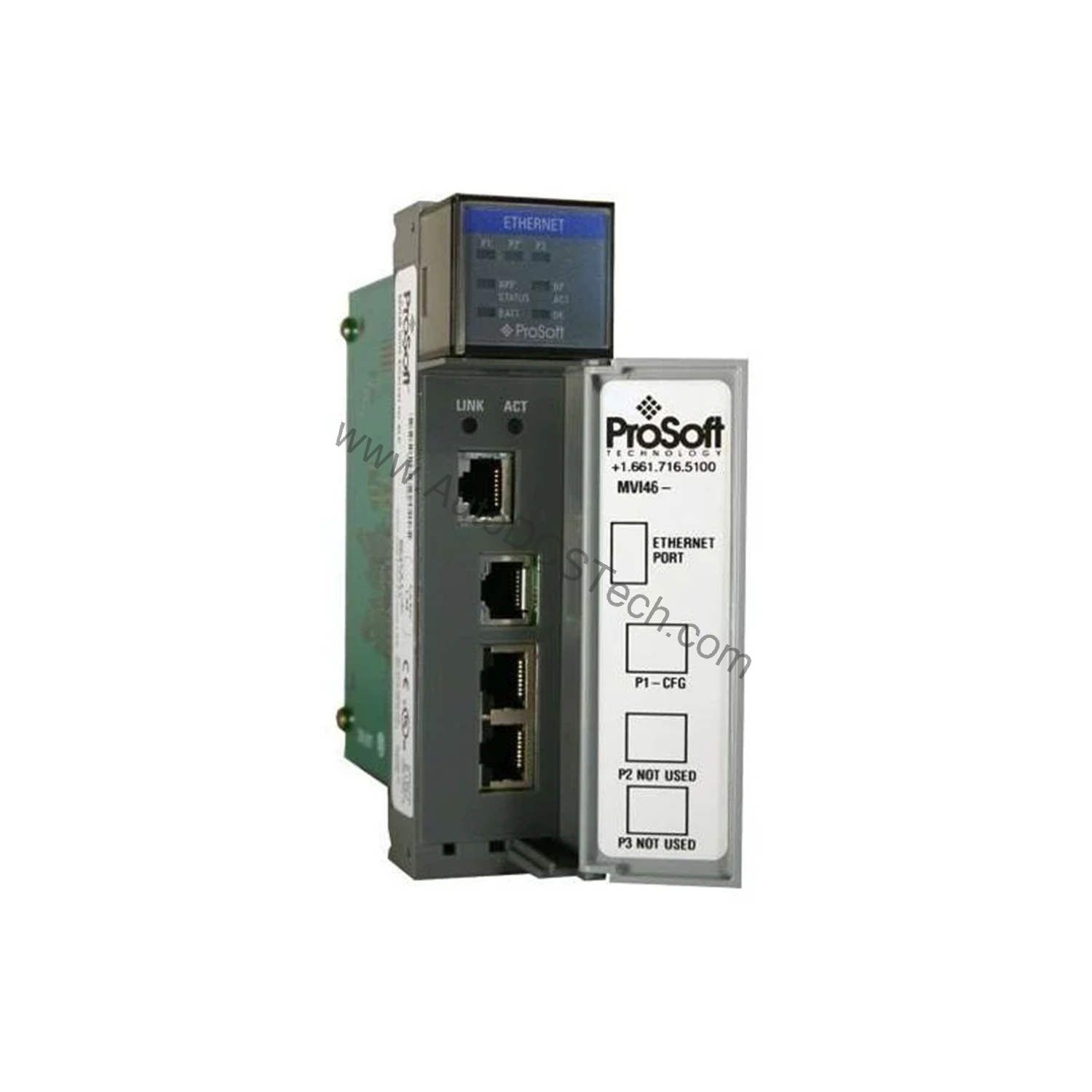

Optimize Modbus TCP/IP Performance with the Allen-Bradley MVI46-MNETC
Industrial networks demand reliable, high-speed data exchange between controllers and field devices. The Allen-Bradley MVI46-MNETC is a communication module engineered to deliver efficient Modbus TCP/IP connectivity for SLC 5/02 and newer processors. It is designed for applications where dedicated servers are not required, reducing complexity and improving response times.
This module operates on a local or remote rack, giving you flexibility in system layout. It supports up to 30 Clients, each with up to 16 commands, allowing extensive polling and data collection. The Client command control word uses one bit per command, enabling easy enable/disable from ladder logic. Note that conditional write commands are not supported.
Compatibility & Integration
The MVI46-MNETC is compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer. The module supports Modbus TCP/IP, with data mapping starting at register 40001. It also supports the Enron version of Modbus for floating-point data.

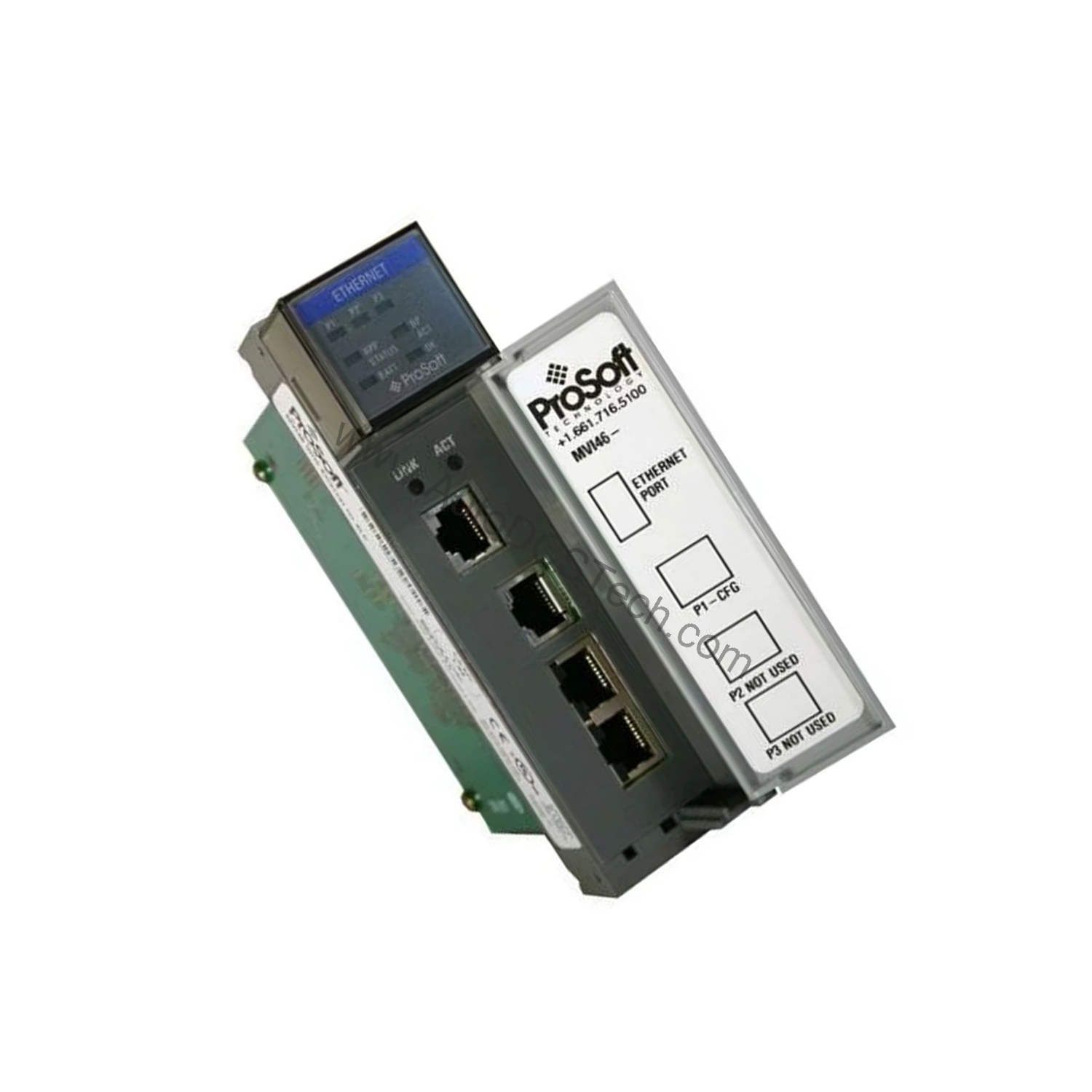

For configuration, use the CFG port (RS-232) with the supplied cable. The Ethernet application port supports 10/100 MB speeds. The module includes LED indicators for module status, backplane transfer, application status, serial activity, Ethernet link/activity, and error status.
Selection Guide & Purchasing Advice
When selecting a communication module, consider your network size and data requirements. If you need conditional write support, consider alternative modules.
AutoDCSTech offers the MVI46-MNETC for your industrial automation needs. Contact us to verify current lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If the module fails to communicate, check the Ethernet link and activity LEDs. Ensure the IP address is correctly configured. Use the debug port to view status messages. If the module is not recognized by the processor, verify backplane seating and power.
Network errors can be monitored via error codes and counters in user data memory. If broadcast storms are suspected, the module can withstand up to 5000 ARP frames per second for 5 minutes. If issues persist, consult the user manual or contact AutoDCSTech for technical support.
Availability & Condition at AutoDCSTech
| Part Number | MVI46-MNETC |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
